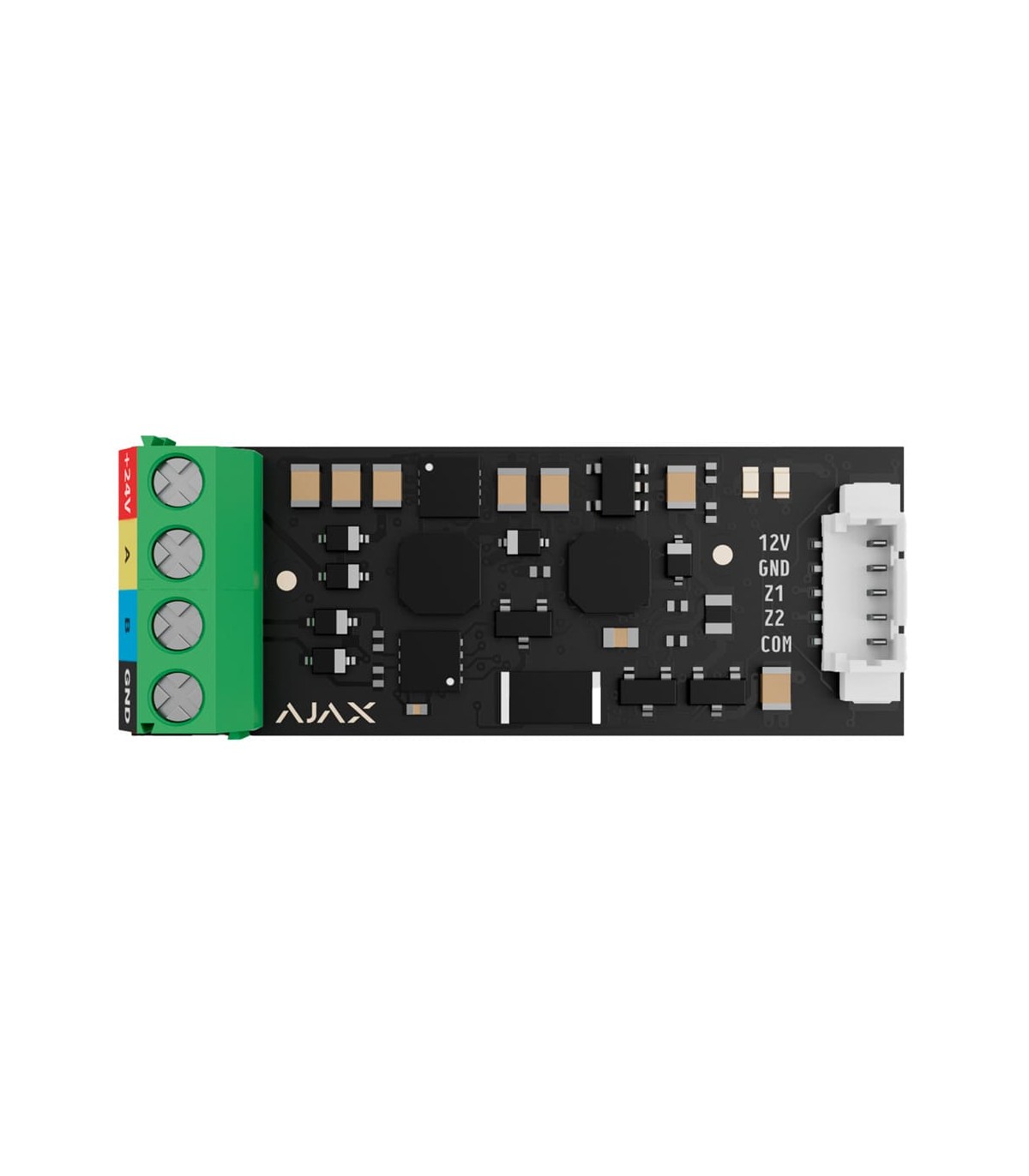

Third-party device integration module
Product reserved for professional Ajax certified installers
- Fibra Protocol
- Grade 3 approved
- 2 wired inputs
- Alarm configurable NC, NO, EOL, 2EOL, 3EOL
- Power output 12V / 50 mA
Reference:
FIBRA-TRANSMITTER
Brand:
Add to compare0
Add to wishlist
| Brand | Ajax Fibra |
| Safety grade | Grade 3 |
| Transmission distance | Up to 2000 m (Recommended): twisted pair U/UTP cat. 5) |
| Bus connection | 4 wire cable |
| Wired inputs | 2 inputs |
| Operating mode | Alarms or change arming modes |
| Types of events | Intrusion, Fire, Medical aid, Panic button, Gas alarm, Tamper alarm, Malfunction, Flood, Glass breakage, High temperature, Low temperature, Masking, Duress code (opening), Vibration (seismic sensor), Customized |
| Alarm inputs | NO, NC, EOL, 2EOL, 3EOL / Impulse or bistable |
| End-of-line resistor EOL | From 1 kΩ to 15 kΩ with increments of 100 Ω |
| Cable length | Up to 3 meters |
| Power supply output | 10.5-15 V / up to 50 mA output (max.) for wired devices |
| Compatibility | Compatible with Hub Hybrid (2G and 4G) |
| Power | 24 V DC (Consumption up to 200 mA) |
| Advanced features | KeyArm Zone |
| Temp. operation | -10 ºC ~ 40 ºC |
| Dimensions | 15 (H) x 40 (W) x 12.2 (D) mm |
