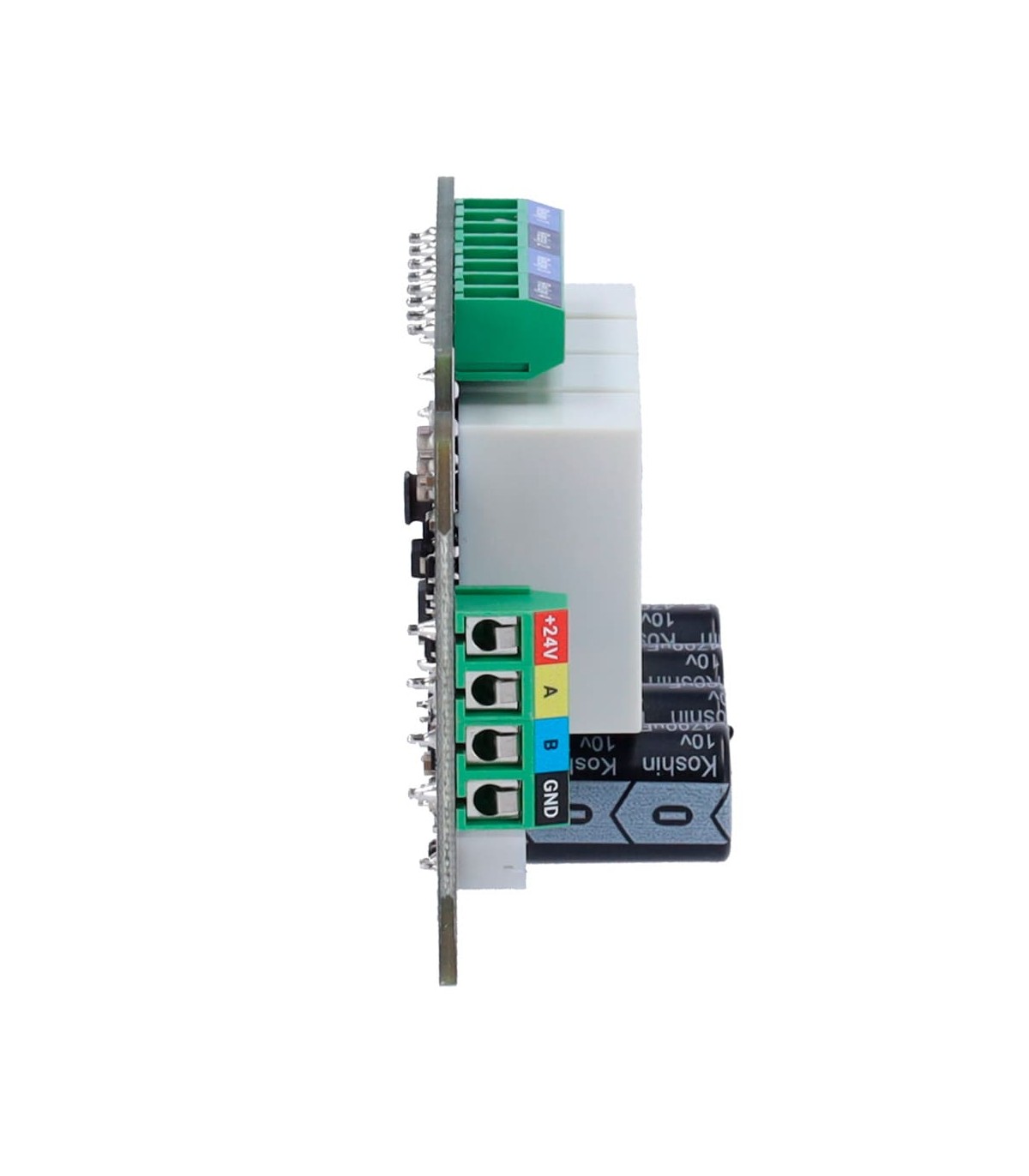

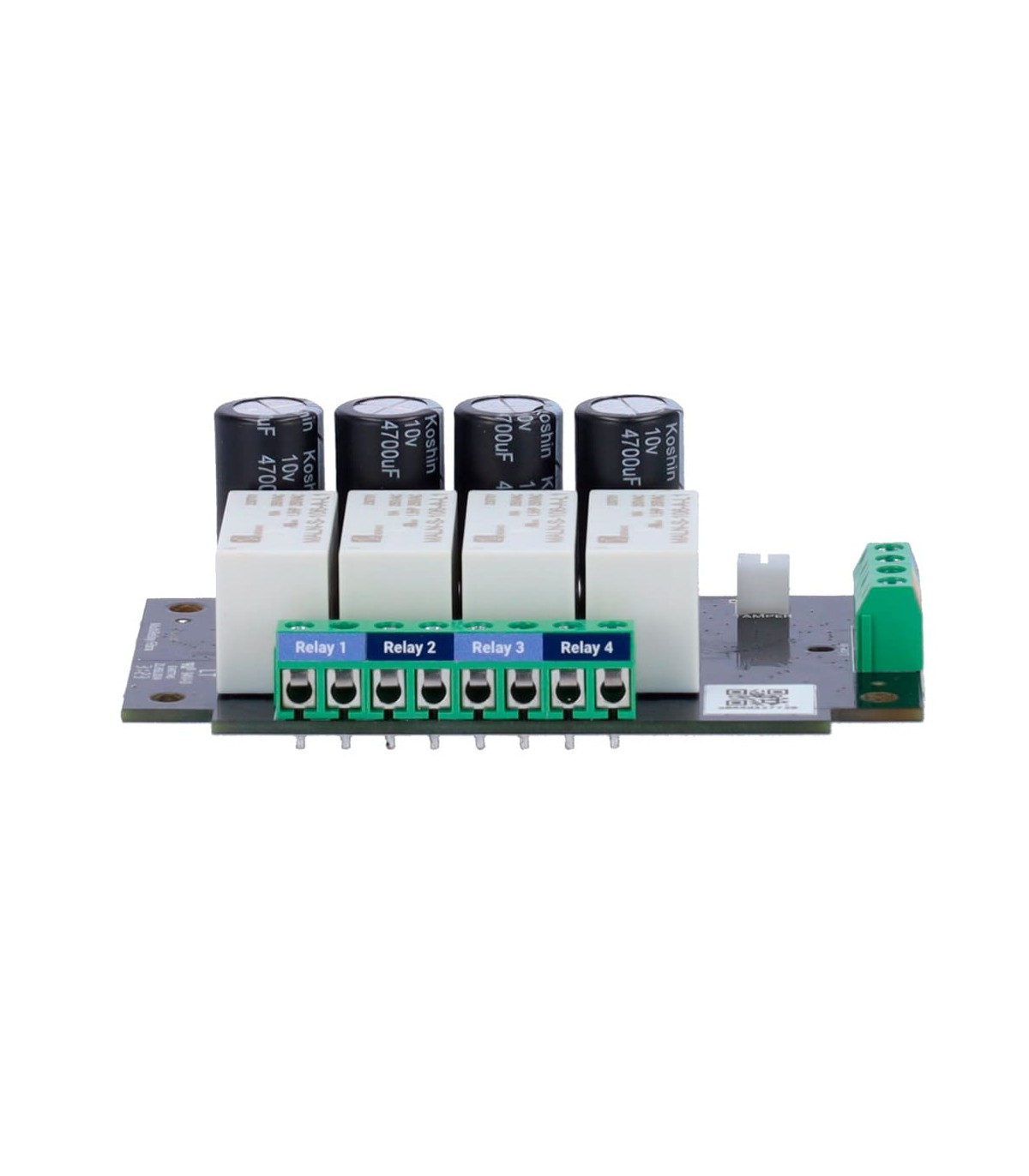

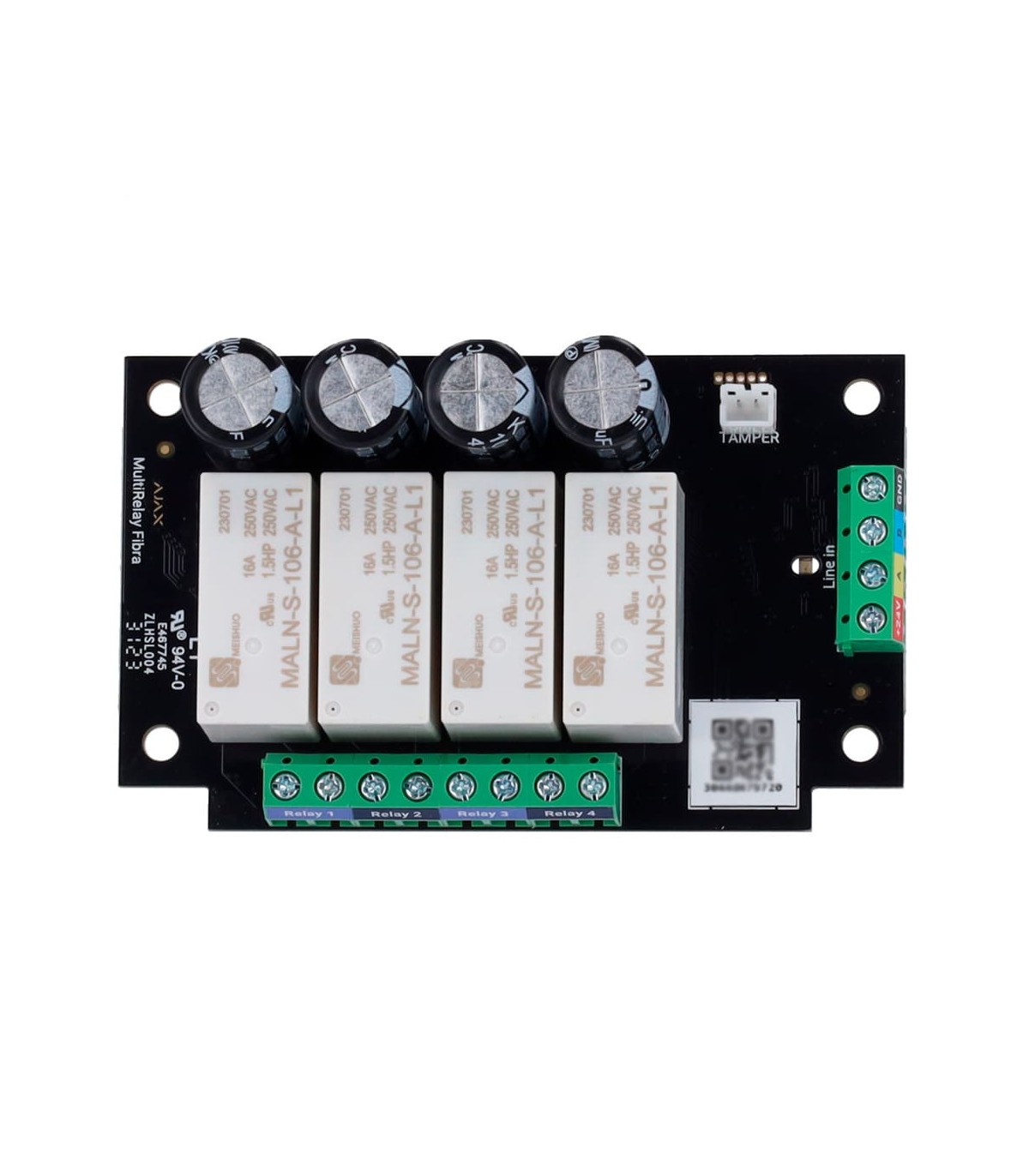

Module with 4 independent relays
Product reserved for professional Ajax certified installers
- Module with 4 independent relays
- Fibra Protocol
- Grade 3 approved
- Contact status: NC and NO
- 2 operating modes: pulse and bistable
Reference:
FIBRA-MULTIRELAY
Brand:
Add to compare0
Add to wishlist
| Brand | Ajax Fibra |
| Security grade | Grade 3 |
| Number of input lines | 1 |
| Number of relays | 4 |
| Contact statuses | Normally open (NO) and Normally closed (NC) |
| Operating modes | Bistable or impulse |
| Impulse mode operating time | From 10 seconds to 2 hours |
| Compatibility with circuits | Alternate current and direct current |
| Maximum current | up to 5 A to 30 V⎓ to 10 A to 230 V~ |
| Transmission distance | Up to 2000 m (Recommended): twisted pair U/UTP cat. 5) |
| Tamper-resistant opening | Available (connected to the housing) |
| Bus connection | 4 wire cable |
| Power | 24 VDC of fiber bus |
| Compatibility | Compatible with Hub Hybrid (2G and 4G) |
| Temp. operation | -10 ºC ~ 40 ºC |
| Dimensions | 55 (H) x 90 (W) x 30 (D) mm |
| Weight | 84 g |
