Wired zone expander Degree 3
Product reserved for professional Ajax certified installers
- Wired zone expander Degree 3
- Fibra Protocol
- Up to 18 wired inputs
- Alarm configurable NC, NO, EOL, 2EOL, 3EOL
- Double tamper anti-opening
- Double power output 12V / 1A
Reference:
FIBRA-MULTITRANSMITTER-NOCASE
Brand:
Add to compare0
Add to wishlist
| Brand | Ajax Fibra |
| Security grade | Grade 3 |
| Transmission distance | Up to 2000 m (Recommended): twisted pair U/UTP cat. 5) |

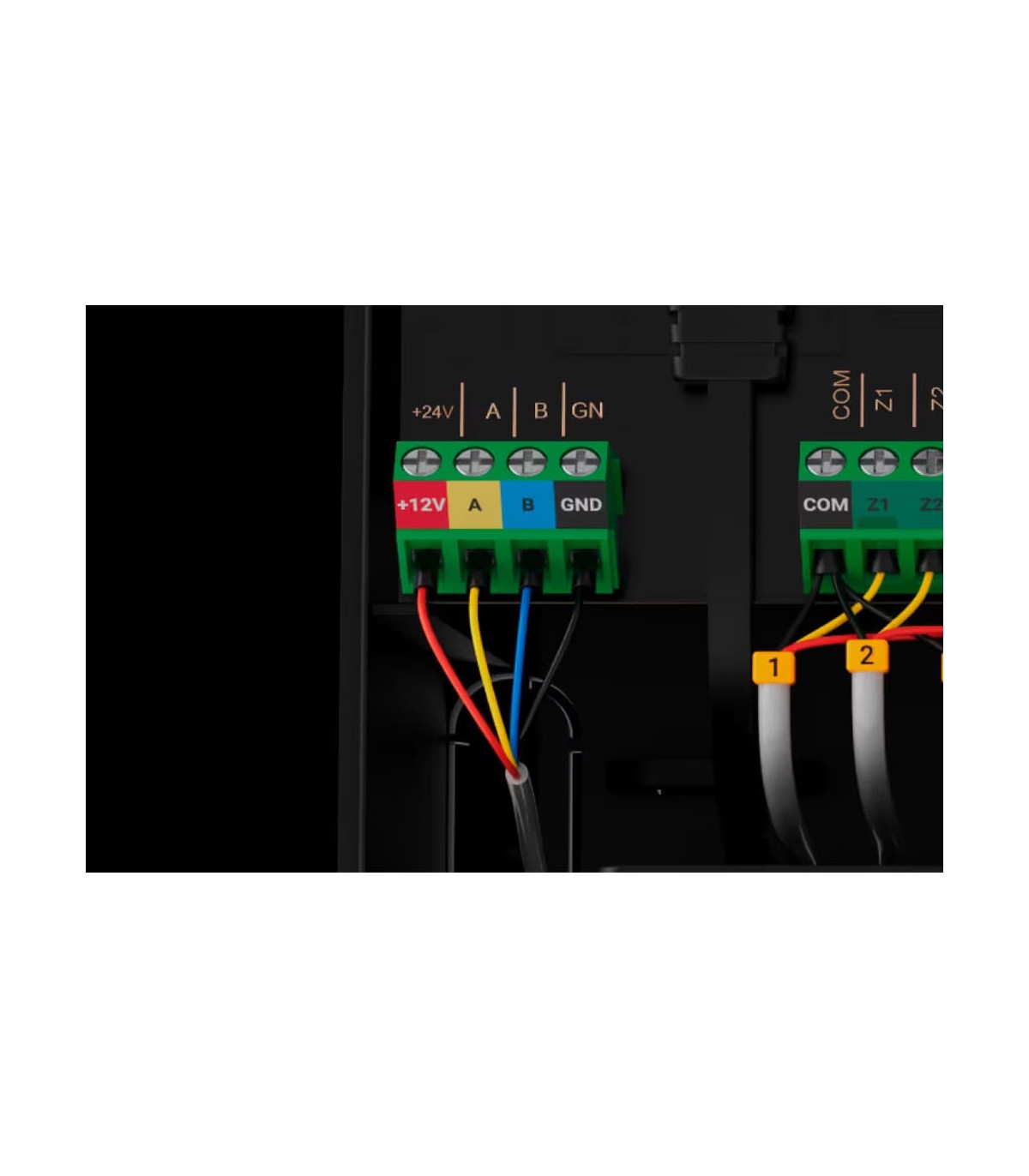

| Bus connection | 4 wire cable |
| Wired inputs | Up to 18 inputs |
| Operating mode | Alarms or change arming modes |
| Types of events | Intrusion, Fire, Medical aid, Panic button, Gas alarm, Tamper alarm, Malfunction, Flood, Glass breakage, High temperature, Low temperature, Masking, Duress code (opening), Vibration (seismic sensor), Customized |
| Tamper input | NC: Normally Closed |
| Alarm inputs | NO, NC, EOL, 2EOL, 3EOL / Impulse or bistable |
| End-of-line resistor EOL | From 1 kΩ to 15 kΩ with increments of 100 Ω |
| Cable length | Up to 400 meters |
| Tamper-resistant opening | Front and back |
| Power supply output | Two outputs 12 V / 1 A (in total) for wired sensors |
| Compatibility | Compatible with Hub Hybrid (2G and 4G) |

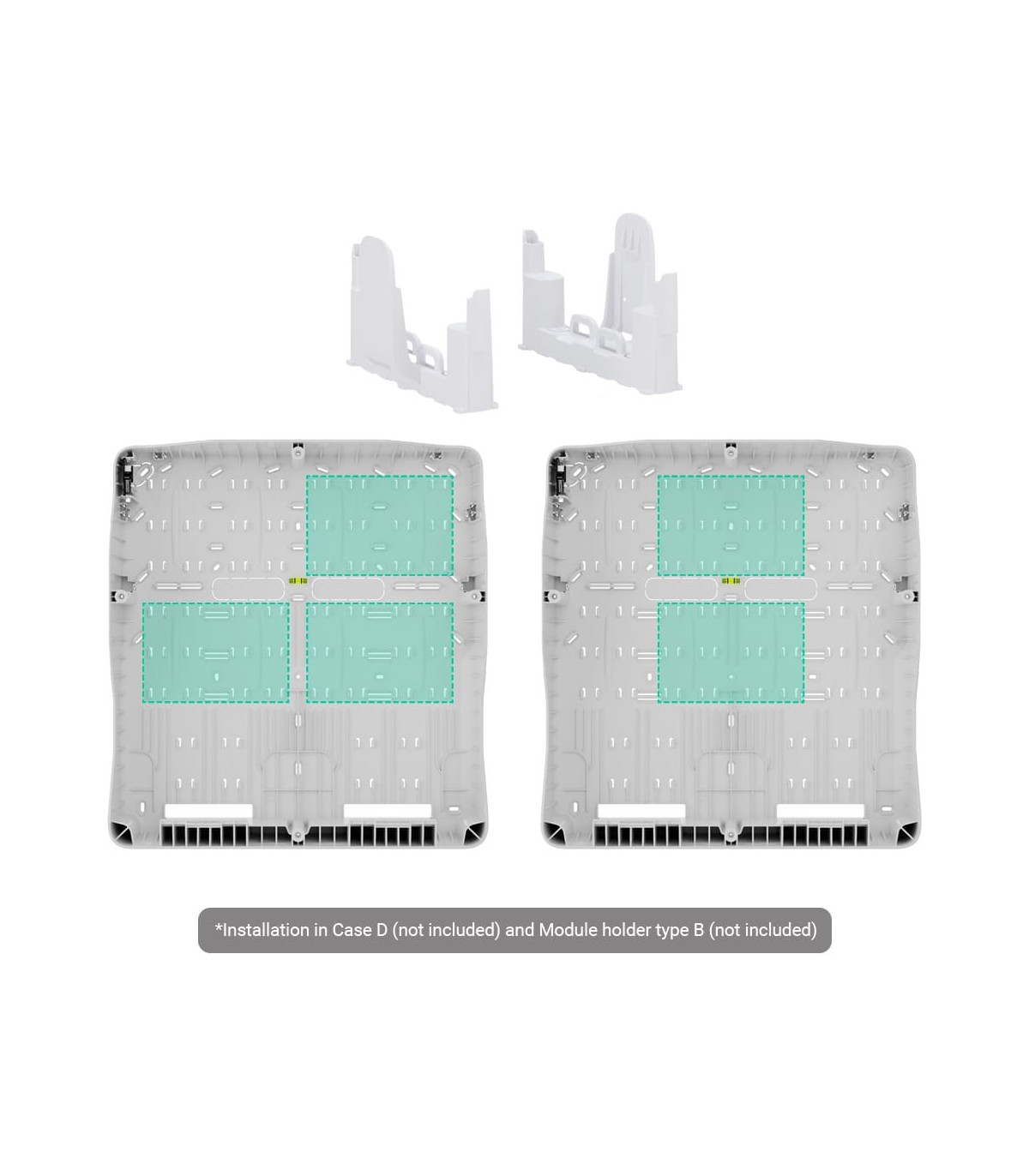

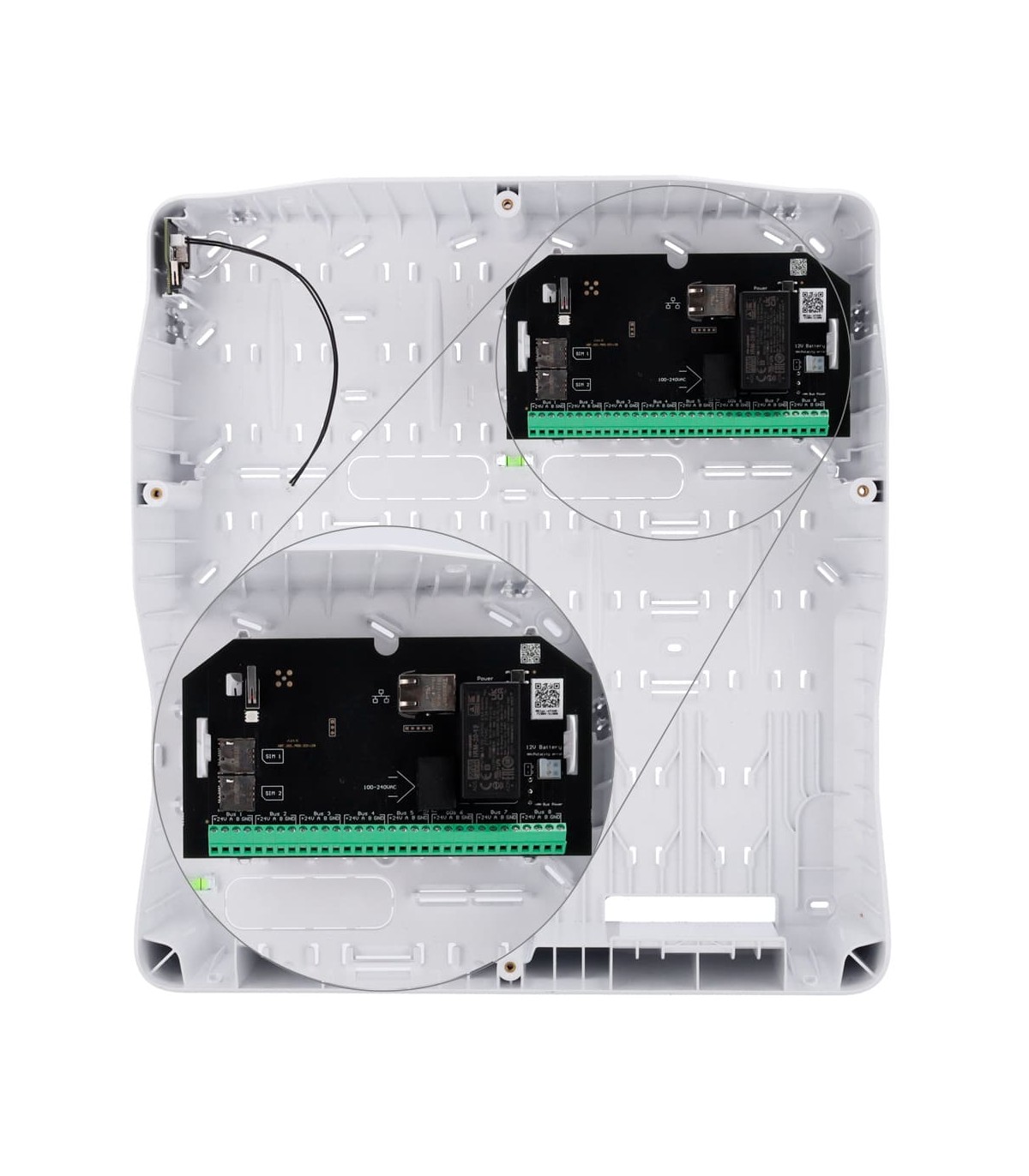

| Compatible housings | FIBRA-CASE-D430-W/B and FIBRA-MODULEHOLDER-B-W/B module support |
| Power | AC 110~240 V, 50/60 Hz |
| Backup battery | Battery 12 V / up to 7 Ah (not included) |
| Advanced features | KeyArm Zone |
| Temp. operation | -10 ºC ~ 40 ºC |
| Dimensions | 185 (W) x 99 (H) x 28 (D) mm |
