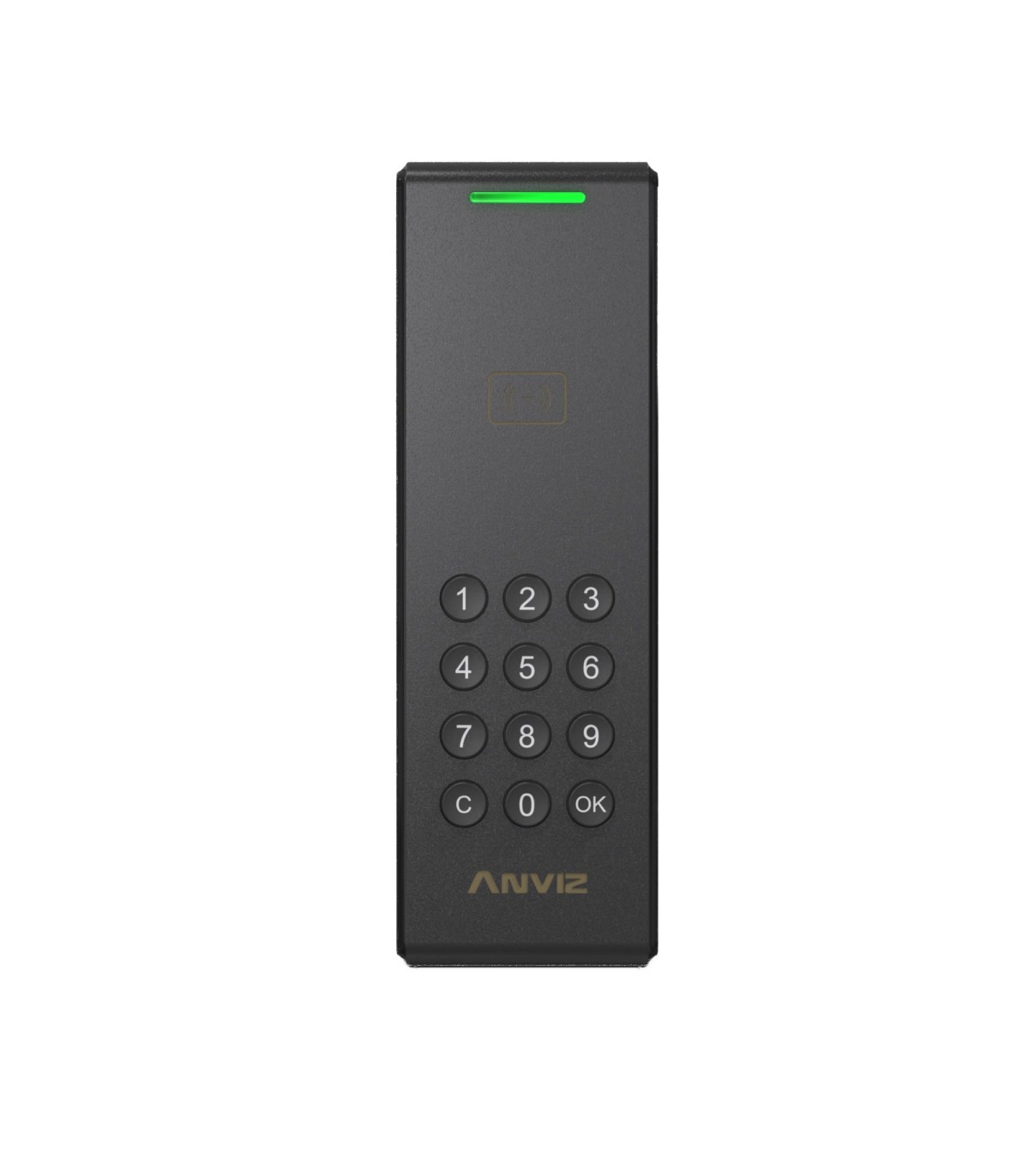

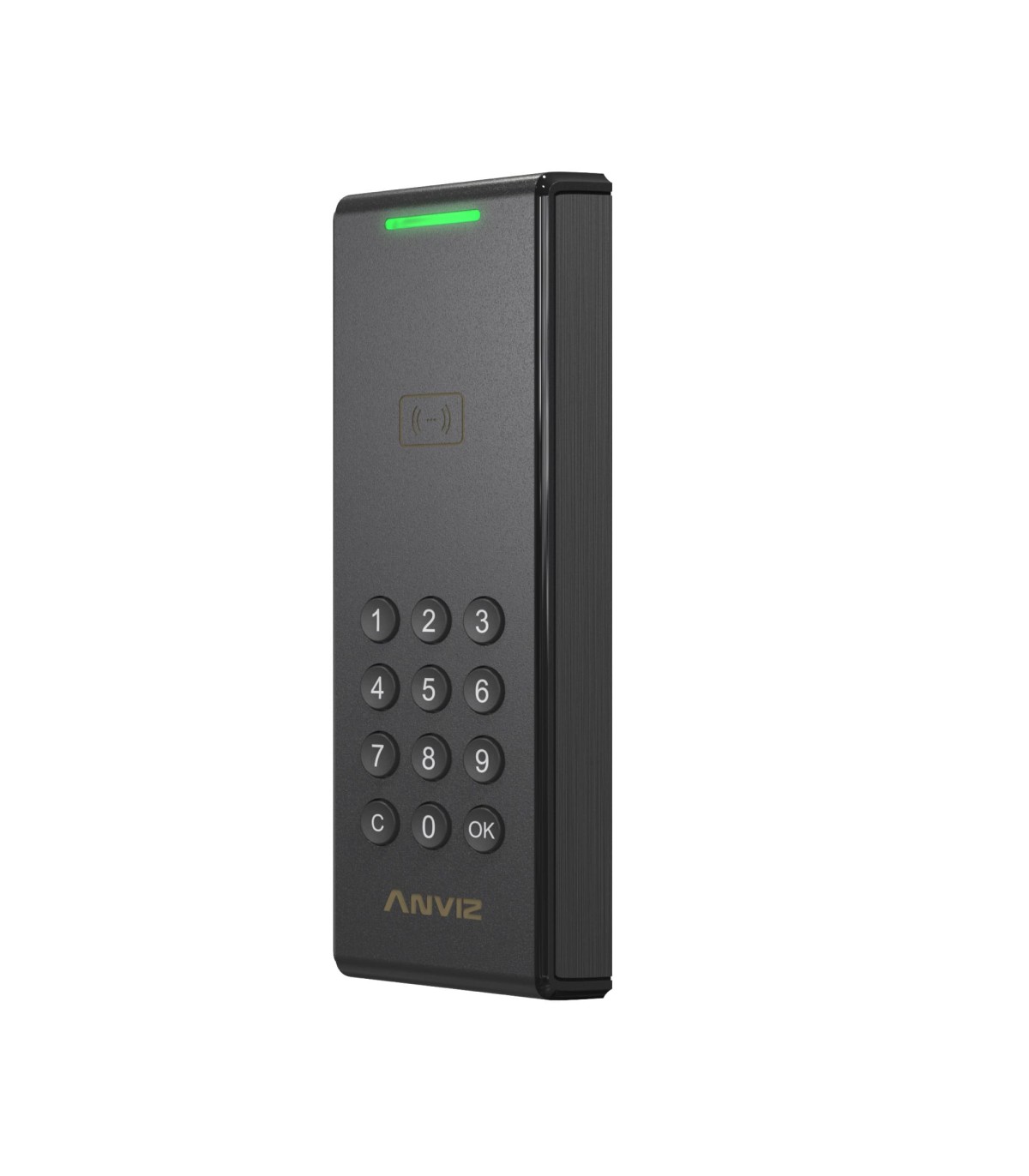

PoE access control IP65
EM/MF card and PIN
10.000 users | 100.000 records
TCP/IP, WiFi, Bluetooth, RS485 and Wiegand
Integrated controller
CrossChex Standard / Mobile
| Brand | Anviz |
| Model | C2KA-BT-WIFI |
| Capacity | Up to 10.000 cards/passwords |
| Records | 100.000 registers |
| Identification modes | Card, PIN and/or combinations |
| Proximity card | EM RFID (125 kHz) and MF (13.56 MHz) |
| Communication | TCP/IP, WiFi, Bluetooth, RS485 and Wiegand |
| Inputs | 1 x door sensor, 1 x pushbutton, 1 x Wiegand IN |
| Outputs | 1 x relay NO/NC, 1 x Wiegand OUT, 1 x DC 12 V |
| Software | CrossChex Standard: free local PC software for access and presence control CrossChex Mobile: free mobile application for access control |
| Voices | Spanish, English, French and Portuguese Change of language via WebServer with browser |
| Power | DC 12 V / 1 A max. Standard PoE IEEE802.3af |
| Degree of protection | Suitable for exterior IP65 |
| Temp. operating | -10 ºC ~ +60 ºC |
| Dimensions | 50 (W) x 159 (H) x 20 (D) mm |
| Weight | 450 g |
Time & Attendance control
Fingerprint, EM/MF card and PIN
3.000 users | 100.000 records
TCP/IP, WiFi, Bluetooth, USB and RS485
3.5" TFT | Siren relay output
CrossChex Standard / Cloud / Mobile
Time & Attendance control
EM/MF card and PIN
3.000 users | 100.000 records
TCP/IP, WiFi, Bluetooth, USB and RS485
3.5" TFT | Siren relay output
CrossChex Standard / Cloud / Mobile
PoE access and presence control
Fingerprint, MF card and PIN
3.000 users | 100.000 records
TCP/IP, WiFi, USB, RS485 and Wiegand
2.4" TFT | Integrated controller
CrossChex Standard / Cloud
PoE access and presence control
Fingerprint, EM card and PIN
3.000 users | 100.000 records
TCP/IP, WiFi, USB, RS485 and Wiegand
2.4" TFT | Integrated controller
CrossChex Standard / Cloud
Time & Attendance control
EM card and PIN
10.000 users | 100.000 records
TCP/IP and USB
2.8" TFT | 8 Presence modes
CrossChex Standard / Cloud
