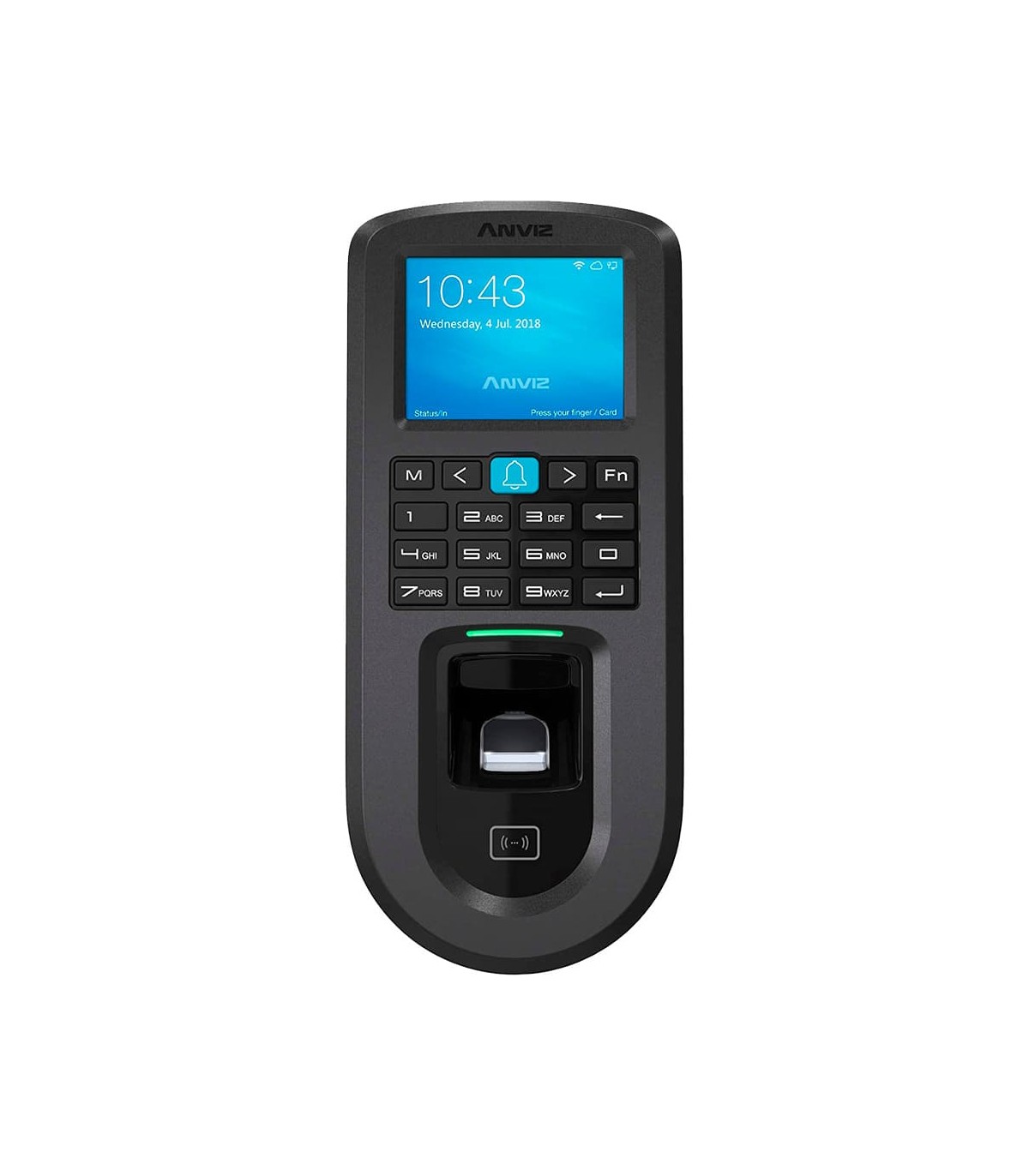

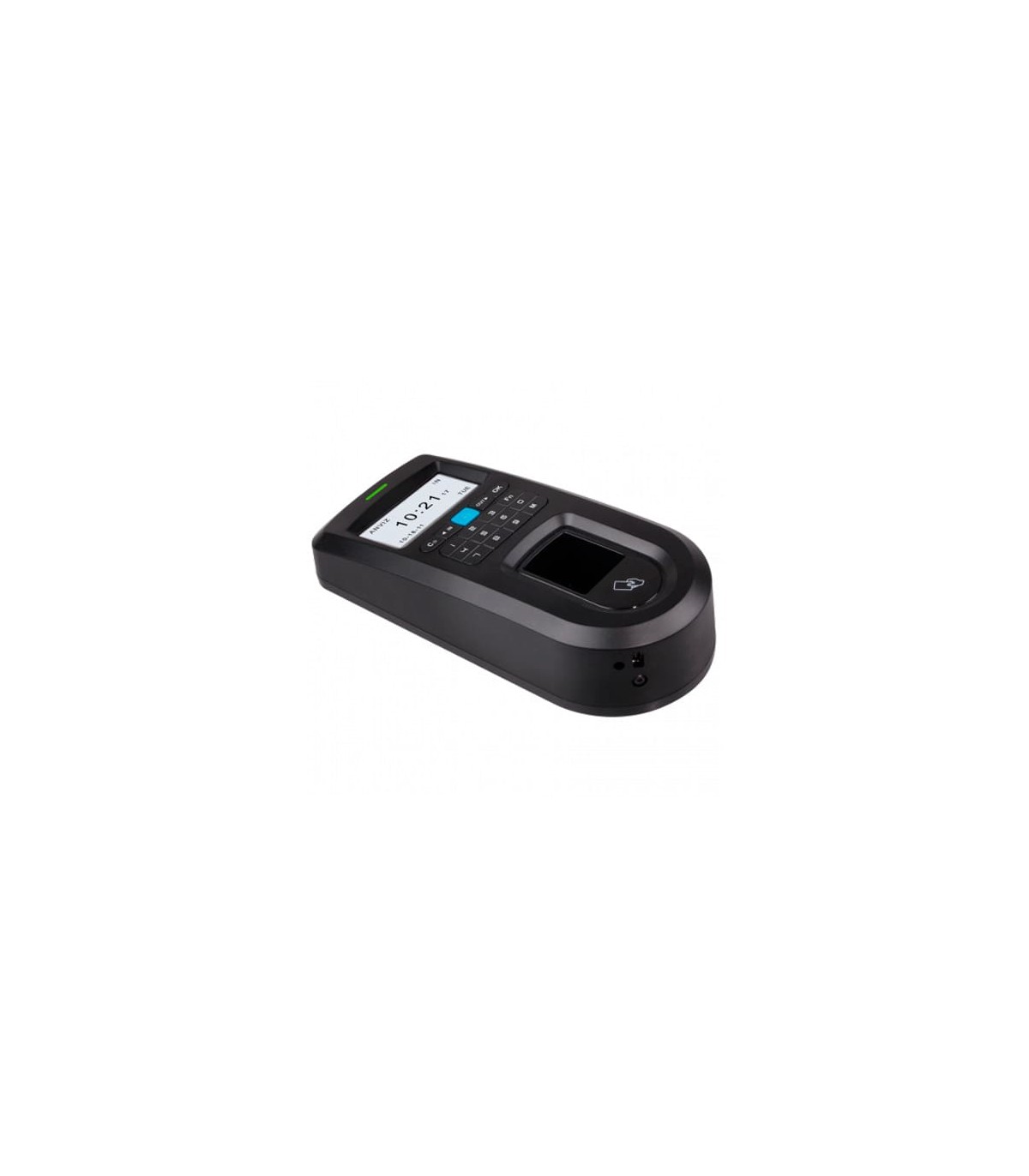

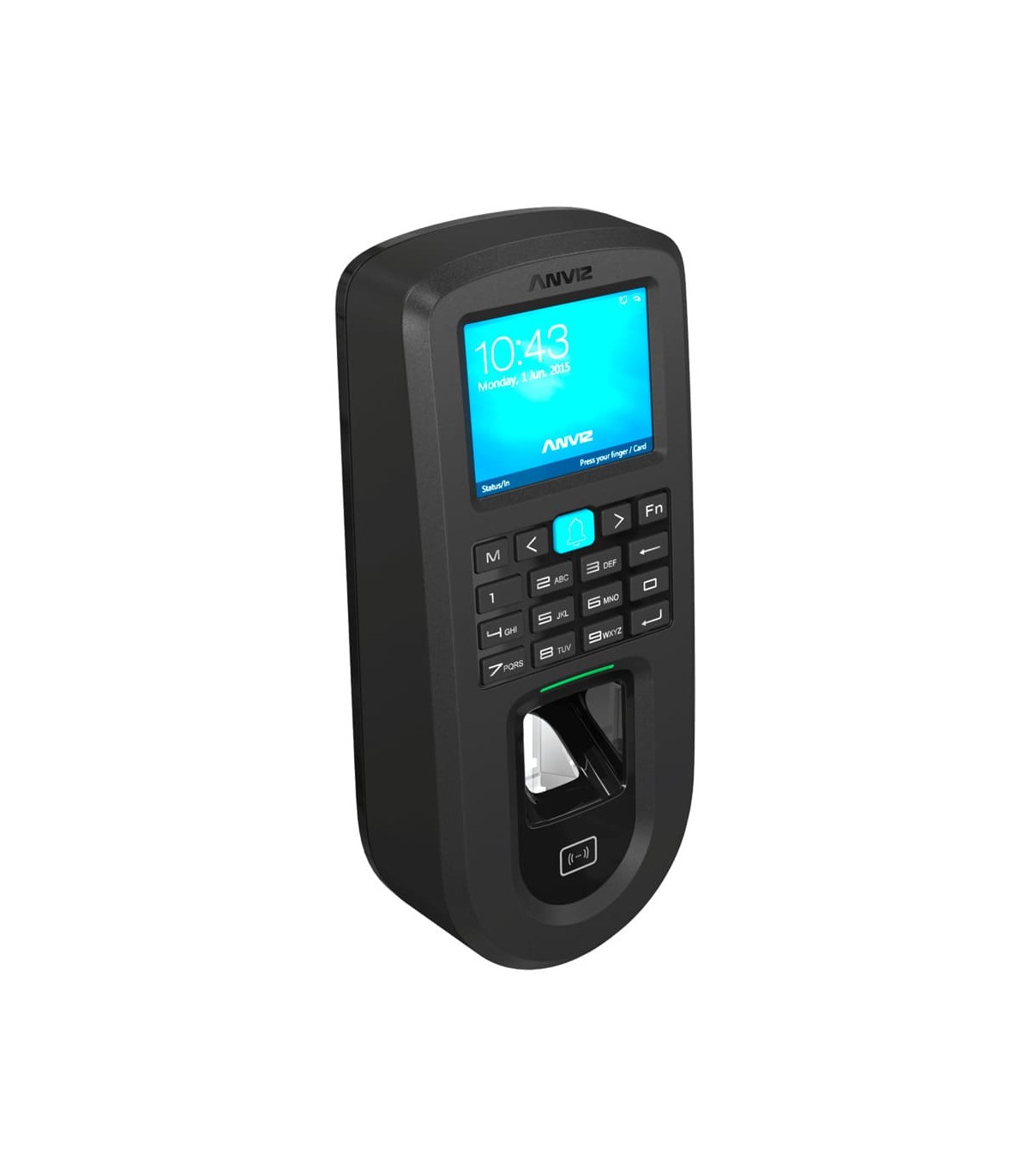

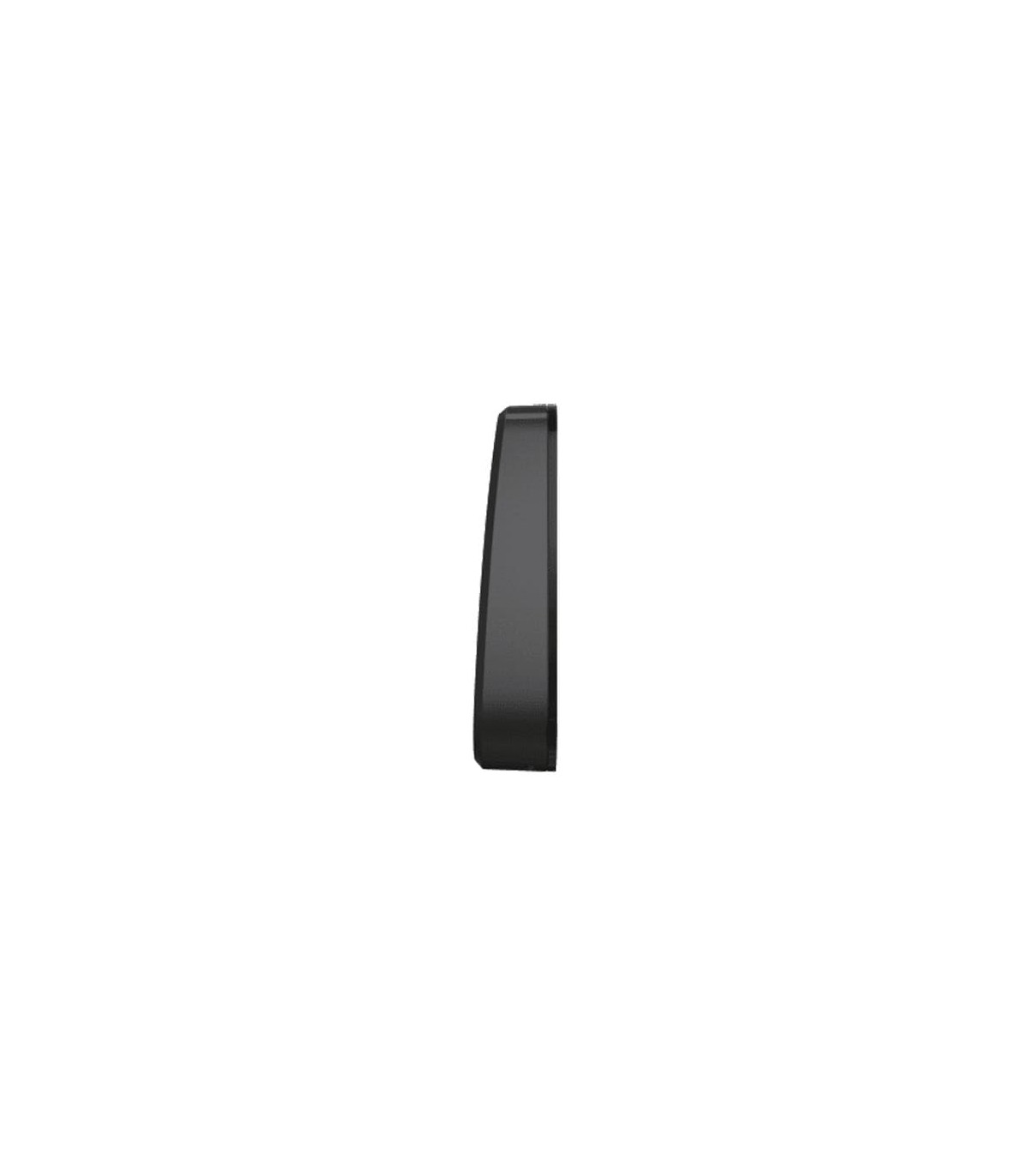

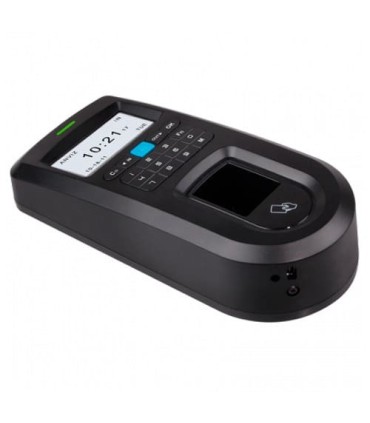

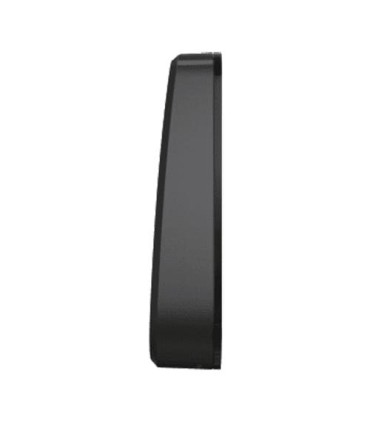

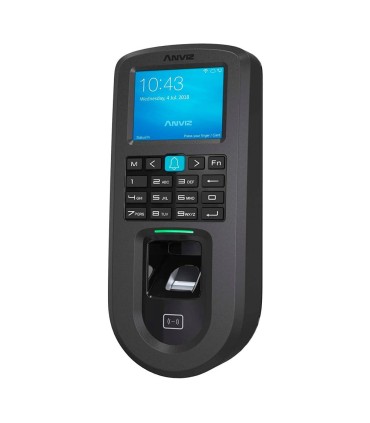

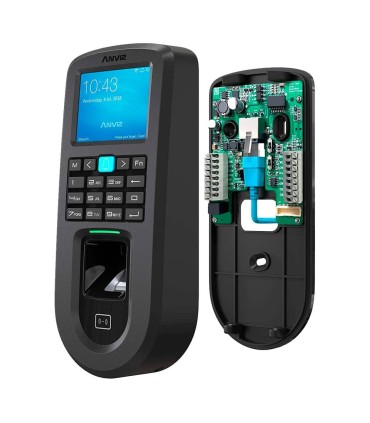

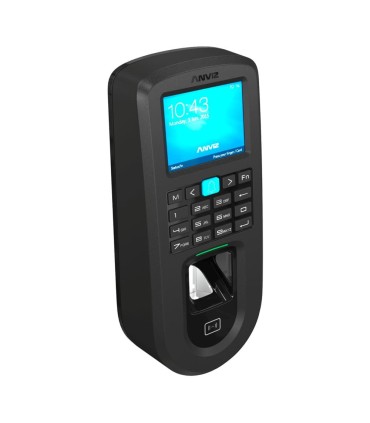

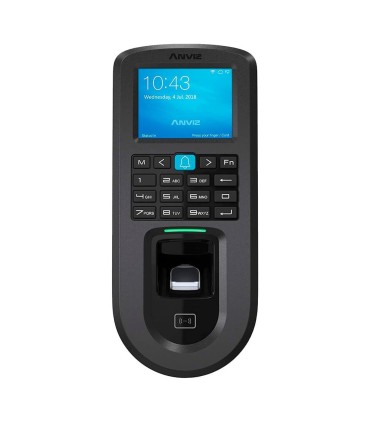

PoE access and presence control
Fingerprint, MF card and PIN
3.000 users | 100.000 records
TCP/IP, WiFi, USB, RS485 and Wiegand
2.4" TFT | Integrated controller
CrossChex Standard / Cloud
| Brand | Anviz |
| Model | VF30-PRO-MF |
| Capacity | Up to 3.000 fingerprints and 3.000 cards/passwords |
| Records | 100.000 logs |
| Screen | 2.4" Color TFT LCD |
| Identification modes | Fingerprint, card, PIN and/or combinations |
| Proximity card | MF (13.56 MHz) Not suitable for use with DESFire (13.56 MHz cards) |
| Communication | TCP/IP, WiFi, USB, RS485 and Wiegand |
| Inputs | 1 x door sensor, 1 x pushbutton, 1 x Wiegand IN |
| Outputs | 1 x relay NO/NC, 1 x Wiegand OUT |
| Special functions | Doorbell and anti-passback |
| Software | CrossChex Standard: free local PC software for access and presence control CrossChex Cloud: free cloud for time and attendance control |
| Power | DC 12 V / 1 A max. Standard PoE IEEE802.3af |
| Degree of protection | Valid for interior |
| Temp. operating | -30 ºC ~ +60 ºC |
| Dimensions | 80 (W) x 180 (H) x 40 (D) mm |
| Weight | 200 g |
