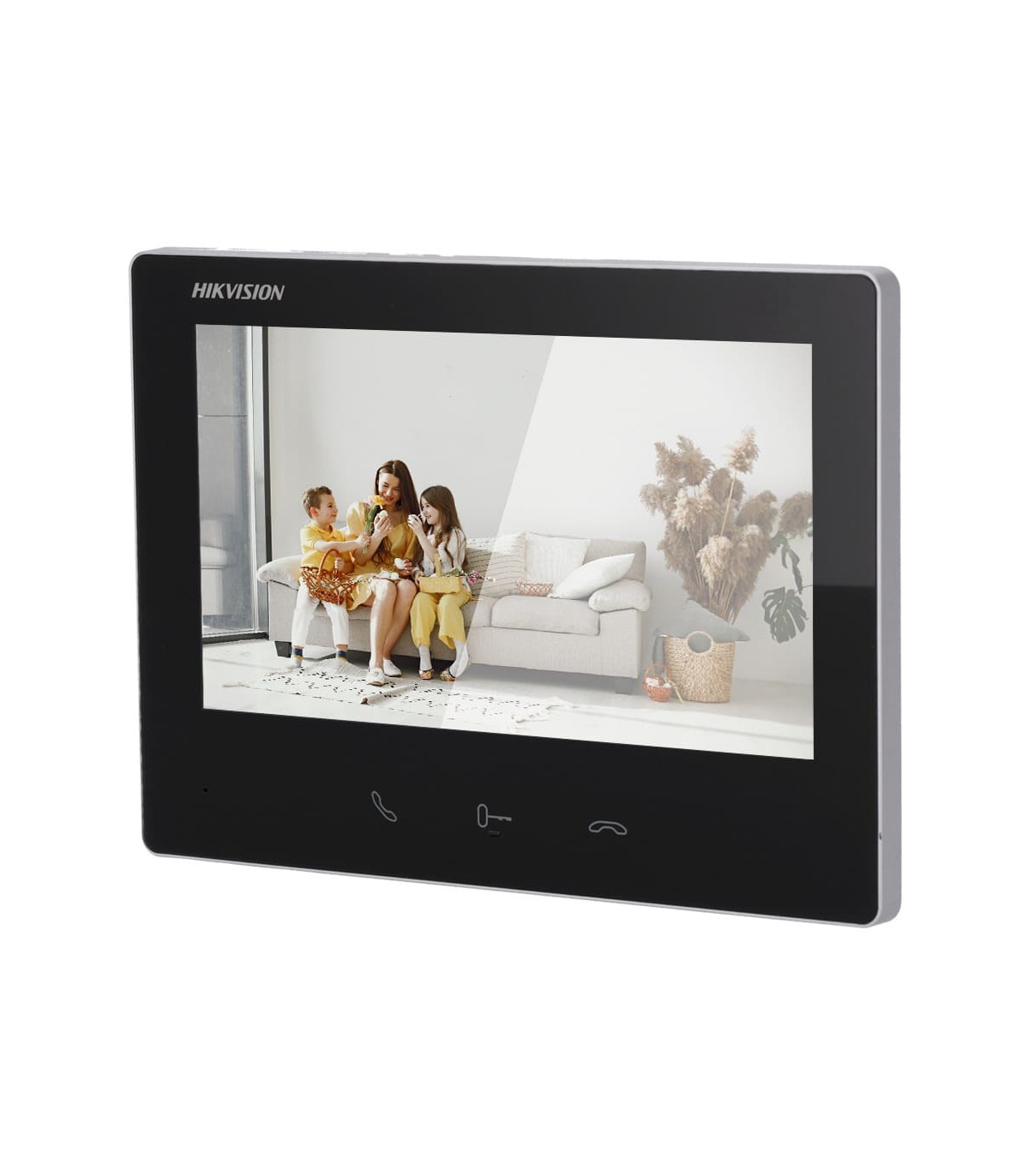

Video door entry monitor
7" TFT Screen
Two-way audio | Status LED
2 HD threads
MicroSD card slot up to 128 GB
Surface mounting
| Brand | Hikvision |
| Model | DS-KH7300EY-TE2 |
| Operating system | Linux |
| LCD | 7" color touch-screen TFT |
| Screen resolution | 1024 x 600 |
| Operation mode | Additional touch button panel: call initiation, call termination and door opening LED status indicator |
| Inputs | 1 x input of 2 HD wires, 1 x handheld headset |
| Outputs | 1 x output of 2 HD threads |
| Audio | Two-way audio with integrated microphone and loudspeaker Noise reduction and echo cancellation |
| Memory | MicroSD card slot (up to 128 GB) |
| Connection | 2 HD / RTSP wires |
| Remote access | Does not have |
| Power | Through specific Hikvision hub for 2 HD wires (4 W max.) |
| Temp. operation | -10º C ~ +50º C |
| Dimensions | 138 (H) x 190 (W) x 20 (D) mm |
| Weight | 350 g |
| Slave monitors | It is not possible to use monitors that do not belong to the 2 HD thread system |
Distributor for buildings
2 HD threads
6 groups of 2 HD threads
Powers devices to 2 HD wires
Cascading of hubs
Distributor for buildings
4 groups of 2 HD threads
Power up to 4 monitors of 2 HD threads
Power supply with DS-KAD7060EY or DS-KAD7061EY
Cascading of hubs

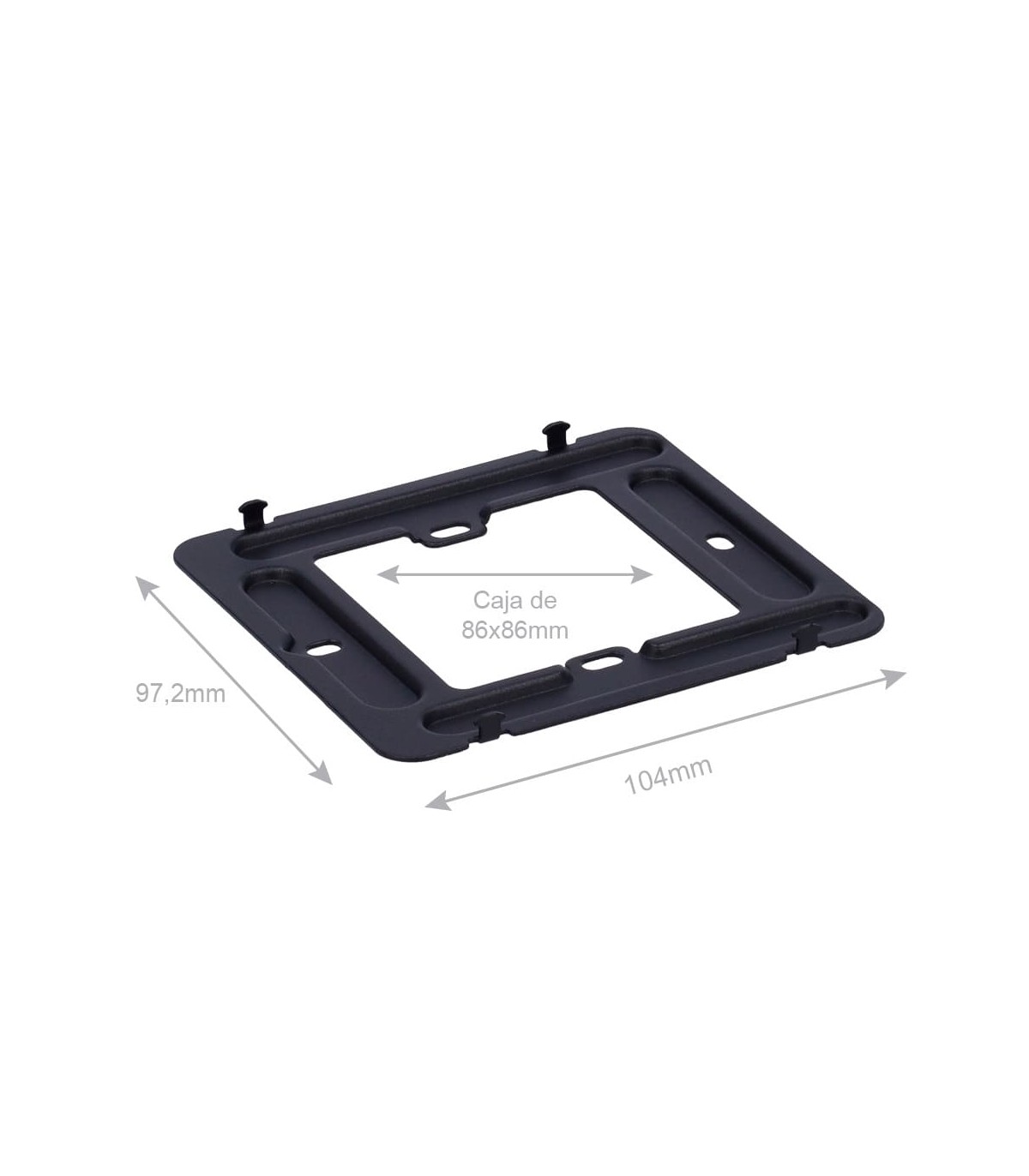

Size for standard gearbox
