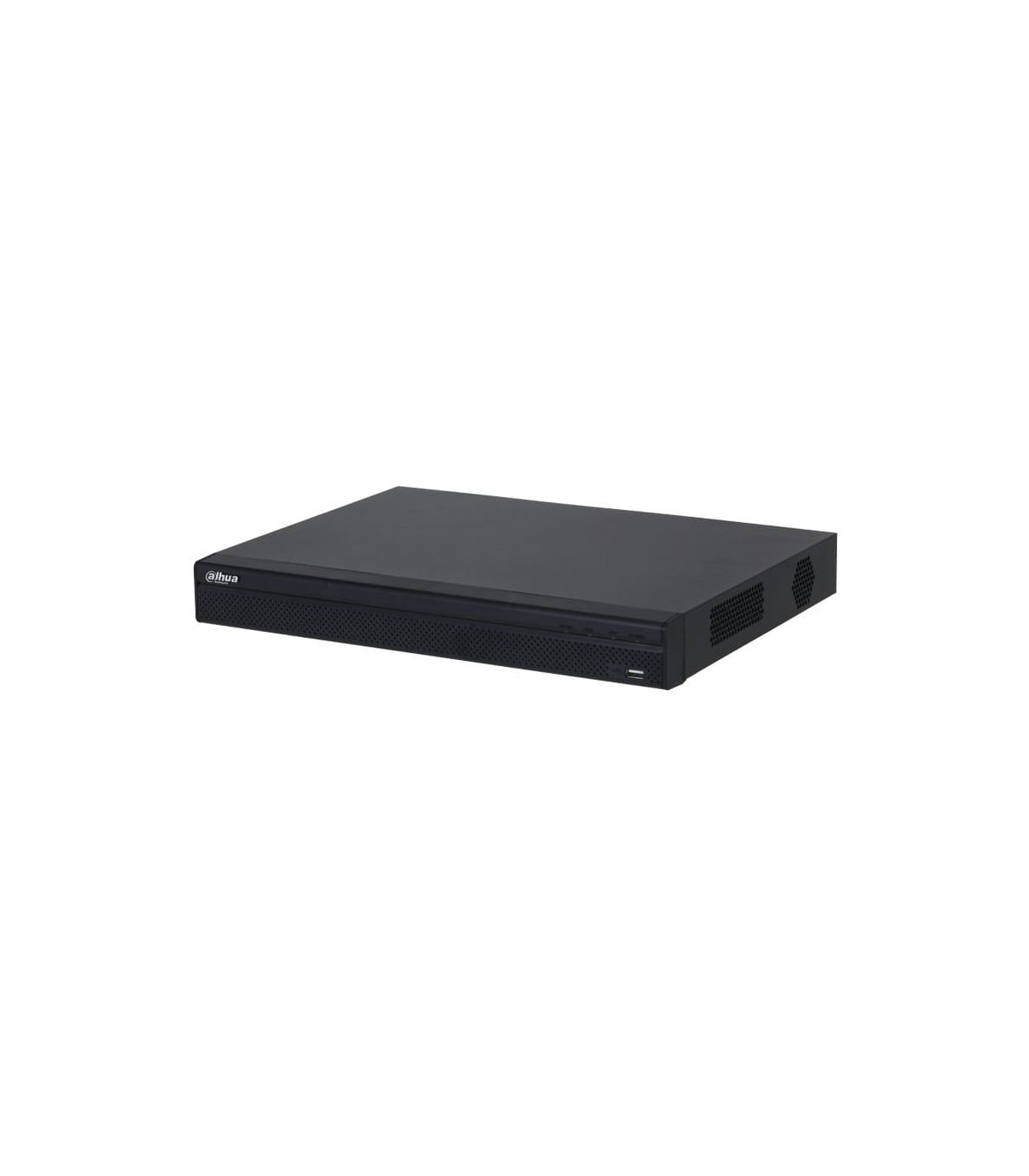

NVR4216-16P-4KS3 - Dahua 16 channel Network video recorder,16 PoE ports

16 IP channels

Video compression: Smart H.265+, H.265, Smart H.264+, H.264

Simultaneous HDMI (4K) and VGA (1080P) video outputs

Output division: 1, 4, 8, 8, 9, 9, 16

1 input / 1 output RCA audio

Audio compression: PCM, G.711a, G.711u, G726

Recording resolution: 12MP, 8MP, 6MP, 5MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1, CIF, QCIF

Bandwidth with AI disabled: 160Mbps input, 160Mbps recording, 80Mbps output

AI-enabled bandwidth: 80 Mbps input, 80 Mbps recording, 60 Mbps output

Decoding capacity with AI disabled:

1 channel at 12MP (30 fps)

2 channels at 8MP (30 fps)

3 channels at 5MP (30 fps)

4 channels at 4MP (30 fps)

8 channels at 1080P (30 fps)

AI-enabled decoding capability:

1 channel at 12MP (30 fps)

1 channel at 8MP (30 fps)

2 channels at 5MP (30 fps)

3 channels at 4MP (30 fps)

7 channels at 1080P (30 fps)

Recording modes general, motion detection, intelligence, alarm

Alarm by videosensor, privacy mask, video loss, scene change, PIR alarm, external camera

Artificial Intelligence from intelligent cameras: Perimeter protection (6-channel), Face detection (6-channel), Face recognition (6-channel), SMD Plus (6-channel)

Artificial Intelligence in the recorder: SMD Plus (4 channels)

Playback of up to 16 channels

4 alarm inputs / 2 alarm outputs

Internal capacity for 2 SATA HDD up to 20TB (sold separately)

RJ45 Fast Ethernet network port (10/100/1000Mbps)

Network Protocols: HTTP, HTTPS, TCP/IP, IPv4, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, DDNS, Alarm Server, IP Search (Supports IP camera, DVR, NVS, etc.), P2P, Auto Registration

ONVIF 22.12 (T/S/G), CGI and SDK support

Compatible with web browsers

Compatible with Android and iOS devices

Server Access local network and Internet

Ability to limit user access to cameras in local and/or remote mode

Can be controlled remotely via Joystick keyboard connected by TCP/IP

Sending of eMails with photograph attached in alarm

Sending to FTP programmed or in alarm

Possibility to send alarm, and be connected to video surveillance receiver software

Possibility of fixed or dynamic IP through Dyndns, NoIP, DDNS Evolution, etc. service.

Communication ports: 2 USB 2.0 ports

16 PoE+ ports (10/100Mbps, 802.3 af/at)

Total PoE delivery of 130W

Power supply: 100V ~ 240V AC, 50/60 Hz

Consumption: ≤10W (excluding disks)

Storage temperature from -20°C ~ +60°C

Operating temperature from -10°C ~ +55°C

Relative humidity 10%~93%.

Dimensions: 375 (W) x 53 (H) x 327.9 mm (W) x 53 (H) x 327.9 mm (H)

Net weight: 2.60 kg

Gross weight: 3.80 kg

Rack or tabletop installation
