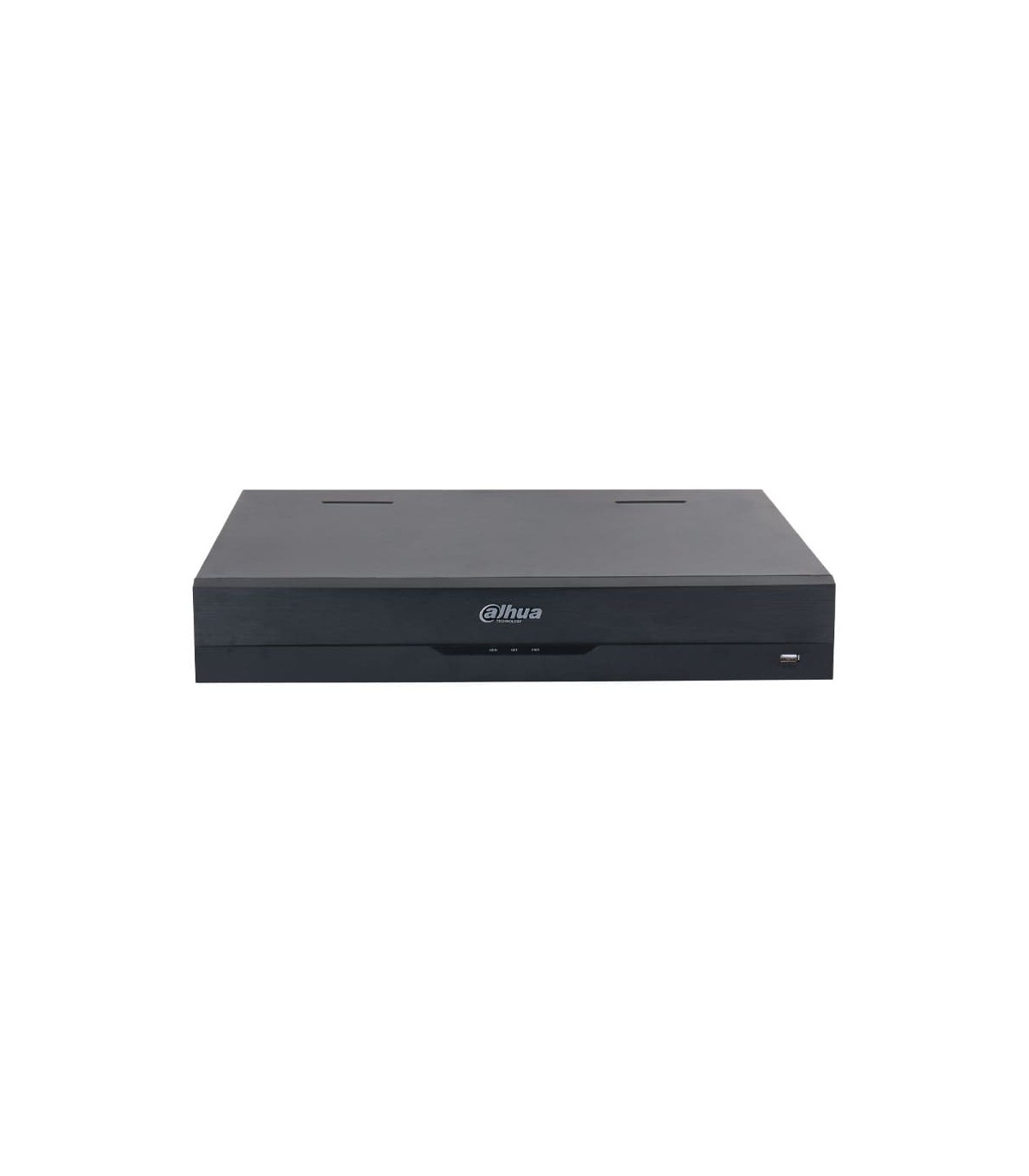

NVR5416-16P-EI - Dahua WizSense 16-channel IP NVR

16 IP channels

Video compression: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG

2 VGA video outputs and 2 HDMI outputs (HDMI 1 4K):

Heterogeneous video source output for HDMI 1 and HDMI 2.

Simultaneous video source output for VGA 1 and HDMI 1

Simultaneous video source output for VGA 2 and HDMI 2

Main display output division: 1, 4, 8, 8, 9, 16

Secondary display output division: 1, 4, 8, 8, 9, 16

1 input / 2 RCA audio outputs

Audio compression: PCM, G.711a, G.711u, G726

Recording resolution: 32MP, 24MP, 16MP, 16MP, 12MP, 8MP, 5MP, 4MP, 1080P, 720P, D1, CIF, QCIF

Bandwidth with AI disabled: 384 Mbps inbound, 384 Mbps recording, 384 Mbps outbound

Bandwidth with AI enabled: 200 Mbps incoming, 200 Mbps recording, 200 Mbps outgoing

Decoding capacity with AI disabled: 2 channels at 32MP (20 ips), 2 channels at 24MP (20 ips), 4 channels at 16MP (30 ips), 5 channels at 12MP (30 ips), 8 channels at 8MP (30 ips), 16 channels at 4MP (30 ips)

Decoding capacity with AI enabled: 1 channel at 32MP (20 ips), 1 channel at 24MP (20 ips), 2 channels at 16MP (30 ips), 4 channels at 12MP (30 ips), 4 channels at 8MP (30 ips), 8 channels at 5MP (30 ips), 12 channels at 4MP (30 ips)

General, motion detection, intelligence, alarm and POS (POS) recording modes

Alarm by videosensor, privacy mask, local alarm.

AI in the recorder:

Perimeter protection of up to 4 channels with 10 IVS rules per channel.

Face detection with attributes up to 2 channels and up to 12 images per second per channel

Face recognition with attributes up to 2 channels, up to 12 images per second and up to 20 databases with 20,000 images

SMD Plus up to 8 channels with filtering between people and vehicles

AI support from compatible IP cameras:

Supports up to 16 IP cameras with perimeter protection.

Supports up to 16 IP cameras with face detection

Support up to 16 IP cameras with face recognition

Support up to 16 IP cameras with SMD Plus

Supports up to 8 IP cameras with video metadata

Support up to 8 IP cameras with ANPR (up to 20,000 license plates with whitelist/blacklist)

Playback of up to 16 channels

16 alarm inputs / 6 alarm outputs

Internal capacity for 4 SATA HDD up to 16TB (sold separately)

eSATA port

Gigabit RJ45 network port (10/100/1000Mbps)

Network Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, SNMP, NTP, DHCP, DNS, SMTP, UPnP, IP Filtering, PPPoE, FTP, DDNS, Alarm Server, IP Search (supports Dahua IP cameras, DVRs, NVSs, etc.), Multicast, P2P, Auto Logging

ONVIF 22.06 (Profile T/S/G), CGI and SDK support

Compatible with web browsers, Android and iOS devices

Server Access local network and Internet

Ability to limit user access to cameras in local and/or remote mode

Can be controlled remotely via Joystick keyboard connected via TCP/IP

Sending of eMails with photo attached in alarm

Sending to FTP programmed or in alarm

Possibility to send alarm, and be connected to video surveillance receiver software

Possibility of fixed or dynamic IP through Dyndns, NoIP, DDNS Evolution, etc. service.

Communication ports: 1 USB 2.0 port, 2 USB 3.0 ports, 1 RS232 port, 1 RS485 port

16 PoE ports (10/100Mbps, 802.3af/at, , ports 1 to 8 support ePoE)

150W PoE delivery

Power supply: 100V ~ 240V AC, 50/60Hz

Consumption: ≤13W (excluding disks)

Storage temperature from -20°C ~ +60°C

Operating temperature from -10°C ~ +55°C

Relative humidity 10%~93%.

Dimensions: 440 (W) x 70 (H) x 415,1 mm

Net weight: 4.82 kg

Gross weight: 7.09 kg

Rack or desktop installation
