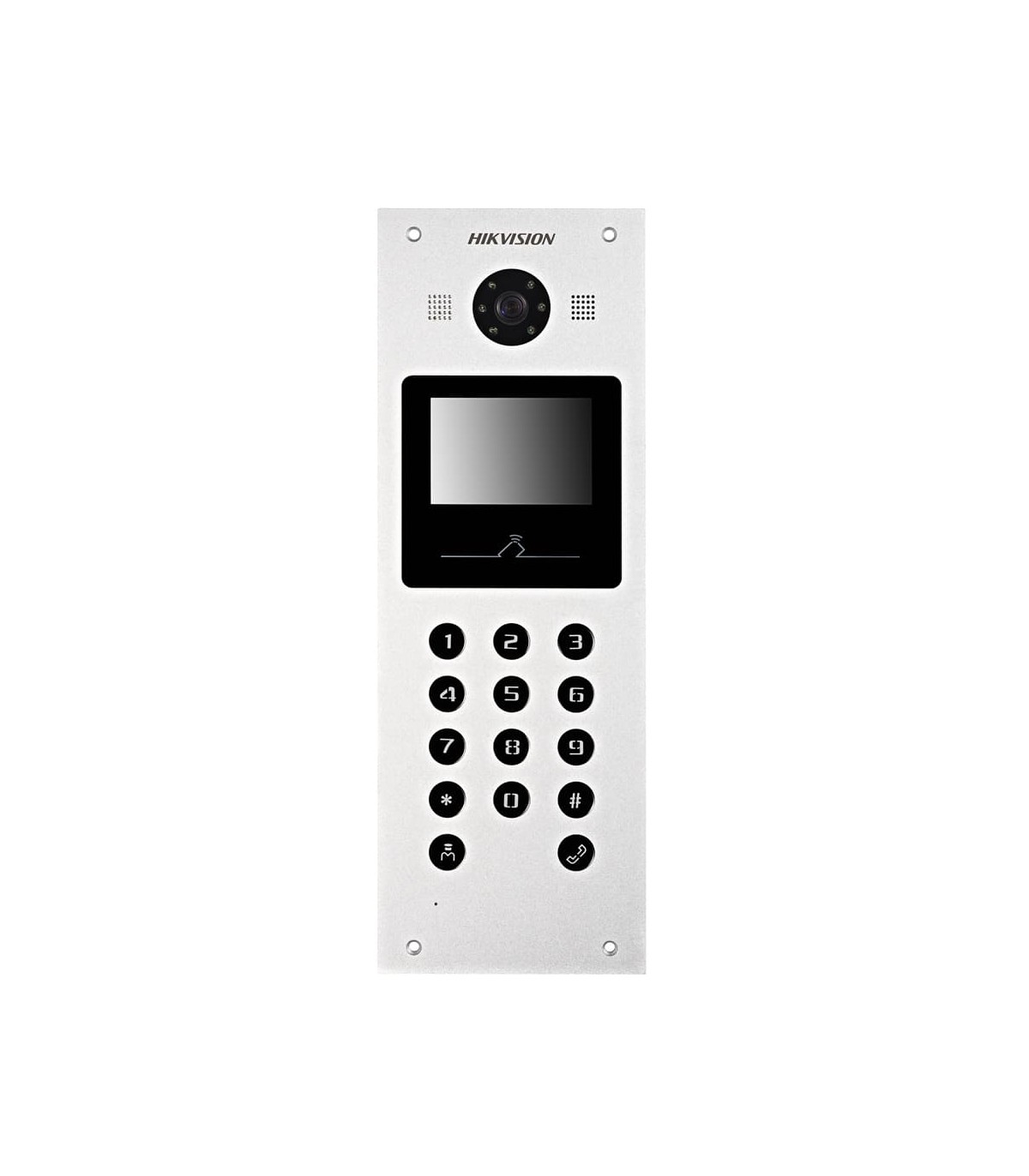

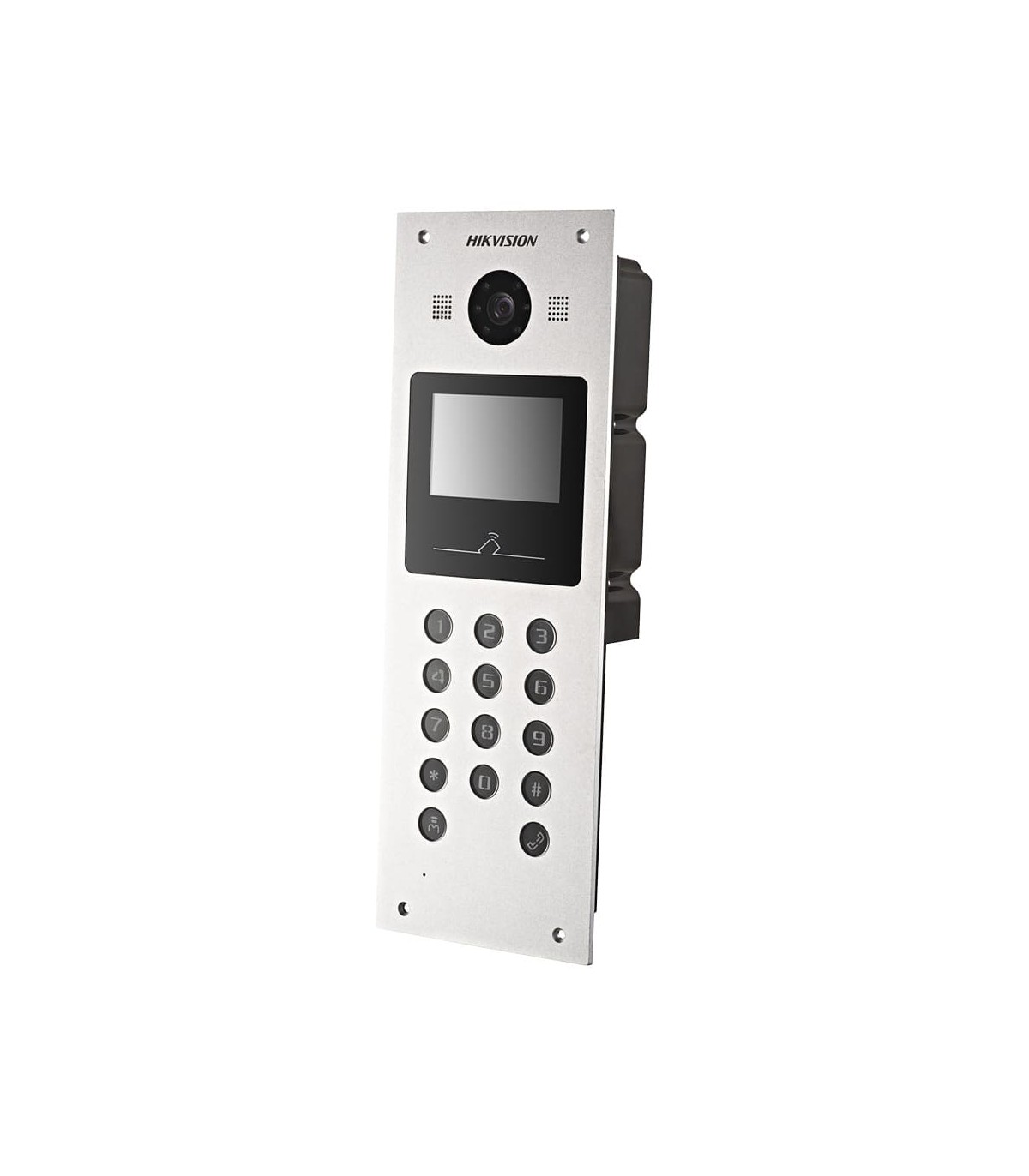

IP video intercom for apartments
2 MP Camera | Bidirectional Audio
MF card and PIN 2 relays
Mobile App via monitor
TFT display 3.5" and keyboard 500 apartments
Embedded mounting | IP65
| Brand | Hikvision |
| Model | DS-KD3003-E6 |
| Operating system | Linux |
| Image sensor | 2 Mpx CMOS wide-angle IR |
| Image Functions | BLC / WDR / DNR |
| Viewing angle | H: 70º, V: 118º, D: 132º |
| Audio | Bidirectional audio with microphone and speaker |
| Access control | Door opening with MF card 13.56 MHz and PIN Up to 2.000 users and 10.000 cards/passwords |
| Screen | 3.5" Color TFT LCD |
| Screen resolution | 480 x 320 |
| Keypad | Touch call button |
| Outputs | 2 x relay for lock, 2 x alarm |
| Inputs | 8 x alarm, 2 x exit button, 1 x RS485, 1 x Wiegand, 2 x door sensor, 1 x tamper |
| Remote access | Web browser Software iVMS-4200 Hik-Connect mobile application |
| Network interface | Ethernet 10/100 BaseT |
| Power | DC 12 V / 1.25 A max. |
| Degree of protection | Suitable for exterior IP65 |
| Material | Aluminium alloy |
| Temp. operation | -40 ºC ~ +55 ºC |
| Dimensions | 357 (H) x 124 (W) x 55 (D) mm |
| Weight | 1050 g |
USB card reader
EM cards 125 kHz
MF cards 13.56 MHz
Led indicator
Plug & Play
Software iVMS-4200
