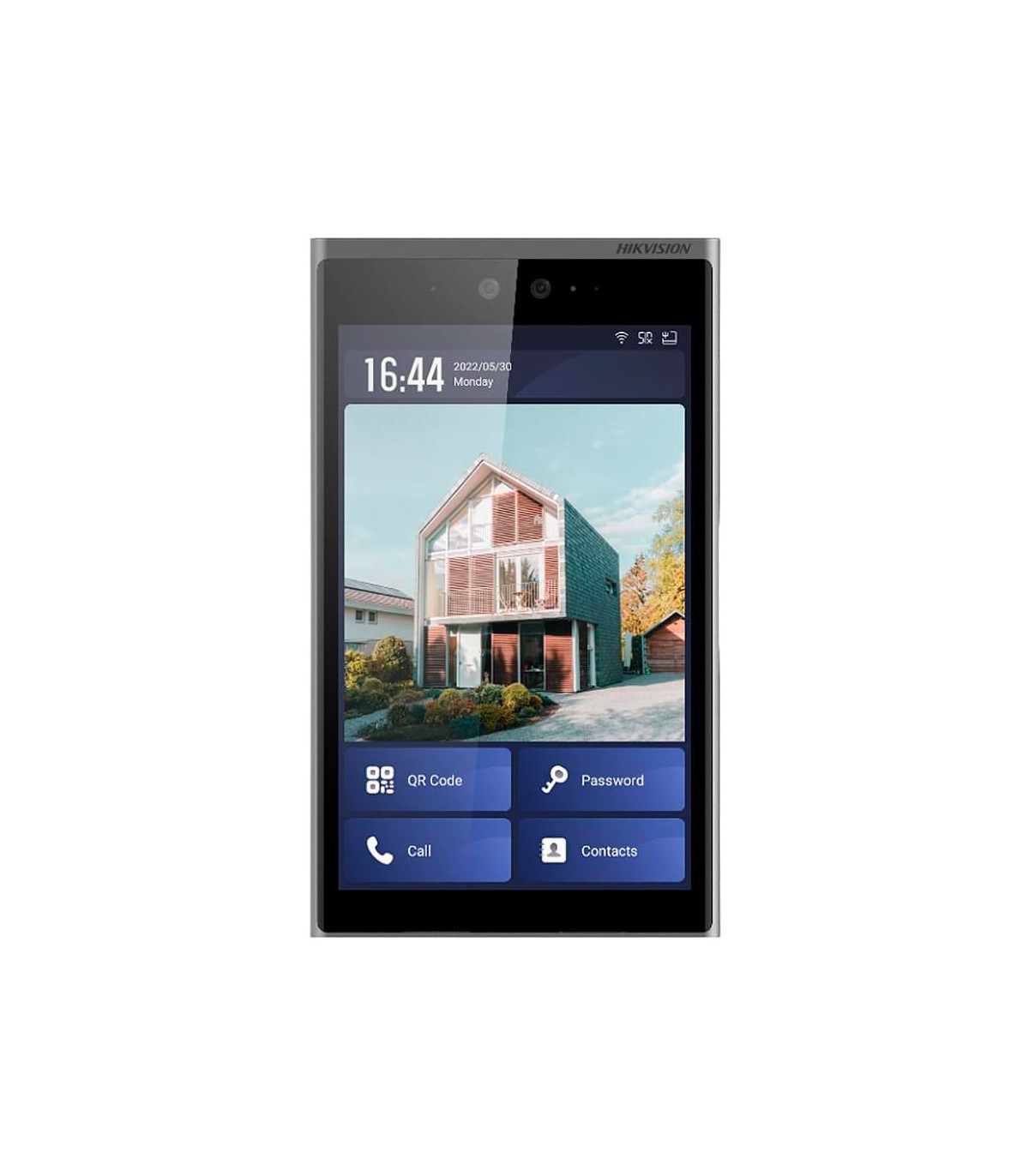

Android IP video door phone for apartments
2 MP Camera | Bidirectional Audio
Facial, MF card, QR and PIN | 2 relays
Mobile App via monitor
IPS 10" touch screen 500 apartments
Surface or recessed mounting | IP65
| Brand | Hikvision |
| Model | DS-KD9633-E6 |
| Operating system | Android 7.1 RAM: 2 GB / ROM: 4 GB |
| Image sensor | Low Illumination 2 Mpx IR |
| Image Functions | BLC / WDR / DNR |
| Viewing angle | H: 88º, V: 44º |
| Audio | Bidirectional audio with microphone and speaker |
| Access control | Door opening with MF card 13.56 MHz, facial recognition, password and QR (only with HikCentral Visitor module) Up to 20.000 users, 10.000 faces and 100.000 cards/passwords/QR |
| Screen | 10" IPS color touch screen LCD |
| Screen resolution | 800 x 1280 |
| Outputs | 2 x relay for lock, 2 x alarm |
| Inputs | 4 x auxiliary inputs (output button, feedback, door sensor), 1 x RS485, 1 x tamper |
| Remote access | Web browser Software iVMS-4200 Hik-Connect mobile application |
| Network interface | Ethernet 10/100 BaseT |
| Power | DC 12 V / 2 A max. |
| Degree of protection | Suitable for exterior IP65 |
| Temp. operation | -30 ºC ~ +60 ºC |
| Dimensions | 271 (H) x 159 (W) x 26.5 (D) mm |
| Weight | 1265 g |
Peripheral module
Add physical keyboard
USB connection
Opening with PIN
Suitable for exterior IP65
Compatible with DS-KD9633
Peripheral module
Add physical keyboard
USB connection
Fingerprint and PIN opening
Suitable for exterior IP65
Compatible with DS-KD9633
