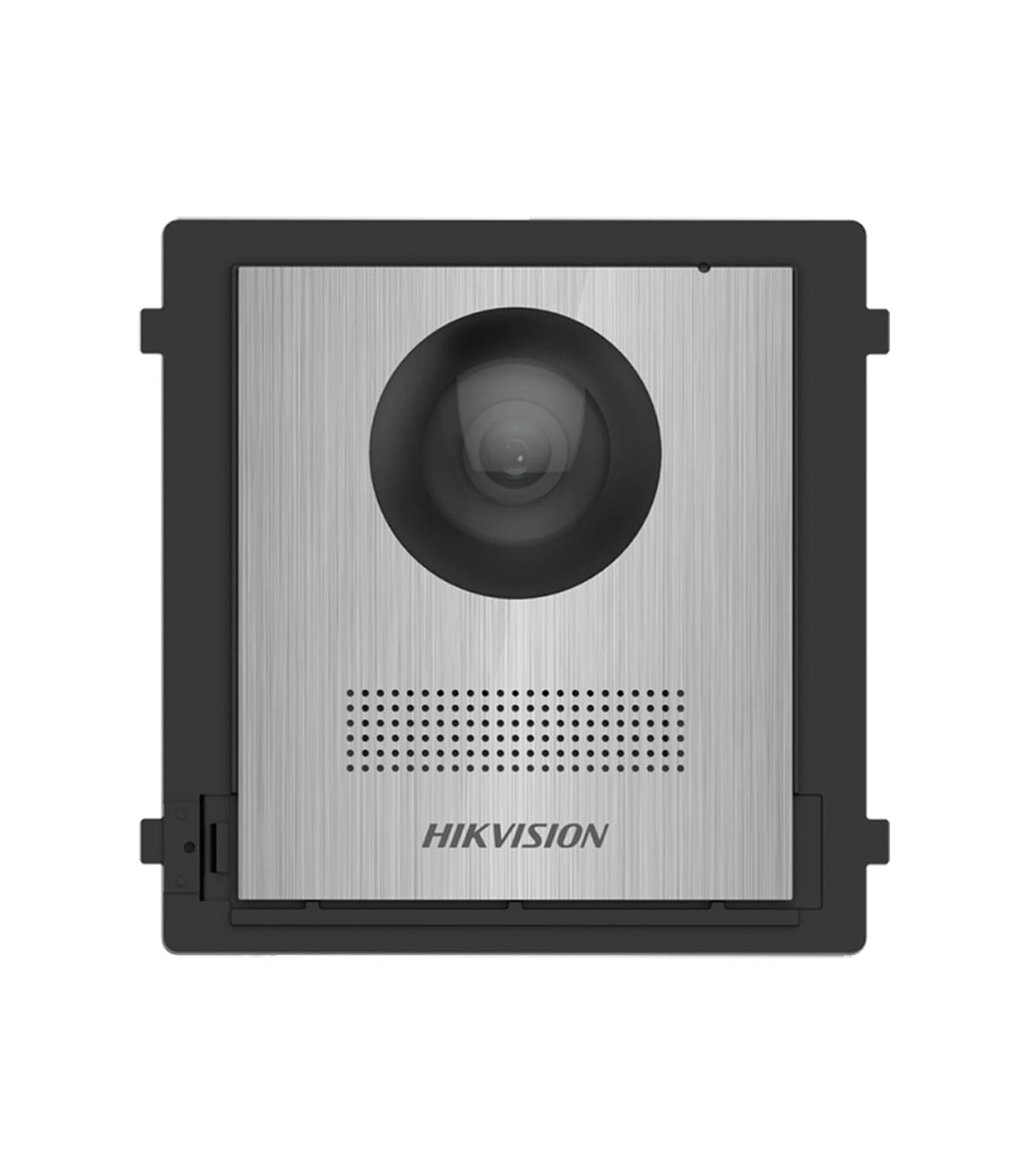

Stainless steel IP video intercom system
2 Mpx Camera | Without button
Bidirectional audio
Mobile App via monitor
Suitable for exterior IP65
Modular mounting | PoE
| Brand | Hikvision |
| Model | DS-KD8003-IME1(B)/NS |
| Operating system | Linux |
| Image sensor | Low Illumination 2 Mpx IR |
| Image Functions | BLC / WDR / DNR |
| Viewing angle | H: 146º, V: 82º, D: 180º |
| Audio | Bidirectional audio with microphone and speaker |
| Keypad | Does not have |
| Outputs | 2 x lock relay, 1 x module output, 1 x DC 12 V / 500 mA max. |
| Inputs | 4 x auxiliary inputs (output button, feedback, door sensor), 1 x tamper |
| Remote access | Software iVMS-4200 Hik-Connect mobile application |
| Network interface | Ethernet 10/100 BaseT / SIP Protocol 2.0 |
| Modular | Compatible with Hikvision modular boards |
| Power | DC 12 V / 850 mA máx. / PoE (IEEE 802.3af) |
| Degree of protection | Suitable for exterior IP65 |
| Material | Plastic and stainless steel |
| Temp. operation | -40º C ~ +60º C |
| Dimensions | 98 (H) x 100 (W) x 42 (D) mm |
| Weight | 410 g |
Extension module
IPS touch screen 4" | Keyboard and directory
Opening with EM card and PIN
Storing 500 contacts
Suitable for outdoor use IP65 | IK08
Modular
Extension module
Information Display Module
Printable paper included
Automatically backlit
Suitable for exterior IP65
Modular
Extension module
Call different monitors
12-button nametag keypad
6 customized labels with LEDs
Suitable for exterior IP65
Modular
Extension module
Call different monitors
Opening with access code
LED illuminated keypad
Suitable for exterior IP65
Modular
