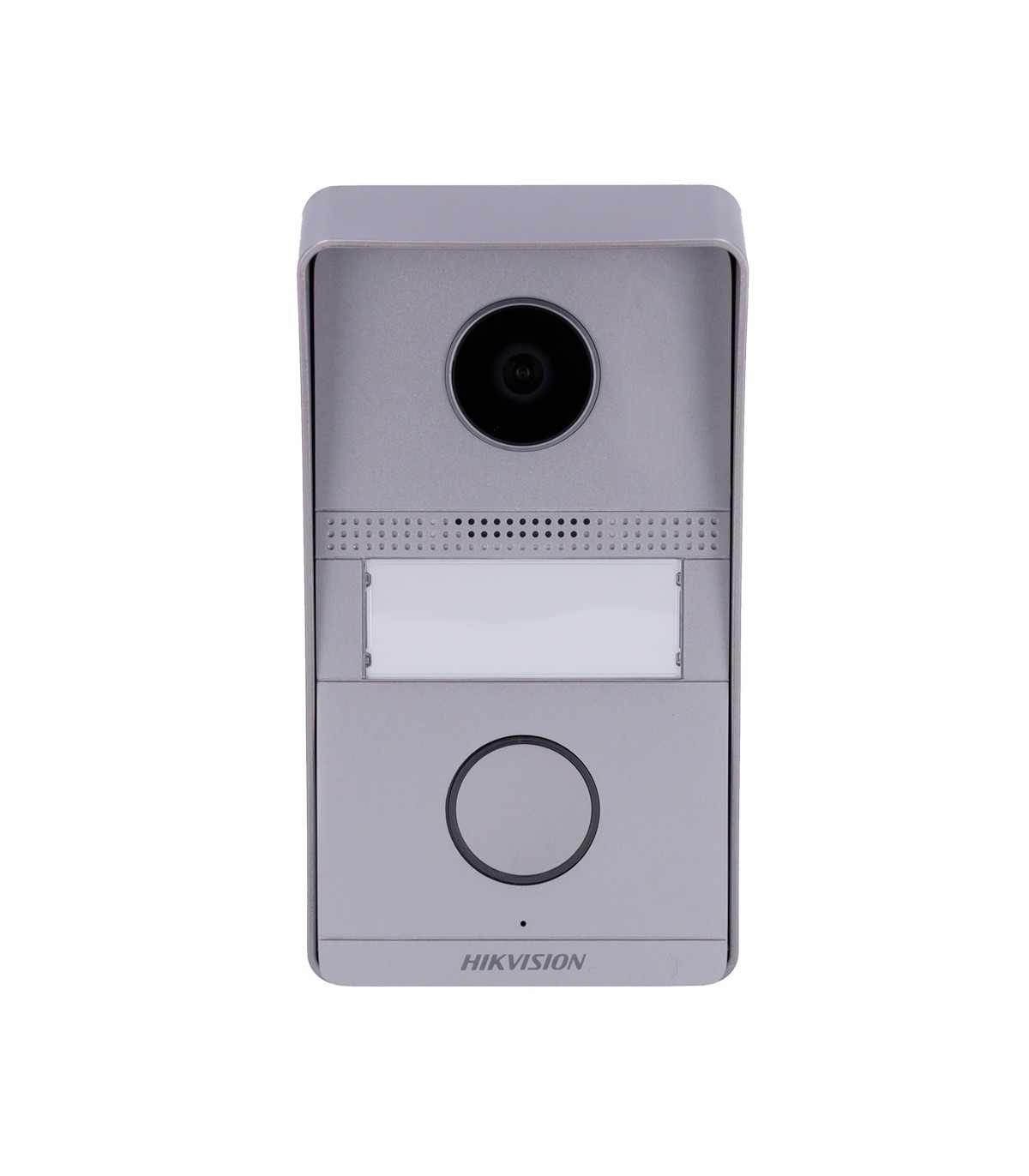

Video intercom 2 wires analog
2 MP Camera | Bidirectional Audio
2 relays
Plug & Play
Suitable for outdoor use IP65 | IK07
Surface mounting
| Brand | Hikvision |
| Model | DS-KV1101-ME2/Surface |
| Operating system | Embedded analog operating system |
| Image sensor | 2 Mpx CMOS low illumination with IR and white LEDs |
| Viewing angle | H: 100º, V: 69º |
| Audio | Bidirectional audio with microphone and speaker |
| Keypad | Mechanical button with LED backlit name-tag |
| Outputs | 2 x relay outputs (powers lock up to 12 V / 1 A) |
| Inputs | 1 x monitor input, 4 x alarm inputs, 2 x pushbutton, 2 x door sensor, 1x tamper |
| Communication | 2 wires |
| Power | DC 48 V / 500 mA máx. (via monitor by 2 wires) |
| Degree of protection | Suitable for exterior IP65 Anti-vandal IK07 |
| Material | Aluminium alloy |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | 150 (H) x 82 (W) x 23.5 (D) mm |
| Weight | 345 g |
Board and monitor | Allows up to 2 monitors more
Connection for 2 wires
Plug & Play installation
Surface mounting | IP65, IK07
