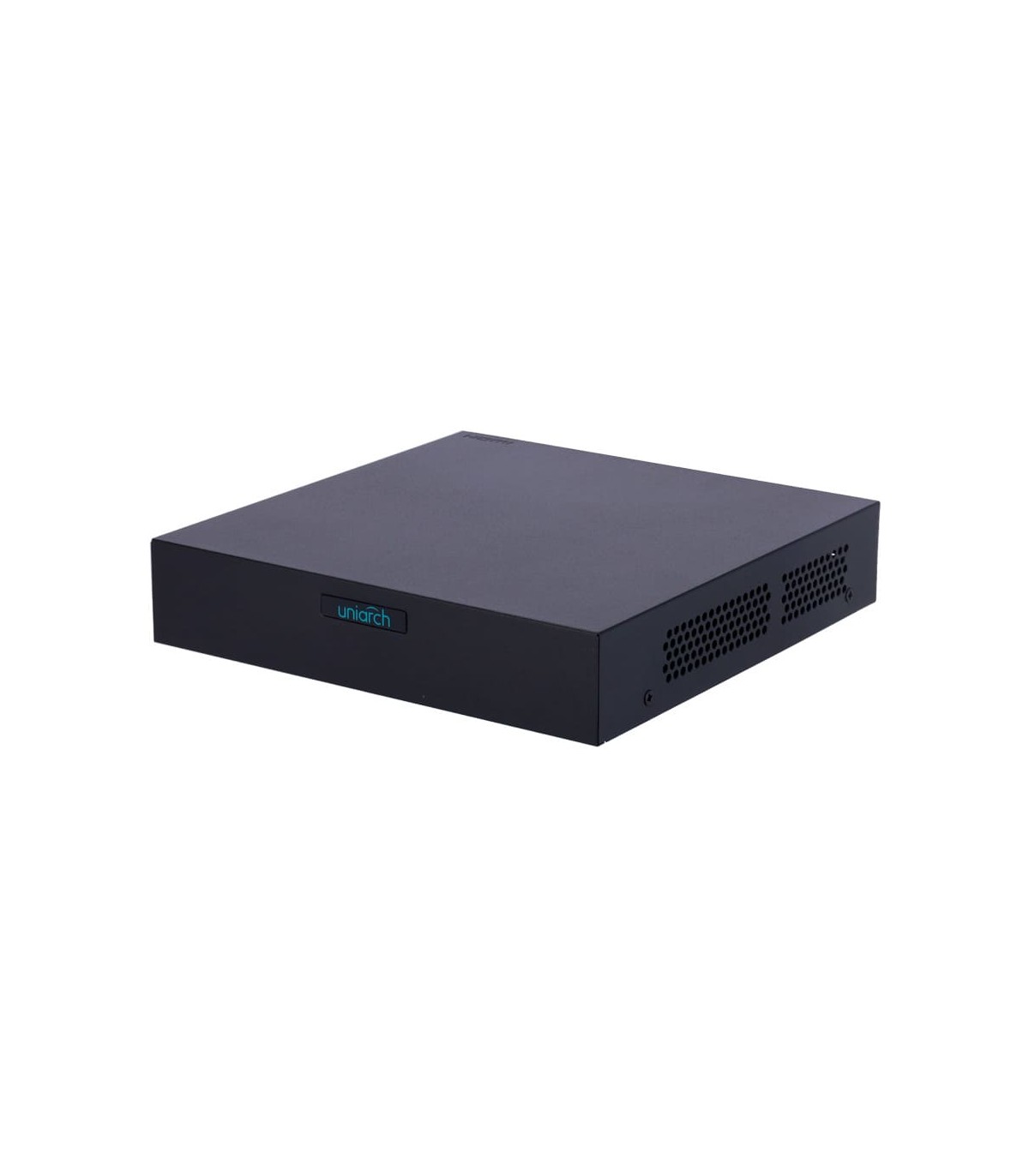

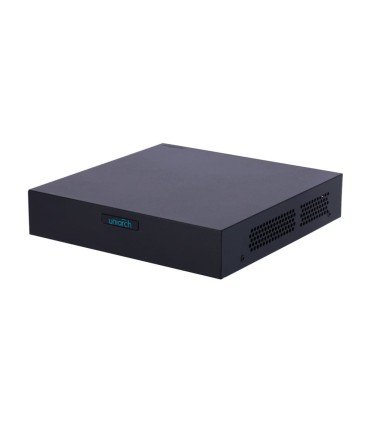

NVR-108S3-P8-ECO - Uniarch NVR Recorder
Uniarch NVR Recorder
8 CH video / 8 CH PoE
Bandwidth 64Mbps
SIP | UMD | VCA Search
Maximum resolution 6 MP
Supports 1 hard disk up to 6 TB
€84.00
Reference:
NVR-108S3-P8-ECO
Brand:
Add to wishlist
| Brand | Uniarch |
| Inputs for IP cameras | 8 CH / 8 CH PoE |
| IP compatible cameras | UNIVIEW, ONVIF |
| Main Stream recording | 6Mpx / 5Mpx 4Mpx 3Mpx / 1080p / 960p 720p / D12CIF / CIF |
| Decoding | 2 x 6MP@30, 4 x 5MP@30, 4 x 4MP@30, 4 x 3MP@30, 6 x 1080p@30, 8 x 720p@30 |
| Video outputs | 1 HDMI, 1 VGA Simultaneous |
| Video compression format | Ultra265 / H.265 / H.264 |
| Display resolution | 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| General functions | Motion detection, human body detection, video loss, alarm input * To receive alarm input events, a camera with alarm inputs is required |
| Intelligent functions from the camera | Area intrusion, line crossing, area entrance, area exit * You need an IP camera with these functions to be able to make configurations and searches from the recorder |
| SIP (Smart Intrusion Prevention) from the camera | Supported in 4CH. Alarm reception only, no alarm image reception) * IP camera with SIP function required |
| Total bandwidth | 64 Mbps downstream / 48 Mbps upstream |
| Bidirectional audio | 1 RCA output |
| External Backup | USB / HDD USB memory |

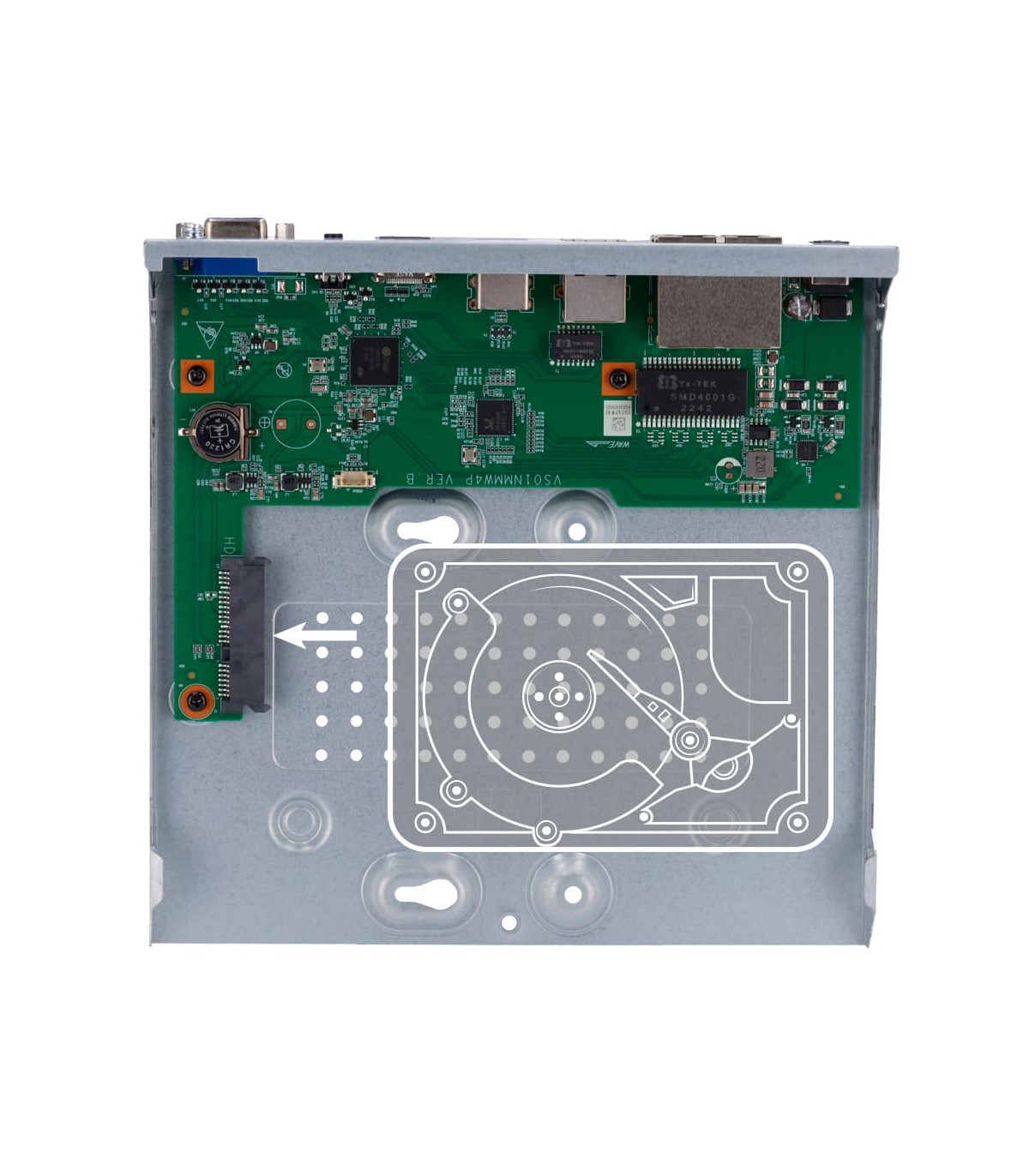

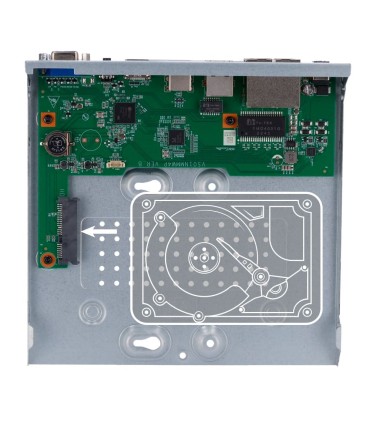

| Internal memory | 1 SATA HDD 3.5" of up to 6 TB (not included) |
| PoE | IEEE 802.3at, IEEE 802.3af IEEE [%VAR%] |

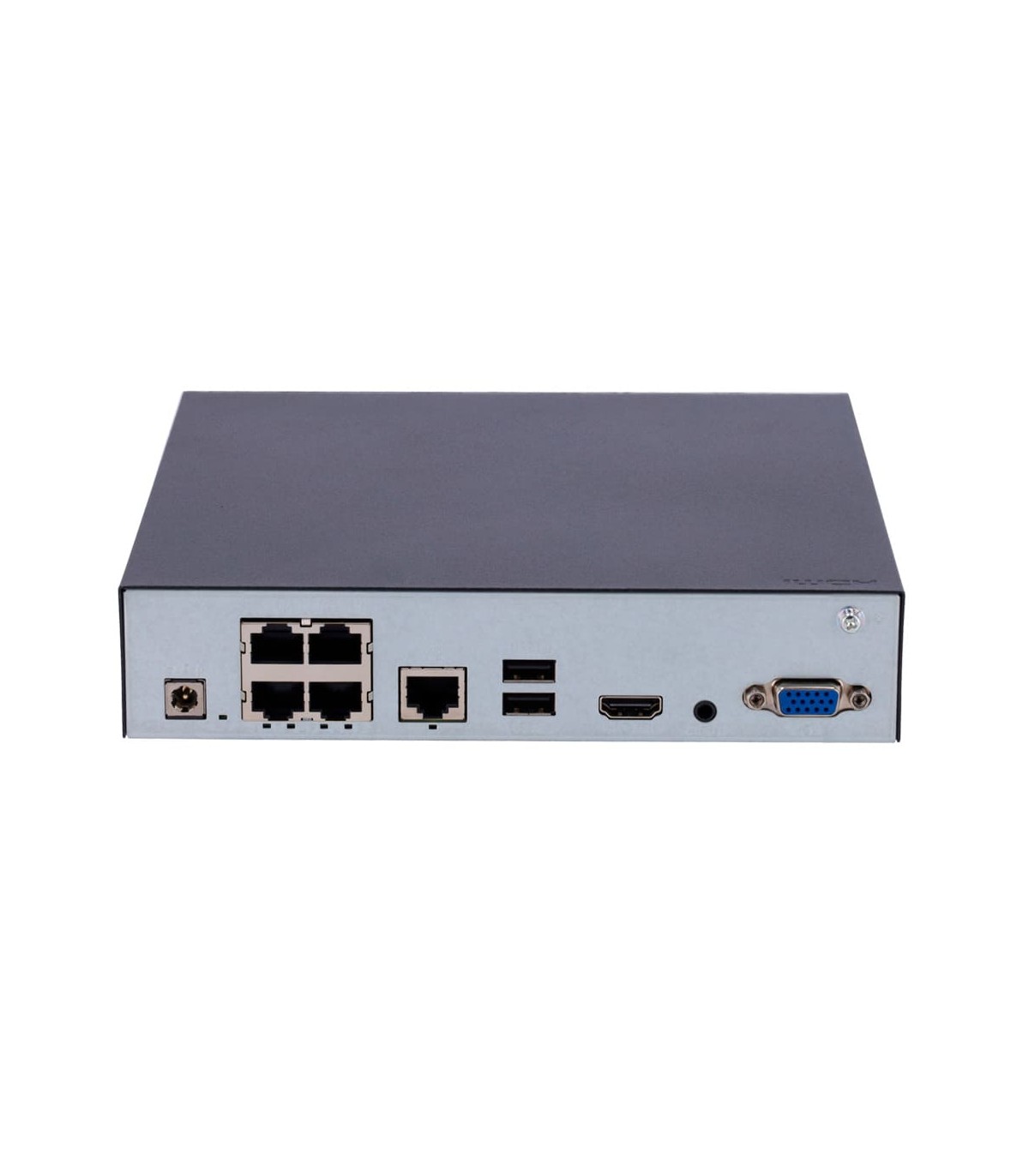

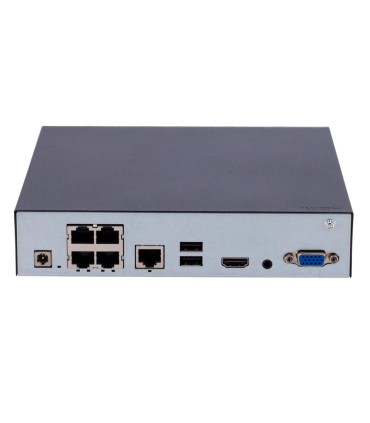

| Communication | 2 x USB 2.0 / 1 x RJ45 (Ethernet) |
| Remote access | Web browser, Smartphone App & PC Software |
| Power | DC 52V / 9W |
| Dimensions | 46 mm (H) x 195 mm (W) x 190 mm (D) |
| Weight | 1.0 Kg |
