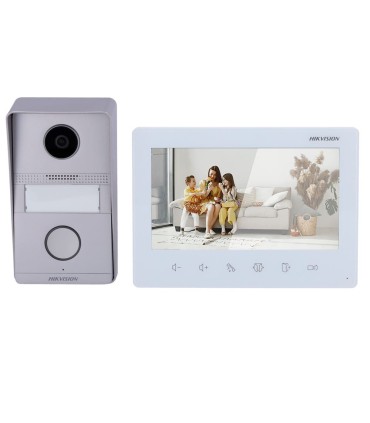

Board and monitor | Allows up to 2 monitors more
Connection for 2 wires
Plug & Play installation
Surface mounting | IP65, IK07
DS-KV1101-ME2/Surface |
|
| Brand | Hikvision |
| Model | DS-KV1101-ME2/Surface |
| Operating system | Embedded analog operating system |
| Image sensor | 2 Mpx CMOS low illumination with IR and white LEDs |
| Viewing angle | H: 100º, V: 69º |
| Audio | Bidirectional audio with microphone and speaker |
| Keypad | Mechanical button with LED backlit name-tag |
| Outputs | 2 x relay outputs (powers lock up to 12 V / 1 A) |
| Inputs | 1 x monitor input, 4 x alarm inputs, 2 x pushbutton, 2 x door sensor, 1x tamper |
| Communication | 2 wires |
| Power | DC 48 V / 500 mA máx. (via monitor by 2 wires) |
| Degree of protection | Suitable for exterior IP65 Anti-vandal IK07 |
| Material | Aluminium alloy |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | 150 (H) x 82 (W) x 23.5 (D) mm |
| Weight | 345 g |
DS-KH1200 |
|
| Brand | Hikvision |
| Model | DS-KH1200 |
| Operating system | Embedded analog operating system |
| Screen type | 7" color TFT |
| Screen resolution | 1024 x 600 |
| Operation mode | 6 touch buttons |
| Inputs | 3 x input of 2 wires (2 for outdoor plates and 1 for monitor), 1 x analog camera input |
| Audio | Two-way audio with integrated microphone and loudspeaker |
| Connection | 2 analogue wires |
| Power | DC 48 V / 9 A max. |
| Temp. operation | -10º C ~ +50º C |
| Dimensions | 187 (H) x 137 (W) x 25.4 (D) mm |
| Weight | 335 g |
| Colour | White |
Surface mount with visor
Specific for video door intercoms
Compatible with DS-KV9503-WBE1
Cable routes
Dimensions: 189 (H) x 97 (W) x 49 (D) mm
Stainless steel
Power supply
DC output 24 V / 1.5 A / 36 W
1 output
54.5 (W) x 90 (H) x 35 (D) mm
DIN rail mount
Video intercom specific
Front panel and flush mount box
For 2 modules
Specific for Hikvision video door entry systems
Compatible with Hikvision modules
Box made of plastic
Panel made of stainless steel
Surface mount box
For 2 modules
Specific for Hikvision video door entry systems
Compatible with Hikvision modules
With protective shield
Panel manufactured in SECC
Desktop Stand
Specific for video door intercoms
Compatible with DS-KH6320 and DS-KH8520
Cable routes
86 (H) x 122 (W) x 84 (D) mm
Made of stainless steel SUS304
Surface mount with visor
Specific for video door intercoms
Compatible with DS-KV8x13-WME1(C)
Cable routes
Dimensions: 189 (H) x 97 (W) x 49 (D) mm
Stainless steel
Peripheral module
Add physical keyboard
USB connection
Fingerprint and PIN opening
Suitable for exterior IP65
Compatible with DS-KD9403
Peripheral module
Add physical keyboard
USB connection
Opening with PIN
Suitable for exterior IP65
Compatible with DS-KD9403
