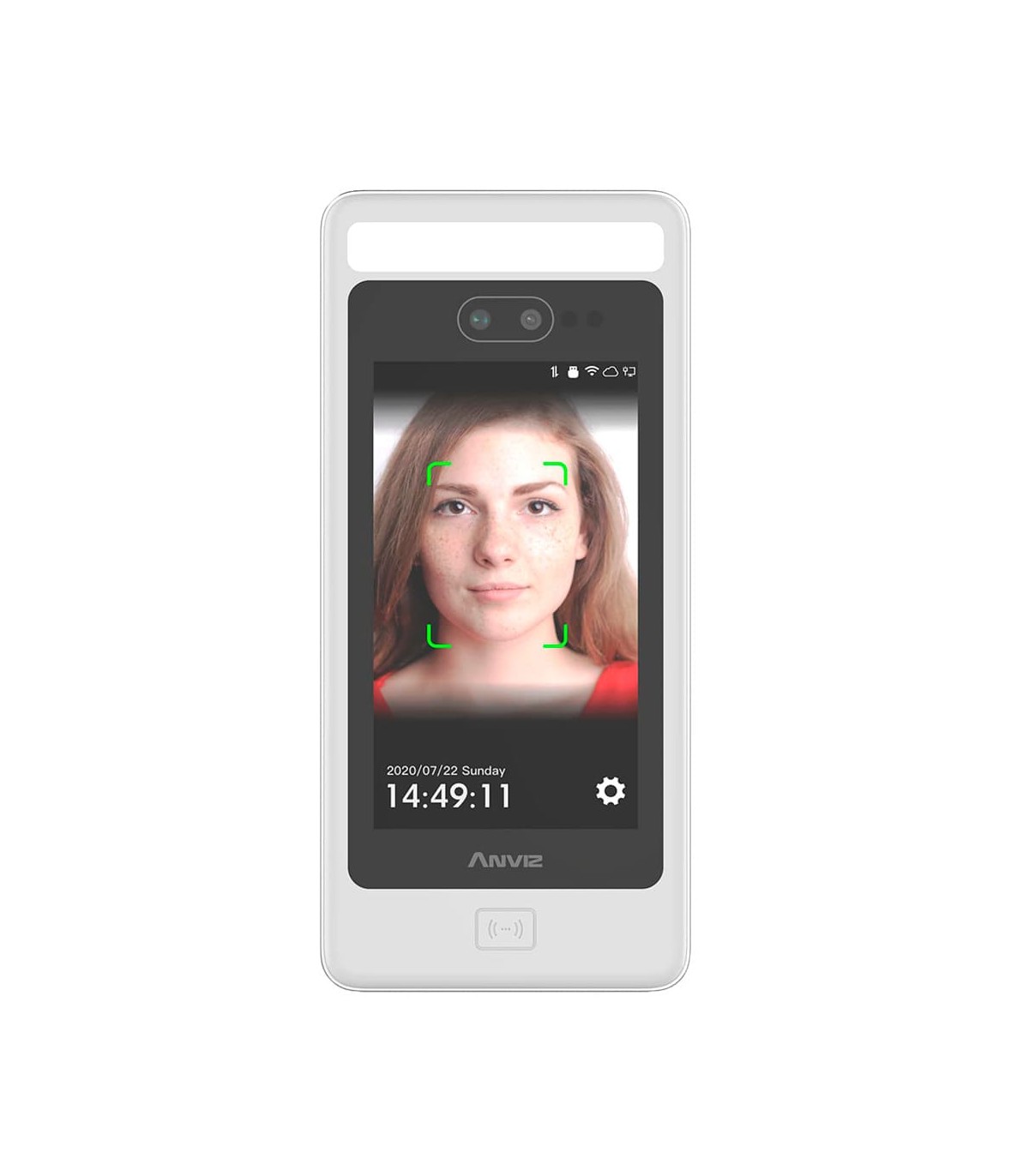

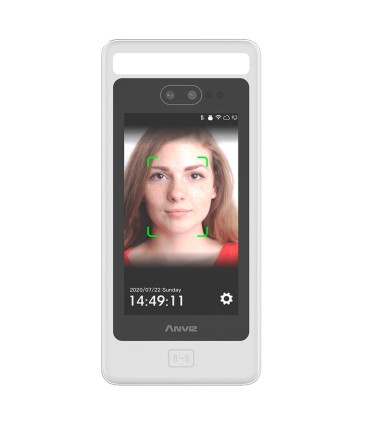

IP65 Access and time and attendance control
Facial, EM/MF card and PIN
50.000 users | 100.000 records
TCP/IP, WiFi, USB and Wiegand
5" TFT touchscreen | Integrated controller
CrossChex Standard / Cloud
| Brand | Anviz |
| Model | FACEDEEP5 |
| CPU | 1GHz Dual Core CPU |
| Camera | 2 Mpx WDR with white LED light Dual sensor for facial recognition |
| Activation sensor | Infrared auto-activation |
| Read time | < 0.3 sec |
| Identification distance | < 2 m |
| Capacity | Up to 50.000 faces and 50.000 cards/passwords |
| Records | 100.000 registers |
| Identification modes | Facial recognition, RFID card and/or combinations |
| Temperature functions | Mask detection alarm (configurable), mask-only opening (configurable) |
| Proximity card | EM (125 kHz), MF (13.56 MHz) and MF DESFire (13.56 MHz) |
| Screen | 5" TFT LCD touch screen |
| Communication | TCP/IP, RS232, WiFi |
| Integrated controller | Door sensor, push button, relay, Wiegand |
| Software | CrossChex Standard: free local PC software for access and presence control CrossChex Cloud: free cloud for time and attendance control |
| Power | DC 12 V / 3 A max. |
| Degree of protection | IP65 |
| Temp. operation | -30 ºC ~ +60 ºC |
| Dimensions | 88 (W) x 190 (H) x 22.5 (D) mm |
