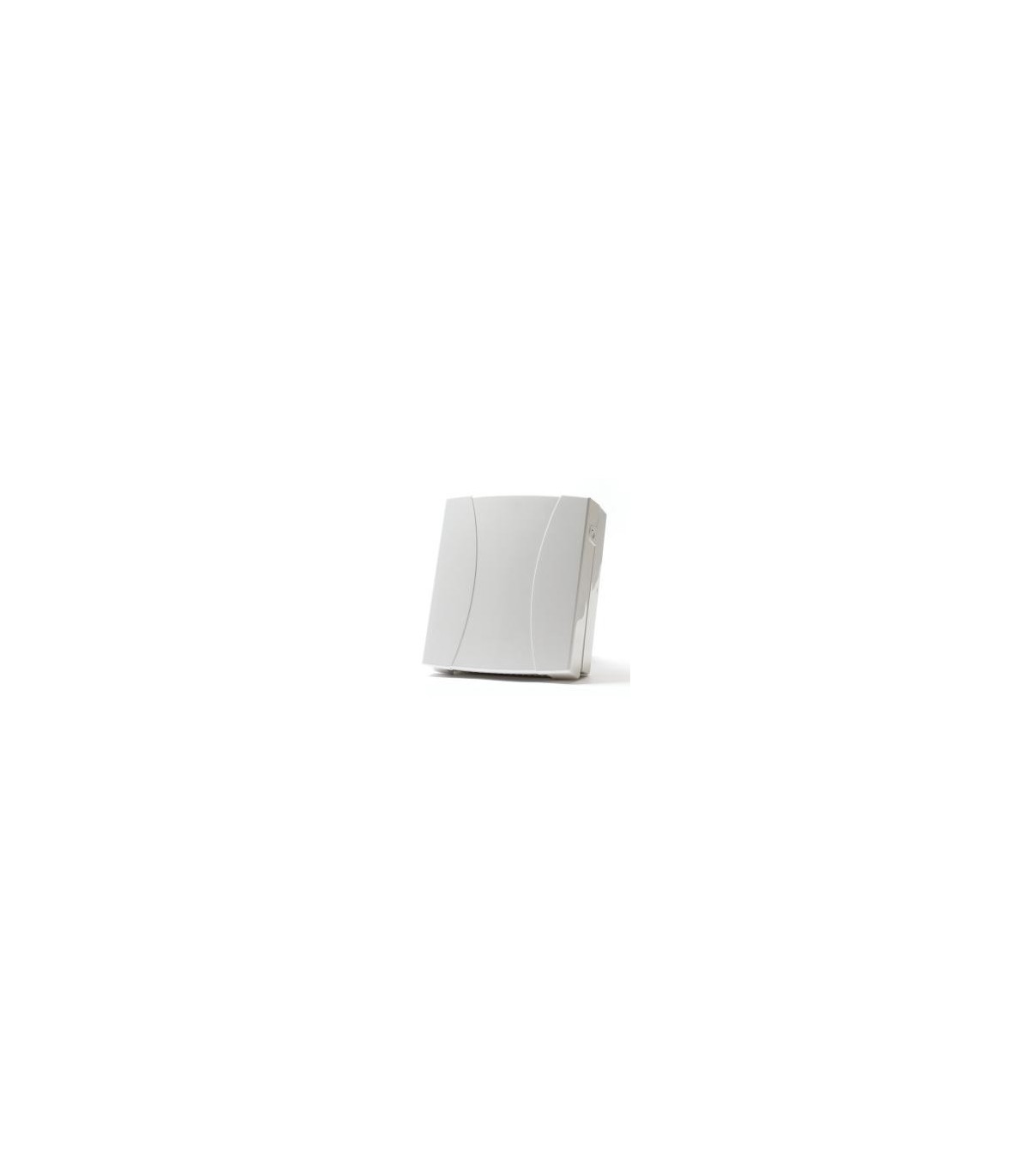

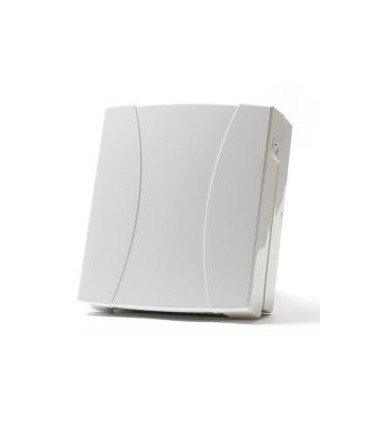

2 Way expansion module for 8 zones EL4770

€114.90 (tax incl.)
Out-of-Stock
Notify me when available
Reference:
EL-4770
Brand:
Add to compare0
Add to wishlist
Description
  • Model: EL-4770
  • Bi-directional wireless communication
  • 8 zone inputs (NO, NC, EOL, DEOL)
  • Up to 2 per system, meaning up to 16 wired zones + 2 on the iConnect 2-Way main board
  • 2 auxiliary parallel outputs 12 volts@1000mA per expander
  • PGM-Programmable Outputs: Dry contact, 1A@30VDC,0.5A@25VDC
  • Fully supervised
  • Dual tamper protection (Box & Wall)
  • Stand alone with local power (no need to run wires to the panel)
  • Includes a polycarbonate box and a 14.4v/1.5A power supply
  • Optional back-up battery 12V/7AH
  • Frequency: 868 MHz

    Includes power supply
    Do not includes battery
Read moreShow less
