Ajax wireless alarm kit AJ-HUBKIT-W


New product

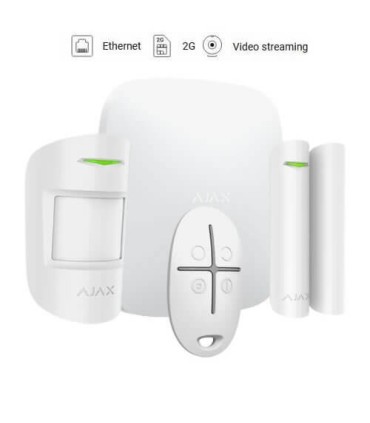

Composed by:
AJAX HUB Control Panel
Magnetic Contact AJ-DOORPROTECT-W
Remote control AJ-SPACECONTROL-W

More details

€290.00 tax incl.


Ajax wireless alarm system.
With wireless communication protocol at 868 MHz.
This system supports up to 100 fully supervised wireless accessories.
Certification, Grade 2
Communication via GSM / GPRS and Ethernet.
Easy to install through APP.

Maximum performance

Wireless Jweller technology allows the panel to safely supervise all wireless devices up to 2000 meters away in open spaces or on several floors of a building.
An ARM processor ensures that critical tasks are performed
Uses connection via Ethernet with GSM / GPRS backup
Report alarms via push notifications, SMS or phone calls
Can work with up to 100 devices simultaneously
Supports up to 50 users and one (CRA)
Video surveillance via third-party cameras.

Protection against intrusion and faults

All sockets and buttons are hidden inside the Panel
Inviolable panel
External power failure immediately activates an alarm
Works up to 15 hours with battery backup
Pings every 12-300 seconds to monitor the system
Interference detection, encryption and authentication of communication channels
The Ajax Panel automatically chooses an unaffected frequency in case of channel failure
A GSM backup signal will notify you in the event of a network failure.
The Ajax Hub will keep you up to date using your DeliverAnyway algorithm, even in cases of network failure

Effortless operation

The system works even with very bad connections: the system runs at a speed of only 0.5 kbit / s
Two-way communication allows for periodic testing and easy customization
Firmware and software updates are free and automatic
The system can be easily controlled using a remote keychain, smartphone application or a web browser
Ajax Hub securely maintains a history of all events
Geofence technology can remind you to arm the security system when you leave and disarm when you return

Very simple professional level installation

The system can be easily installed in less than 15 minutes using the SmartBraket interactive manual and assemblies
The quality of the connection, device detection area and radio noise level can be tested remotely
Devices connect to the Ajax Hub with a single click.

Engineering masterpiece

Built-in ultra-thin AC power adapter
The Ajax Hub is less than 4cm thick


Tech specs

Brand / Model AJAX HUB
Size: 162.7x162.7x35.9 mm
Weight: 320 g
110-250 V AC
Radio signal power: 25 mW
Operating temperature range: From 0°С (+32°F) to +50°С (+122°F)
Connection: GSM (850/900/1800/1900 MHz), Ethernet
Communication protocol: Jeweller (868.0-868.6 MHz)
Compatible SIM cards Micro SIM 2G
Operating range: Up to 2,000 m (6,552 ft) (in open area)
Back-up battery: Li-Ion 2 Ah (battery life up to 15 hours*)
Apps available: iOS 9 or later, Android 4.1 or later
Video surveillance: Video cameras with RTSP
Maximum number of users: 50
Maximum number of connected devices: 100
Tamper protection: Yes
