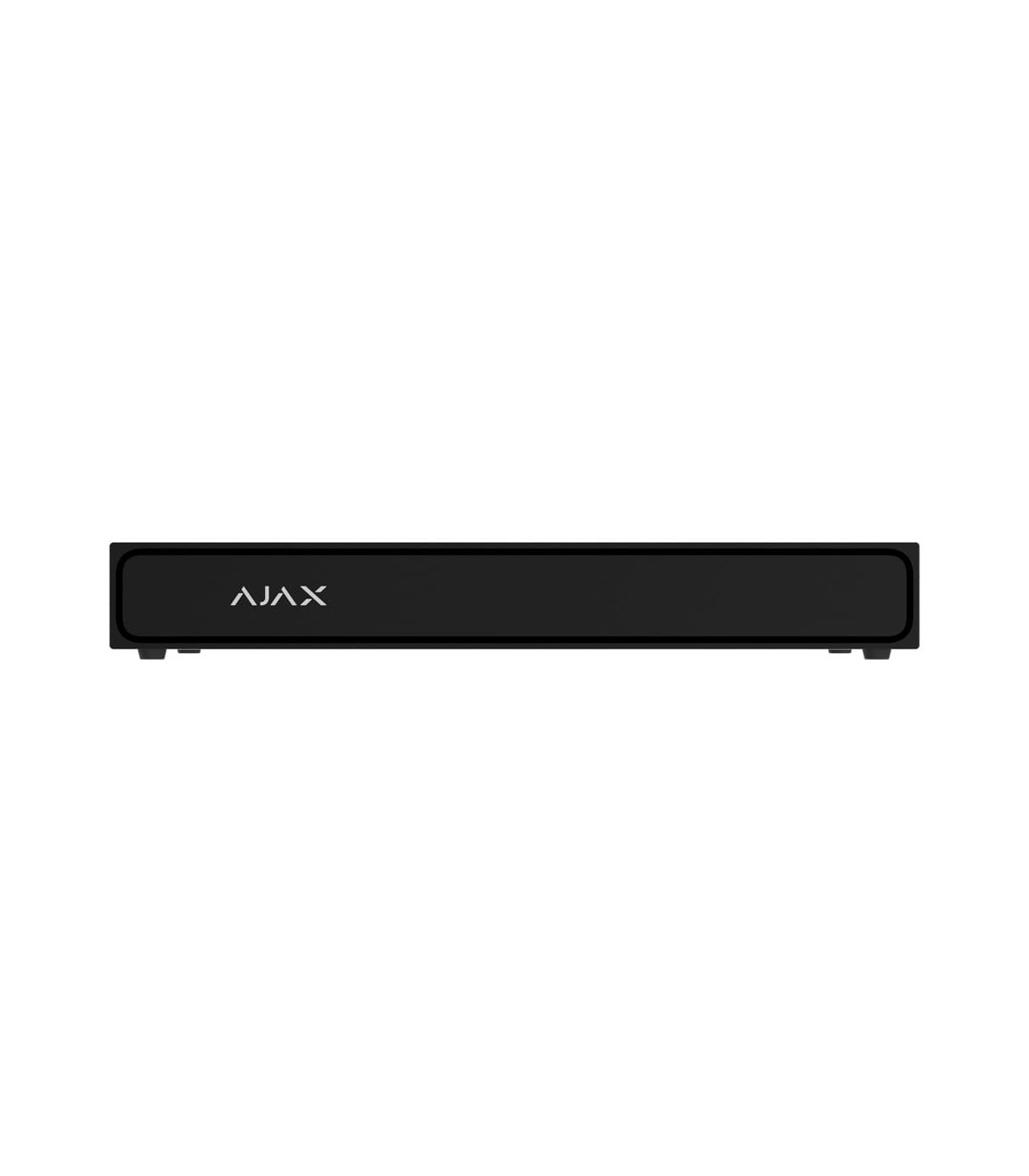

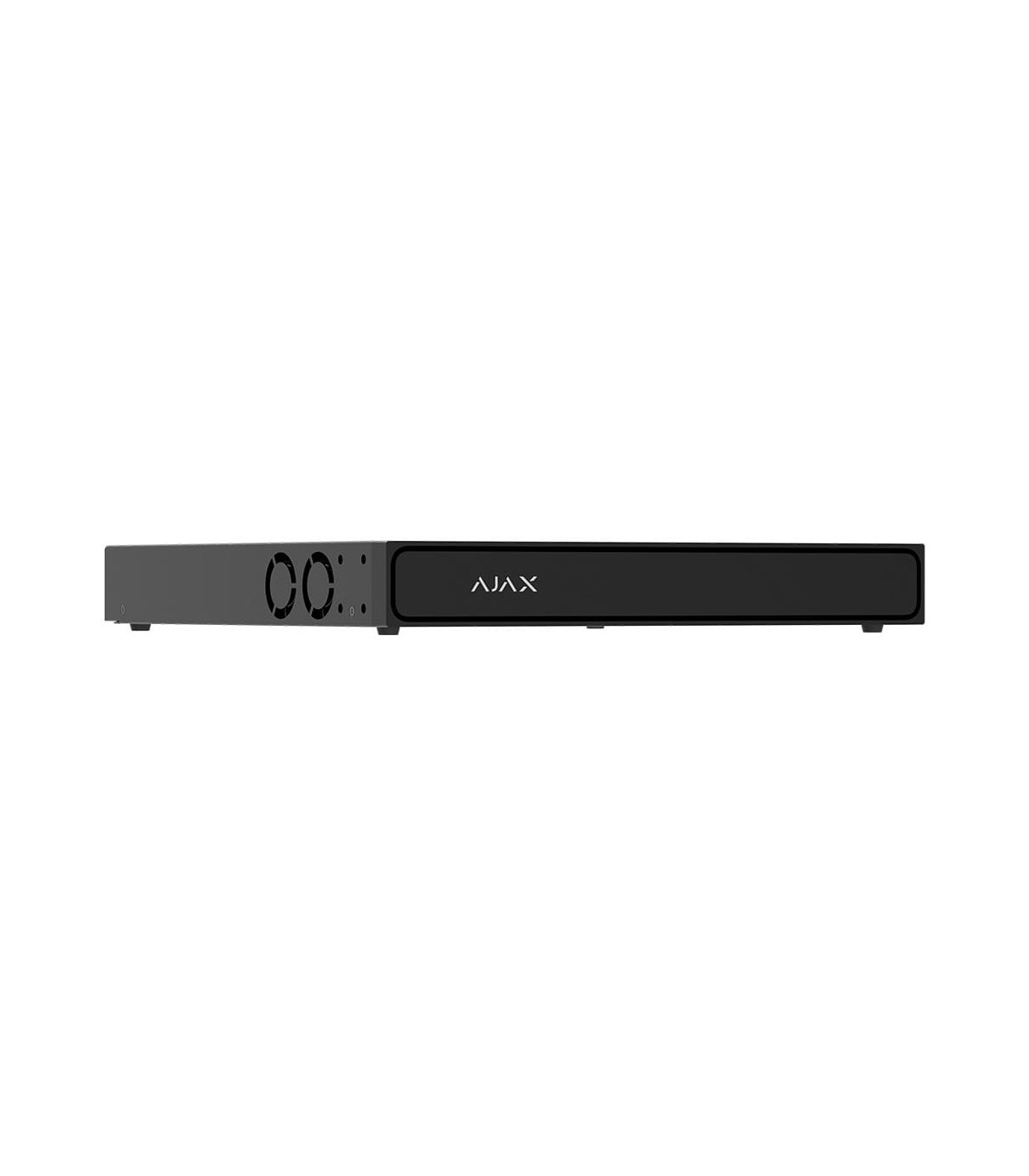

Ajax NVR H2D16PAC 16-Channel PoE Black — 4K IP Video Recorder, 16 PoE Ports, Support for 2 Hot-Swap HDDs & HDMI
- 16-channel IP recorder in black with built-in PoE switch.

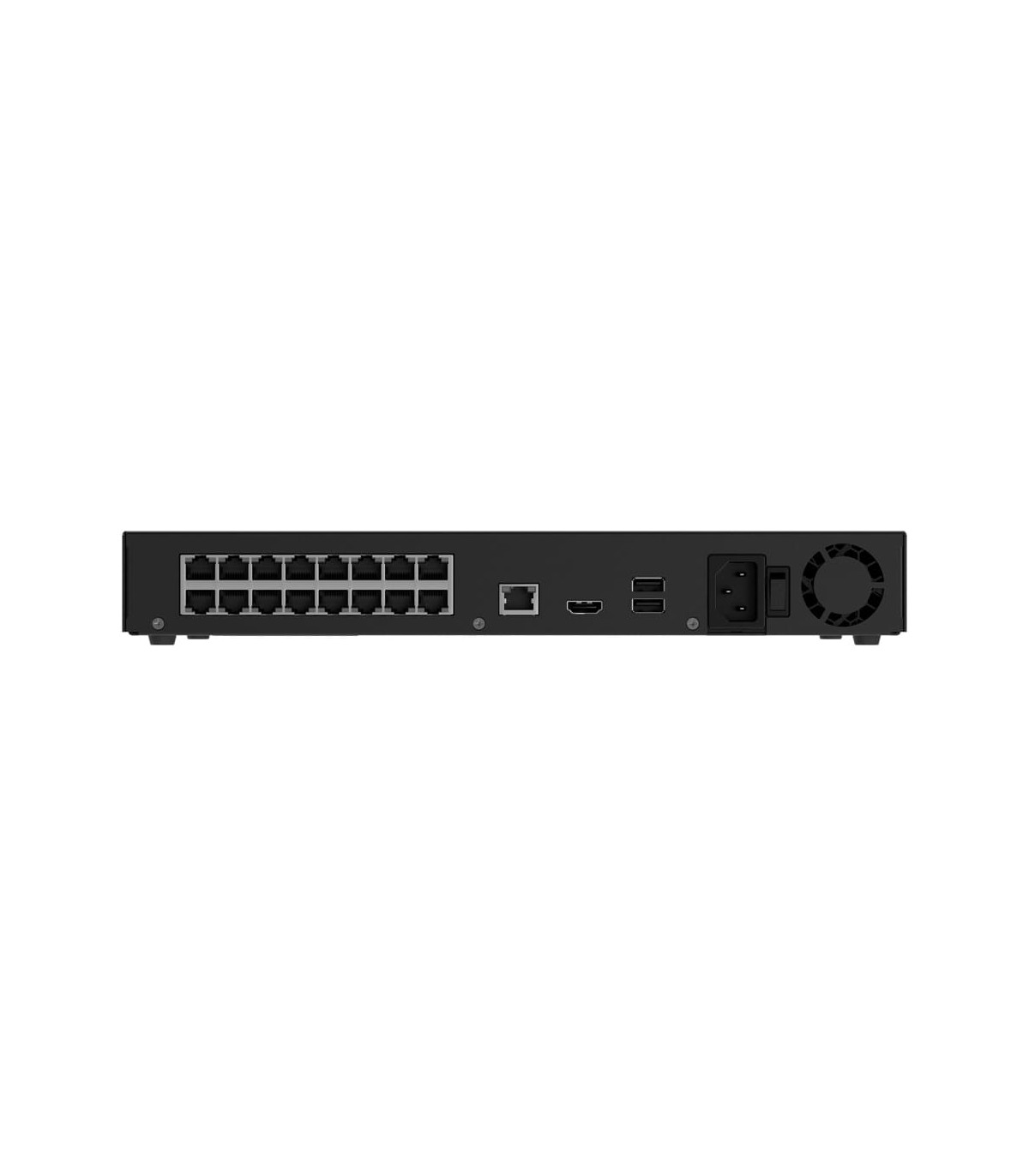

- 16 × PoE Ethernet ports (10/100 Mbps) with 200 W total PoE power.
- Dedicated Gigabit Ethernet LAN port (10/100/1000 Mbps).
- Supports 2 hot-swappable SATA HDDs (up to 32 TB in total).
- 4K HDMI output for direct local display.
- Three USB 2.0 ports (1 front panel, 2 rear panel).
- Recording and playback resolution up to 12 MP & 4K.
- Redundancy or Split storage recording modes.
- Built-in AC power supply (100–240 V~).
- Full management via Ajax app.
High-capacity 16-Channel PoE Black Ajax NVR H2D16PAC IP Recorder with built-in PoE switch, support for Dual Hot-Swap HDD bays, and HDMI output
The 16-Channel PoE Black Ajax NVR H2D16PAC is a comprehensive, high-performance IP video recording and powering solution engineered for large-scale security projects. Equipped with 16 dedicated PoE Ethernet ports (10/100 Mbps) delivering a total PoE power budget of 200 W (supporting up to 30 W per port under IEEE 802.3af/at / PoE+ standards), this recorder directly powers and connects up to 16 IP cameras via a single network cable per channel. It also features support for 2 × 3.5" or 2.5" SATA hot-swappable hard drives (up to 16 TB per drive, totaling up to 32 TB, hard drives not included), ensuring weeks of uninterrupted recording without service breaks during maintenance.
4K Local Display, Redundancy Modes, and JetSparrow Technology
The NVR H2D16PAC features a 4K HDMI output and 3 × USB 2.0 ports (one front port for USB flash drives and two rear ports for mouse/keyboard), enabling the arrangement of a complete local monitoring workstation without depending on an Internet connection. The unit manages up to 16 IP video channels (Ajax cameras or ONVIF/RTSP) at resolutions up to 12 MP and offers two advanced storage modes: Redundancy (mirrored) and Split. Powered by proprietary P2P JetSparrow transmission technology, video stream playback from alarm notifications is instant on mobile devices.
Built-in AC Powering, Gigabit LAN Port, and mTLS Cybersecurity
The NVR H2D16PAC includes an integrated AC power supply (100–240 V~, 5 A) powering both the NVR unit and all 16 PoE ports. Connectivity to the local network is handled via a dedicated Gigabit Ethernet RJ-45 port (10/100/1000 Mbps). Onboarding takes seconds by scanning the QR code inside the Ajax app. All data streams are protected by mTLS encryption and NDAA compliance. For full technical documentation, visit the official page for Ajax NVR H2D16PAC on Ajax Systems.
