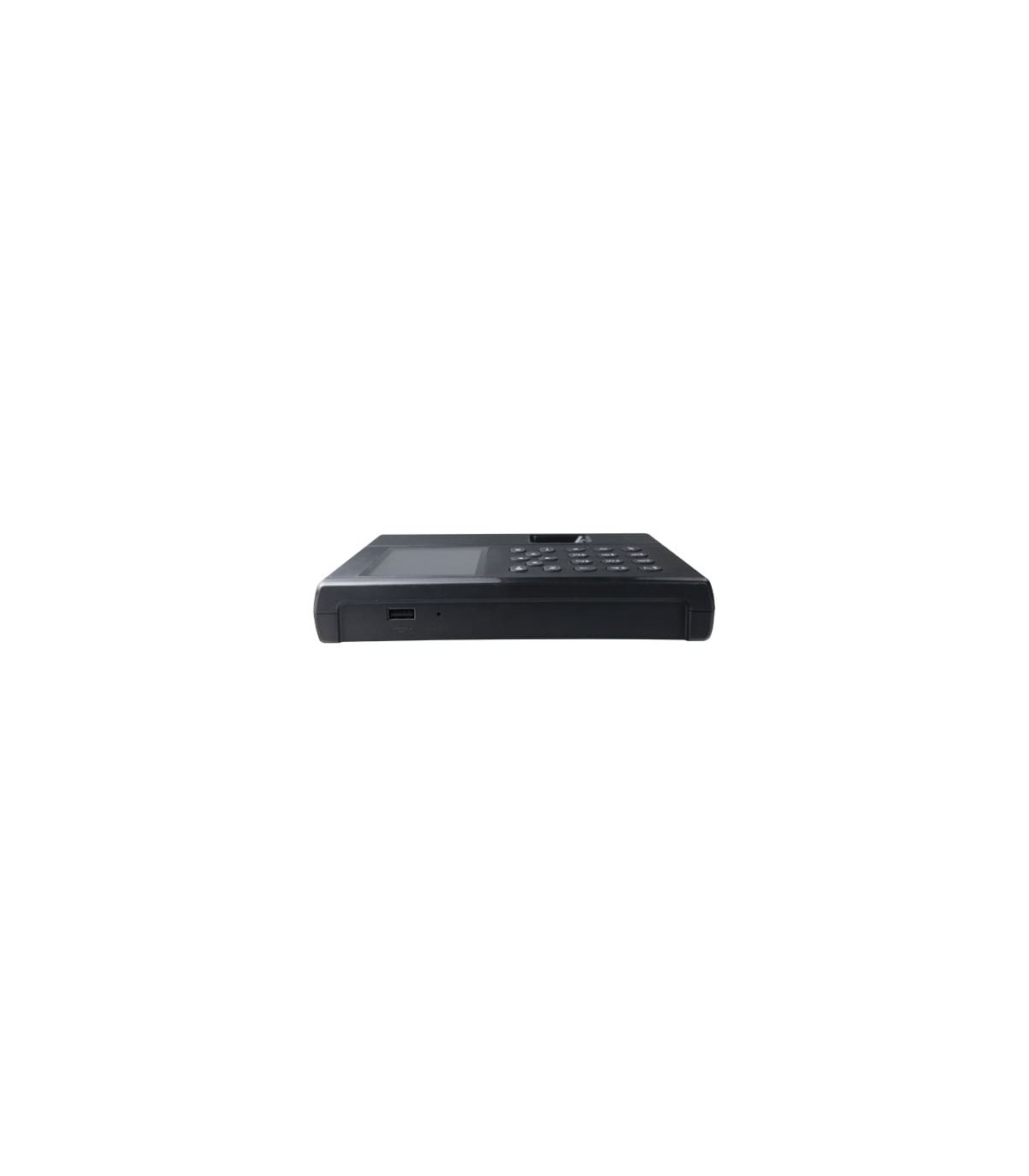

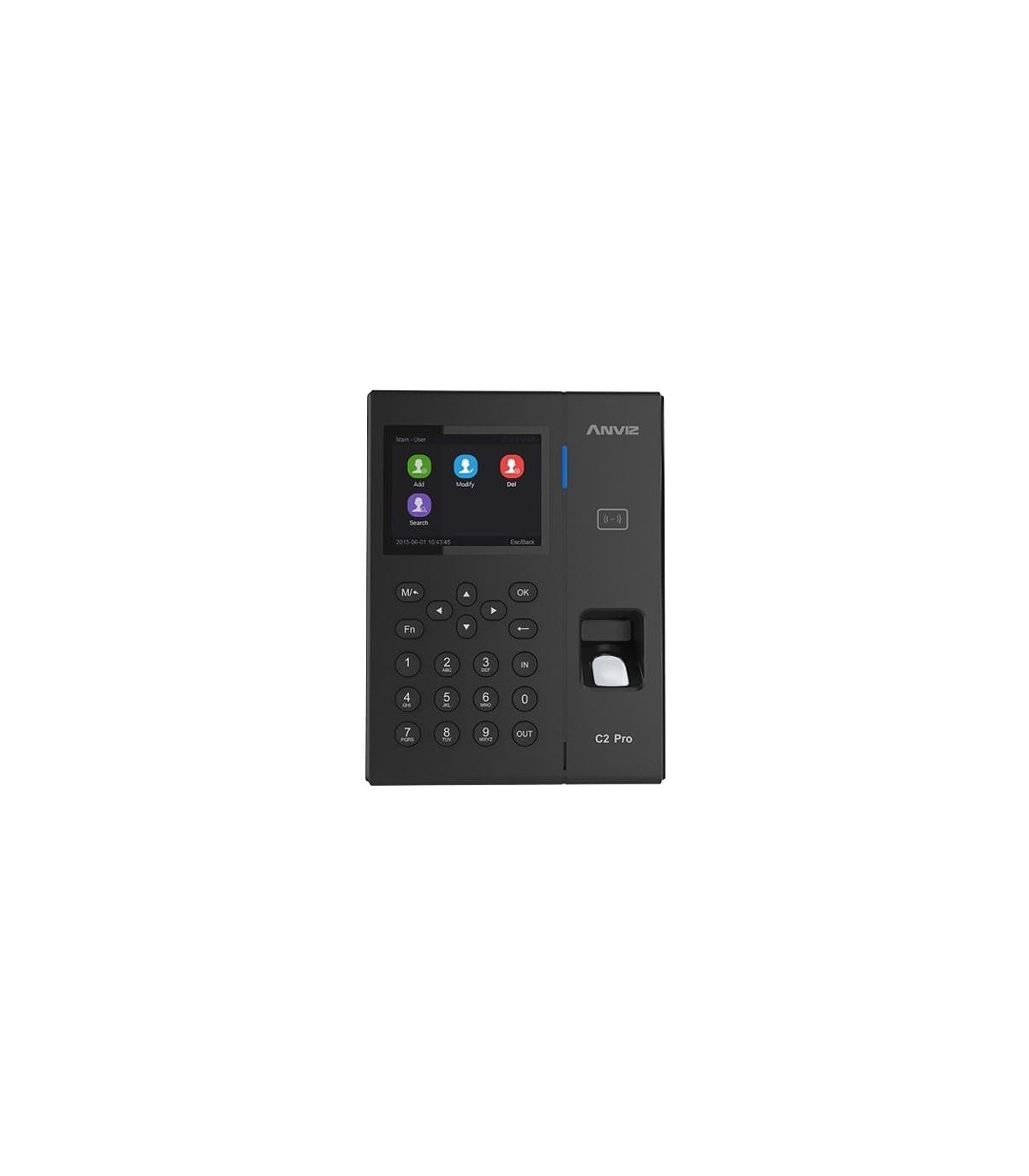

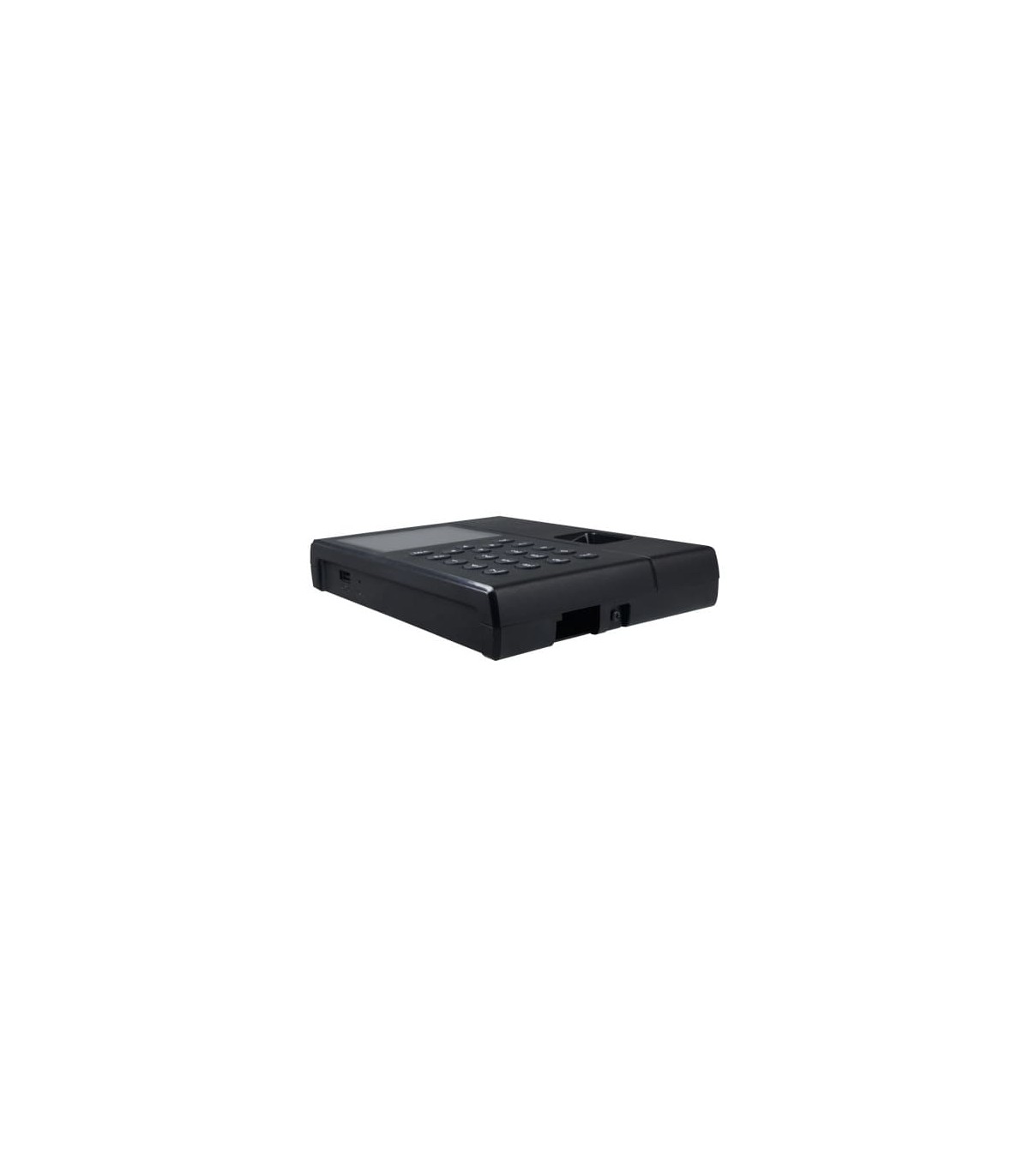

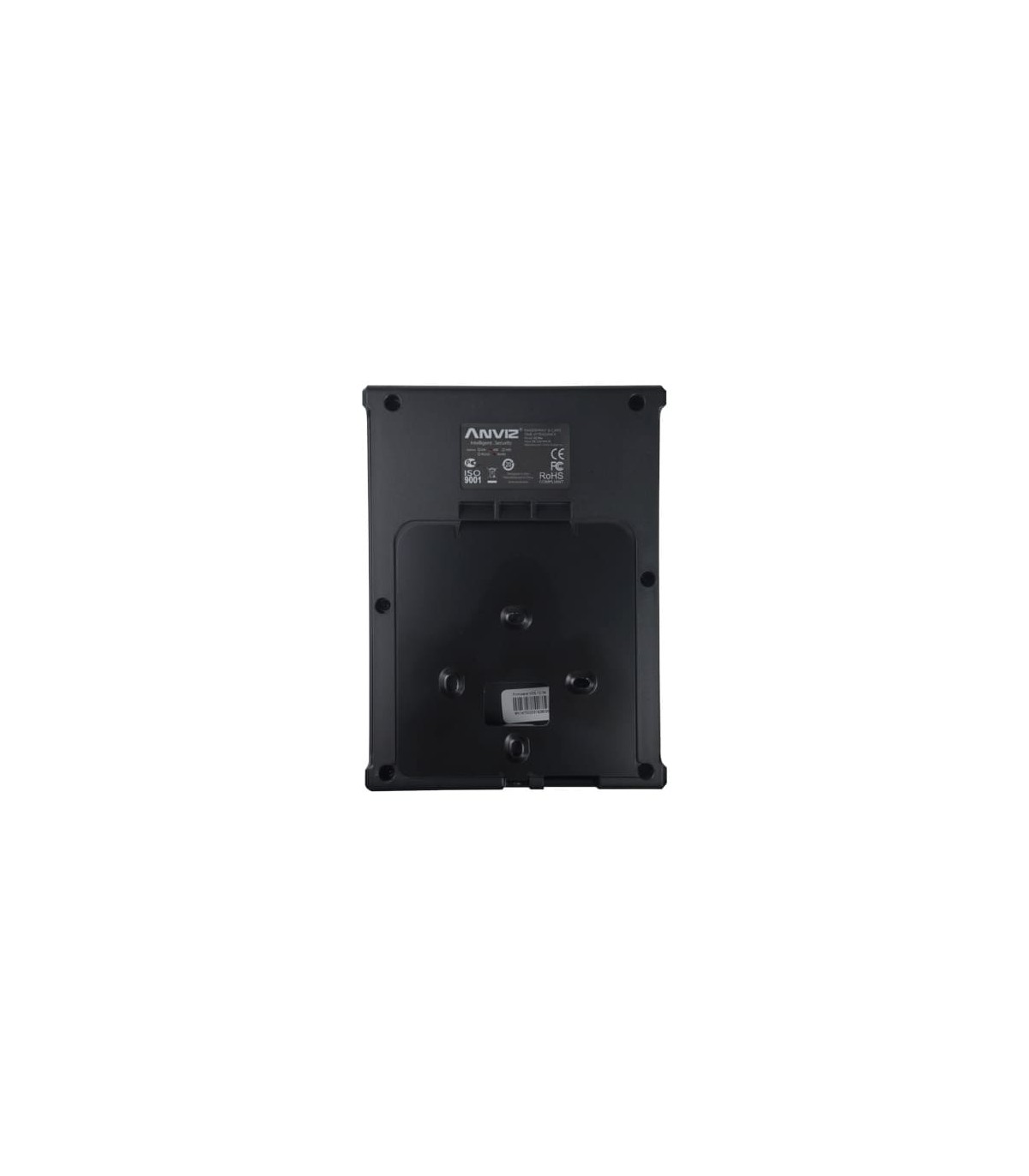

Access Control and Time & Attendance
Fingerprint, EM/MF card and PIN
5.000 users | 100.000 records
TCP/IP, WiFi, USB and Wiegand : Siren
3.5" TFT | Integrated controller
CrossChex Standard / Cloud
| Brand | ANVIZ |
| Processor | 1 GHz dual-core processor |
| Memory | 512 MB DDR3 + 2 GB Flash |
| Operating system | Linux |
| Screen | 3.5" Color TFT |
| Identification time | < 0.5 s |
| Capacity | Up to 10.000 fingerprints and/or RFID cards |
| Records | Up to 100.000 |
| Proximity card | EM 125 kHz and MF 13.56 MHz |
| PC communication | WiFi, TCP/IP, RJ45, RS232, USB Flash |
| Inputs | Door sensor |
| Outputs | Wiegand 26 / Anviz or siren |
| Software | CrossChex Standard: free local PC software for access and presence control CrossChex Cloud: free cloud for time and attendance control |
| Power | DC 5 ~ 12V / 1 A | PoE IEEE802.3af |
| Temp. operation | -20 ºC ~ +50 ºC |
| Dimensions | 32 (D) x 140 (W) x 190 (H) mm |
| Weight | 550 g |
| Certificates | CE / FCC / RoHS |
PoE access and presence control
Fingerprint, EM card and PIN
3.000 users | 100.000 records
TCP/IP, WiFi, USB, RS485 and Wiegand
2.4" TFT | Integrated controller
CrossChex Standard / Cloud
Time & Attendance control
EM card and PIN
10.000 users | 100.000 records
TCP/IP and USB
2.8" TFT | 8 Presence modes
CrossChex Standard / Cloud
