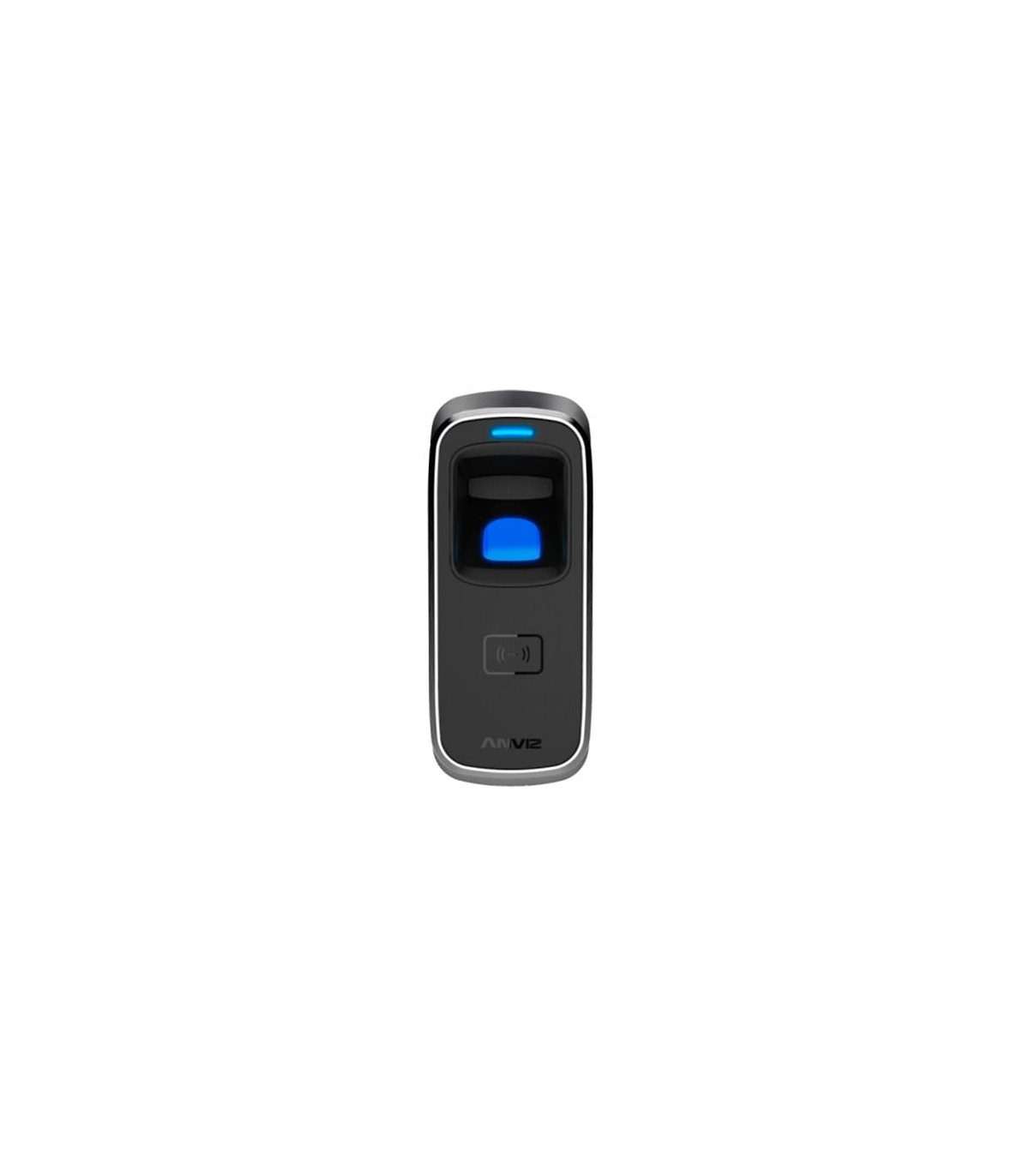

Access control IP65 IK10
Fingerprint and MF card
3.000 users | 50.000 records
TCP/IP, WiFi, Bluetooth, Bluetooth, USB, RS485 and Wiegand
Integrated controller
CrossChex Standard / Mobile
| Processor | Linux Based 1Ghz CPU |
| Algorithm | BioNano V10 |
| Optical fingerprint sensor | Optical Sensor |
| Activation sensor | Infrared auto-activation |
| Scan area | 22 x 18 mm |
| Resolution | 500 DPI |
| Identification time | < 0.5 Sec. |
| Capacity | Up to 3.000 fingerprints or cards |
| Records | Up to 50.000 |
| Identification modes | Fingerprint, Card & Fingerprint+Card |
| Proximity card | MF |
| PC communication | WiFi, Bluetooth, TCP/IP and miniUSB |
| Inputs | Door sensor, opening button |
| Outputs | Wiegand 26, RS485, Relay output NO/NC |
| Software | CrossChex Standard: free local PC software for access and presence control CrossChex Mobile: free mobile application for access control |
| Protection | Suitable for outdoor IP65, IK10 anti-vandal |
| Power | DC 12 V / 150 mA |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | 34.5 (D) x 50 (W) x 124 (H) mm |
| Weight | 450 g |
