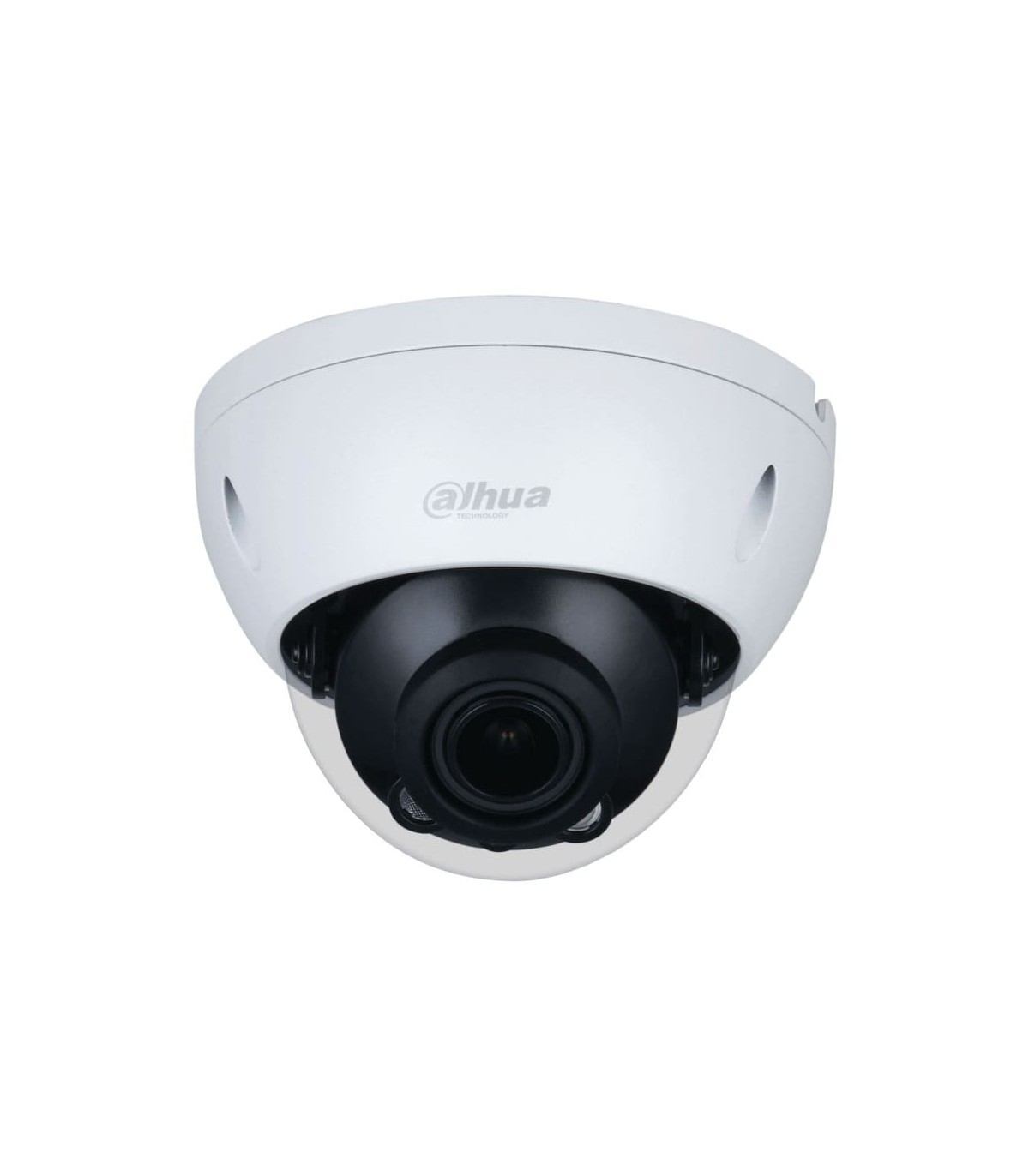

IPC-HDBW2541R-ZS - WizSense 5MP vandal resistant outdoor IP Dome

5-megapixel 1/2.7" CMOS sensor

Compression Formats: Smart H.265+, Smart H.264+, H.265, H.264, MJPEG

Digital resolution: 5MP (2960x1668), 4.6MP (2880x1620), 4MP (2688x1520), 3MP (2048x1536, 2048x1536), 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576, 704x480), VGA (640x480), CIF (352x288, 352x240)

Stream 1: 5MP (1~20 ips), 4MP (1~25/30 ips)

Stream 2: D1 (1~25/30 fps)

Day/night mode with removable mechanical filter

Smart IR: 2 IR leds, 40 meters

0.007 lux F1.5 (color), 0.0007 lux F1.5 (B/W), 0 lux IR on

2.7~13.5 mm motorized optics

Angle of view: 113°~31°(H), 58°~18°(V), 138°~36°(D)

Imaging modes: BLC, HLC, WDR 120dB, 3D-NR, Mirror.

White balance with 6 modes

Automatic and manual gain control

Supports 4-zone videosensor, 4 regions of interest (ROI) and 4-zone privacy mask

Perimeter protection with cross-line detection and intrusion detection (both modes support human/vehicle classification)

SMD Plus

Built-in microphone

MicroSD card slot up to 256GB (not included)

Network interface: RJ45 (10/100 Base-T)

Network Protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, Boujour

ONVIF (Profile S/G/T), CGI, P2P, Milestone, SDK and API support

Up to 20 users

Remote viewing via IE, Chrome, Firefox browsers

Smart PSS, DSS, DMSS management software

Compatible with IOS and Android mobile devices

Power supply: 12V DC / PoE (802.3af)

Maximum power consumption: 6.1W (12V) / 7.3W (PoE)

Storage temperature from -40°C ~ +60°C

Operating temperature from -30°C ~ +60°C

Relative humidity: ≤95%.

IP67 degree of protection

Vandal-proof IK10

Metal housing

Dimensions: Ø122 x 93.4 (H) mm

Net weight: 500 g

Gross weight: 660 g

3AXIS: 0°~355°(PAN), 0°~75°(TILT), 0°~355°(Rotation)
