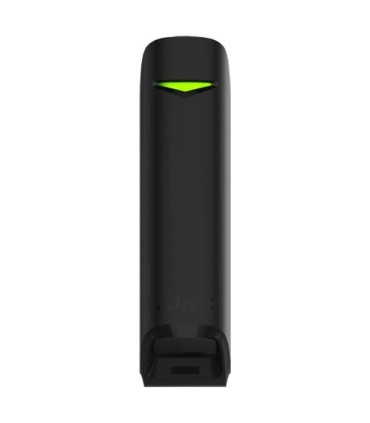

The Ajax MotionProtect Curtain Black sets a new benchmark in perimeter electronic security. This advanced indoor device creates an invisible protection screen. It merges two passive infrared sensors inside an ultra-narrow beam. This hardware safeguards doors and windows from intruders. Its premium matte black finish ensures a discrete architectural integration. It minimizes aesthetic impact on dark frames and walls. It also reduces overall system installation costs effectively.
Perimeter detection relies on a specialized segmented mirrors system. The advanced ZONAL digital algorithm complements these optical sensors. This wireless ajax system performs real-time temperature compensation. It analyzes the environment's infrared radiation profiles constantly. This technology isolates human heat signatures successfully. It guarantees reliable pet immunity features in the lower zone. The software assesses the signal profile. It prevents false alarms from air conditioner drafts.
The device monitors the perimeter to protect critical target areas. The integrated curtain lens utilizes a narrow 6-degree aperture. This represents an exclusive technical standard of the ajax brand. An alarm event is generated after two sequential optical validations. It registers the invisible curtain line intrusion first. Then it validates the direction of the intruder movement. The digital processing prevents thermal variation triggers. This architecture avoids false alarms from common room changes.
Integration within the wider setup uses the proprietary Jeweller radio protocol. It operates with permanent two-way AES block encryption from factory. It utilizes the stable 868.0 to 868.6 MHz frequency bands. This protocol guarantees stable data transmissions up to 1700 meters. The maximum range is calculated in open field. It implements automatic frequency hopping during interference. The physical housing features Grade 2 certification. It integrates a sensitive mechanical tamper button.

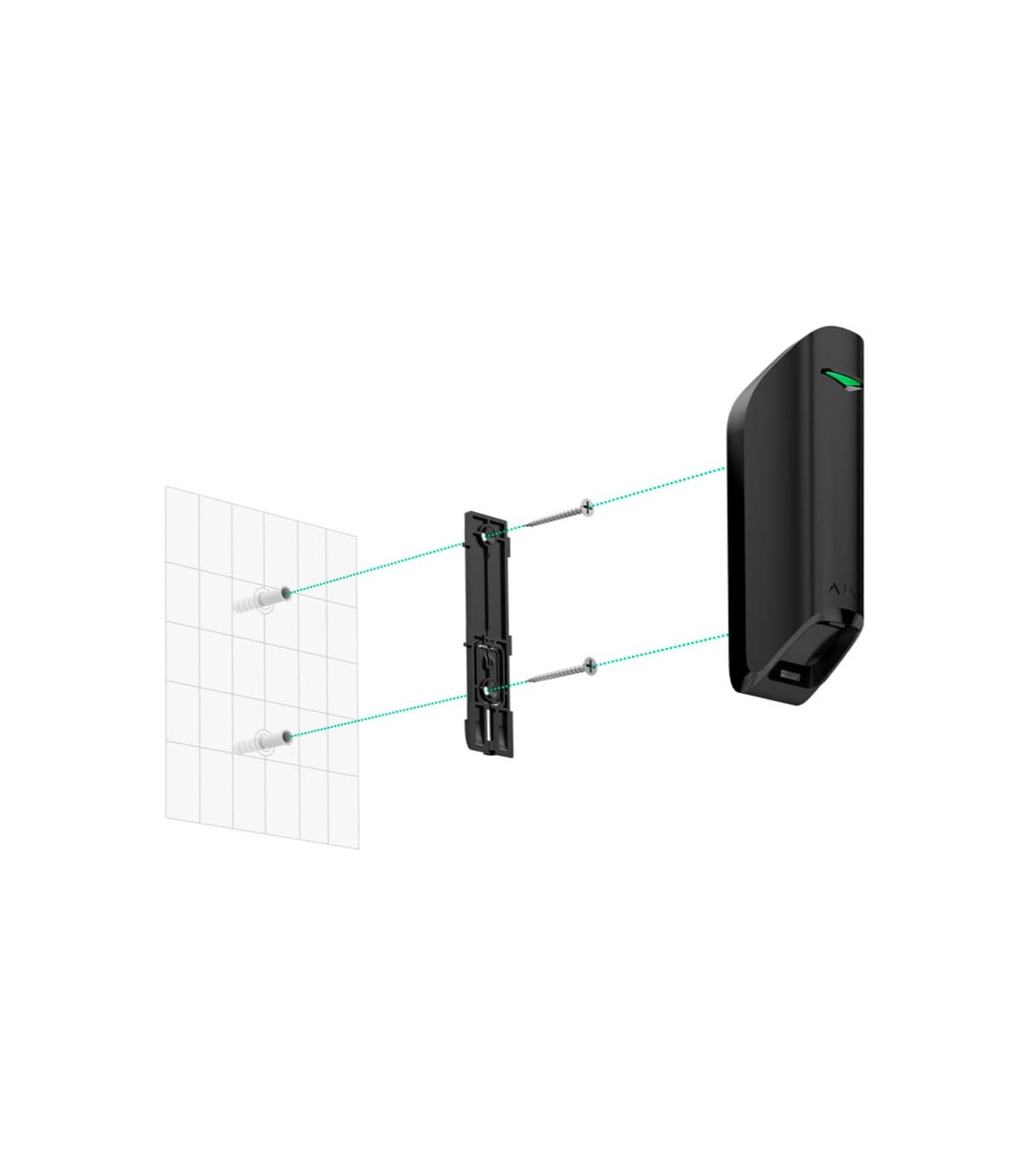

The device is paired with the central panel very quickly. Scan the printed QR code via the official ajax application. Mounting is cleanly executed on the wall. Use the included SmartBracket installation panel for mounting. The ideal recommended mounting height is 2.4 meters. Check out our selection under Ajax kits and hubs to expand your layout. Access the manufacturer's official product page at Ajax Systems for engineering specs.
