DS-KD-ACF2 - Hikvision Flush Mounting Bracket for 2-Module Video Intercom

DS-KD-ACF2 - Hikvision Flush Mounting Bracket for 2-Module Video Intercom

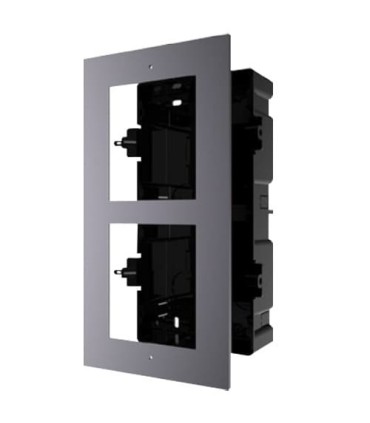

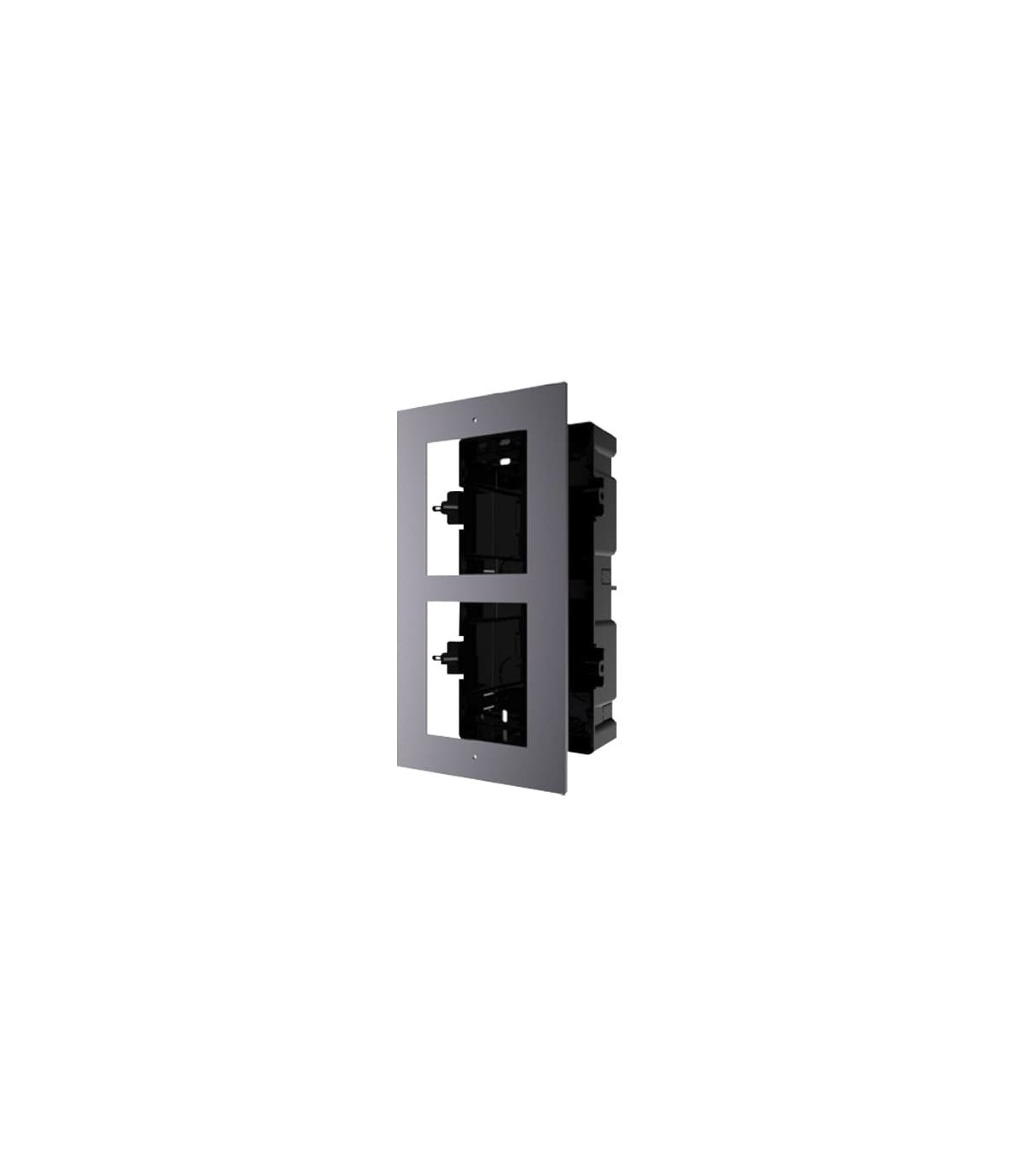

The DS-KD-ACF2 is a Hikvision flush mounting bracket designed for modular video intercom installations. It accommodates 2 compatible modules within a single mounting structure, allowing them to be integrated directly into a wall.

This accessory consists of an aviation-grade aluminium front panel and a plastic flush mounting box. Its recessed design provides a neat and discreet finish, making it suitable for compatible Hikvision modular video intercom systems.

DS-KD-ACF2 - Flush Mounting Bracket for 2 Hikvision Modules

The DS-KD-ACF2 flush mounting bracket allows two compatible modules to be installed within a single mounting assembly.

Its 2-module configuration keeps the components of the modular video intercom system together, providing an organised installation directly within the wall.

This accessory is suitable for installations requiring a recessed mounting solution for two compatible Hikvision video intercom modules.

Compatibility with Hikvision Modular Video Intercom Systems

The DS-KD-ACF2 is designed for use with Hikvision modular video intercom systems.

The mounting structure accommodates two compatible modules, allowing the system to be configured according to the installation requirements.

Compatibility between the selected modules and the mounting bracket should be confirmed before installation.

Aviation-Grade Aluminium Front Panel and Plastic Mounting Box

The front panel of the Hikvision DS-KD-ACF2 is manufactured from aviation-grade aluminium, while the flush mounting box is made from plastic.

This combination provides a metal front panel together with a mounting box designed for recessed installation within the wall.

The complete assembly has an approximate weight of 290 g.

Flush Mounting Installation

The DS-KD-ACF2 is designed for flush mounting, allowing compatible video intercom modules to be integrated directly into the wall.

Compared with a fully surface-mounted installation, recessed mounting reduces the visible projection of the assembly and provides a more discreet finish.

For proper installation, the dimensions of the mounting box and the installation instructions for the compatible modules must be observed.

Hikvision DS-KD-ACF2 Dimensions

The 2-module flush mounting bracket has separate dimensions for the front panel and the recessed mounting box:

• Front panel: 237 (H) × 135 (W) × 4 (D) mm
• Flush mounting box: 236 (H) × 124 (W) × 56 (D) mm
• Total weight: 290 g

These dimensions help installers plan the space required for integrating the mounting bracket into the wall.

DS-KD-ACF2 Technical Specifications

• Brand: Hikvision
• Model: DS-KD-ACF2
• Product type: Flush mounting bracket
• Compatibility: Compatible Hikvision modular video intercom systems
• Capacity: 2 modules
• Front panel material: Aviation-grade aluminium
• Mounting box material: Plastic
• Front panel dimensions: 237 × 135 × 4 mm
• Mounting box dimensions: 236 × 124 × 56 mm
• Weight: 290 g
• Installation type: Flush mounting in wall

DS-KD-ACF2 - Mounting Solution for Hikvision Modular Video Intercom Systems

The DS-KD-ACF2 provides a mounting solution for Hikvision modular video intercom installations requiring two compatible modules.

Its aviation-grade aluminium front panel and plastic mounting box allow the components to be integrated into a structure specifically designed for recessed wall installation.

This Hikvision flush mounting bracket is a practical choice for installations requiring a neat, discreet finish and an organised two-module configuration.
