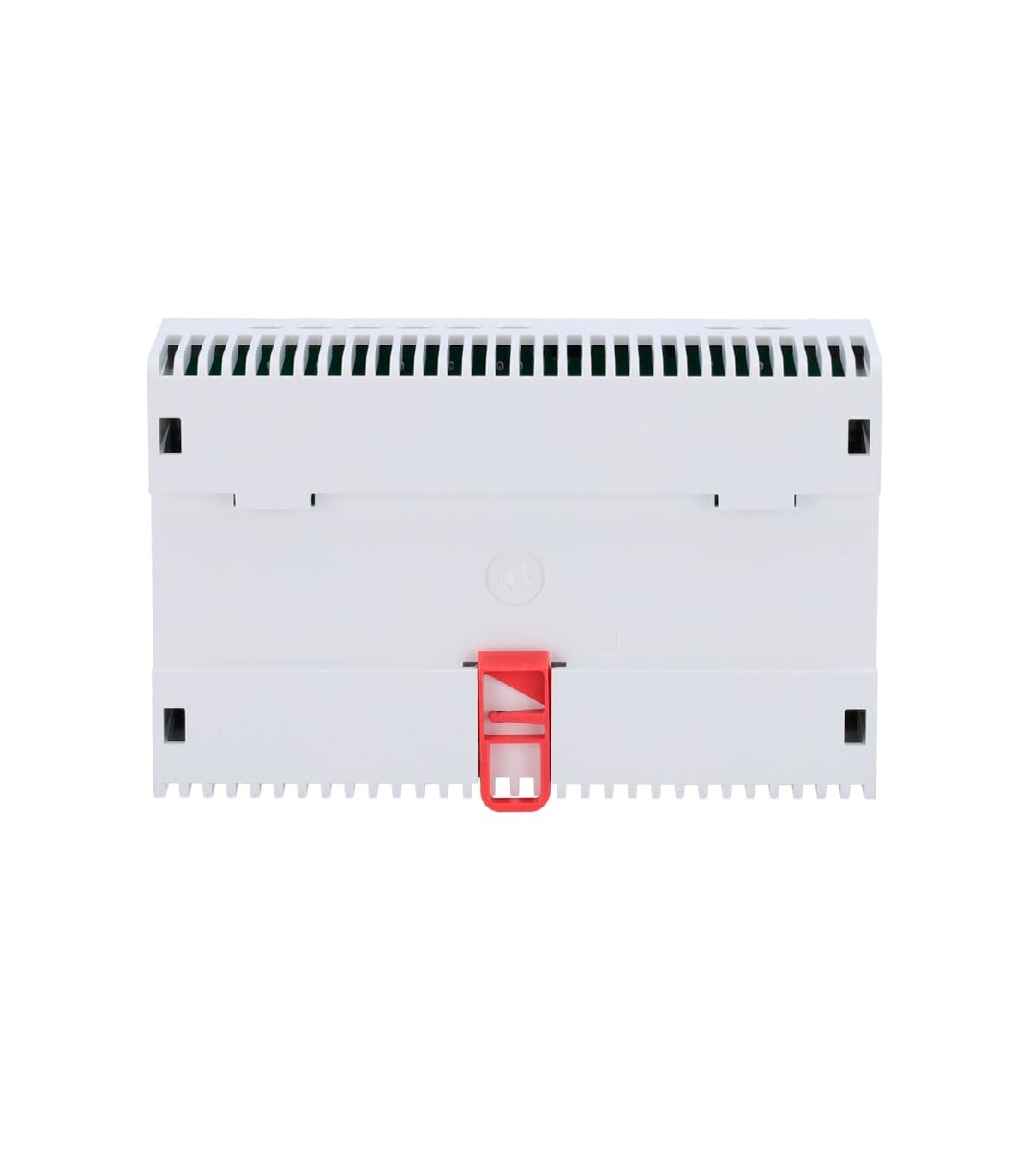

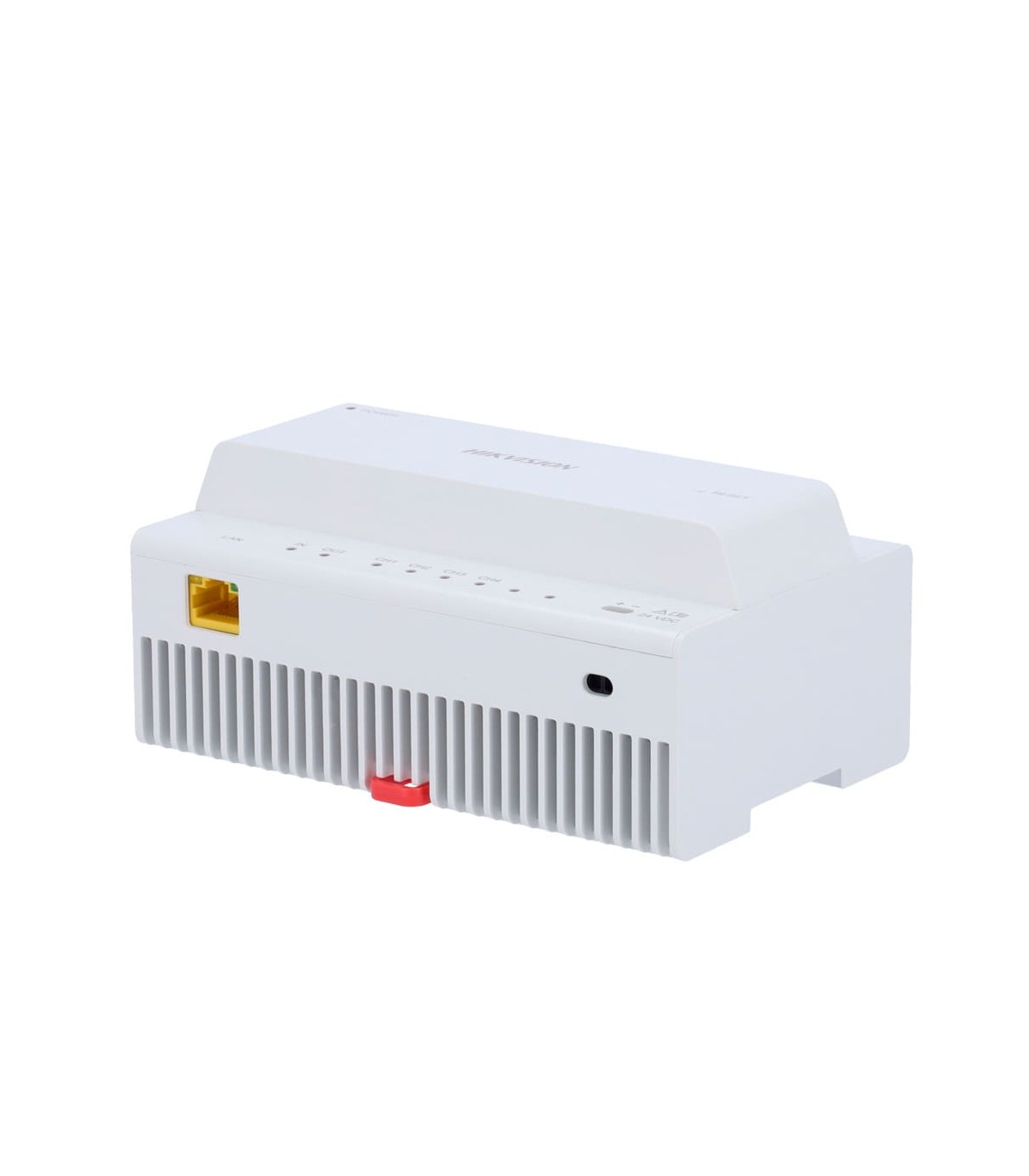

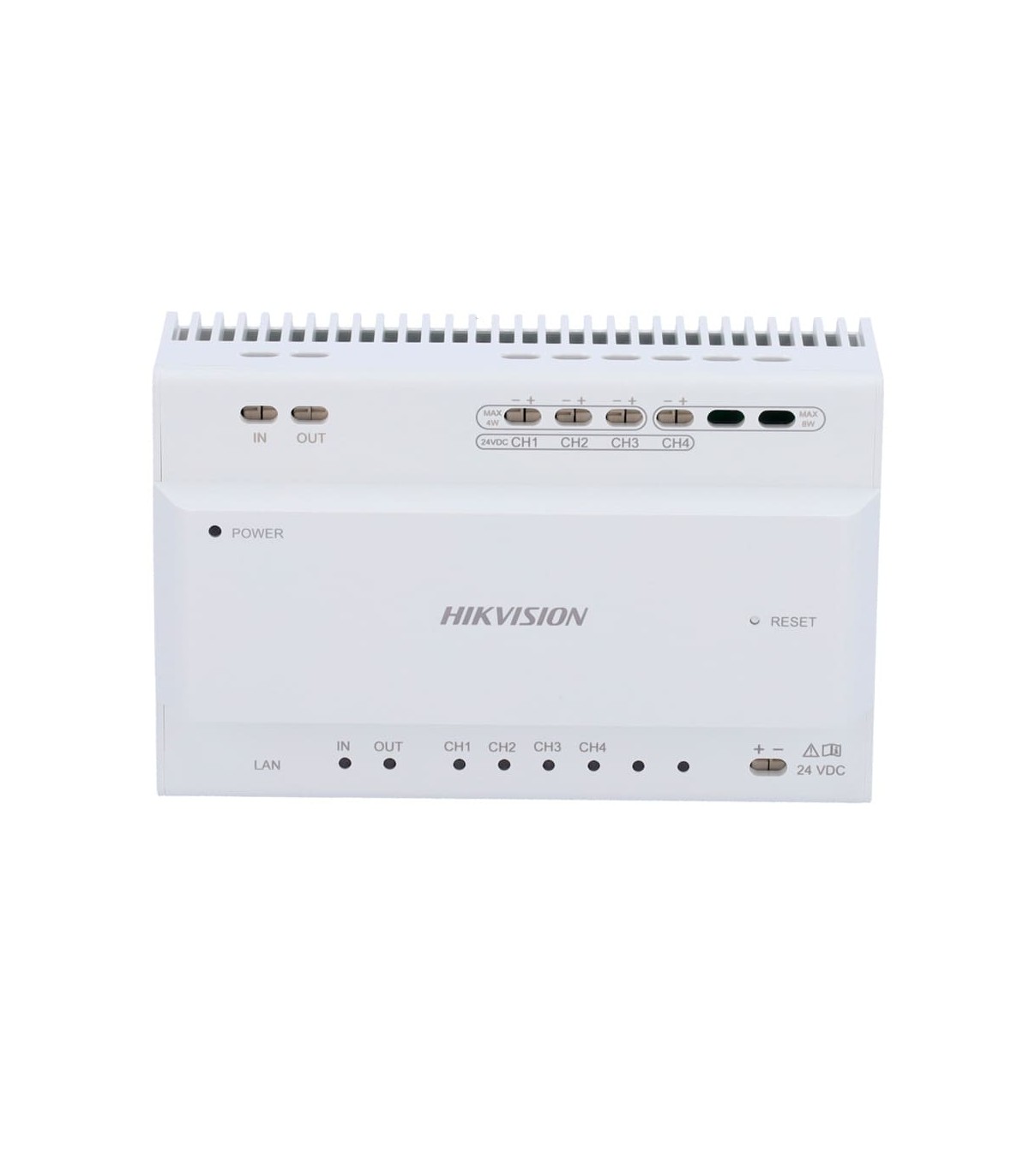

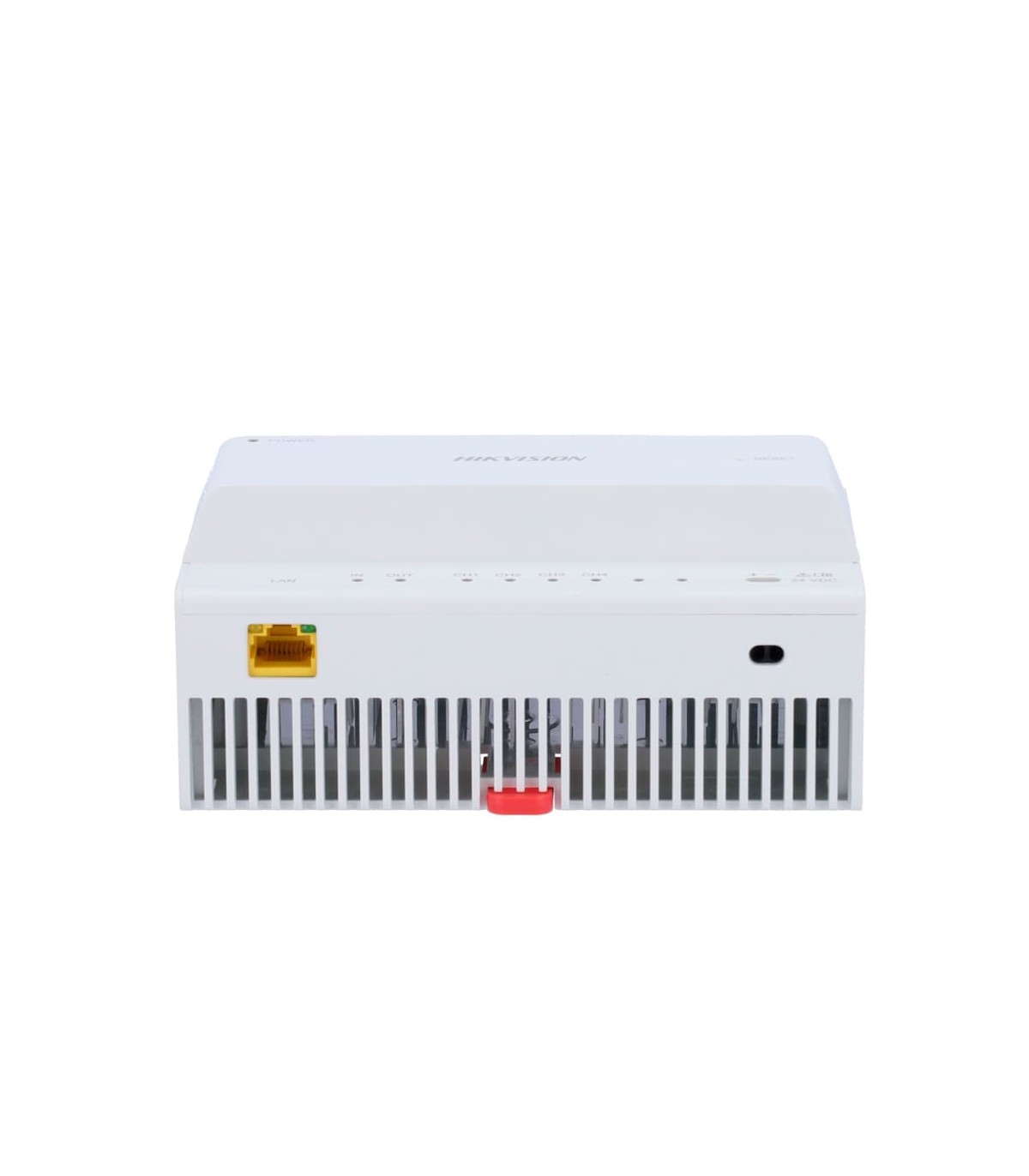

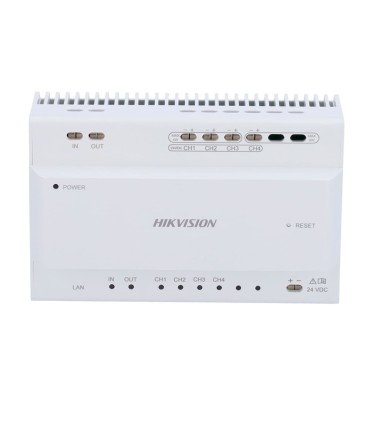

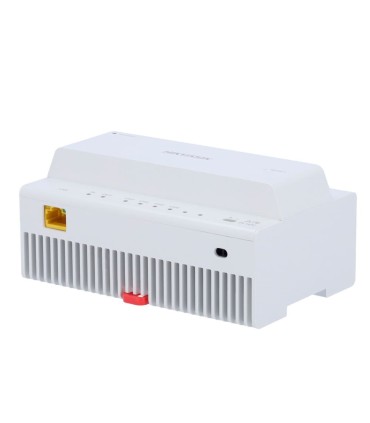

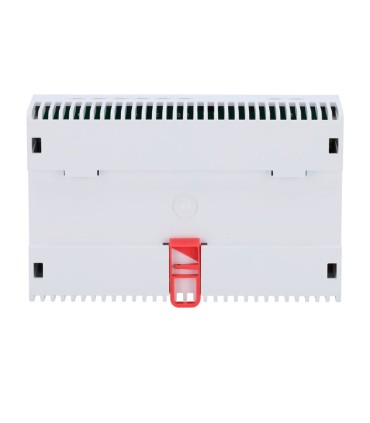

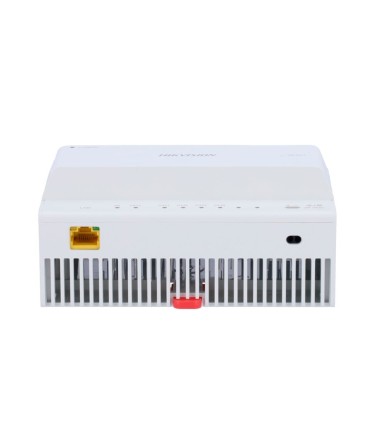

Converter for buildings
2 wires to IP
4 groups of 2 wires
TCP/IP with RJ45
For powering 2 wire devices
Cascading of hubs
| Brand | Hikvision |
| Model | DS-KAD704Y |
| Operation mode | Power, video and audio through 2 wire technology |
| Outputs | 4 channels of 2 wires |
| Cascade | 2 channels for cascade connection of DS-KAD706Y or DS-KAD706Y |
| Communication | 2 threads technology (up to 4 devices) |
| Network interface | Ethernet 10/100 BaseT |
| Power | DC 24 V / 2.5 A max. |
| Temp. operation | -10º C ~ +55º C |
| Dimensions | 144 (W) x 92 (H) x 66 (D) mm |
| Weight | 250 g |
Surface mount with visor
Specific for video door intercoms
Compatible with DS-KV9503-WBE1
Cable routes
Dimensions: 189 (H) x 97 (W) x 49 (D) mm
Stainless steel
Power supply
DC output 24 V / 1.5 A / 36 W
1 output
54.5 (W) x 90 (H) x 35 (D) mm
DIN rail mount
Video intercom specific
Front panel and flush mount box
For 2 modules
Specific for Hikvision video door entry systems
Compatible with Hikvision modules
Box made of plastic
Panel made of stainless steel
Surface mount box
For 2 modules
Specific for Hikvision video door entry systems
Compatible with Hikvision modules
With protective shield
Panel manufactured in SECC
Desktop Stand
Specific for video door intercoms
Compatible with DS-KH6320 and DS-KH8520
Cable routes
86 (H) x 122 (W) x 84 (D) mm
Made of stainless steel SUS304
Surface mount with visor
Specific for video door intercoms
Compatible with DS-KV8x13-WME1(C)
Cable routes
Dimensions: 189 (H) x 97 (W) x 49 (D) mm
Stainless steel
Peripheral module
Add physical keyboard
USB connection
Fingerprint and PIN opening
Suitable for exterior IP65
Compatible with DS-KD9403
Peripheral module
Add physical keyboard
USB connection
Opening with PIN
Suitable for exterior IP65
Compatible with DS-KD9403
