| Brand | Uniview |

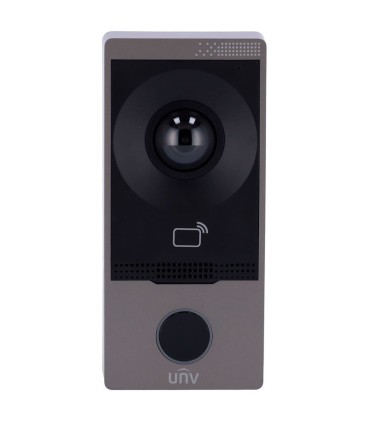

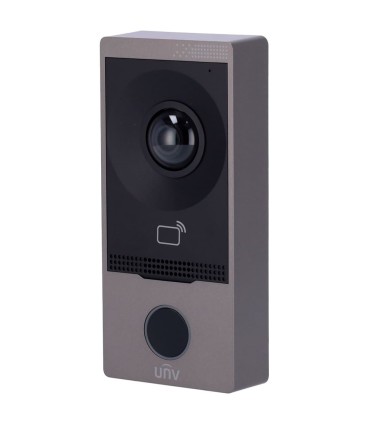

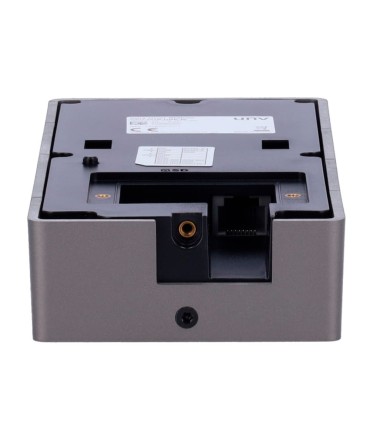

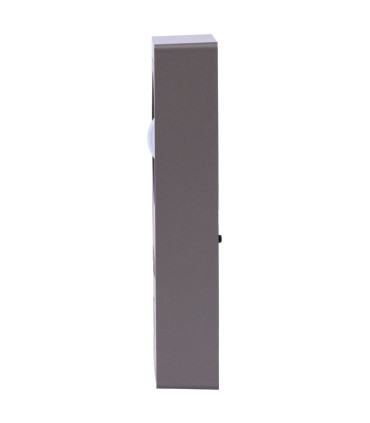

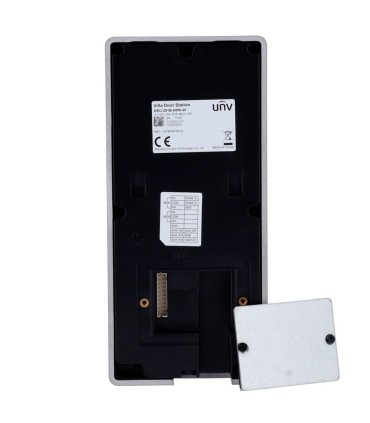

| Model | OEU-201B-HMK-W |
| Operating system | Linux |
| Image sensor | 2 Mpx CMOS wide-angle IR |
| Image Functions | BLC / WDR / DNR |
| Viewing angle | H: 124º, V: 68º, V: 147º |
| Audio | Bidirectional audio with microphone and speaker |
| Access control | Door opening with MF card 13.56 MHz Up to 2.000 users and 10.000 cards |
| Keypad | Mechanical call button |
| Outputs | 2 x relay for lock, 1 x RS485 |
| Inputs | 4 x auxiliary inputs (output button, feedback, door sensor), 1 x tamper |
| Memory | MicroSD card slot (up to 32 GB) |
| Remote access | Web browser UNV-Link mobile application |
| Network interface | Ethernet 10/100 BaseT / WiFi |
| Power | DC 12 V / 1000 mA máx. / IEEE802.3af PoE |
| Degree of protection | Suitable for exterior IP65 Anti-vandal IK08 |
| Material | Plastic |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | 171 (H) x 79 (W) x 34 (D) mm |
| Weight | 260 g |
