CB160 - VicoHome WiFi 3MP 4mm PT IP Camera

CB160 - VicoHome WiFi 3MP 4mm PT IP Camera

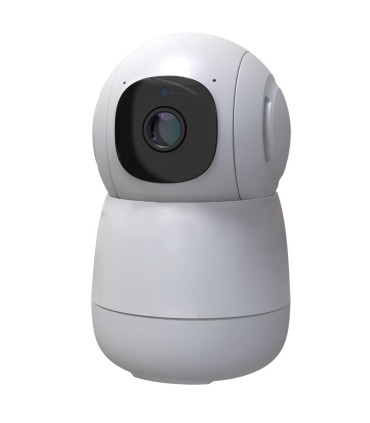

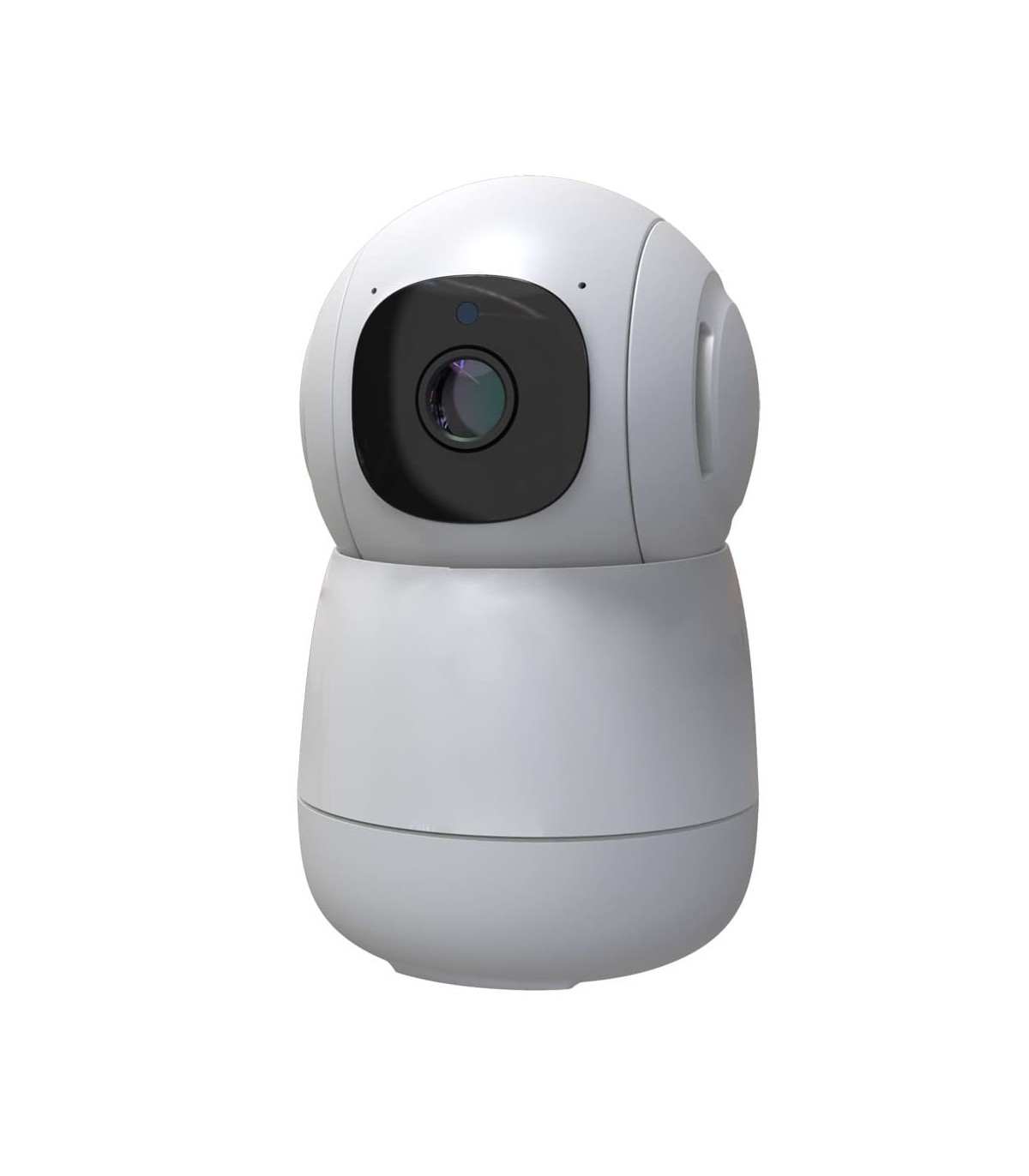

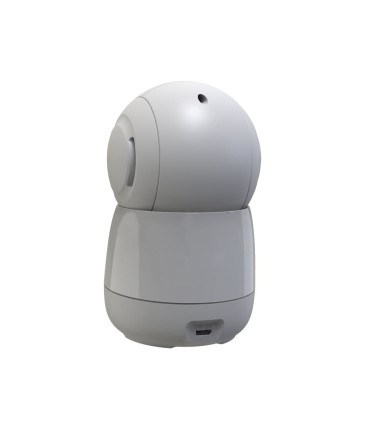

The CB160 is a VicoHome PT IP camera designed for indoor video surveillance. It provides 3MP (2304 × 1296) resolution and 2.4 GHz WiFi connectivity. Motorized horizontal and vertical movement allows the camera orientation to be controlled remotely through the VicoHome app.

The 1/3" MagixPix CMOS sensor works with a fixed 4mm F2.0 lens. The viewing angle is 78° horizontally and 92° diagonally. To optimize video transmission and storage, the camera supports H.264 and H.265 compression.

3MP image and MagicPix night vision

The 3MP resolution provides images up to 2304 × 1296. In low-light conditions, the CB160 uses infrared illumination with a range of up to 7 metres. MagicPix technology also enhances night vision using artificial intelligence.

These features provide monitoring during both day and night. The combination of 3MP resolution, a 4mm lens and night vision makes the camera suitable for different indoor environments.

CB160 with PT movement and Autotracking

The CB160 features remotely controlled motorized movement. The horizontal range is 0°~355°, while vertical movement covers 0°~90°. This allows the camera orientation to be adjusted through the app.

The Autotracking function automatically follows movement within the image. This feature complements motion detection and improves tracking capabilities within the monitored area.

Person and pet detection with two-way audio

The camera provides standard motion detection. It also includes person and pet detection. These functions help identify different events within the monitored area.

The audio system includes a built-in microphone and speaker, enabling two-way communication through the camera. The CB160 also features a built-in siren, providing an additional function for alert situations.

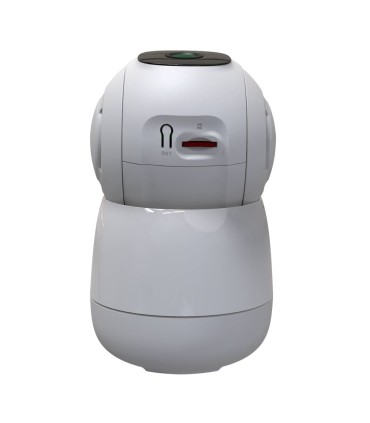

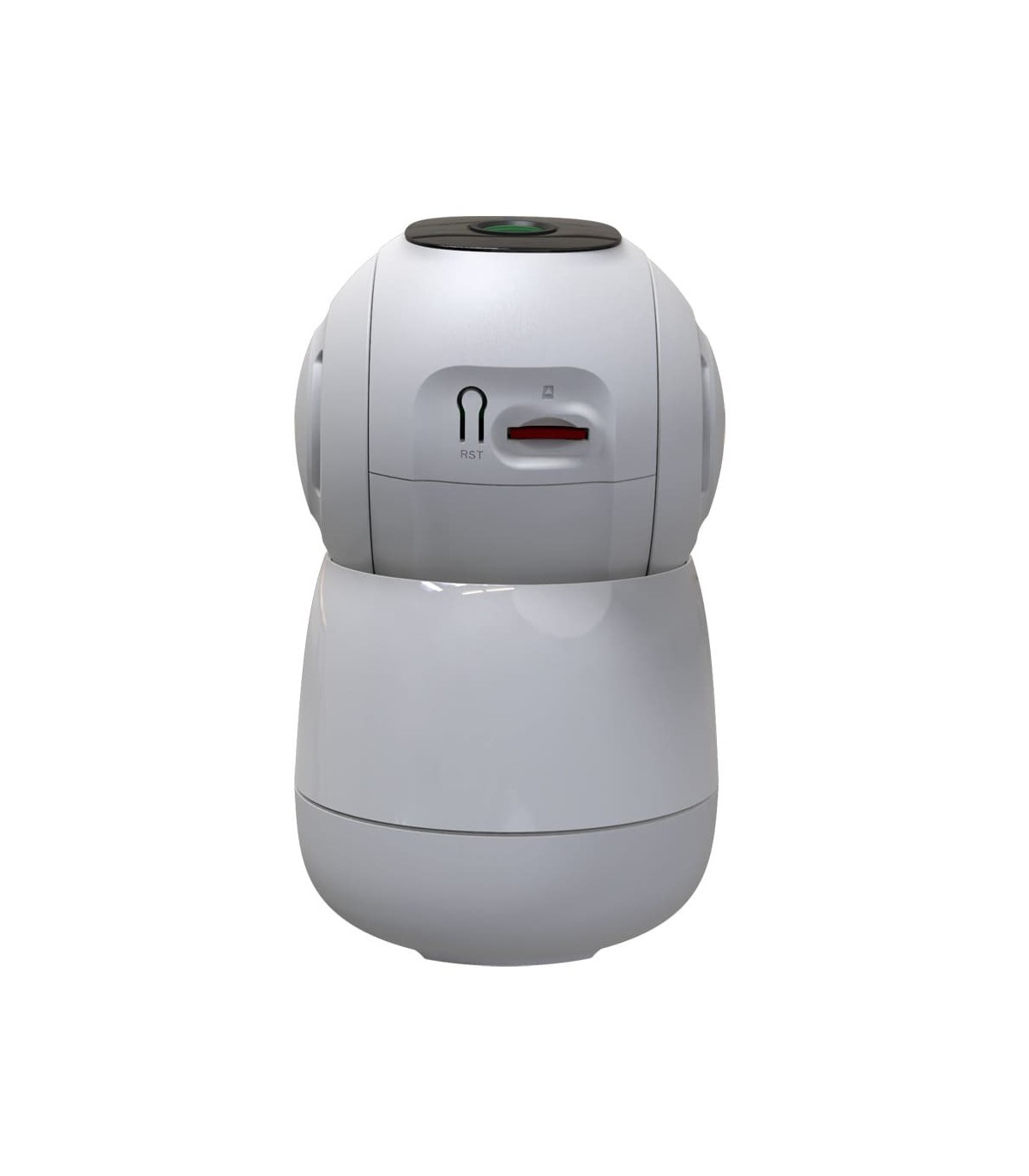

Local recording can be performed using a MicroSD card up to 128GB. The card is not included. Remote access is available through the VicoHome smartphone app.

2.4 GHz WiFi, VicoHome and Cloud services

The network connection is provided through 2.4 GHz WiFi. The VicoHome app provides remote access to the camera's available functions. It also simplifies device management from a smartphone.

The free Cloud service provides motion detection notifications with Cloud recording. Free storage is overwritten when it reaches 3 days or 0.5GB. The platform also offers subscription plans with additional functions and storage options.

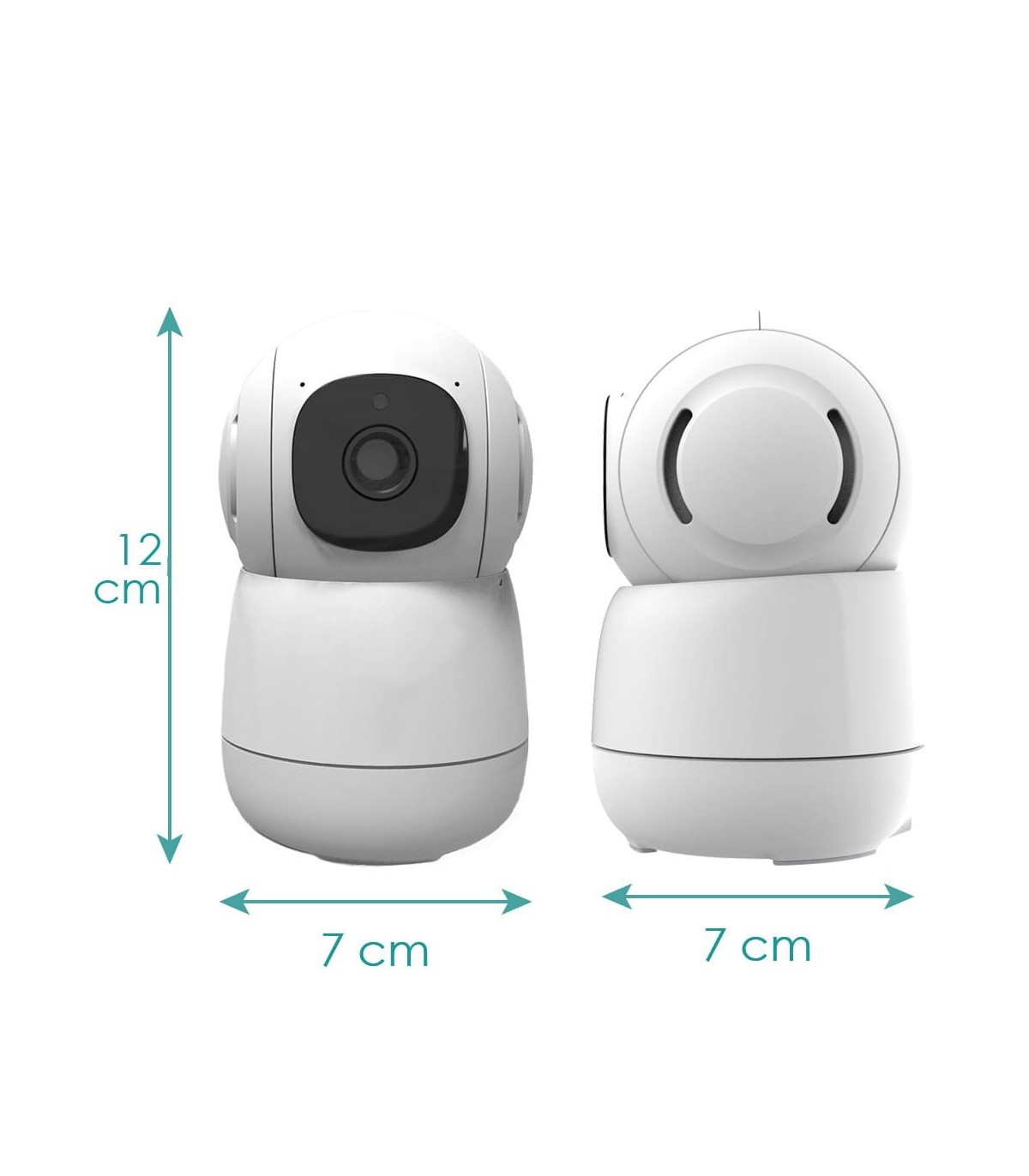

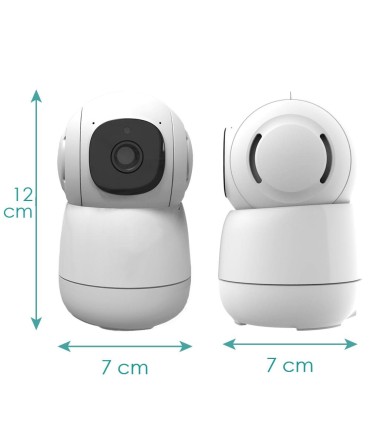

Power is supplied through DC 5V / 1.5A. The camera is designed for indoor use and operates between -10°C and +45°C. Its dimensions are 72 × 72 × 115.5mm and its weight is 194 g.
