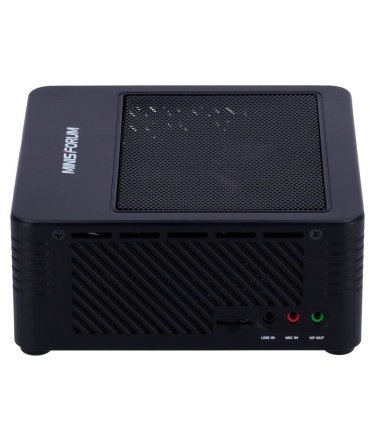

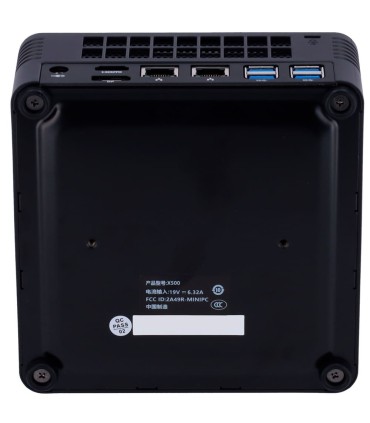

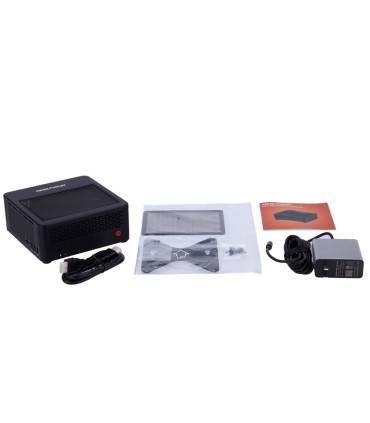

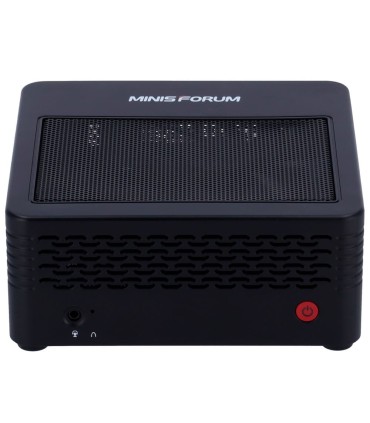

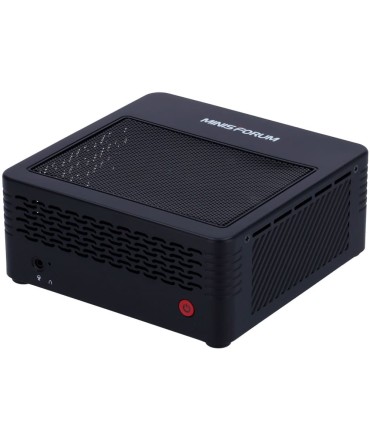

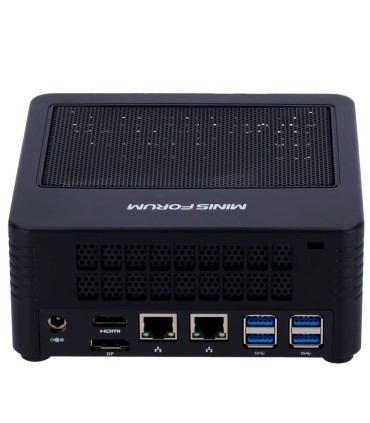

Windows Mini PC
AMD Ryzen CPU 7 5700G
Radeon GPU 8 Core
RAM 16GB + ROM 512GB SSD | HDD Slot
WiFi 6, Bluetooth 5.1 and RJ45 10/100/1000M
HDMI 2.0 4K and USB 3.1 Gen2
| Model | MINI-PC-ZEN3-6CORE-HDD |
| CPU | AMD Ryzen 7 5700G (3.8-4.6GHz, 8C/16T) |
| GPU | Radeon 8 Core 2000MHz Core [%VAR%] |
| Memory (RAM) | 16GB SO-DIMM DDR4 3200Mhz (expandable up to a maximum of 32GB)) |
| Internal storage (ROM) | 512GB M.2 NVME SSD 2280 (expandable up to a maximum of 2TB)) Additional slot for SATA HDD 2.5" hard disk drive Additional slot for SATA hard disk M.2 |
| Communication | WiFi 6 IEEE 802.11a/b/g/n/ac/ax Bluetooth 5.1 2 x RJ45 10/100/1000M |
| Audio | Microphone input/audio output jack 3.5 mm |
| Video output | 1 x HDMI 2.0 (Type A) Supports up to 4K @ 60 FPS, 1 x DP 1.4 (Display Port) Supports up to 4K @ 60 FPS |
| USB | 4 x UBS 3.1 Gen2 |
| Operating System | Windows 10 (64-bit) |
| Power | 19 V / 6.32 A |
| Dimensions | 154 (W) x 62 (H) x 153 (D) mm |
| Weight | 500 g |
HDMI signal multiplier
1 HDMI input
4 HDMI outputs
Up to 4K*2
Maximum output length 25 m
Power supply DC 5 V
VGA signal multiplier
1 VGA input
4 VGA outputs
VGA, SVGA, XGA, Multisync
Maximum distance to monitors: 65 meters
Power supply DC 9 V
VGA signal multiplier
1 VGA input
2 VGA outputs
VGA, SVGA, XGA, Multisync
Distance to monitors: 65 meters
Power supply DC 5 V
HDMI signal multiplier
1 HDMI input
2 HDMI outputs
Up to 4K*2
Maximum output length 25 m
Power supply DC 5 V
Mini PC without operating system
AMD Ryzen CPU 5 6600H
Radeon GPU 660M 6 Core
RAM 16GB + ROM 500GB SSD
WiFi 6, Bluetooth 5.2 and RJ45 10/100/1000M
HDMI 2.0 4K and USB 3.2 Gen2
Windows Mini PC
Intel Gemini Lake N4020 CPU
Intel UHD Graphics 600 GPU
RAM 6GB + ROM 128GB SSD | HDD Slot
WiFi 5, Bluetooth 4.2 and RJ45 10/100/1000M
HDMI, VGA and USB 3.0
HDMI signal multiplier
8 HDMI inputs
8 HDMI outputs
Up to 4K (input and output)
Allows remote control
Power supply DC 12 V
HDMI Signal Multiplier Receiver
Network connection
Up to 100 transmitters and unlimited receivers
Up to 4K (input and output)
Allows remote control
Control through app for computer or smartphone
