KIT118-B42POE - Uniarch 8-Channel PoE NVR IP Surveillance Kit + 4 Bullet 2MP Cameras with Microphone

KIT118-B42POE - Uniarch 8-Channel PoE NVR IP Surveillance Kit + 4 Bullet 2MP Cameras with Microphone

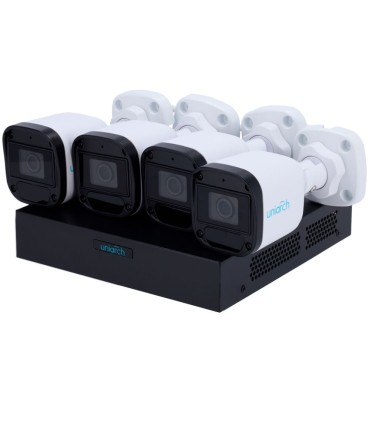

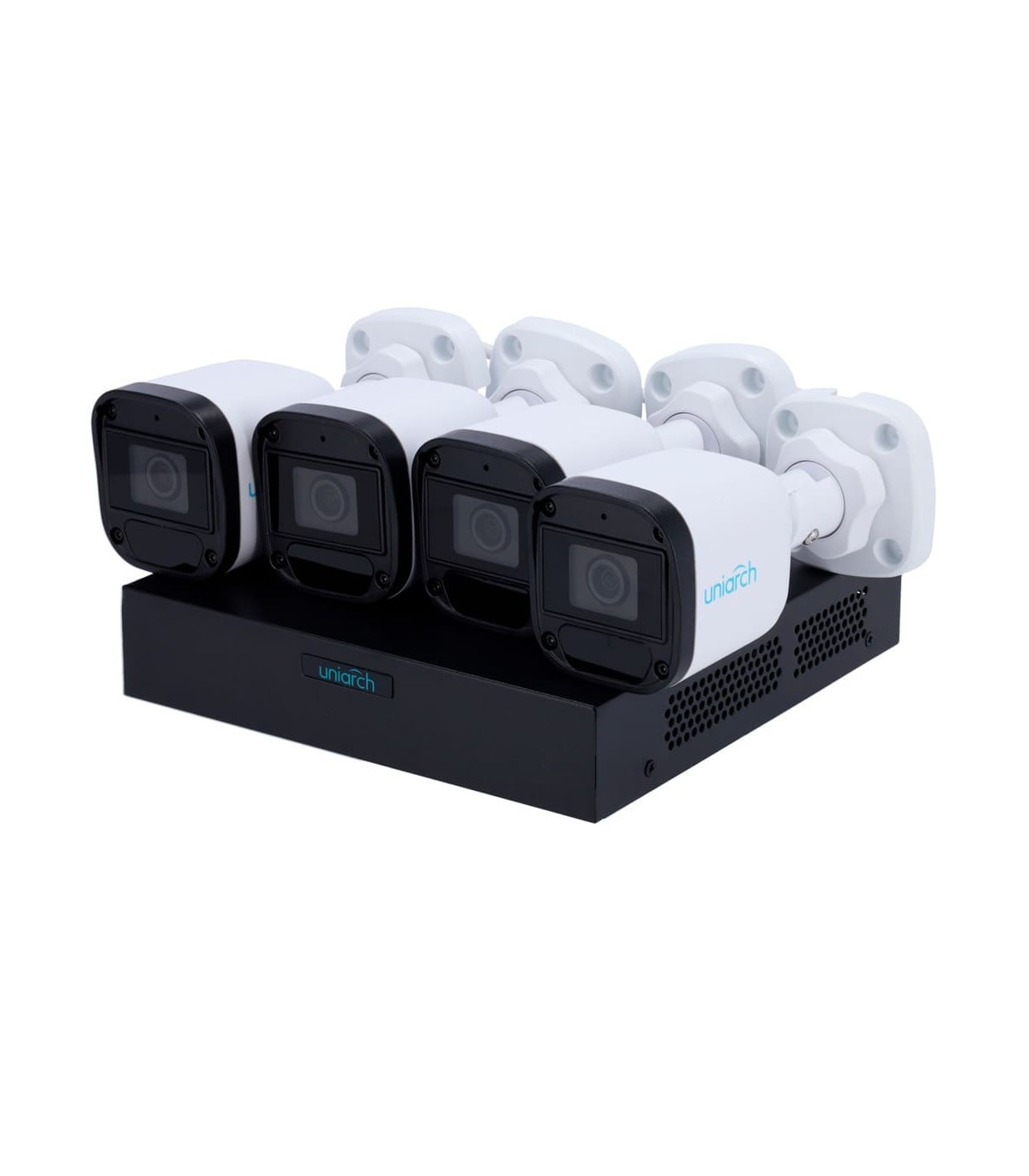

The KIT118-B42POE is a Uniarch IP surveillance system featuring 4 Full HD 2MP Bullet cameras and an 8-channel PoE NVR. Each camera includes a built-in microphone for audio capture.

The kit includes the NVR-108S3-P8-ECO recorder and four IPC-B122-APF28-ECO cameras. It provides PoE power, centralised recording and infrared night vision.

The cameras feature IP67 protection and are suitable for outdoor installation. The recorder supports a SATA hard drive up to 6TB, which is not included in the kit.

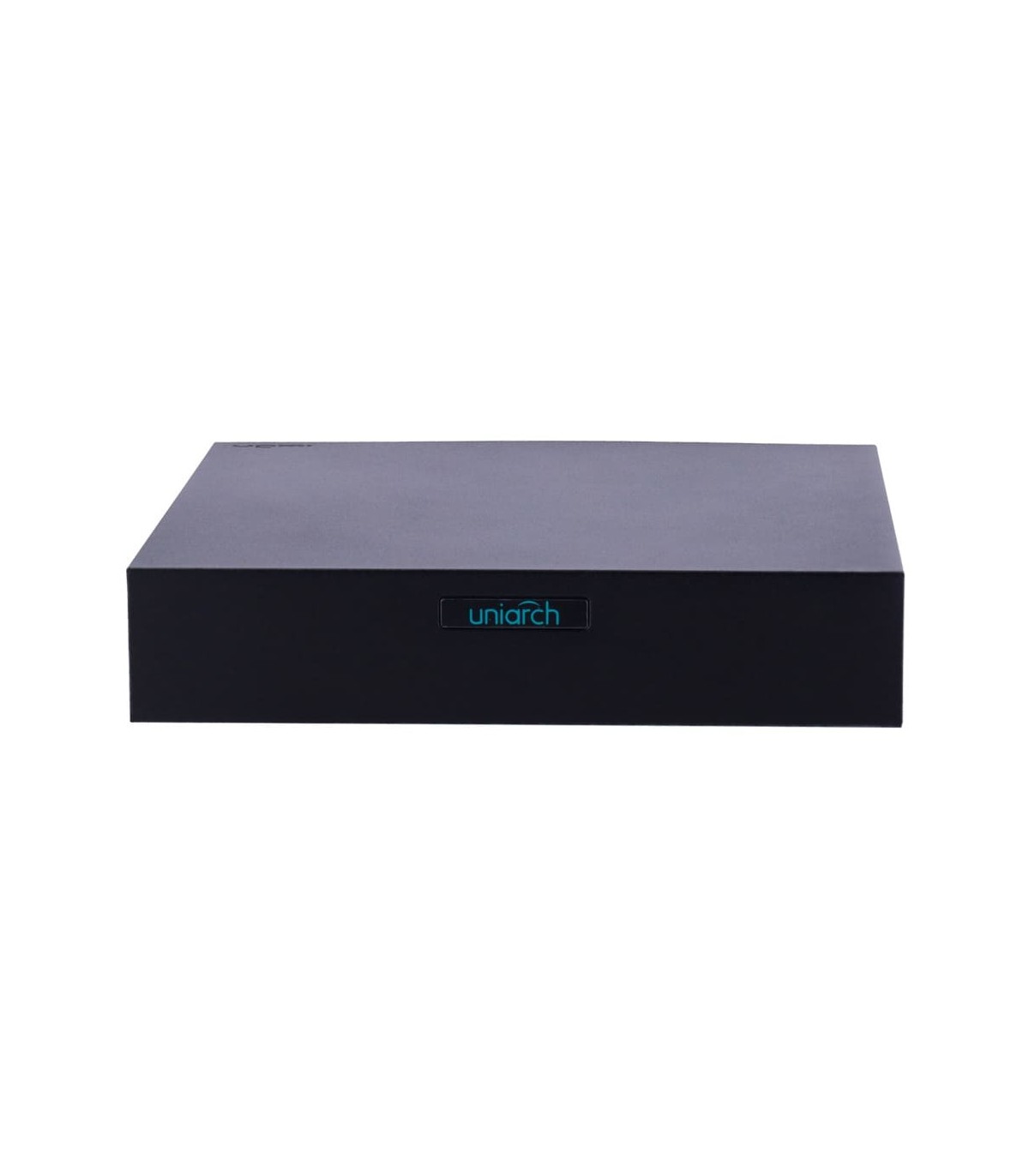

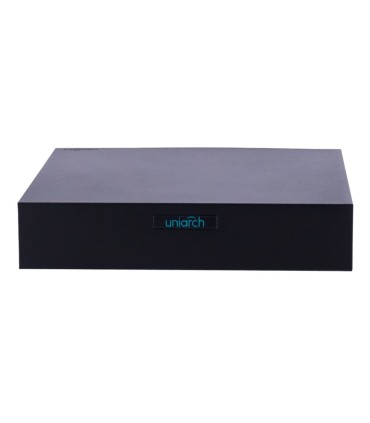

Uniarch 8-Channel PoE Network Video Recorder

The NVR-108S3-P8-ECO recorder supports up to 8 IP cameras. It features 8 PoE ports that can power compatible cameras through Ethernet cables.

This technology transmits data and electrical power through a single connection. It reduces the need for separate power supplies and simplifies installation.

The kit includes four cameras, but the recorder supports eight channels. Additional compatible IP cameras can therefore be connected.

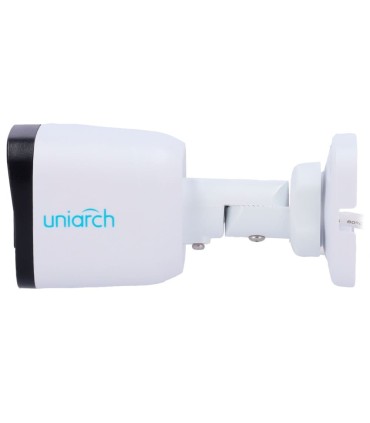

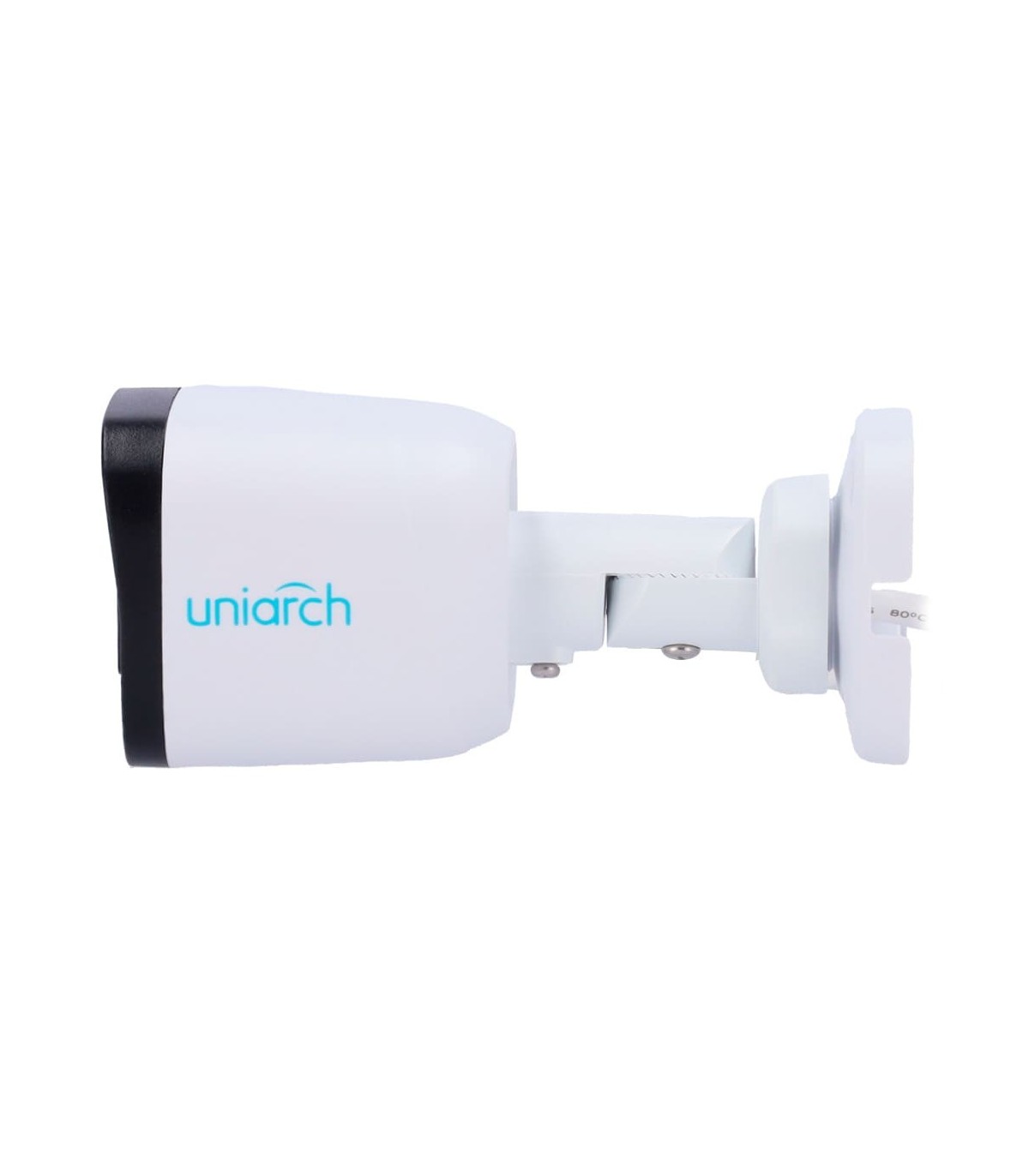

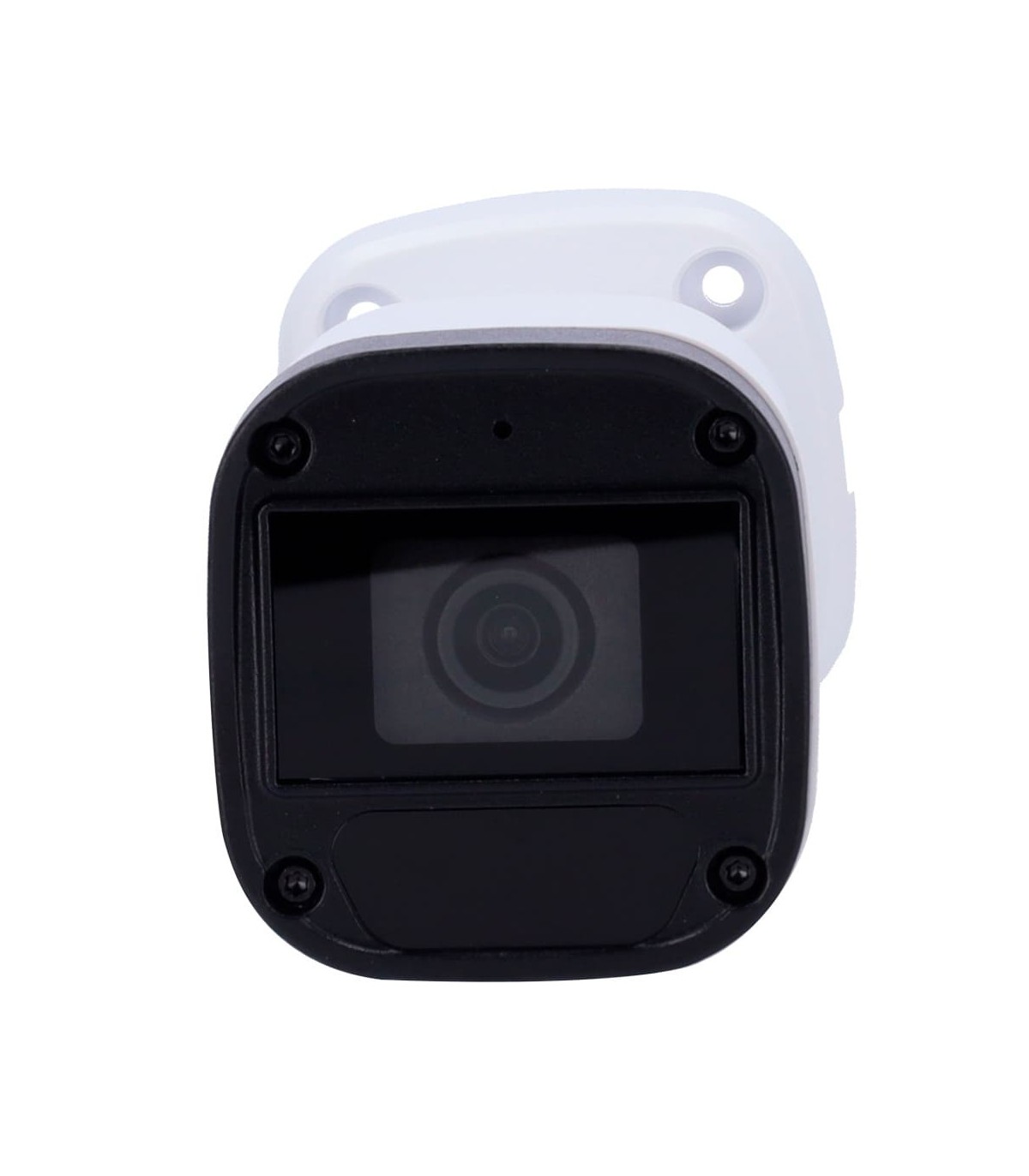

Four Uniarch Full HD 2MP Bullet IP Cameras

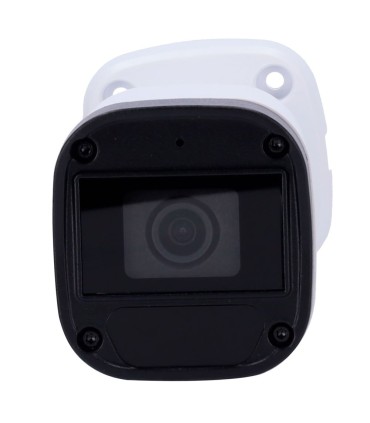

The kit includes 4 IPC-B122-APF28-ECO cameras with a 1/2.8" Progressive Scan CMOS sensor. Each camera provides Full HD resolution of 1920 × 1080 pixels.

The fixed 2.8mm lens features an F2.1 aperture. Video capture reaches 25fps, allowing different areas to be monitored.

The cameras support Ultra H.265, H.265, H.264 and MJPEG compression. These options help manage video transmission and storage requirements.

Built-In Microphone for Audio Capture

Each Bullet camera features a built-in microphone. This function allows sound to be captured alongside video, depending on the system configuration.

The microphone can be useful in installations requiring audiovisual monitoring. Audio recording must comply with applicable legislation.

Infrared Night Vision up to 30m

The cameras include infrared illumination with a maximum range of 30m. This technology enables image capture at night and in poorly lit environments.

Minimum illumination is 0.02Lux in colour mode. In black-and-white mode, operation can reach 0Lux using infrared illumination.

Image Enhancement and Motion Detection

The cameras include 2D/3D-DNR, DWDR, HLC and BLC technologies. These functions help reduce digital noise and compensate for certain lighting conditions.

Additional features include OSD, privacy masking (PM), ROI and motion detection (MD). These options allow users to adjust image display and configure surveillance events.

IP67 Protection for Outdoor Use

The Bullet cameras feature an IP67 protection rating. They are suitable for indoor and outdoor installations when the manufacturer's recommendations are followed.

The operating temperature range extends from -30°C to +60°C. Each camera measures 144 × 60 × 65mm and weighs approximately 170g.

Installation with PoE Power

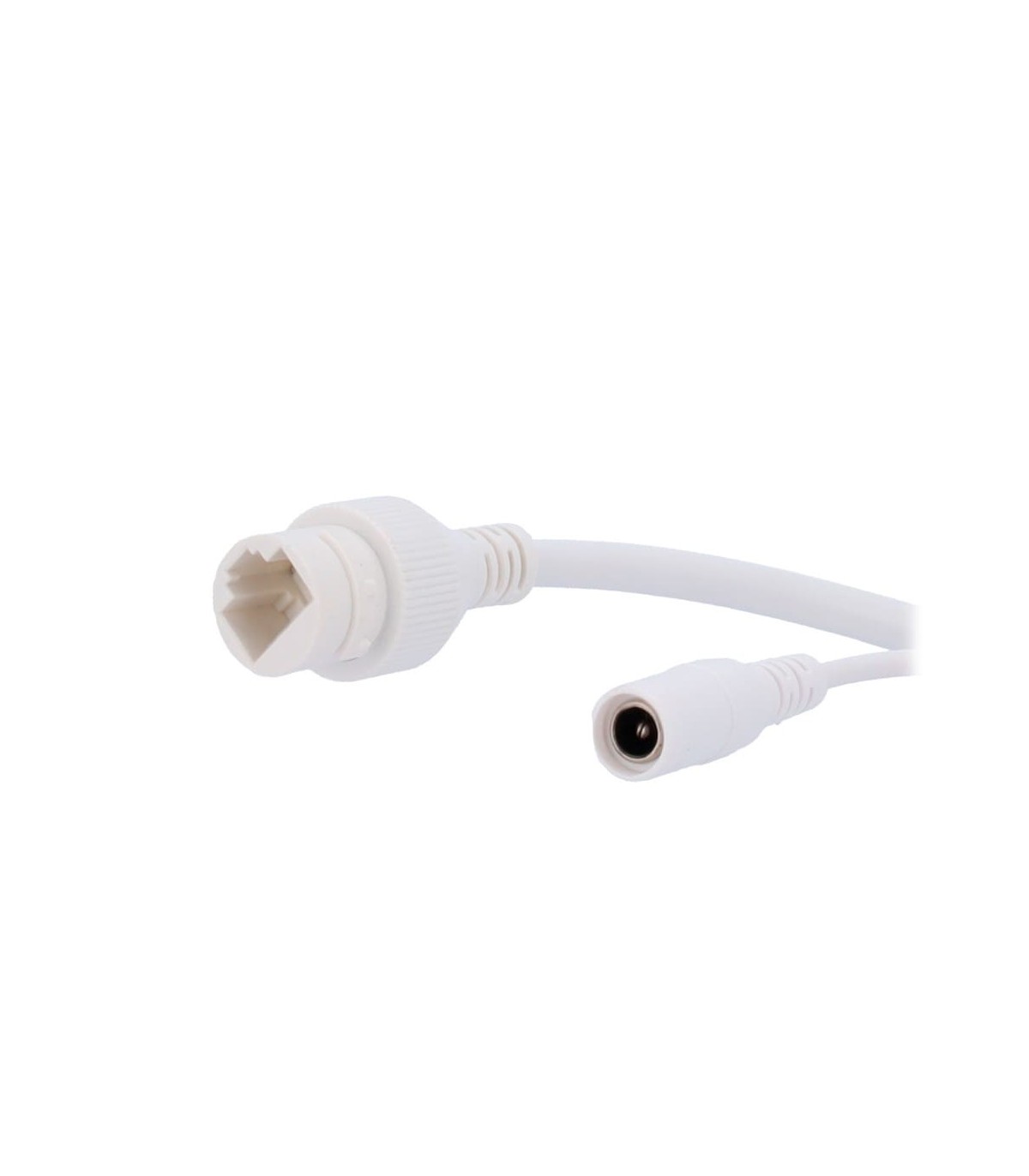

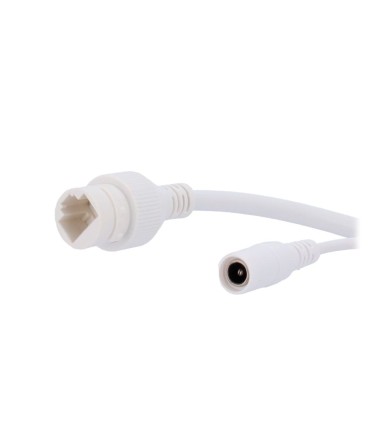

The cameras can be powered via DC 12V or PoE IEEE 802.3af. Rated power consumption is 3.5W per camera.

The 10/100 Base-T Ethernet connection transmits video data. When PoE is used, the same cable also supplies electrical power.

The NVR provides eight PoE ports. This configuration simplifies the connection of the four included cameras.

SATA Storage up to 6TB

The recorder supports 1 SATA 3.5" hard drive with a maximum capacity of 6TB. This storage allows recordings from connected cameras to be saved.

The hard drive is not included in the KIT118-B42POE. It must be purchased separately according to the required storage capacity.

Recording retention depends on resolution, compression, frame rate and recording mode.

Recording up to 6MP and Efficient Compression

The NVR supports a maximum recording resolution of 6MP. The technical specifications indicate different decoding capacities depending on the resolution used.

Video compression includes Ultra H.265, H.265 and H.264. Bandwidth reaches 64Mbps incoming and 48Mbps outgoing.

Available recording modes include manual, scheduled and motion detection recording. These options allow the system to meet different surveillance requirements.

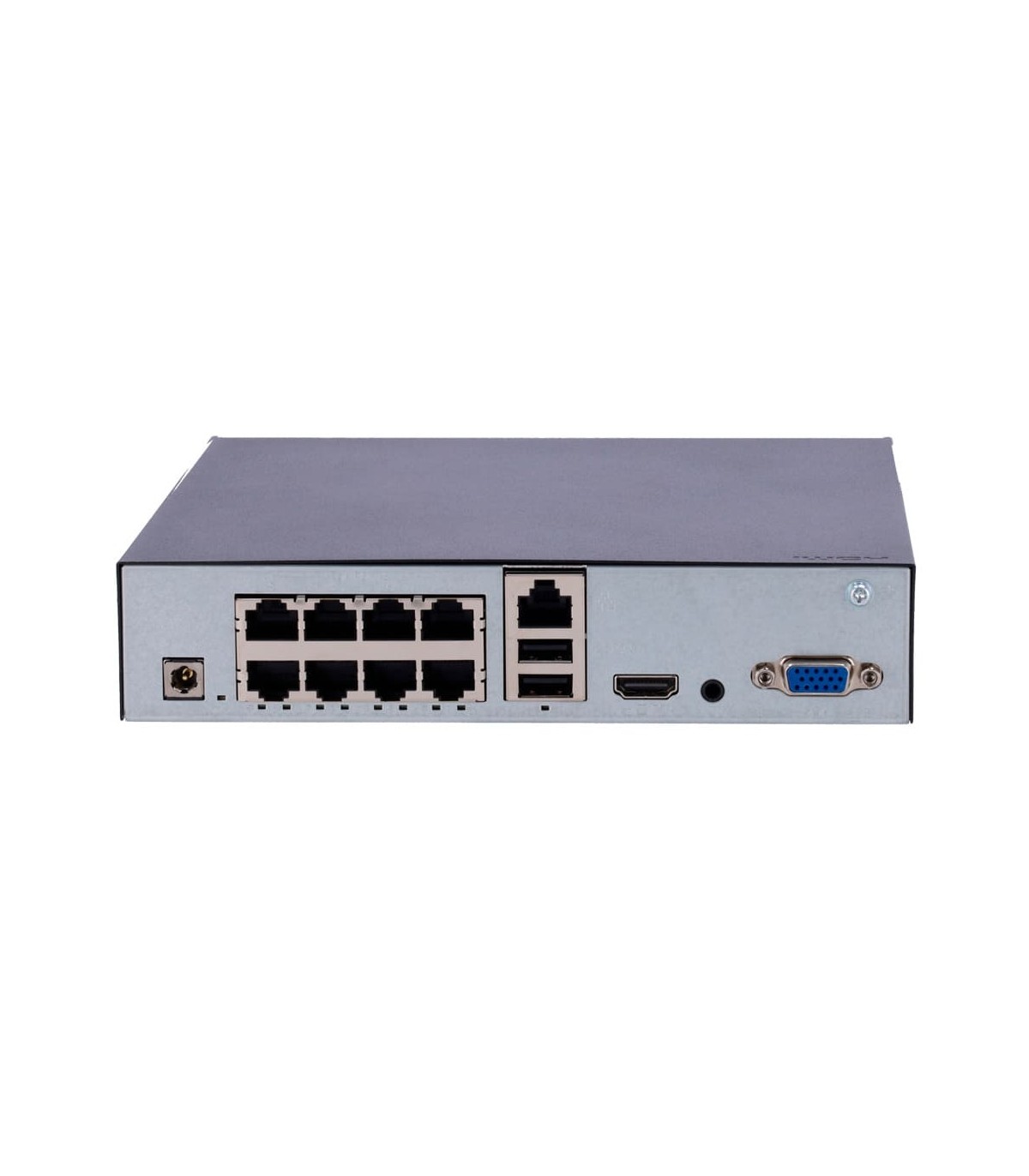

Full HD HDMI and VGA Outputs

The recorder features 1 Full HD HDMI output and 1 VGA output. Both interfaces support simultaneous display on compatible monitors.

Display resolutions include 1920 × 1080 at 60Hz or 50Hz. Lower resolutions are also supported, according to the technical specifications.

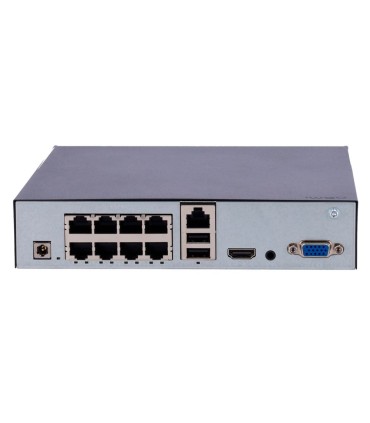

Communication and Audio Interfaces

The NVR provides 2 USB ports for a mouse and backups. It also includes an RJ45 Ethernet connection and an RS485 interface.

A 3.5mm audio output allows compatible audio equipment to be connected. The recorder uses a DC 48V / 1.35A power supply.

Expandable IP Video Surveillance Solution

The KIT118-B42POE combines four 2MP Bullet cameras with microphones and an eight-channel PoE recorder. It is suitable for installations requiring video surveillance and audio capture.

Key advantages include night vision up to 30m, IP67 protection and PoE power. The system also allows compatible cameras to be added, up to a total of eight channels.

To use local recording, a compatible hard drive must be installed and purchased separately.
