The Ajax Superior KeyPad TouchScreen G3 Jeweller in black is a flagship touchscreen control centre certified to rigorous EN 50131 Grade 3 standards. Purpose-built for commercial premises, financial institutions, government facilities, and luxury residential projects, it combines intrusion security management and smart automation into one sleek device.

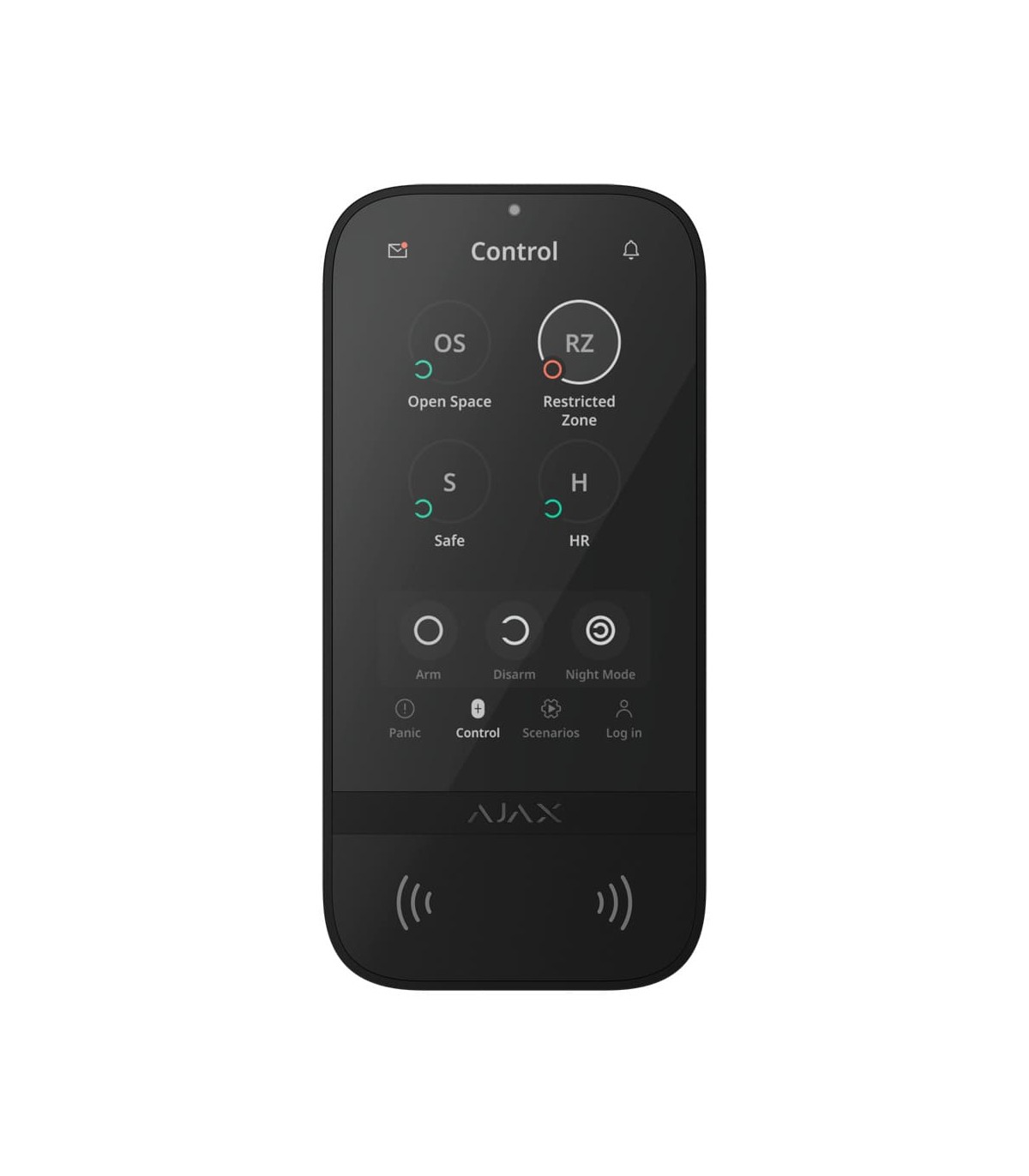

Featuring a 5-inch IPS capacitive touchscreen (480 × 854 px) with automatic brightness adjustment and light/dark themes, the keypad provides maximum system visibility. Users can easily check group security statuses, inspect active system faults, and scroll through the recent event log straight on the display.

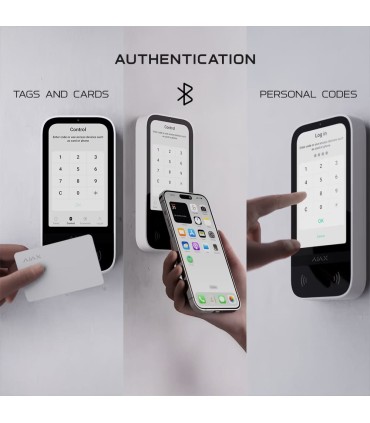

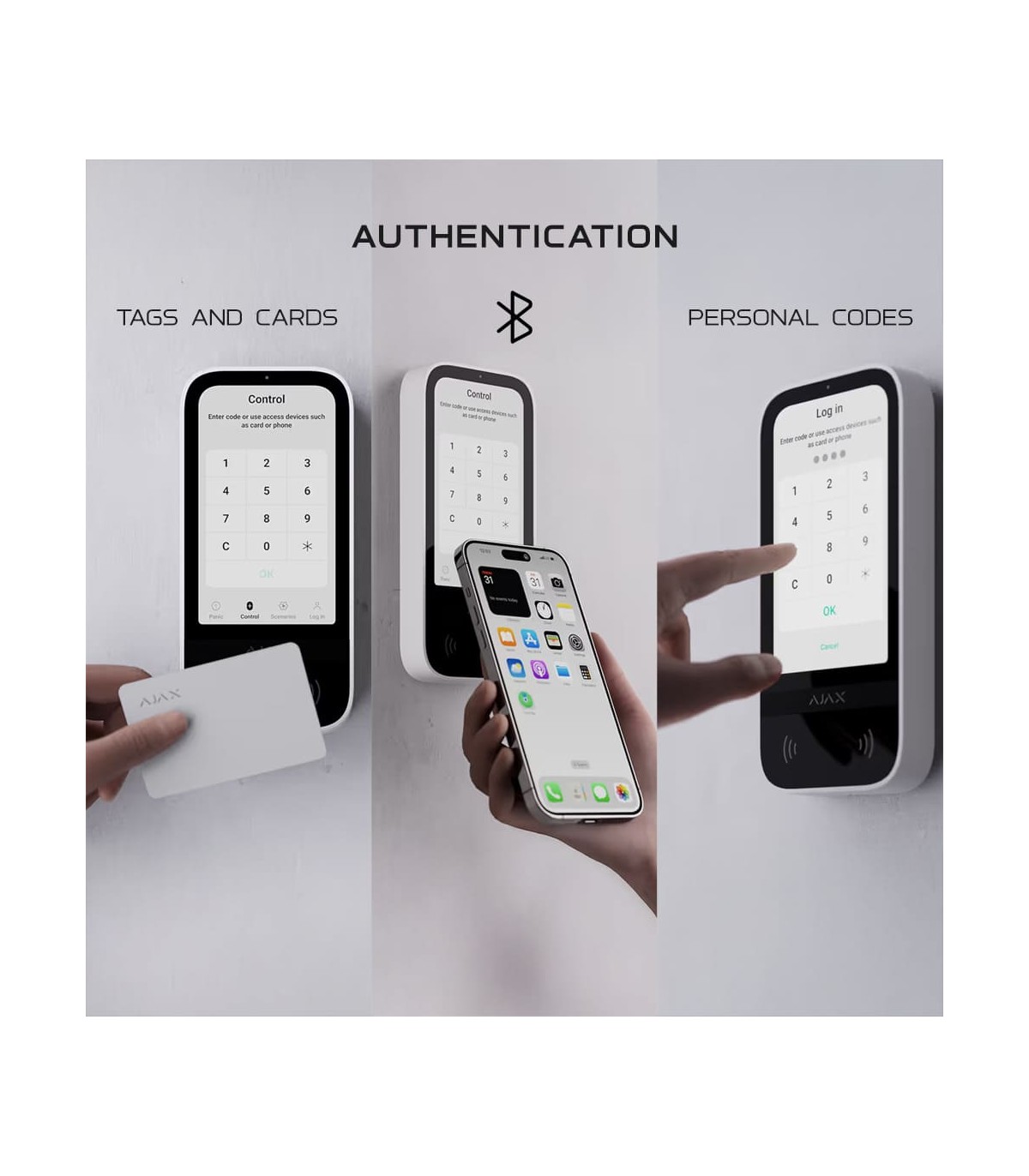

The keypad supports four independent authentication methods: Pass cards and Tag key fobs powered by DESFire® (ISO 14443) encryption, smartphones via BLE (Bluetooth Low Energy) through the Ajax app, personal passcodes (up to 200), duress codes (for silent CMS alerts during forced disarming), guest codes, and Rapid Response Unit (RRU) codes.
#### Automation Control, Emergencies & Wireless Capabilities
A dedicated automation tab lets users toggle up to 6 smart devices or scenarios (such as electric locks, gates, or lighting) with real-time state indication. The KeyPad TouchScreen G3 also includes three emergency alert buttons (Panic, Fire, Auxiliary Help) and supports fire alarm muting directly from the screen.
Communication with the hub is driven by the encrypted Superior Jeweller radio protocol reaching ranges up to 2,500 meters in open field, backed by Wings technology for over-the-air (OTA) firmware updates. It operates on 6 pre-installed AA batteries (up to 1.5 years battery life) or can be wired to an external 12 V⎓ power source.
To inspect official product documentation, visit the page for Superior KeyPad TouchScreen G3 Jeweller on Ajax Systems. Explore our complete range under Ajax wireless keypads at Lisintec.
