DS-KV6133-WME1 - Hikvision 2MP Wi-Fi IP Video Door Station with Card Reader

DS-KV6133-WME1 - Hikvision 2MP Wi-Fi IP Video Door Station with Card Reader

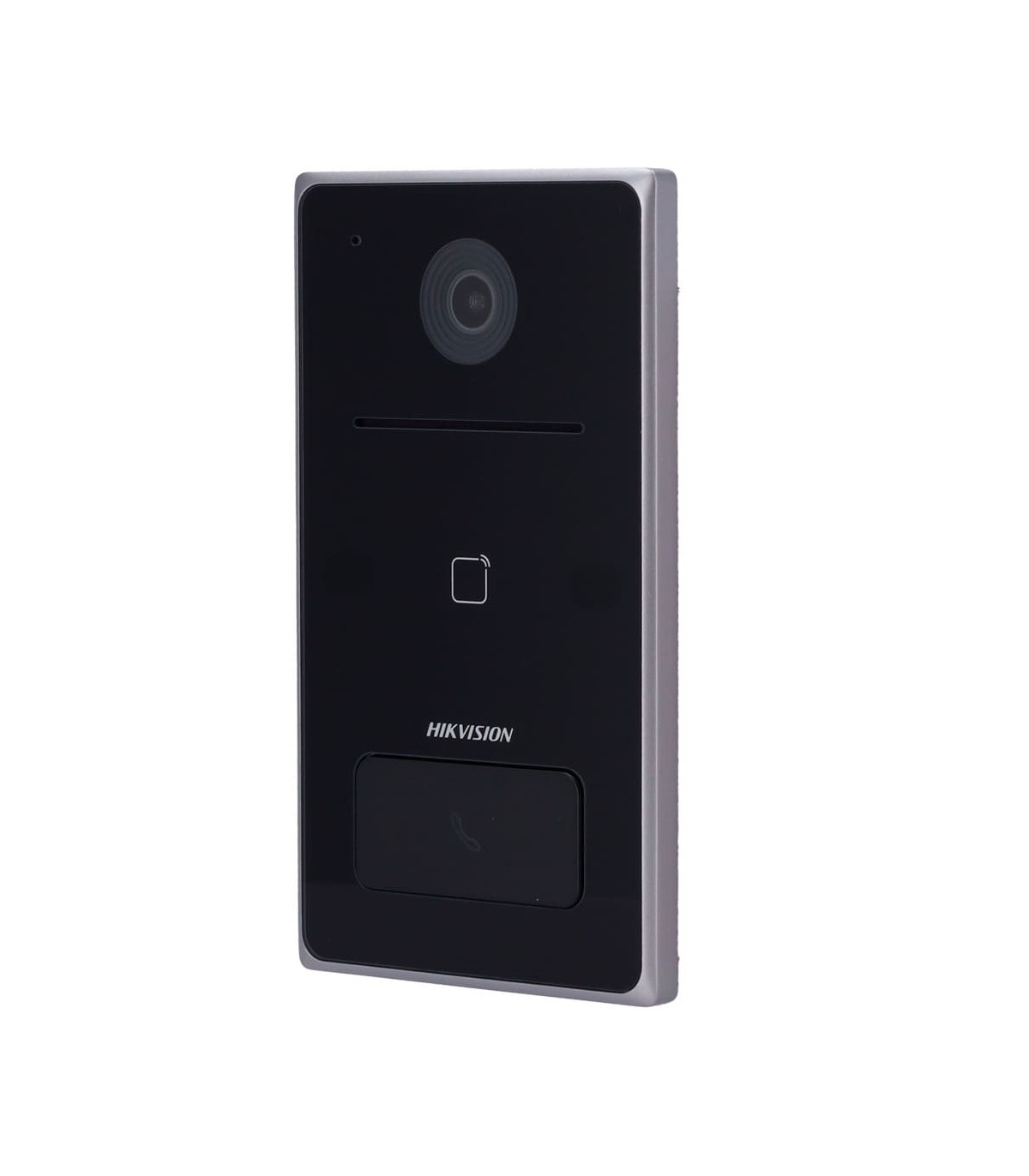

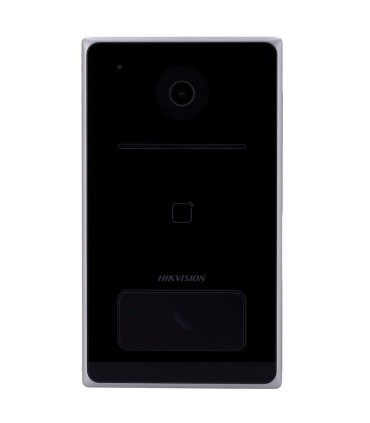

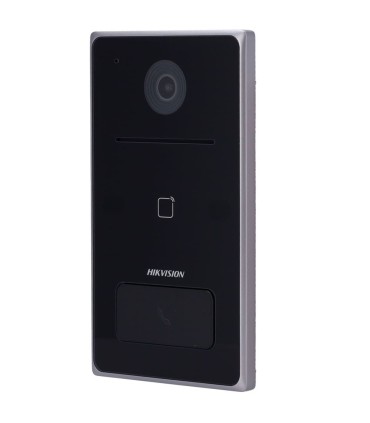

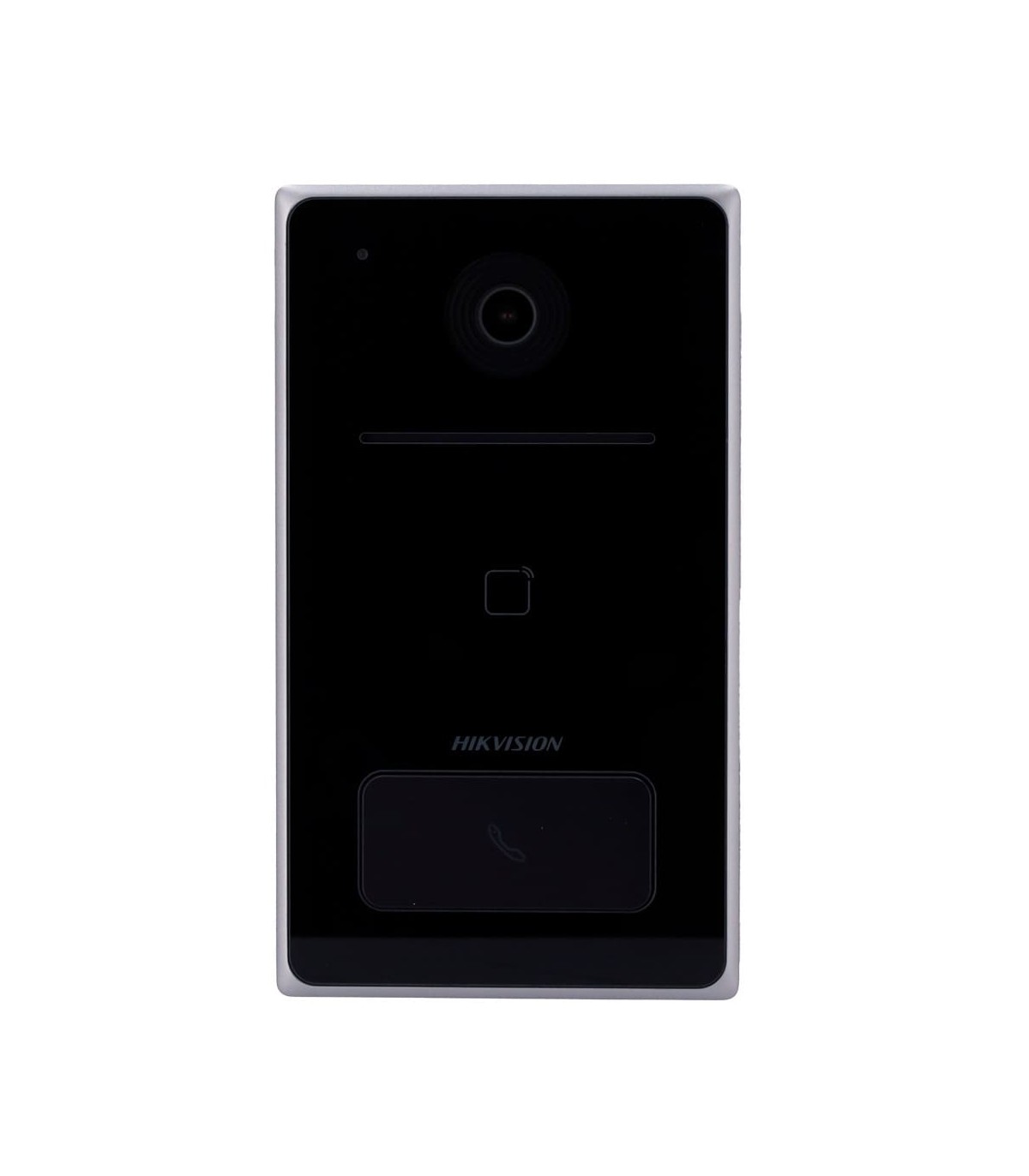

The DS-KV6133-WME1 is a Hikvision IP video door station designed for single-family homes and residential entrances. It allows users to communicate with visitors, view live video and control door unlocking.

The device features a 2MP camera, 2.4GHz Wi-Fi, a built-in card reader and a call button. It also supports standard PoE power and offers an IP65 protection rating.

Its aluminium alloy housing is suitable for outdoor installation. Calls can also be received directly through the Hik-Connect app, without an indoor monitor.

2MP Camera with Wide Viewing Angle

The Hikvision DS-KV6133-WME1 features a 2MP camera with a maximum resolution of 1920 × 1080 pixels. It allows users to view visitors standing near the entrance.

The lens provides a 129° horizontal viewing angle and a 75° vertical viewing angle. This coverage helps capture a wide area in front of the door station.

The device supports two video streams:

• Main stream: 1920 × 1080p or 1280 × 720p.
• Sub-stream: 1280 × 720p or 640 × 480p.

Video compression uses the H.264 format.

120dB WDR and Infrared Illumination

120dB WDR technology improves image reproduction in environments with significant differences in lighting.

The video door station also includes infrared illumination up to 2.5 metres. This feature helps users view visitors in low-light conditions.

Both technologies contribute to video capture under different lighting conditions at the entrance.

Direct Calls to the Hik-Connect App

The DS-KV6133-WME1 allows users to receive calls directly through the Hik-Connect app. An indoor monitor is therefore not required.

This feature enables operation with a compatible mobile device. A network connection and appropriate service configuration are necessary.

The physical call button makes operation simple for visitors. A single press starts a call.

Two-Way Audio Communication

The video door station features a built-in omnidirectional microphone and a built-in speaker. These components enable audio communication between visitors and users.

Noise suppression and echo cancellation help improve conversation clarity.

The volume is adjustable. Several audio compression formats are also supported:

• G.722.1
• OPUS
• G.711U and G.711A
• G.726
• AAC-LC and AAC-LD

Built-In Card Reader for Access Control

The DS-KV6133-WME1 includes a built-in card reader. This feature enables user identification and access control.

It supports up to 10,000 cards and 2,000 users. These capacities allow different access credentials and permissions to be managed.

The device also features one door lock control relay, rated at a maximum of 30V DC / 2A.

The specific card technology is not identified in the supplied datasheet. Card compatibility should therefore be confirmed before use.

2.4GHz Wi-Fi and Ethernet Connectivity

The Hikvision DS-KV6133-WME1 IP video door station supports 2.4GHz Wi-Fi, using IEEE 802.11b/g/n standards.

It also features an auto-adaptive RJ-45 10/100Mbps Ethernet interface.

Supported network protocols include TCP/IP and RSTP. These options facilitate integration into compatible network infrastructures.

PoE Power Supply and Low Energy Consumption

The DS-KV6133-WME1 supports a standard PoE power supply. This technology enables data transmission and power delivery through an Ethernet cable.

A compatible PoE device is required to use this feature.

Power consumption is less than 10W, contributing to an efficient installation.

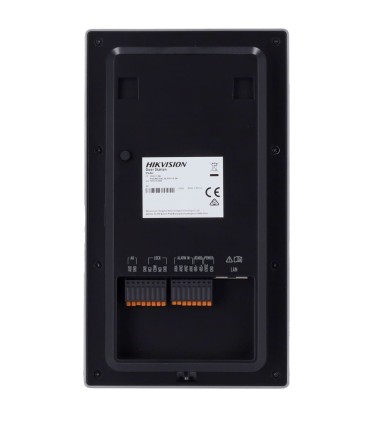

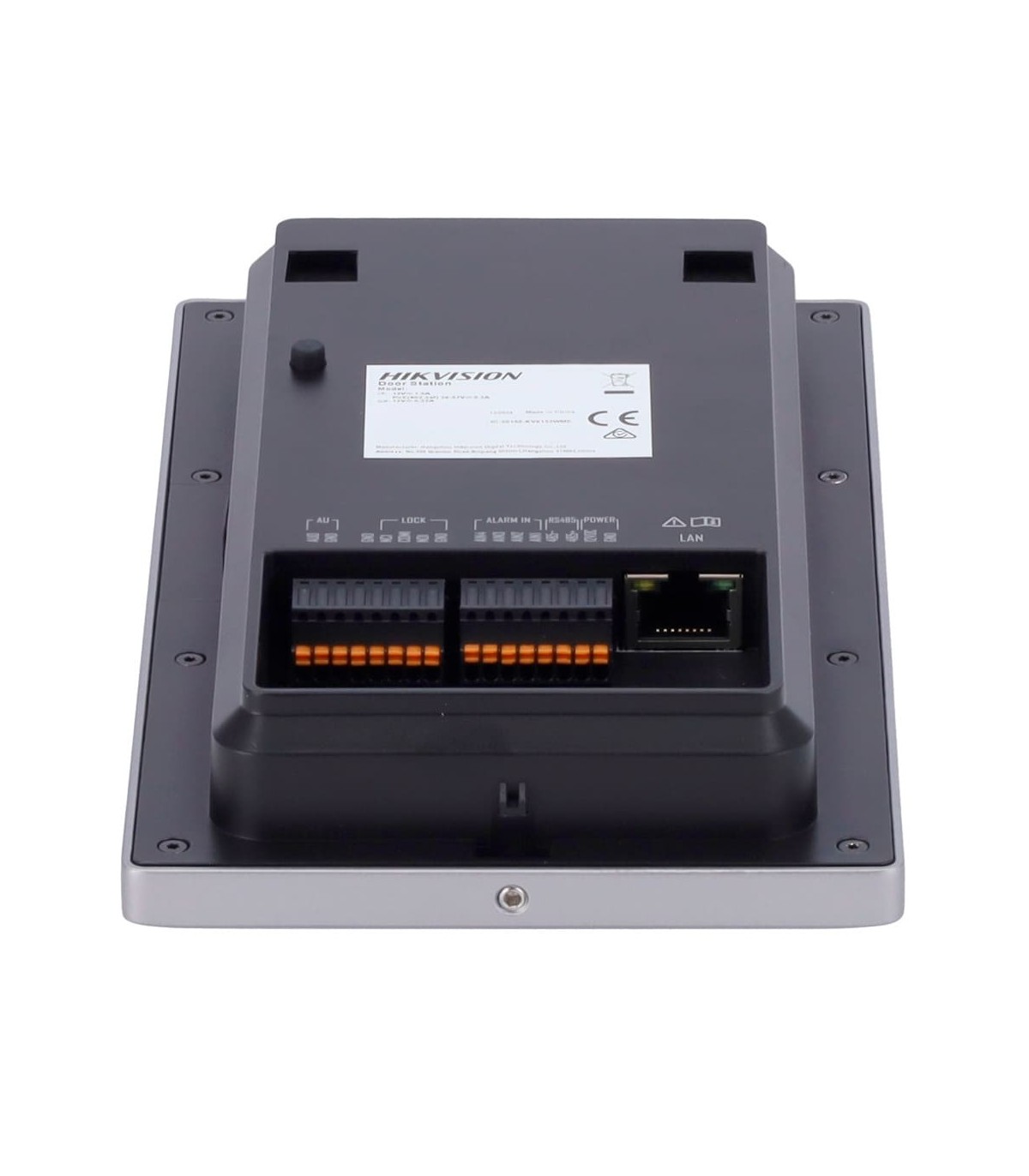

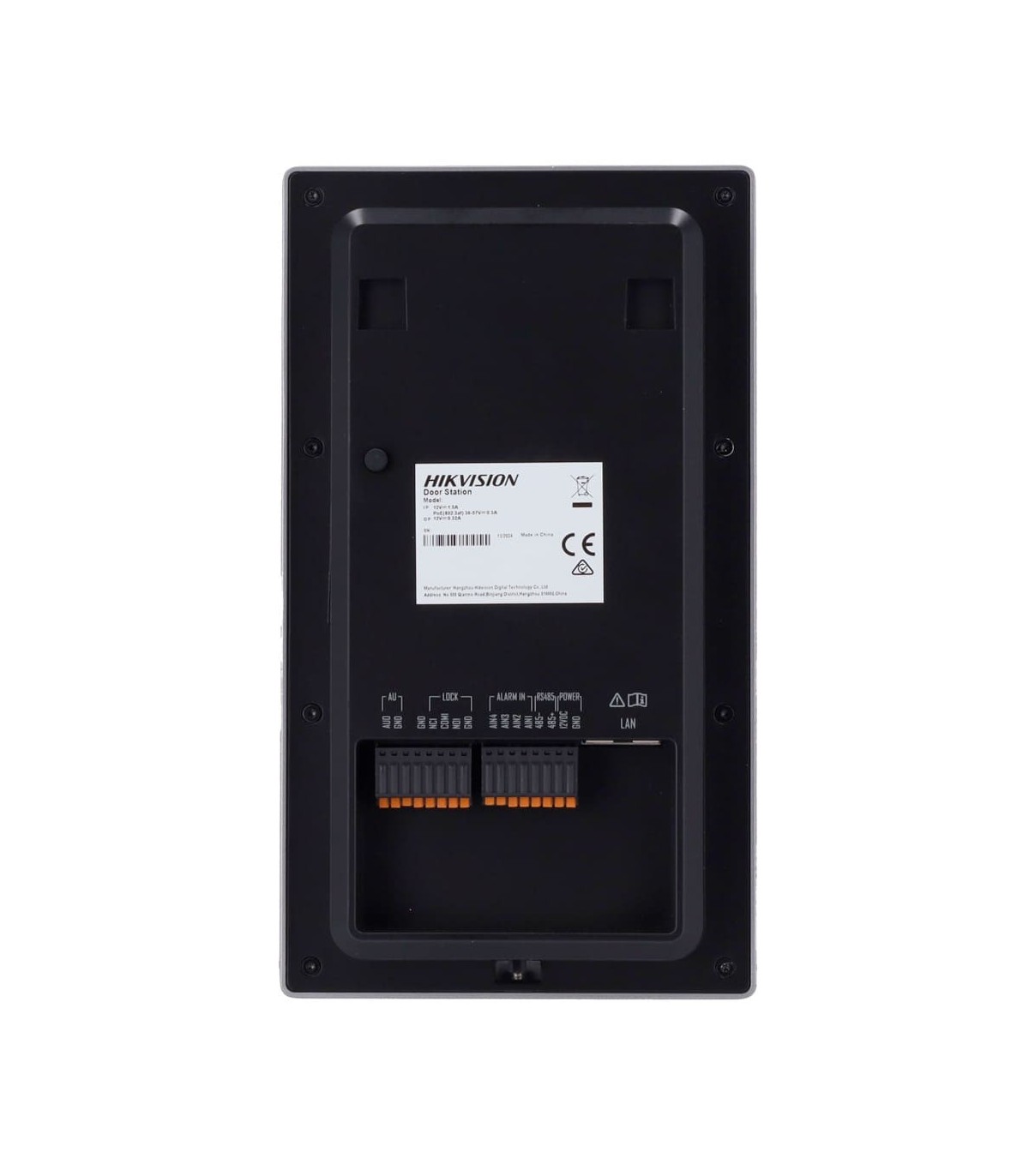

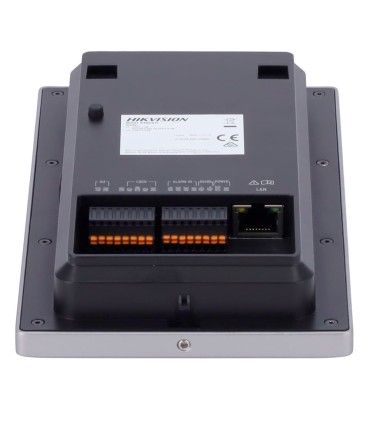

Interfaces for Access Control Systems

The device provides several interfaces for integration with video intercom and access control systems:

• Alarm inputs: 4.
• Network interface: 1 RJ-45 10/100Mbps.
• RS-485: 1 interface.
• Door contact: 1 input.
• Door lock control: 1 relay, maximum 30V DC / 2A.
• Tamper protection: 1 interface.
• TF card: 1 reserved slot.
• External speaker: 1 reserved output.

Reserved interfaces should not be considered available for use without manufacturer confirmation.

IP65 Protection and Aluminium Alloy Housing

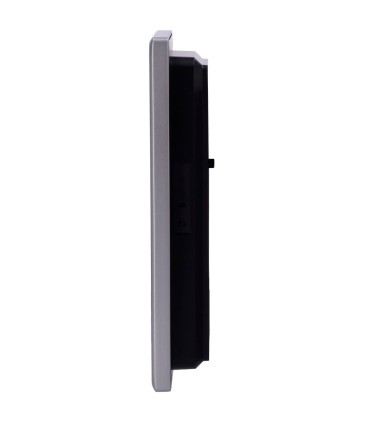

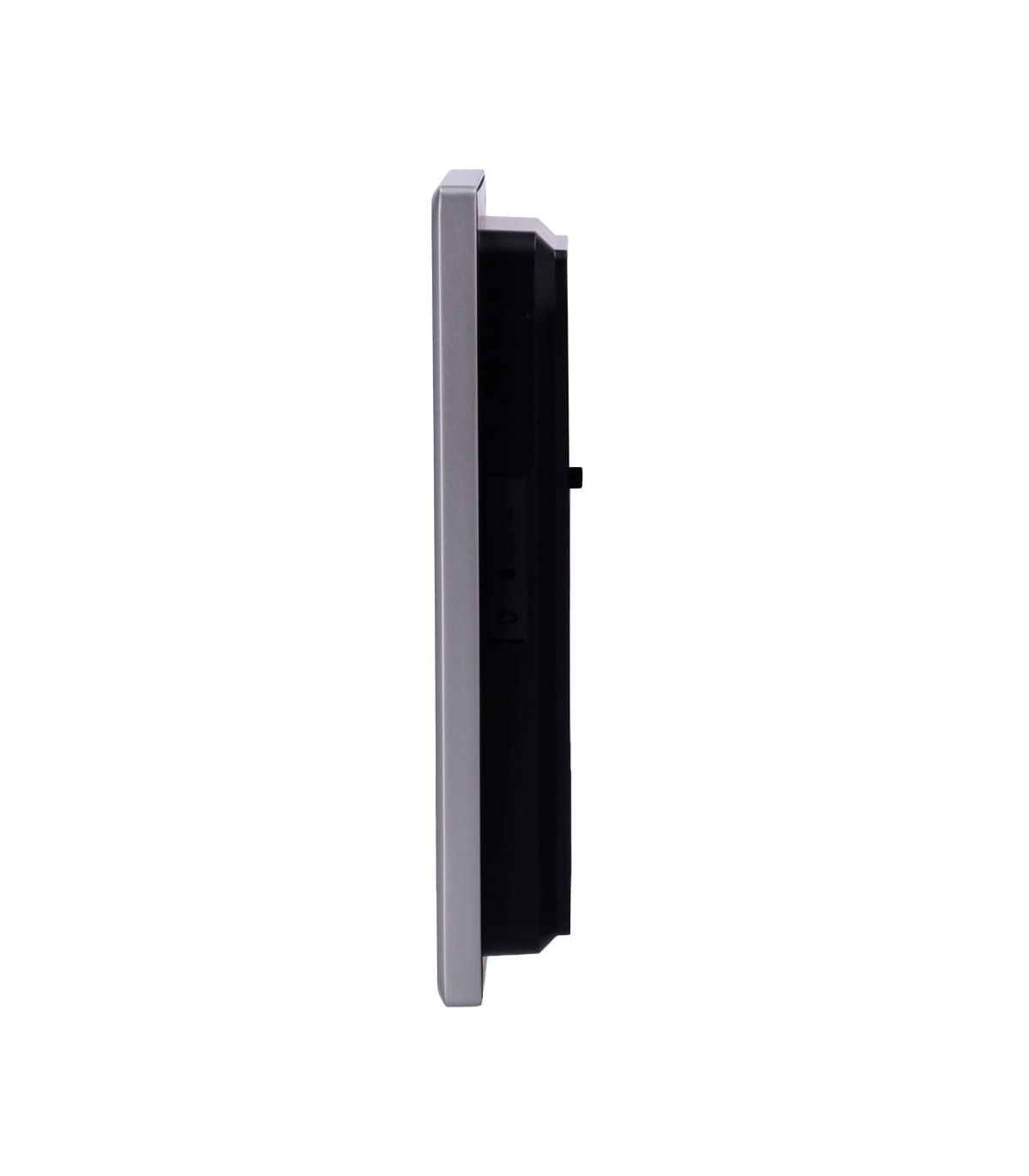

The DS-KV6133-WME1 features an aluminium alloy housing and an IP65 protection rating.

This rating indicates protection against dust and water jets when the device is correctly installed.

The video door station operates at temperatures from -40°C to +53°C. It also supports relative humidity from 10% to 95%, without condensation.

These characteristics allow outdoor use when the manufacturer's installation recommendations are followed.

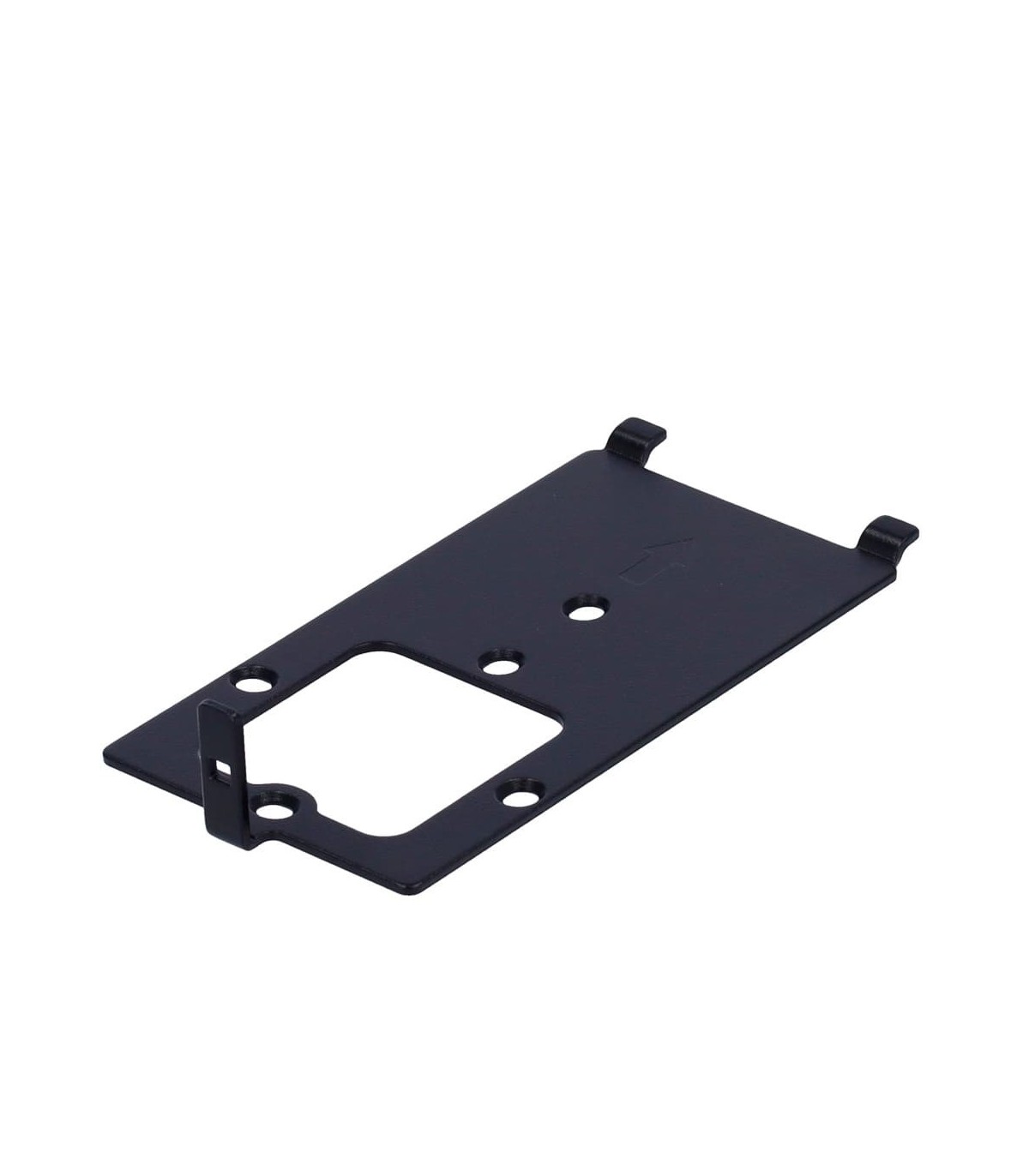

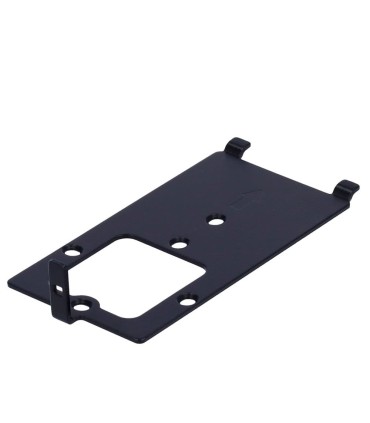

Surface-Mounted or Flush-Mounted Installation

The Hikvision video door station supports surface-mounted or flush-mounted installation. This flexibility allows it to adapt to different entrance configurations.

Its dimensions are 181.6 × 103.6 × 29.5 mm, with an approximate net weight of 190 g.

The gross weight specified by the manufacturer is 414 g.

DS-KV6133-WME1 Technical Specifications

• Brand: Hikvision
• Model: DS-KV6133-WME1
• Product type: IP video door station for single-family homes
• Operating system: Linux
• Processor: High-performance embedded processor
• ROM: 32MB
• RAM: 256MB
• Camera: 2MP
• Main stream resolution: 1920 × 1080p / 1280 × 720p
• Sub-stream resolution: 1280 × 720p / 640 × 480p
• Horizontal viewing angle: 129°
• Vertical viewing angle: 75°
• WDR: 120dB
• Infrared illumination: Up to 2.5m
• Video compression: H.264
• Audio: Built-in microphone and speaker
• Audio processing: Noise suppression and echo cancellation
• Card reader: Built-in
• User capacity: 2,000
• Card capacity: 10,000
• Wi-Fi: 2.4GHz, IEEE 802.11b/g/n
• Ethernet: RJ-45 10/100Mbps
• Network protocols: TCP/IP, RSTP
• Alarm inputs: 4
• RS-485: 1
• Door contact: 1 input
• Door lock relay: 1, maximum 30V DC / 2A
• Tamper interface: 1
• Call button: 1
• Indicators: 2
• Power supply: Standard PoE
• Power consumption: Less than 10W
• Protection rating: IP65
• Operating temperature: -40°C to +53°C
• Operating humidity: 10% to 95%, non-condensing
• Installation: Surface-mounted or flush-mounted
• Dimensions: 181.6 × 103.6 × 29.5 mm
• Net weight: 190 g
• Gross weight: 414 g

DS-KV6133-WME1 - Hikvision IP Video Door Station with Wi-Fi and Hik-Connect

The DS-KV6133-WME1 combines audio and video communication, card reading and door control in a single outdoor unit.

Its 2MP camera allows users to view visitors. The 2.4GHz Wi-Fi connection and PoE power supply offer flexible connectivity options.

The IP65 protection rating supports outdoor use. In addition, direct Hik-Connect calls eliminate the need for a dedicated indoor monitor.

With support for 10,000 cards and 2,000 users, this video door station also provides integrated access control functions.
