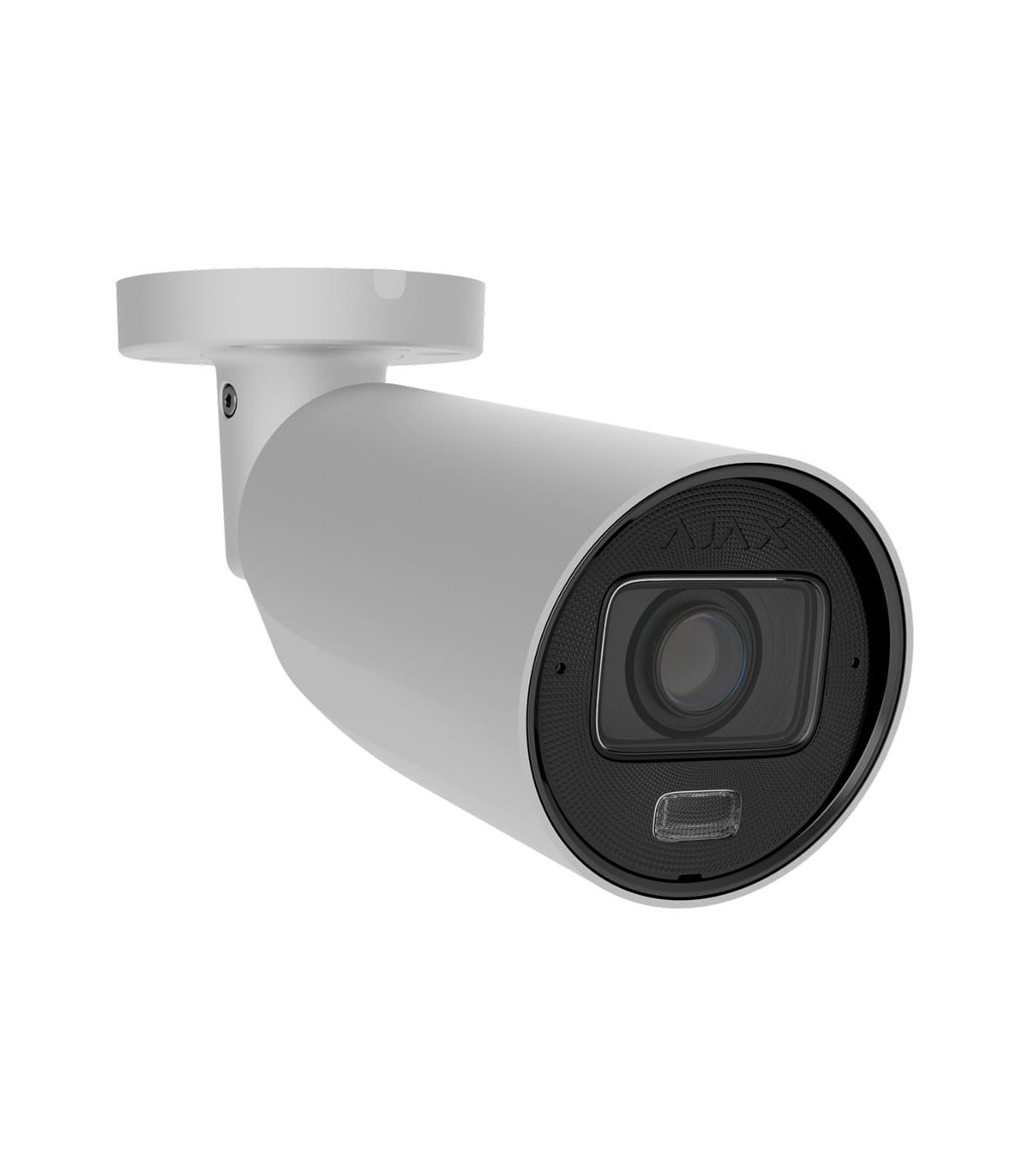

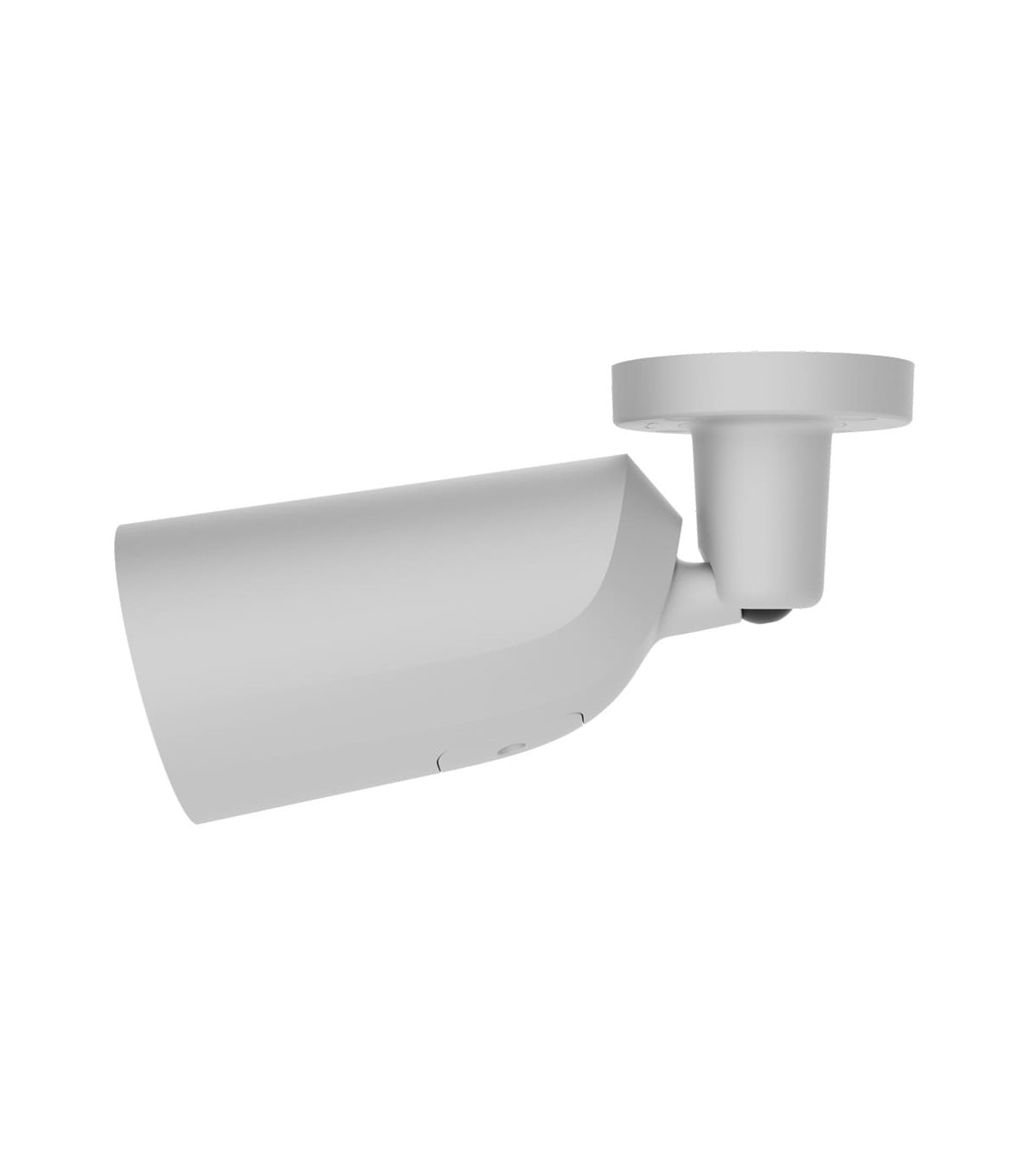

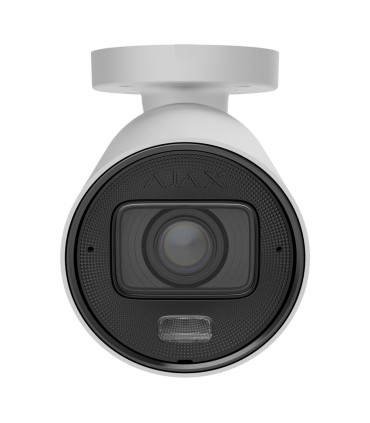

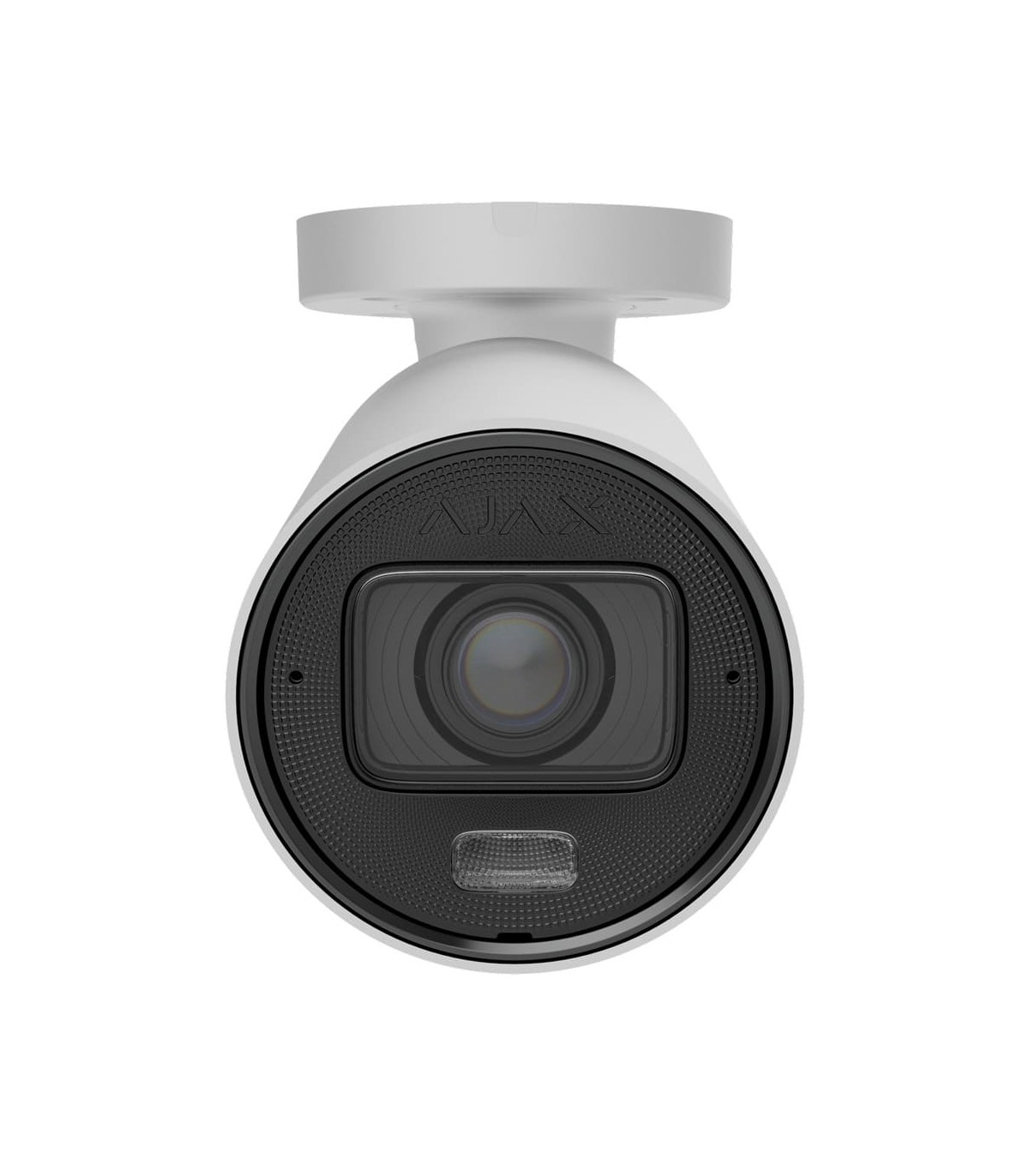

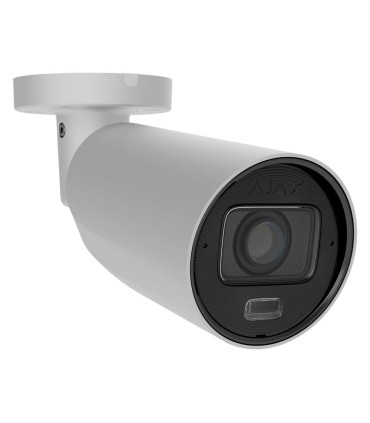

The Ajax BulletCam HLVF (8 Mp) sets a new standard in high-demand perimeter protection by combining 4K Ultra HD resolution (3840 × 2160 px at 20 FPS) with a motorized 2.8–12 mm varifocal lens in a heavy-duty bullet enclosure. Engineered to cover wide-angle panoramic views (111°) down to tight, distant detail shots (31°), it allows operators to adjust zoom and autofocus settings remotely directly from the Ajax app, eliminating manual ladder adjustments. Equipped with an 8 MP CMOS sensor and advanced Hybrid Illumination technology, it utilizes IR LEDs up to 60 meters for discrete night monitoring, instantly switching to full-color white light spotlights (up to 40 meters) upon key motion events. It works standalone on a MicroSD card or linked to Ajax recorders.
Its chip-level Artificial Intelligence (AI) engine performs 4K video analysis locally on the device, minimizing false alarms while accurately classifying humans, vehicles, and pets. The integration of physical Alarm and Audio I/O terminals allows easy connection with third-party perimeter sensors, IR barriers, or triggering external sirens. The JetSparrow P2P protocol guarantees smooth, zero-latency 4K video streaming, while True WDR (120 dB) balances severe glare and intense backlight conditions effortlessly.
Constructed with a heavy-duty die-cast metal alloy holding an IP67 weatherproof rating and IK10/IK08 vandal-resistant protection, the BulletCam HLVF is built for industrial sites and exposed perimeters. It includes an integrated digital microphone for ambient recording, supports standard PoE (802.3af/at) or 12 V⎓ input, and secures video streams via end-to-end mTLS encryption via Ajax Cloud. For complete manufacturer specs, check the official page for the Ajax BulletCam HLVF on Ajax Systems.
| Technical Parameter | Detailed Specification |
|---|---|
| Device Model | BulletCam HLVF (8 Mp) — Motorized Varifocal 4K |
| Image Sensor | 8 MP CMOS (4K), 1/2.7″ Progressive Scan |
| Max Resolution | 8 MP / 4K Ultra HD (3840 × 2160 pixels) at up to 20 FPS |
| Lens & Aperture | Motorized 2.8 mm – 12.0 mm Varifocal (Autofocus via App) | f/1.6 aperture |
| Field of View (FOV) | Horizontal: 31°–111° | Vertical: 17°–57° | Diagonal: 35°–135° |
| Hybrid Illumination (HL) | IR LED up to 60 m + White Light LED up to 40 m (auto AI switching) |
| Image Processing | True WDR / HDR (120 dB), automatic Day/Night switch, SNR > 52 dB |
| Video Codecs & Protocol | H.265, H.264 | High-speed JetSparrow video protocol |
| Chip-Level Object AI | Integrated analytical tracking sorting Humans, Vehicles, and Pets |
| Audio & I/O Connectivity | Integrated digital microphone + Physical Audio and Alarm I/O ports |
| Storage Support | MicroSD slot up to 256 GB (Class V30+) and/or Ajax NVR sync |
| Network Interface | 1 × RJ-45 Ethernet port (10/100 Mbps) |
| Power Options | PoE 802.3af/at (Class 3) or 12 V⎓ ± 20% line |
| Cybersecurity Protection | mTLS encryption, TLS, ONVIF compliance, privacy controls |
| Ingress & Impact Ratings | IP67 (Weatherproof) and IK10 / IK08 Vandal Resistance |
| Dimensions & Weight | 242 × 89.4 × 89.4 mm | Weight: ~940 g |
| Environmental Operating Limits | Operating thermal range: -40 °C to +60 °C | Max humidity: 90% |
