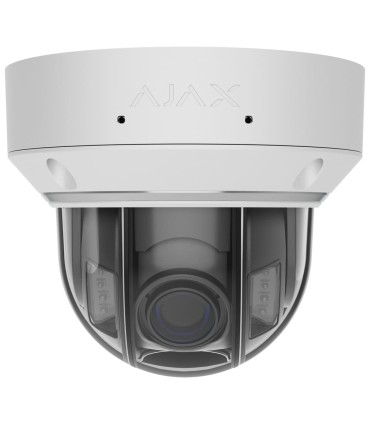

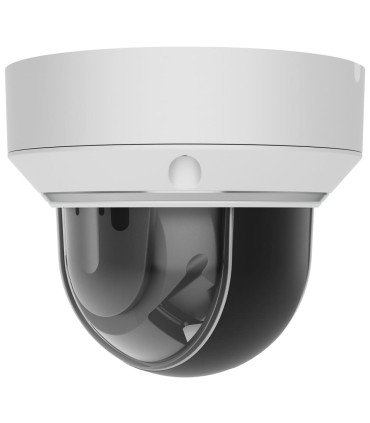

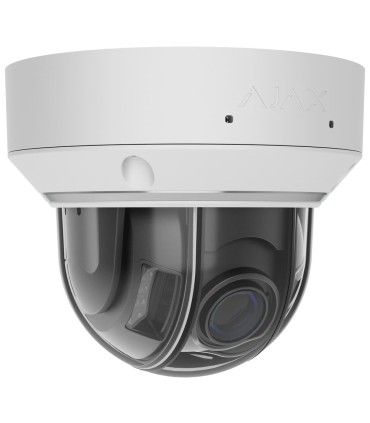

Ajax DomeCam HLVF 5 MP — Motorized Varifocal Dome Camera

Discreet high-precision dome surveillance with the 5 MP Ajax DomeCam HLVF IP Camera featuring Motorized Varifocal Lens

The Ajax DomeCam HLVF (5 Mp) enhances ceiling and wall security by combining a motorized 2.8–12 mm varifocal lens with a vandal-resistant dome form factor. Engineered to cover wide-angle panoramic views (111°) down to tight, distant detail shots (31°), it allows operators to adjust zoom and autofocus settings remotely directly from the Ajax app. This eliminates manual lens adjustments on ladders during installation. Equipped with a 5 MP CMOS sensor (2880 × 1620 px at 25 FPS) and advanced Hybrid Illumination technology, it utilizes IR LEDs up to 30 meters for discrete night monitoring, instantly switching to full-color white light spotlights (up to 30 meters) upon key motion events. It works standalone on a MicroSD card or linked to Ajax recorders.

On-chip AI Analytics, True WDR 120 dB, and Physical I/O Terminals

Its chip-level Artificial Intelligence (AI) engine performs video analysis locally on the device, minimizing false alarms while accurately classifying humans, vehicles, and pets. The integration of physical Alarm and Audio I/O terminals allows easy connection with third-party perimeter sensors or triggering external sirens. The JetSparrow P2P protocol guarantees smooth, zero-latency HD video streaming, while True WDR (120 dB) balances severe glare and intense backlight conditions effortlessly.

IP65/IK10 Rugged Dome Housing, mTLS Security, and Vandal Protection

Constructed with a heavy-duty die-cast metal dome alloy holding an IP65 weatherproof rating and IK10 vandal-resistant impact protection, the DomeCam HLVF is built for exposed mounting areas. It includes an integrated digital microphone for ambient recording, supports standard PoE (802.3af/at) or 12 V⎓ input, and secures video streams via mTLS encryption. For complete manufacturer specs, check the official page for the Ajax DomeCam HLVF on Ajax Systems.
