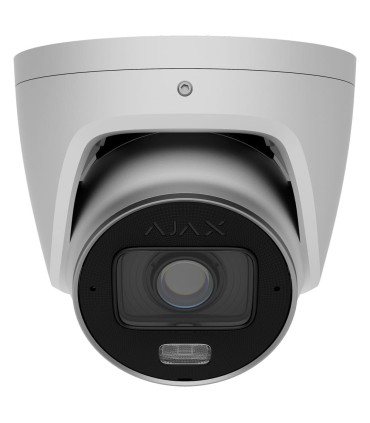

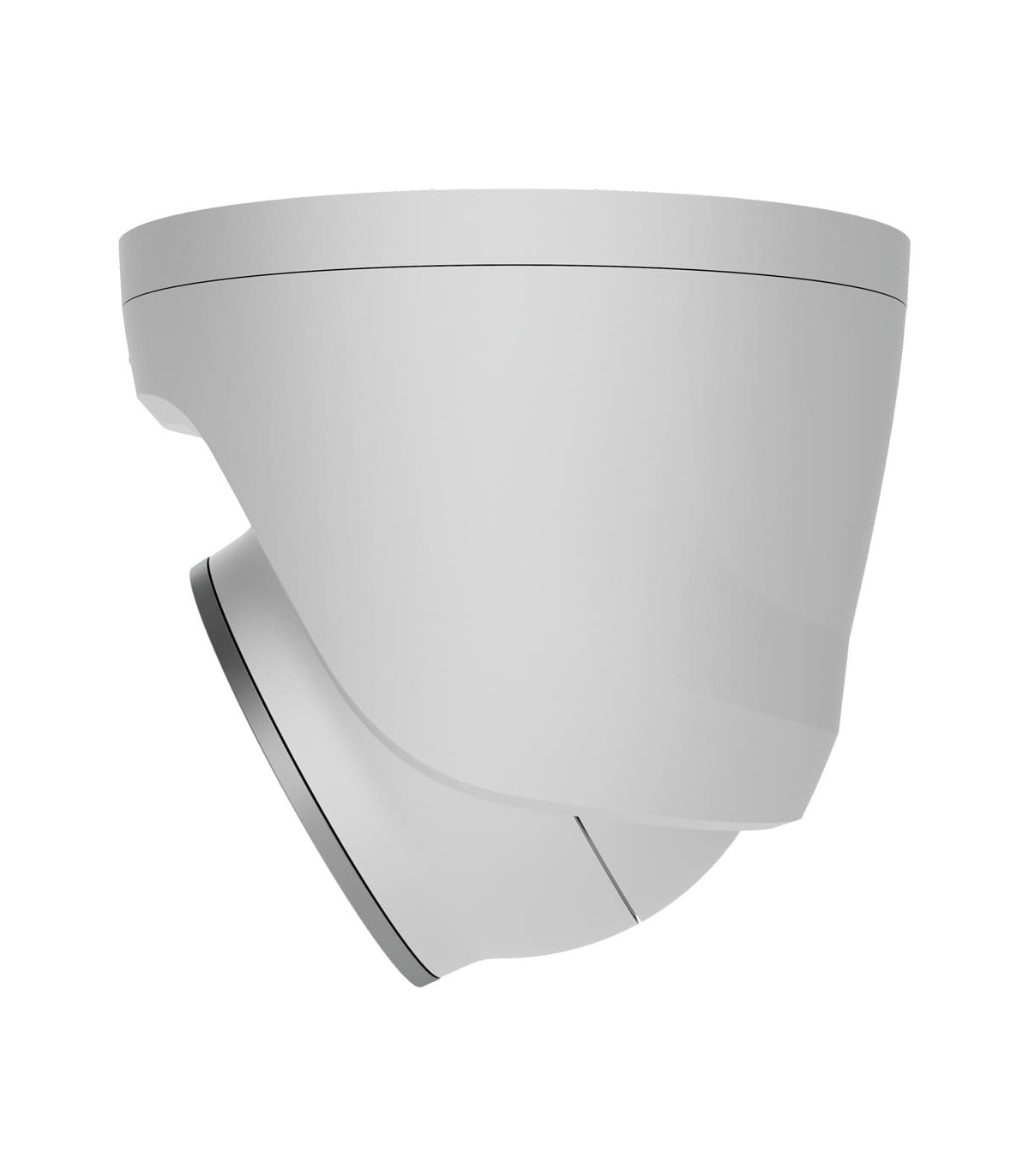

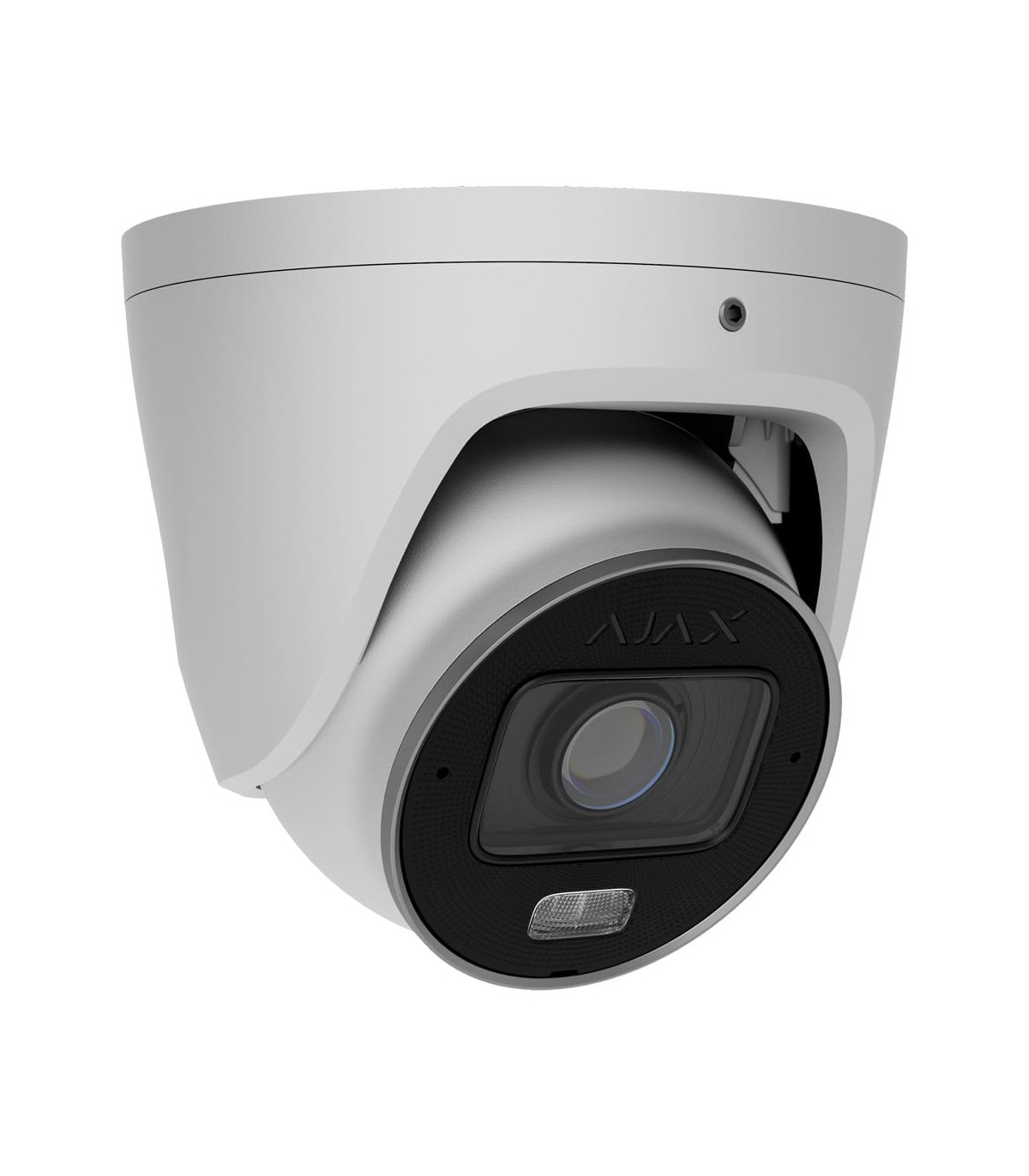

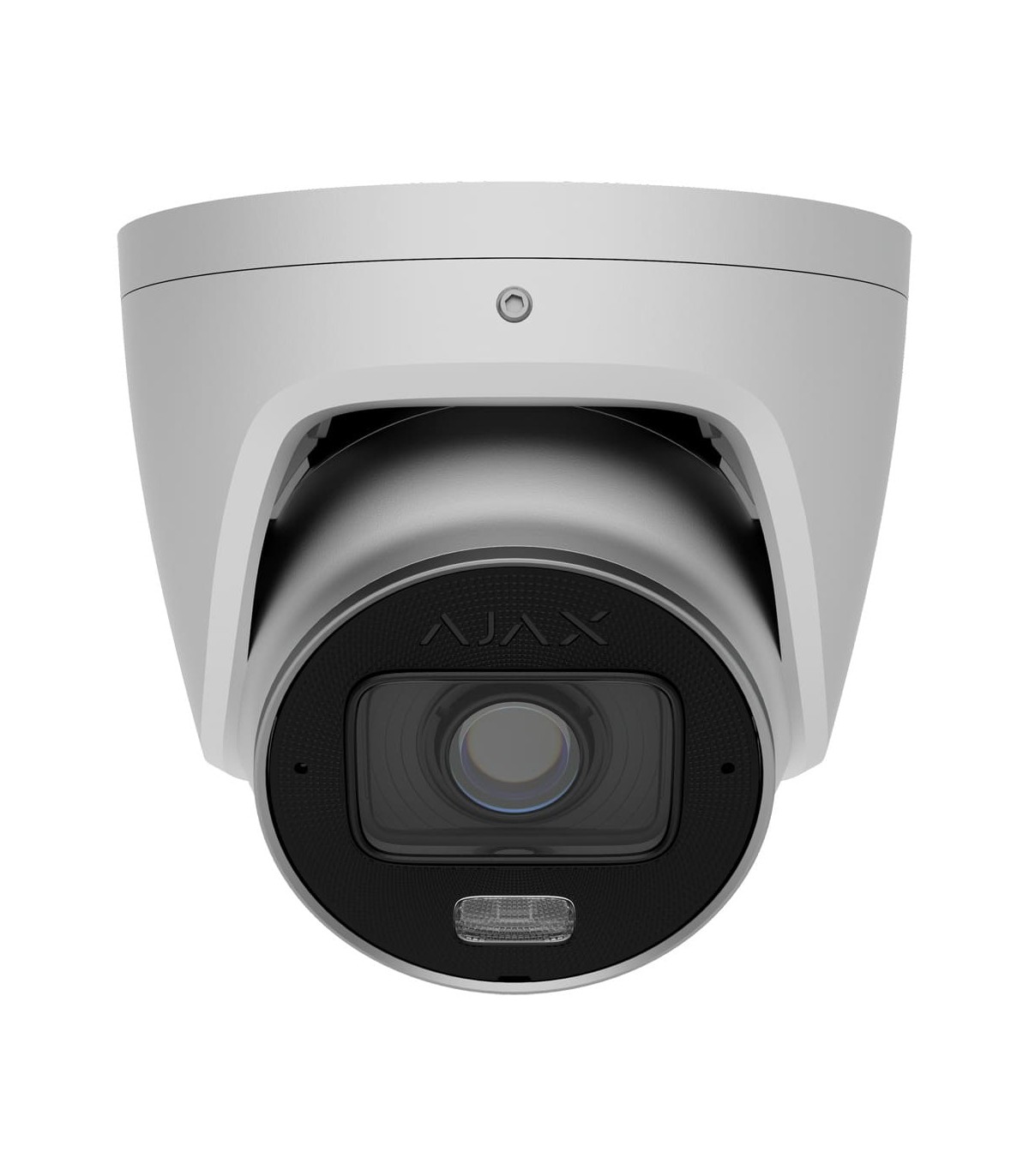

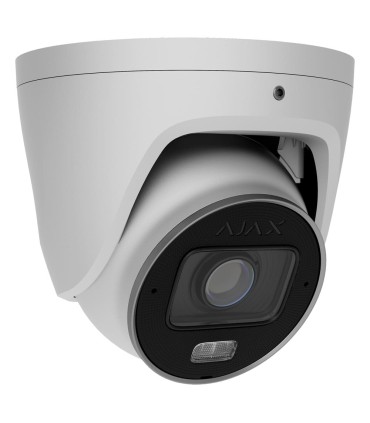

The Ajax TurretCam HLVF (5 Mp) provides maximum mounting flexibility by pairing a multi-axis turret housing with a motorized 2.8–12 mm varifocal lens. Engineered to cover wide-angle panoramic views across outdoor spaces (111°) down to tight, distant detail shots (31°), it allows operators to adjust zoom and autofocus settings remotely directly from the Ajax app. This eliminates manual lens adjustments on ladders during installation. Equipped with a 5 MP CMOS sensor (2880 × 1620 px at 25 FPS) and advanced Hybrid Illumination technology, it utilizes IR LEDs up to 30 meters for discrete night monitoring, instantly switching to full-color white light spotlights (up to 30 meters) upon key motion events. It works standalone on a MicroSD card or linked to Ajax recorders.
Its chip-level Artificial Intelligence (AI) engine performs video analysis locally on the device, minimizing false alarms while accurately classifying humans, vehicles, and pets. The integration of physical Alarm and Audio I/O terminals allows easy connection with third-party perimeter sensors or triggering external sirens. The JetSparrow P2P protocol guarantees smooth, zero-latency HD video streaming, while True WDR (120 dB) balances severe glare and intense backlight conditions effortlessly.
Constructed with a heavy-duty die-cast metal alloy holding an IP65 weatherproof rating and IK10 vandal-resistant impact protection, the TurretCam HLVF is built for ceiling or wall mounting in demanding sites. It includes an integrated digital microphone for ambient recording, supports standard PoE (802.3af/at) or 12 V⎓ input, and secures video streams via mTLS encryption. For complete manufacturer specs, check the official page for the Ajax TurretCam HLVF on Ajax Systems.
