IPC-HDW1539DA-SAW-IL - 5MP Wi-Fi 6 Turret IP Camera 2.8mm

IPC-HDW1539DA-SAW-IL - 5MP Wi-Fi 6 Turret IP Camera 2.8mm

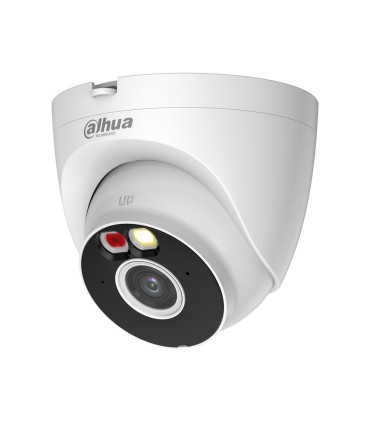

The IPC-HDW1539DA-SAW-IL is a Dahua 5MP Wi-Fi 6 Turret IP camera equipped with a fixed 2.8mm lens, Artificial Intelligence for human and vehicle detection and Smart Dual Light technology. It combines IR illumination up to 30m and warm light up to 30m, a built-in microphone, Micro SD storage, ONVIF compatibility and IP67 protection, providing a modern and versatile solution for residential, commercial and professional video surveillance.

IPC-HDW1539DA-SAW-IL with 5MP resolution

The IPC-HDW1539DA-SAW-IL uses a 1/2.7" CMOS sensor and provides a maximum resolution of 2880 × 1620. Its 5MP resolution delivers detailed images and excellent definition for monitoring people, vehicles, entrances and other areas of interest.

Fixed 2.8mm lens with 108° field of view

The fixed 2.8mm lens version provides a wide 108° horizontal, 57° vertical and 129° diagonal field of view. This configuration is suitable for covering large areas such as entrances, rooms, shops, offices, garages and other locations requiring a broad view.

Wi-Fi 6 for fast and stable connectivity

The IPC-HDW1539DA-SAW-IL supports Wi-Fi 6 IEEE 802.11b/g/n/ax on the 2.4 GHz band. Wi-Fi 6 provides high-speed wireless communication and improved resistance to interference, making it suitable for environments with multiple connected devices.

Fast Bluetooth pairing

The camera supports Bluetooth pairing, helping simplify the initial association and wireless setup process. This feature makes commissioning the IPC-HDW1539DA-SAW-IL easier and faster.

AI human and vehicle detection

The IPC-HDW1539DA-SAW-IL integrates Artificial Intelligence for human and vehicle detection. This capability helps distinguish key targets of interest in a video surveillance installation and allows monitoring to focus on more relevant events.

Smart Dual Light with IR and warm light up to 30m

Smart Dual Light technology combines IR up to 30m with warm light up to 30m. The camera can maintain discreet infrared surveillance and use visible illumination when required, allowing colour information to be captured in relevant situations.

Night vision with IR 30m

The built-in infrared illuminator provides a range of up to IR 30m, allowing the area to be monitored at night or in low-light conditions. The camera also supports automatic Day/Night operation with ICR, as well as Color and B/W modes.

Warm light 30m for colour images

In addition to IR, the IPC-HDW1539DA-SAW-IL includes a warm light illuminator with a range of up to 30m. This visible illumination helps produce colour images when chromatic details of people, vehicles or objects are important.

Built-in microphone for audio capture

The IPC-HDW1539DA-SAW-IL features a built-in microphone, allowing audio to be recorded together with video. It supports G.711a, G.711Mu and PCM audio compression for more complete audiovisual monitoring.

H.265 and H.264 for efficient transmission

The camera supports H.265, H.264, H.264H and H.264B video compression, plus MJPEG on the Sub Stream. The Main Stream supports the maximum 2880 × 1620 resolution at up to 25/30 fps, providing smooth high-definition video.

Micro SD up to 256 GB

The IPC-HDW1539DA-SAW-IL supports a Micro SD card up to 256 GB, allowing local recording directly on the camera. This can be used as a standalone storage solution or as a complement to a network recording system.

ONVIF for professional integration

ONVIF Profile S, Profile G and Profile T compatibility, together with CGI, facilitates integration of the IPC-HDW1539DA-SAW-IL with compatible recorders, software and professional video surveillance platforms.

RJ-45 and DMSS management

In addition to Wi-Fi 6, the camera includes a 10/100 Base-T RJ-45 network interface. It is compatible with Smart PSS Lite, DSS and DMSS and can be used with iOS and Android mobile devices.

IP67 protection

The IPC-HDW1539DA-SAW-IL features IP67 protection against water and dust and can operate at temperatures from -40 °C to +60 °C. Its metal and plastic construction provides suitable durability for different installation environments.

12 VDC power supply

The IPC-HDW1539DA-SAW-IL uses a 12 VDC power supply. Basic power consumption is approximately 2.1 W, while the specified maximum consumption is 5.1 W with H.265 and warm light enabled.
