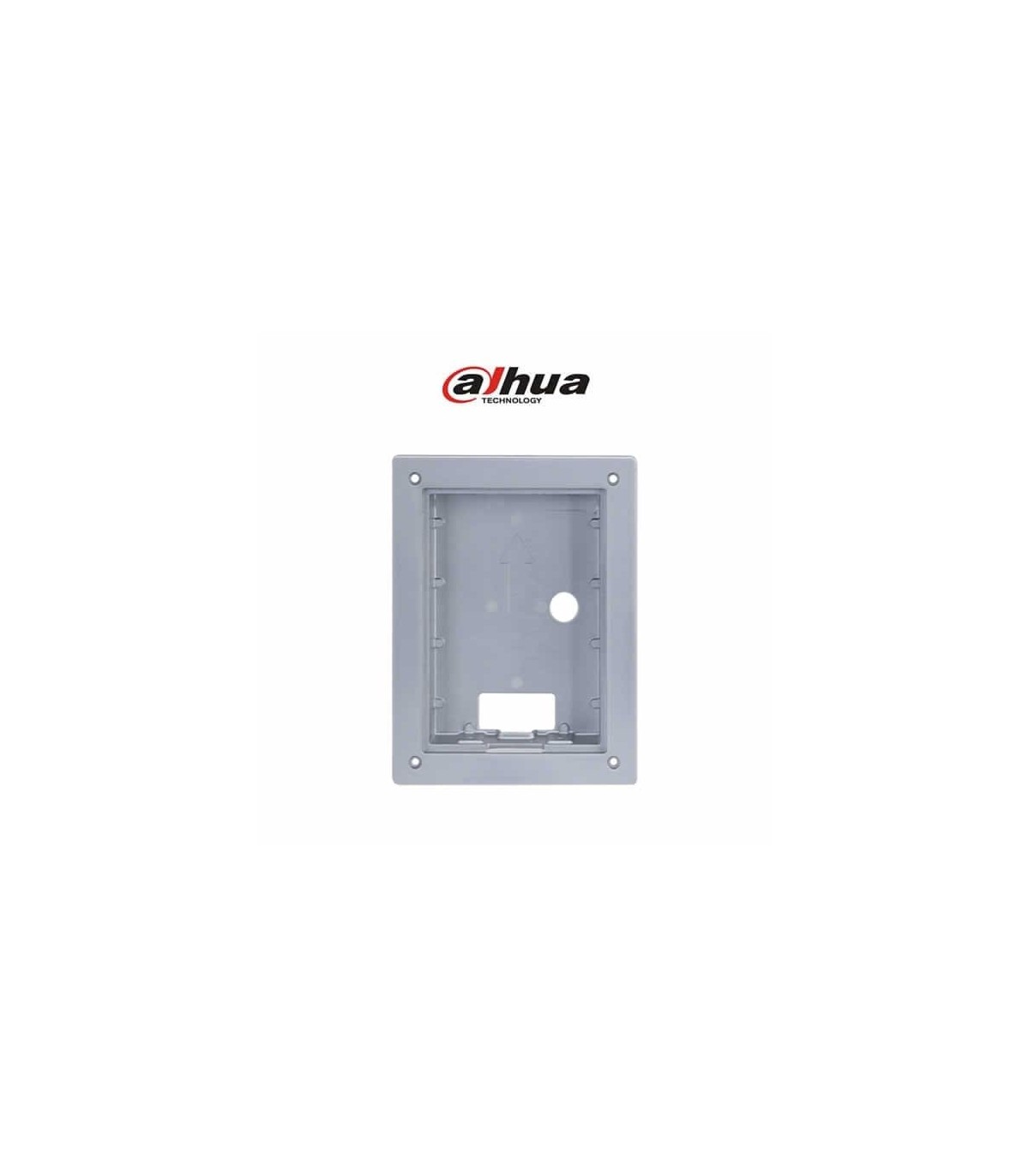

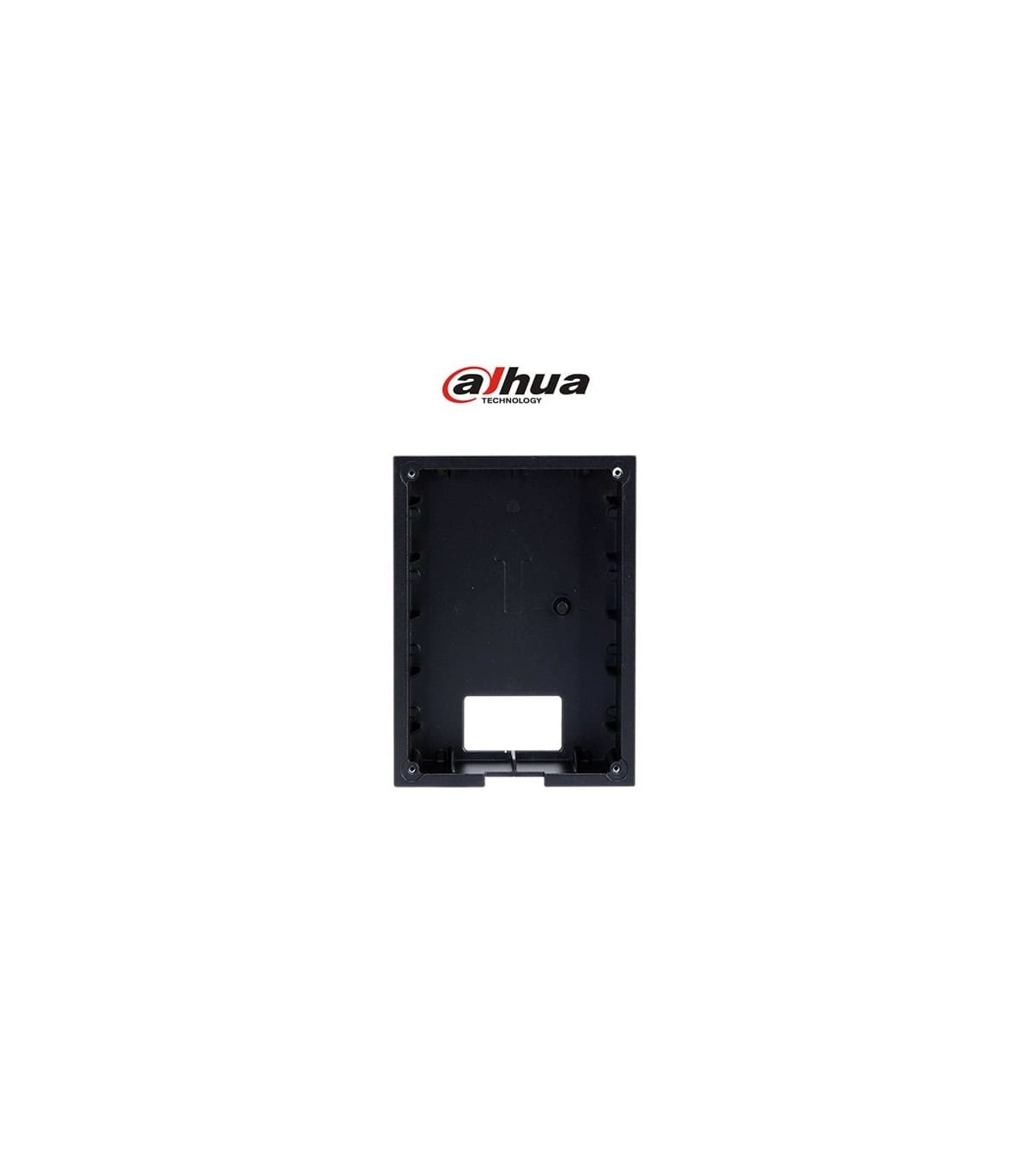

VTM114 – Dahua Flush Mount Box:
The VTM114 is a Dahua flush mount box designed for the flush installation of compatible outdoor stations in video intercom systems. This accessory allows the outdoor station to be integrated directly into the wall, providing a dedicated solution for projects where a flush-mounted installation is required.
Manufactured from ADC12, the VTM114 has defined dimensions that allow the installation space to be prepared correctly. Using the appropriate mounting box is particularly important for this type of installation, as the wall must be prepared before the outdoor station can be positioned and secured.
The flush mount box is installed inside the wall and provides the housing required for the compatible outdoor station. Unlike a surface-mounted solution, this type of installation requires an opening with suitable dimensions to be prepared in advance.
When preparing the installation, the routing and passage of the cables required for the outdoor station should also be considered. The box must be correctly positioned and secured before the final installation of the equipment.
The VTM114 can be used with the Dahua VTO2202F-P and VTO2202F-P-S3 outdoor stations. The VTM114 is provided as a flush mounting accessory for these models, allowing the outdoor station to be integrated directly into the wall.
Before installation, it is recommended to confirm the exact outdoor station model and check the wall conditions, available space and cable routing required for the video intercom system.
The VTM114 is manufactured from ADC12 and is designed as an installation component for compatible Dahua outdoor stations. Its construction and specific dimensions allow the necessary space to be prepared for a properly organised flush-mounted installation.
The front dimensions of the box are 128.9 × 162.9 × 34.5 mm, while the rear dimensions are 123.0 × 157.0 × 35.0 mm.
Correct preparation of the wall opening is an essential part of installing the flush mount box. According to Dahua specifications, the opening dimensions must be greater than 113.0 × 149.0 × 35.0 mm and less than 123.0 × 157.0 × 35.0 mm.
These dimensions should be checked before preparing the wall to ensure that sufficient space is available to accommodate the box correctly. Verifying the measurements in advance facilitates the subsequent installation of the outdoor station and helps avoid unnecessary modifications at the installation point.
The VTM114 is a Dahua solution for projects requiring the flush installation of compatible outdoor stations. Its ADC12 construction, specific dimensions and wall-integrated format provide an appropriate mounting solution for the installation of video intercom equipment.
