VTM116-01 – Dahua flush mount box:

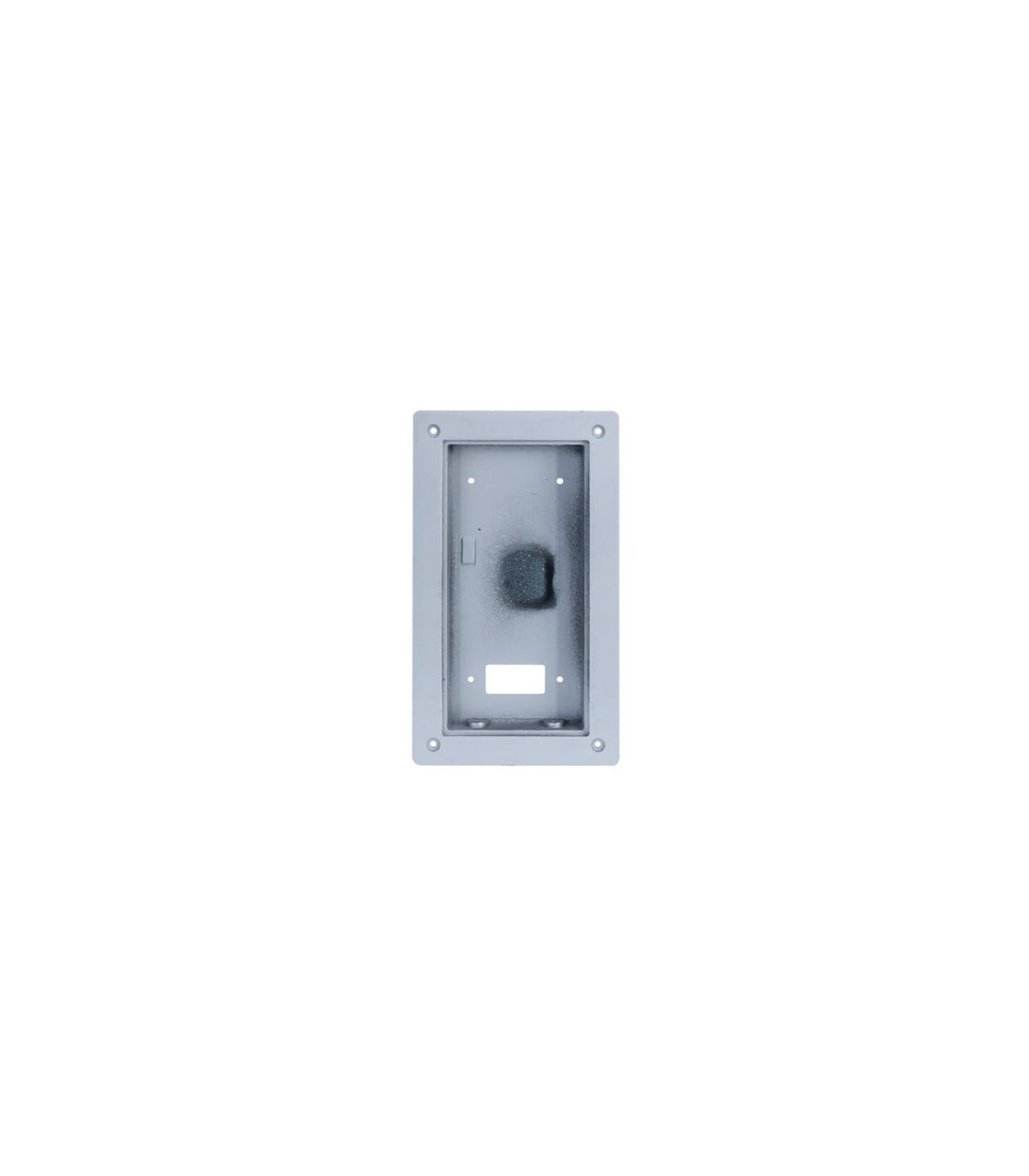

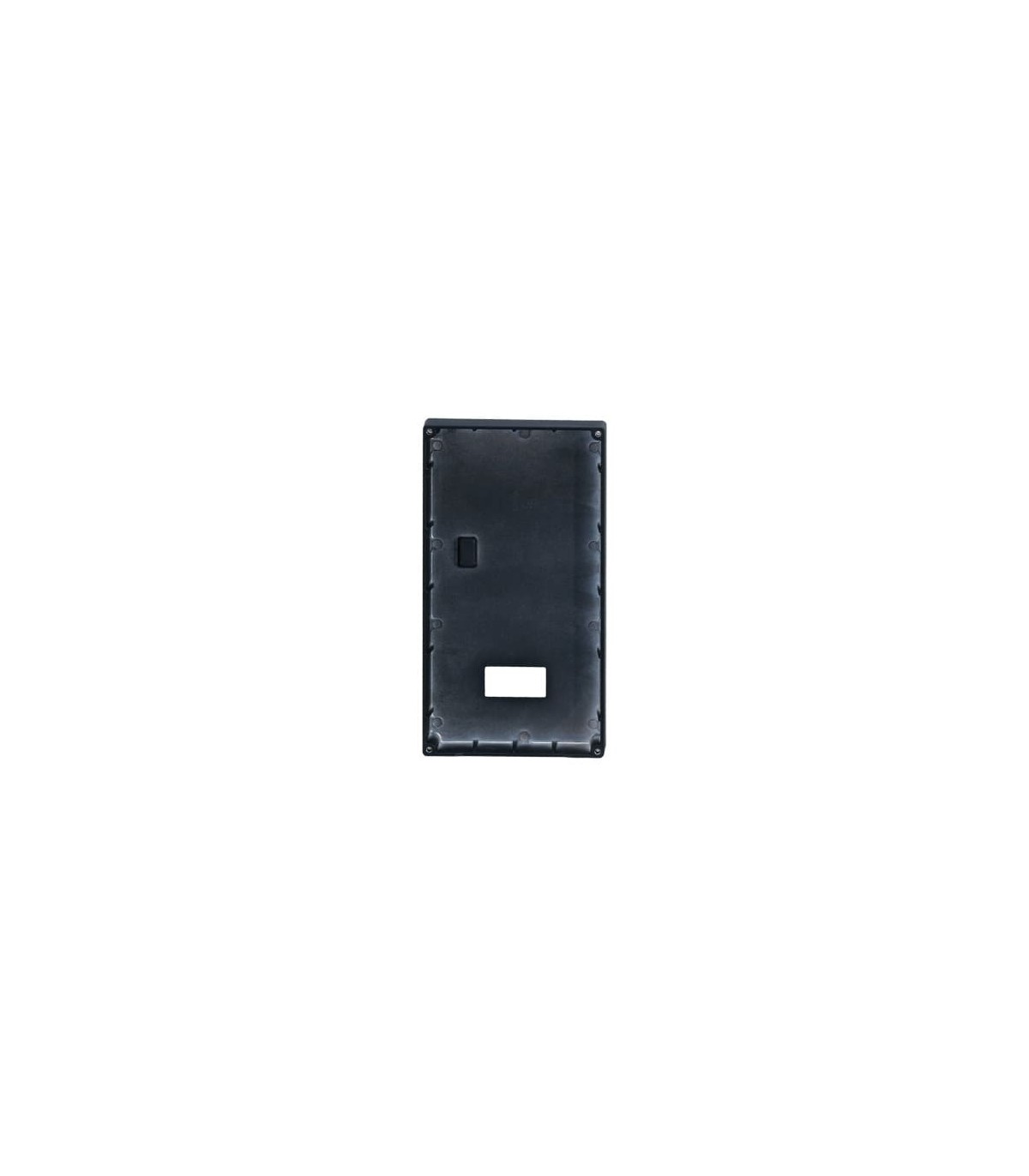

The VTM116-01 is a Dahua flush mount box developed for the installation of compatible door stations in video intercom systems. This solution allows the equipment to be integrated into the wall, providing a discreet and organised installation suitable for projects where surface mounting is not desired.
The mounting box is specifically designed for flush installation and provides the necessary space to correctly accommodate compatible equipment. Its use simplifies preparation of the installation location and helps achieve a finish that is better integrated into the wall surface.
The box is manufactured from ADC12, the material officially specified by Dahua for this accessory. Its construction provides a suitable structure for installing the compatible door station inside the opening previously prepared in the wall.
Using a dedicated box for this type of installation helps avoid improvised mounting solutions and facilitates the integration of the equipment into a professional Dahua video intercom system.
The main purpose of this accessory is to provide flush mounting for the door station. Unlike a box intended for surface mounting, this solution is installed inside an opening previously prepared in the wall, allowing the assembly to be more effectively integrated into the installation surface.
To correctly prepare the installation location, Dahua specifies a wall opening of 120.8 × 222.7 × 33.0 mm. These dimensions should be taken into account before installation to ensure that sufficient space is available for correct positioning of the box.
The VTM116-01 is suitable for use with the VTO3221E-P and VTO6221E-P models. This compatibility provides a flush mounting solution specifically suited to these Dahua door stations.
Before starting the installation, it is important to check the door station reference and confirm that it corresponds to one of the compatible models. This helps prevent the box from being used with equipment for which it is not specified.
The front dimensions of the box are 138.0 × 240.0 × 35.0 mm, while the rear dimensions are 120.8 × 222.7 × 33.0 mm. Dahua also specifies a wall opening of 120.8 × 222.7 × 33.0 mm.
These measurements are particularly important for a flush installation, as they allow the wall to be prepared in advance according to the space required to correctly accommodate the accessory.
This box provides a dedicated solution for projects requiring flush installation of compatible door stations. The combination of ADC12 construction, manufacturer-specified dimensions and a design intended for integration into the wall enables an organised and professional installation.
For installations using the compatible VTO3221E-P and VTO6221E-P models, this box provides a suitable flush mounting solution for the Dahua video intercom system.
