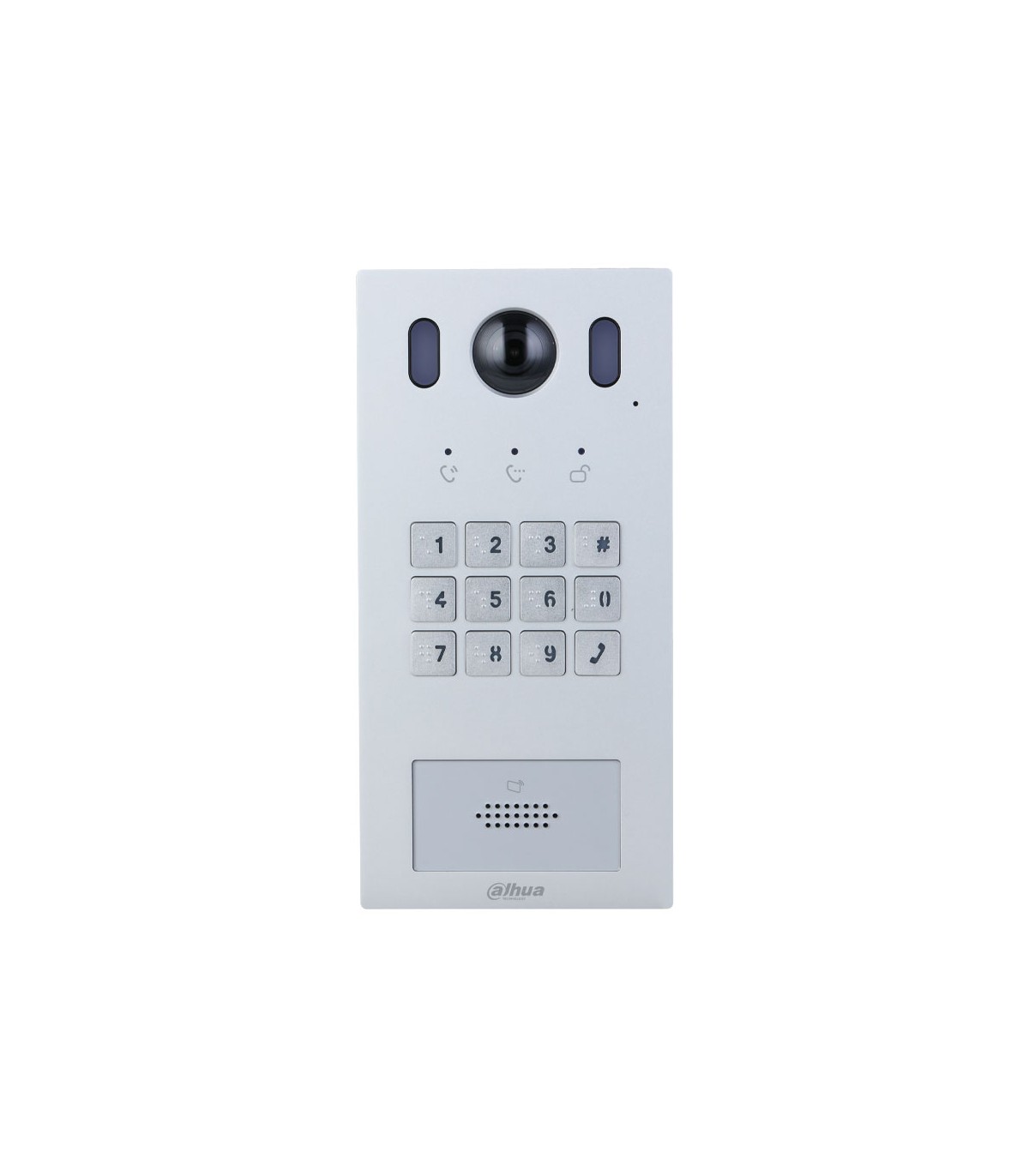

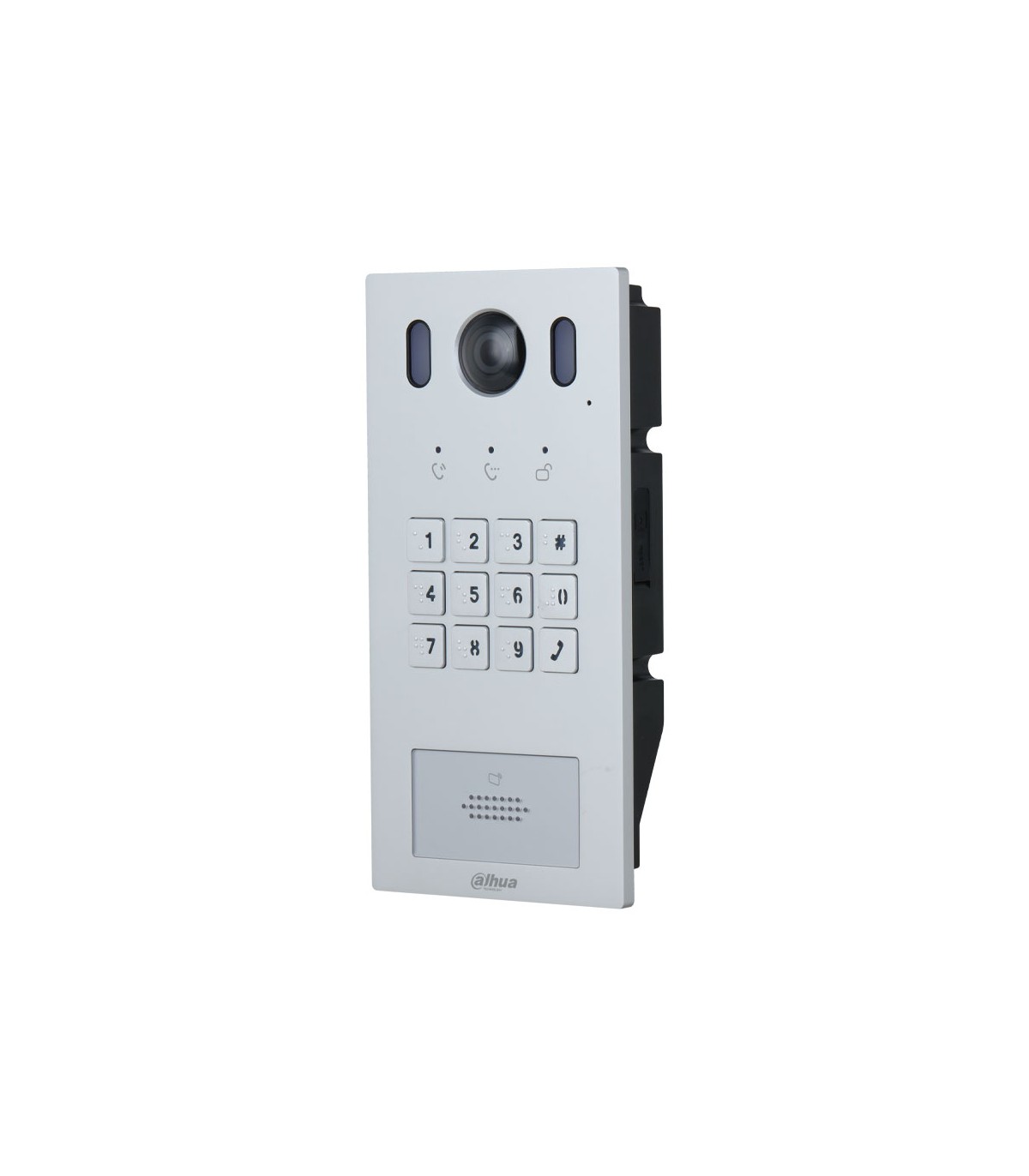

VTO3222E-P 2-Wire IP 2MP PoE Door Station Dahua

VTO3222E-P – 2-Wire IP 2MP PoE Door Station Dahua

The VTO3222E-P is a Dahua 2-wire IP door station from the Ultra Series, designed for professional video intercom and access control systems. It integrates a 2MP CMOS camera with 120 dB WDR and a wide field of view, providing clear visitor identification under different lighting conditions.

The digital 2-wire communication simplifies integration into compatible Dahua installations, while the 10/100 Mbps Ethernet connection and PoE 802.3af/at power supply provide additional installation flexibility. The door station can also be powered by 48 VDC.

Access Control by Card, Password and Remote Unlocking

The VTO3222E-P supports authentication by IC card, password or remote unlocking. The RFID reader operates at 13.56 MHz and supports up to 10,000 cards, while the 12-button mechanical keypad provides practical operation in residential and professional systems.

Video, Two-Way Audio and Storage

The 2MP camera features 120 dB WDR, 3D digital noise reduction and H.264/H.265 video compression. The system supports two-way audio, echo suppression and digital noise reduction. The door station also supports Micro SD cards up to 256 GB for compatible storage functions.

IP65, IK08 and Professional Integration

Built with an aluminium housing, the VTO3222E-P provides IP65 protection and IK08 vandal resistance, making it suitable for outdoor use when installed according to the manufacturer's recommendations. It also includes RS485, Wiegand, alarm input and output, exit button, doorbell and lock control interfaces.

With support for flush or surface mounting, the Dahua VTO3222E-P combines IP video intercom, access control and multiple integration interfaces in a robust solution for residential and professional installations.
