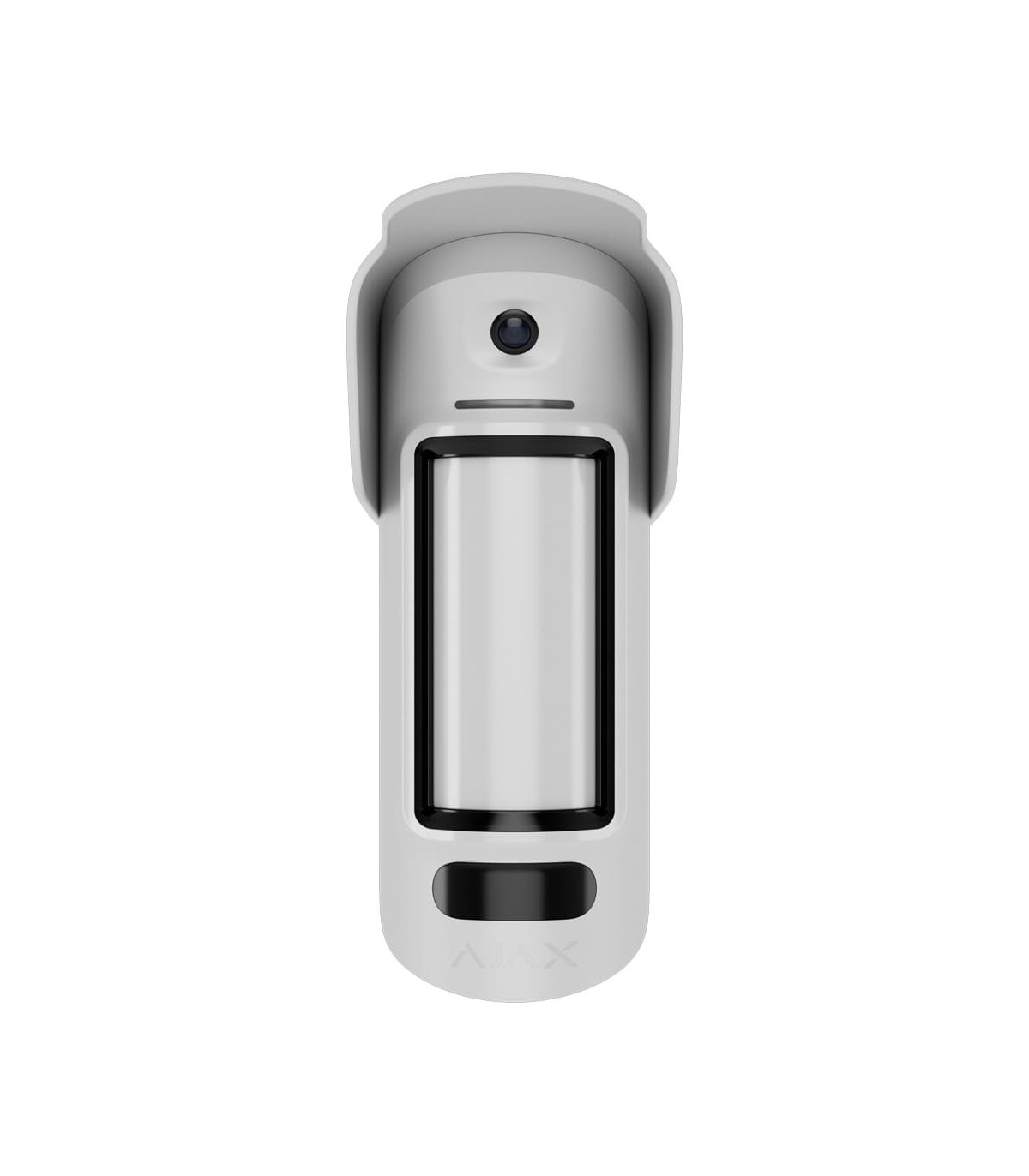

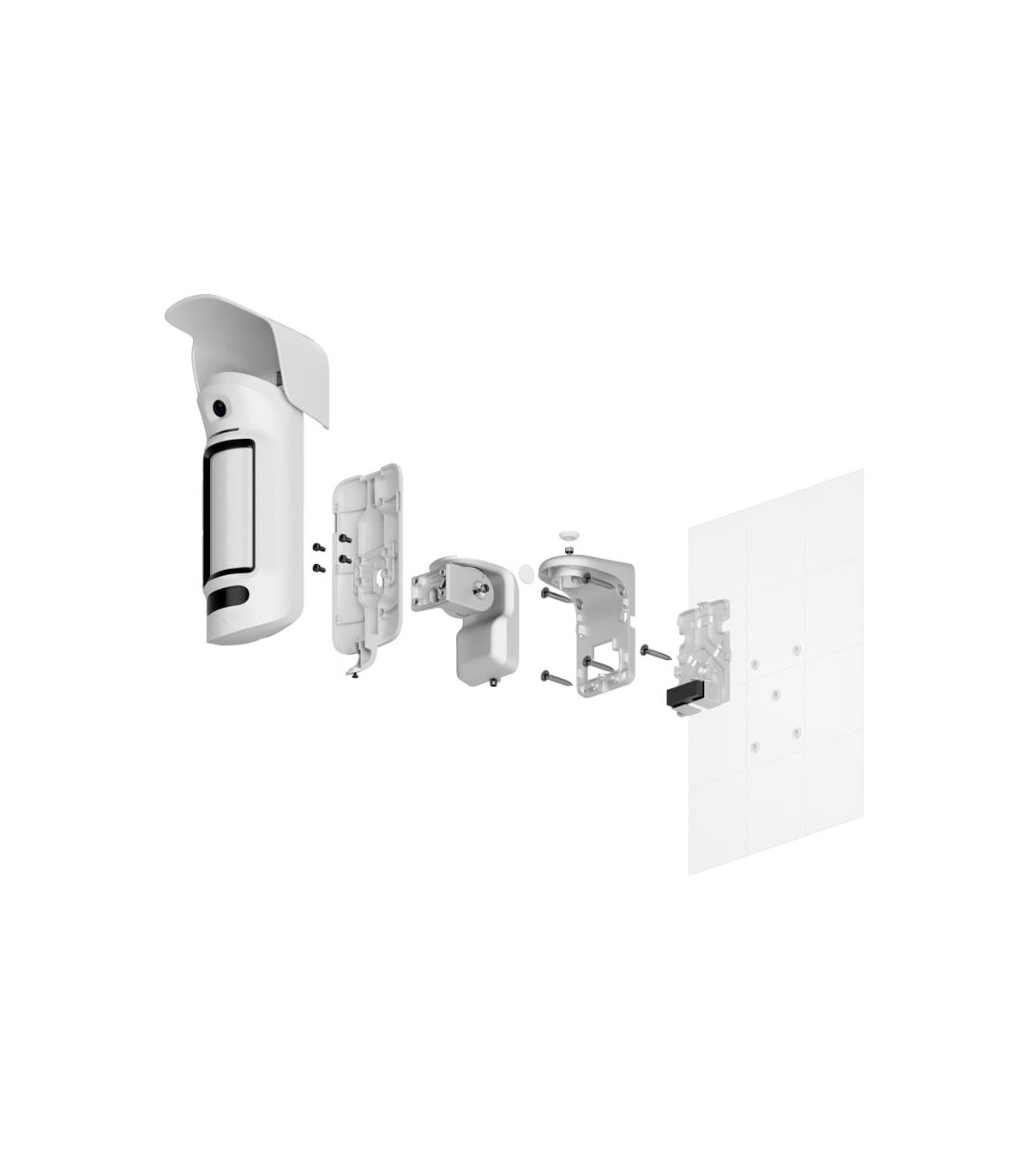

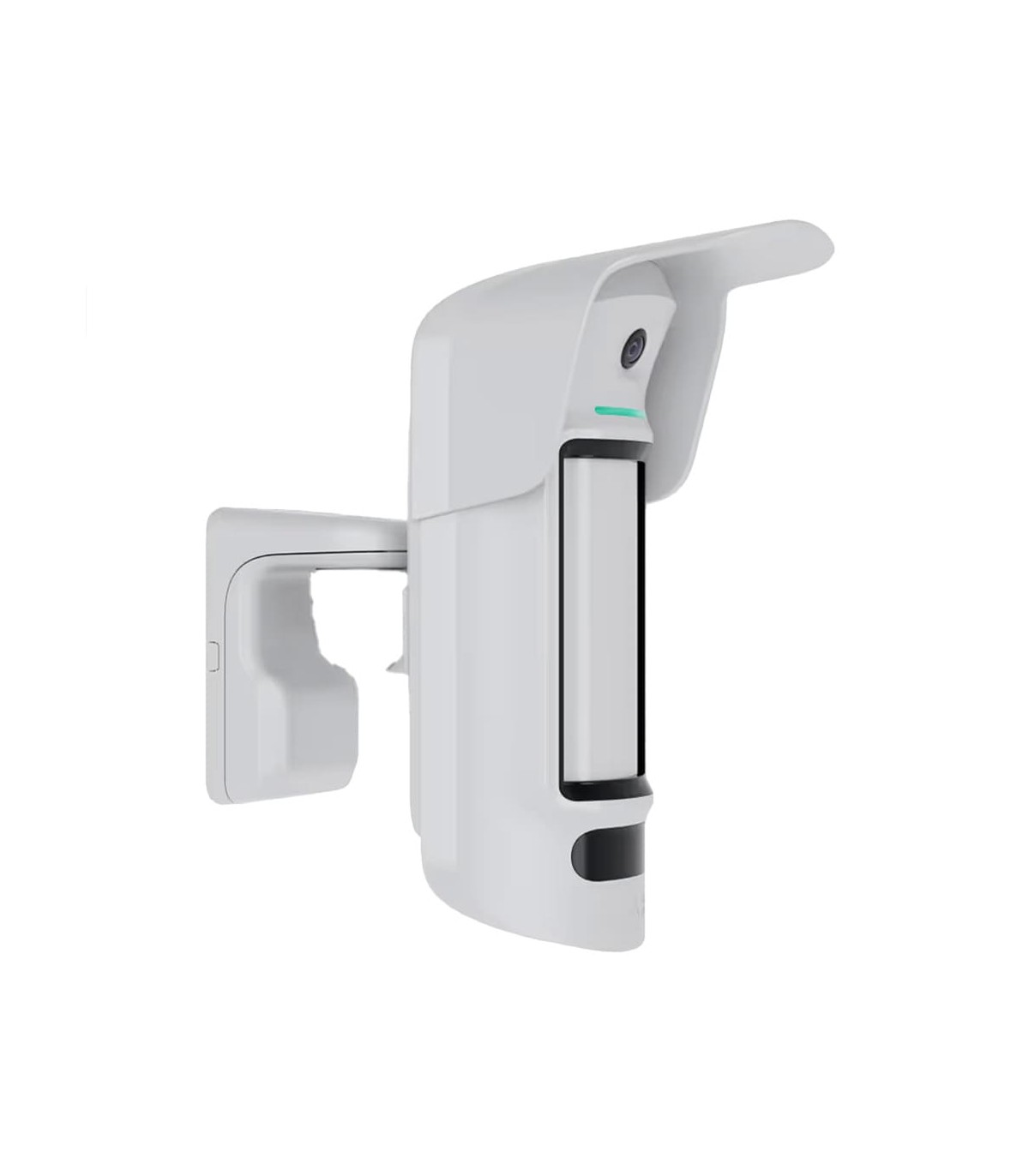

The Ajax CurtainCam Outdoor HighMount delivers premium protection zones across vulnerable building layouts. This wireless curtain detector is custom-engineered for elevated mounting heights between two and four meters. The hardware block easily monitors structural facades, security fences, gates, or commercial property edges. Utilizing the built-in 87-degree swivel mount frame, installers can precisely adjust the scanning path to match real intrusion angles.
This detector utilizes a Pre-alarm operational logic. The K-band microwave sensor tracks approach within the wide zone and activates the camera in the background. If the intruder advances into the narrow zone monitored by the twin PIR sensors (ultra-narrow 7° angle), the alarm triggers. The photo is captured instantly. Important notice: This HighMount model specifically does not support Pet Immunity due to its installation height and angle. Here, Wings technology is fully utilized to transmit the captured images. The first photo is delivered in less than 9 seconds.
The robust IP55 enclosure comes equipped with a custom protective hood shielding anti-masking lines from rain. The security system transmits instant notifications if the lens view faces optical masking blocks. Furthermore, an onboard magnetometer tracks the surrounding magnetic fields to flag mounting displacement or sabotage actions. The device operates wirelessly on internal batteries for up to three years. It also allows direct wiring lines to 12–24V external power units.
| Technical Feature | Official Detailed Specification |
|---|---|
| DIMENSIONS AND INSTALLATION | |
| Detector Dimensions | 234 mm × 98 mm × 137 mm |
| Dimensions with Swivel Mount | 234 mm × 98 mm × 275 mm |
| Equipment Weight | 620 g (With integrated swivel mount: 1109 g) |
| Recommended Mounting Height | From 2 to 4 meters (6.6 to 13.1 ft) on a vertical wall |
| POWER SUPPLY AND ENERGY | |
| Battery Type | 6 × CR123A Lithium batteries (Type C, pre-installed from factory) |
| Battery Life | Up to 3 years of continuous operation (Low battery alerts via app) |
| Optional External Power | 12–24 V⎓, 1200 mA max current (Internal batteries switch to backup mode) |
| DETECTION AND OPTICS | |
| Sensitive Hardware Elements | 2 × PIR sensors + 1 × Microwave sensor (K-band array, 24 GHz) |
| Main Zone Viewing Angles | Horizontal: 7° \| Vertical: 73° (Ultra-narrow targeted protection beam) |

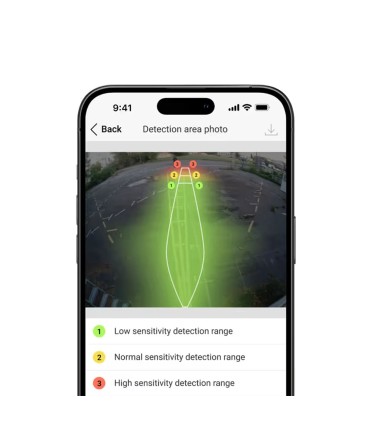

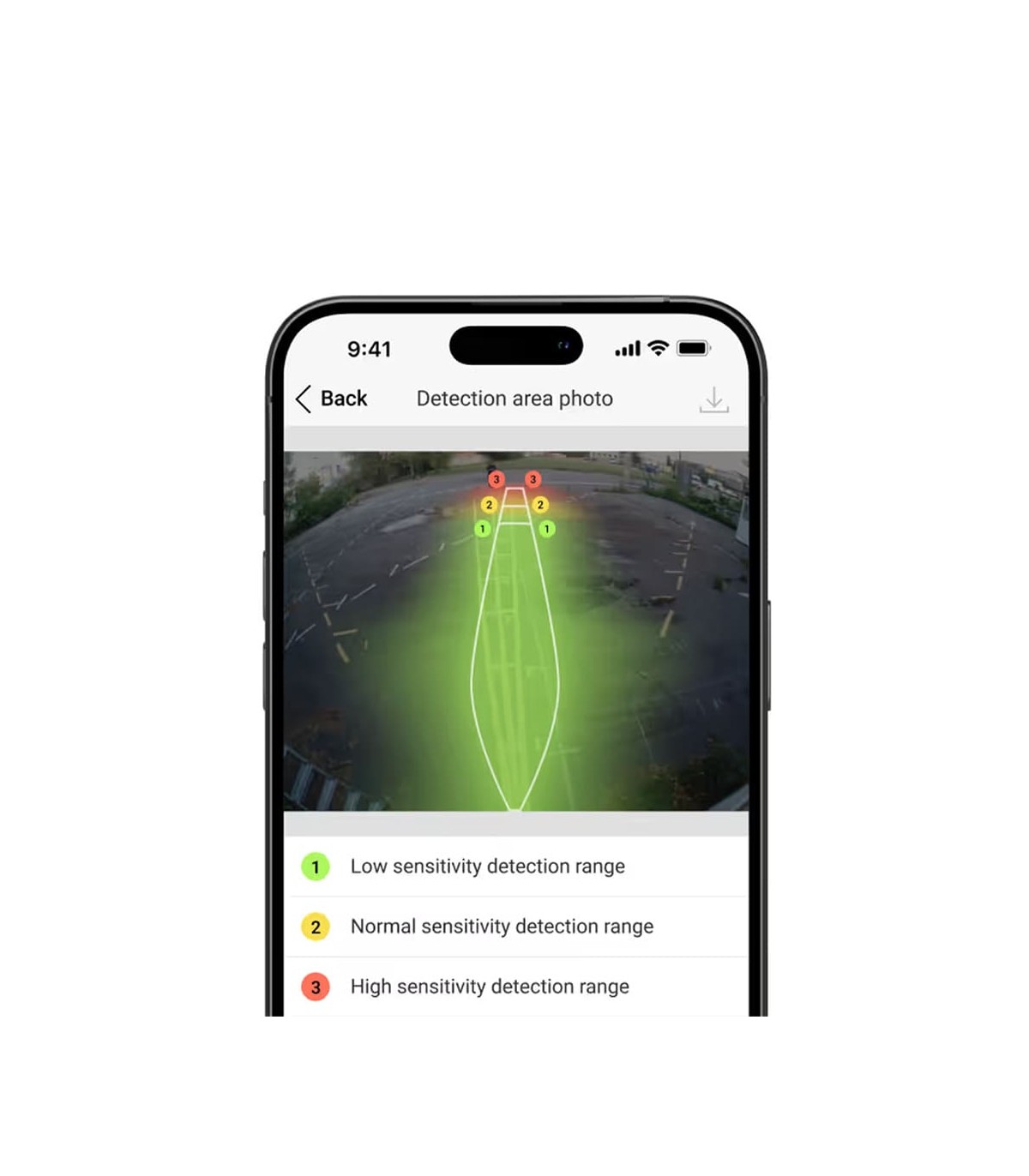

| Pre-alarm Zone Viewing Angles | Horizontal: 43° \| Vertical: 88° (Wide zone for background camera triggering) |
| Maximum Detection Distance | Up to 15 meters (49 ft) linear distance |
| Speed and Sensitivity | 0.3 to 2.0 m/s \| 3 sensitivity levels remotely adjusted via app |
| Pet Immunity Support | Not supported (Hardware is optimized strictly for highmount deployments) |
| VISUAL VERIFICATION (CAMERA) | |
| Photo Resolution and Quality | Up to 640 × 480 pixels resolution layered with HDR technology |
| Verification Types (PhOD) | By alarm, on demand, by scenario, by scheduling, and by sabotage events |
| Night Illumination | Built-in Infrared (IR) light emitter for clear captures in total darkness |
| RADIO LINK AND PROTECTION RULES | |
| Wireless Radio Protocols | Jeweller (Alarm data) and Wings (Image transmission pipelines) |
| Signal Range | Up to 1,700 meters (5,550 ft) in open space without obstacles |
| Sabotage Prevention | Optical anti-masking system, protective Hood, rear Tamper button, and Magnetometer |
| Enclosure and Security Classes | IP55 protection rating \| Security Grade Grade 2 (EN 50131-1) \| Environmental Class IV |
