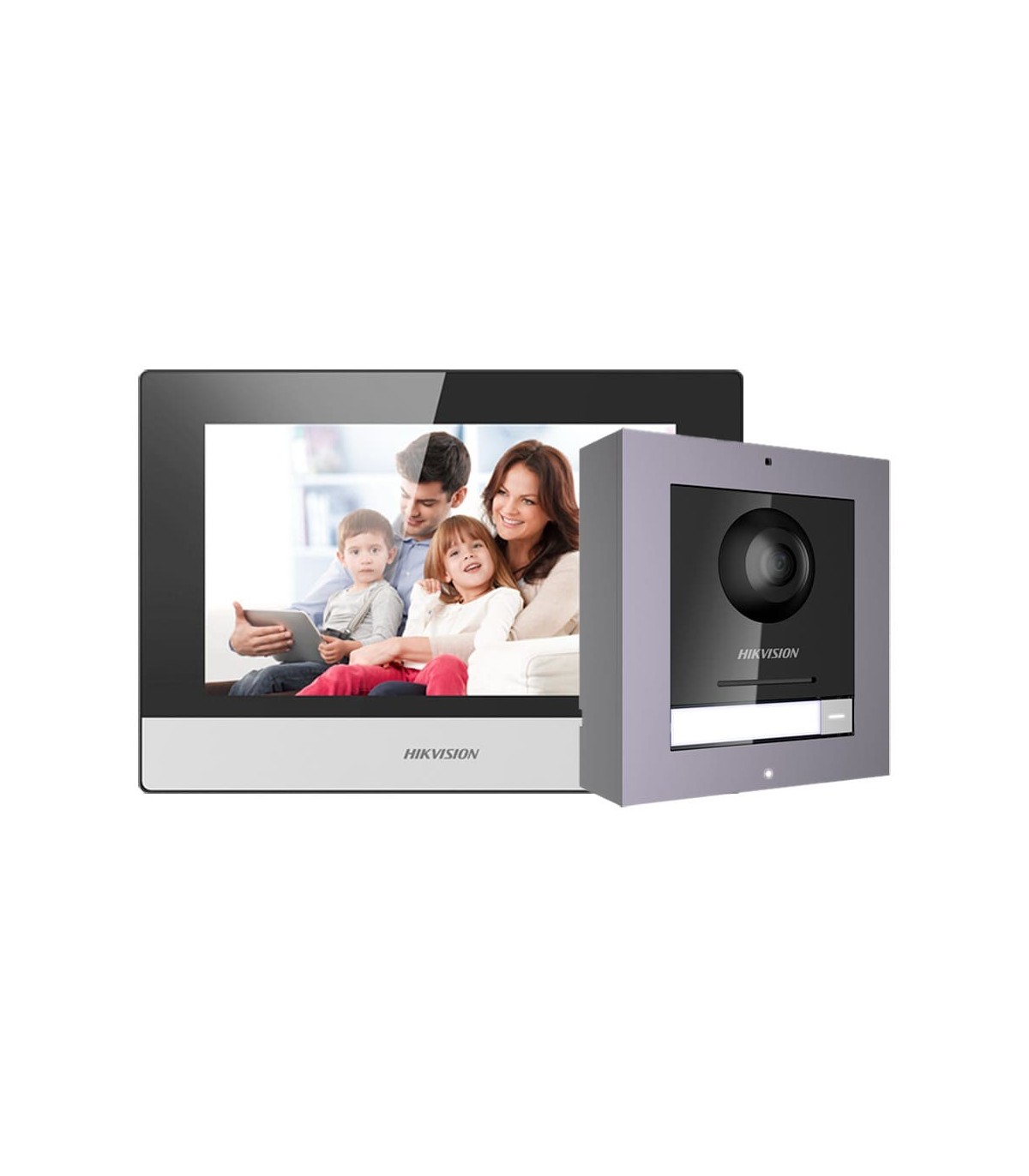

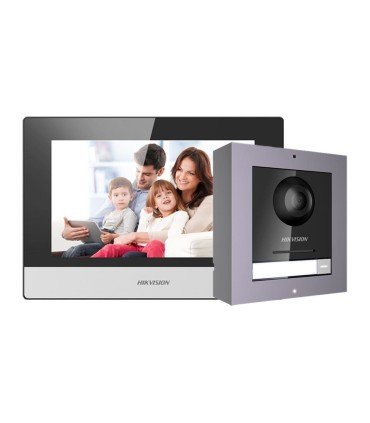

DS-KIS602(B) - Hikvision IP Video Intercom Kit PoE with 7" Wi-Fi Monitor and 2MP Camera:
The DS-KIS602(B) is a Hikvision IP video intercom kit designed for villas and single-family homes. It includes a modular outdoor station with a 2MP HD camera, an indoor monitor with a 7-inch touchscreen, a standard 4-port PoE switch and a 16GB TF memory card.
This IP video intercom kit uses Ethernet network communication and provides video, two-way audio and access control functions. The outdoor station supports IEEE 802.3af PoE or 12V DC power and features an IP65 protection rating for outdoor installations.
The DS-KIS602(B) combines a camera with infrared night vision up to 3 metres, WDR technology, motion detection and a 7 inch Wi-Fi monitor with a resolution of 1024 × 600 pixels. It offers an IP video intercom solution for visitor communication and residential access management.
The DS-KIS602(B) is designed for residential installations requiring a single outdoor call point.
This IP video intercom kit allows users to view visitors on the indoor monitor and establish two-way audio communication.
Its IP architecture allows the devices to connect through a compatible Ethernet network infrastructure.
The kit includes a DS-KD8003-IME1(B)/Surface modular outdoor station, equipped with a 2MP HD camera and access control functions.
It also includes a DS-KH6320-WTE1 indoor monitor featuring a 7-inch colour touchscreen.
The package also contains a standard 4-port PoE switch and a 16GB TF memory card.
The outdoor station of the DS-KIS602(B) supports IEEE 802.3af PoE power.
It can also be powered using a 12V DC source, according to the manufacturer's specifications.
The included 4-port PoE switch allows compatible equipment to connect to a network infrastructure that provides PoE power.
The DS-KD8003-IME1(B) outdoor station features an integrated 2MP HD camera.
This camera captures images of visitors standing at the entrance to the property.
The system supports H.264 video compression for transmitting images over the network.
The outdoor station camera includes infrared illumination for low-light environments.
The infrared range specified by the manufacturer is 3 metres.
This feature helps users view visitors at night or in areas with limited lighting.
The outdoor camera provides a 146° horizontal viewing angle.
Its vertical viewing angle is 82°.
These specifications provide wide coverage of the entrance area and should be considered when positioning the device.
The outdoor station supports WDR technology, designed to improve visibility in scenes with significant differences in brightness.
Backlight compensation is also supported.
These functions help improve image quality under different lighting conditions.
The camera of the DS-KIS602(B) supports digital noise reduction.
This technology helps reduce visual interference in captured images.
Actual results depend on lighting conditions and device configuration.
The outdoor station supports motion detection.
This feature can detect movement within the camera's field of view, according to the available device settings.
Its operation depends on the configuration and functions supported by the system.
The DS-KH6320-WTE1 indoor monitor features a 7-inch colour TFT display.
This 7 inch Wi-Fi monitor provides a resolution of 1024 × 600 pixels.
Its capacitive touchscreen allows users to access the available video intercom functions.
The indoor monitor supports Wi-Fi 802.11b/g/n connectivity.
It also features a 10/100Mbps Ethernet connection for integration into a compatible IP network.
Connection selection and configuration should follow the manufacturer's installation instructions.
The outdoor station is equipped with an RJ45 10/100Mbps Ethernet network interface.
The indoor monitor also supports a 10/100Mbps Ethernet connection with automatic adaptation.
This network infrastructure enables communication between the devices over IP.
The outdoor station supports TCP/IP and RTSP protocols, according to its technical specifications.
The indoor monitor supports TCP/IP, SIP and RTSP protocols.
These protocols form part of the communication and transmission capabilities provided by the system.
The DS-KIS602(B) provides two-way audio communication between the outdoor station and the indoor monitor.
Both devices feature built-in omnidirectional microphones and speakers.
This function allows users to speak with visitors before granting access.
The system includes noise reduction and echo cancellation functions.
These technologies help improve the clarity of audio communication.
Final conversation quality also depends on the acoustic and environmental conditions of the installation.
The outdoor station and indoor monitor support G.711 U and G.711 A audio compression formats.
The specified audio compression bitrate is 64Kbps.
These characteristics are part of the audio transmission system used by the devices.
The outdoor station includes two relay outputs for lock control.
The relays have specified maximum ratings of 30V and 2A.
Locks and accessories must be connected according to the manufacturer's wiring diagrams and electrical limits.
The outdoor station features four alarm inputs.
By default, two inputs are assigned to exit buttons and two to door contacts.
This configuration allows compatible accessories to be integrated for access control and monitoring.
The outdoor station includes a TAMPER switch.
This feature is designed to detect certain unauthorised device manipulation conditions.
Its operation depends on correct installation and configuration.
The outdoor station features an RS-485 interface for communication with compatible Hikvision sub-modules.
The indoor monitor also includes an RS-485 interface.
Accessory and sub-module compatibility should be checked before installation.
The DS-KH6320-WTE1 indoor monitor features eight alarm inputs.
It also includes two relay outputs.
These interfaces allow compatible accessories to be connected according to the functions and configurations supported by the system.
The DS-KIS602(B) includes a 16GB TF memory card.
The indoor monitor supports TF cards with capacities up to 32GB, compliant with SD 2.0 or earlier versions, according to the technical specifications.
Card usage depends on the storage functions supported by the equipment.
The outdoor station features an IP65 protection rating.
This classification indicates protection against dust ingress and water jets under the conditions defined by the relevant standard.
The device is designed for outdoor installation when the manufacturer's instructions are followed.
The kit includes the outdoor station in its DS-KD8003-IME1(B)/Surface version.
This configuration is designed for surface-mounted installation.
The assembly has specific dimensions for the device body, front panel and mounting frame.
The outdoor station operates at temperatures from -40°C to +60°C and relative humidity from 10% to 95%.
The indoor monitor operates from -10°C to +55°C, with relative humidity from 10% to 90%.
These limits must be respected to ensure operation under the conditions specified by the manufacturer.
The outdoor station body measures 98 × 100 × 42mm, while its front panel measures 117 × 107 × 4mm.
The mounting frame measures 117 × 107 × 32.7mm.
The indoor monitor measures 200 × 140 × 23.6mm, which should be considered when planning installation.
The DS-KIS602(B) brings together the main components of a residential IP video intercom kit, including an outdoor station, indoor monitor, PoE switch and TF card.
The system combines a 2MP HD camera, infrared night vision, two-way audio communication, lock control and IP connectivity.
With its 7 inch Wi-Fi monitor and IP65-rated outdoor station, the kit provides a solution for visitor communication and access control in single-family homes.
| Parameter | Detailed Technical Specifications |
|---|---|
| GENERAL KIT INFORMATION | |
| Reference | DS-KIS602(B) |
| Brand | Hikvision |
| Product type | IP video intercom kit |
| Application | Villas and single-family homes |
| Number of call buttons | 1 |
| Communication technology | IP Ethernet |
| Included outdoor station | DS-KD8003-IME1(B)/Surface |
| Outdoor station quantity | 1 |
| Included indoor monitor | DS-KH6320-WTE1 |
| Indoor monitor quantity | 1 |
| Included network switch | Standard 4-port PoE switch |
| Switch quantity | 1 |
| Included memory card | 16GB TF card |
| TF card quantity | 1 |
| OUTDOOR STATION - SYSTEM | |
| Model | DS-KD8003-IME1(B)/Surface |
| Operating system | Embedded Linux |
| Flash memory | 32MB |
| RAM | 256MB |
| Call configuration | 1 call button |
| OUTDOOR STATION - CAMERA AND IMAGE | |
| Camera type | HD |
| Camera resolution | 2MP |
| Night vision | Infrared illumination for low-light conditions |
| Infrared range | 3m |
| Backlight compensation | Supported |
| Digital noise reduction | Supported |
| WDR | Supported |
| Horizontal viewing angle | 146° |
| Vertical viewing angle | 82° |
| Video compression | H.264 |
| Motion detection | Supported |
| OUTDOOR STATION - AUDIO | |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in speaker |
| Audio communication | Two-way |
| Noise reduction | Supported |
| Echo cancellation | Supported |
| Audio compression standards | G.711 U, G.711 A |
| Audio compression bitrate | 64Kbps |
| OUTDOOR STATION - NETWORK AND COMMUNICATION | |
| Network protocols | TCP/IP, RTSP |
| Wired network | 10/100Mbps Ethernet |
| Network interface | 1 RJ45 |
| RS-485 interface | 1 |
| RS-485 purpose | Communication with Hikvision sub-modules |
| Debugging port | 1 |
| OUTDOOR STATION - ACCESS CONTROL | |
| Alarm inputs | 4 |
| Exit button inputs | 2 by default |
| Door contact inputs | 2 by default |
| Lock control outputs | 2 relays |
| Maximum relay voltage | 30V |
| Maximum relay current | 2A |
| TAMPER switch | 1 |
| Auxiliary power output | 12V DC |
| Maximum auxiliary output current | 150mA |
| OUTDOOR STATION - POWER AND ENVIRONMENT | |
| PoE power supply | IEEE 802.3af, standard PoE |
| Alternative power supply | 12V DC |
| Maximum power consumption | 5W |
| Operating temperature | -40°C to +60°C |
| Operating humidity | 10% to 95% |
| Protection rating | IP65 |
| Installation type | Surface-mounted |
| Indicators | 0, according to technical specifications |
| OUTDOOR STATION - DIMENSIONS | |
| Device dimensions | 98 × 100 × 42mm |
| Front panel dimensions | 117 × 107 × 4mm |
| Mounting frame dimensions | 117 × 107 × 32.7mm |
| INDOOR MONITOR - SYSTEM | |
| Model | DS-KH6320-WTE1 |
| Operating system | Embedded Linux |
| Memory | 128MB |
| Flash memory | 32MB |
| INDOOR MONITOR - DISPLAY | |
| Display type | Colour TFT |
| Display size | 7 inches |
| Display resolution | 1024 × 600 pixels |
| Control method | Capacitive touchscreen |
| INDOOR MONITOR - AUDIO | |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in speaker |
| Audio communication | Two-way |
| Noise reduction | Supported |
| Echo cancellation | Supported |
| Audio compression standards | G.711 U, G.711 A |
| Audio compression bitrate | 64Kbps |
| INDOOR MONITOR - NETWORK AND PROTOCOLS | |
| Ethernet network | 10/100Mbps, auto-adaptive |
| Wi-Fi | 802.11b/g/n |
| Communication protocols | TCP/IP, SIP, RTSP |
| Network interface | 1 RJ45 10/100Mbps, auto-adaptive |
| INDOOR MONITOR - INTERFACES AND STORAGE | |
| RS-485 interface | 1 |
| Alarm inputs | 8 channels |
| Relay outputs | 2 |
| TF card support | Yes |
| Maximum TF card capacity | 32GB |
| Card standard | SD 2.0 or earlier |
| TF card included in the kit | 16GB |
| INDOOR MONITOR - POWER AND PHYSICAL CHARACTERISTICS | |
| Maximum power consumption | 6W |
| Operating temperature | -10°C to +55°C |
| Operating humidity | 10% to 90% |
| Width | 200mm |
| Height | 140mm |
| Depth | 23.6mm |
| Dimensions | 200 × 140 × 23.6mm |
| INCLUDED ACCESSORIES | |
| Network switch | 1 standard 4-port PoE switch |
| Memory card | 1 TF card, 16GB |
