DS-KIS703Y-P - Hikvision 2-Wire Video Intercom Kit with 7" Wi-Fi Monitor and 2MP Camera

DS-KIS703Y-P - Hikvision 2-Wire Video Intercom Kit with 7-Inch Wi-Fi Monitor

The DS-KIS703Y-P is a 2-wire video intercom kit from Hikvision, designed for single-family homes and residential installations. It combines an outdoor door station with a 2MP camera and an indoor Wi-Fi monitor with a 7-inch touchscreen, allowing users to view visitors, communicate through two-way audio and control door access.

This 2-wire video intercom kit includes the DS-KV8103Y-IMPE2 outdoor door station and the DS-KH6320Y-WTPE2 indoor monitor. Digital 2-wire technology provides communication and power transmission between the devices through the distributor integrated into the indoor monitor.

The system supports monitoring through iVMS-4200 software and the Hik-Connect mobile application. The outdoor station features a stainless steel housing, IP65 protection, a 2MP CMOS camera with infrared illumination and a 140° horizontal viewing angle.

DS-KIS703Y-P - Hikvision 2-Wire Video Intercom Kit

The DS-KIS703Y-P is a 2-wire video intercom kit developed for residential properties requiring visitor communication and access control.

This 2-wire video intercom kit combines an outdoor station equipped with a 2MP camera and an indoor touchscreen monitor with Wi-Fi connectivity.

Digital 2-wire technology enables communication and power transmission between compatible devices.

DS-KIS703Y-P - Digital 2-Wire Video Intercom System

The Hikvision DS-KIS703Y-P uses a digital 2-wire connection between the indoor monitor and the outdoor door station.

The indoor monitor incorporates a distributor responsible for providing communication and power to the outdoor station.

This system is suitable for residential installations with wiring compatible with the manufacturer's digital 2-wire technology.

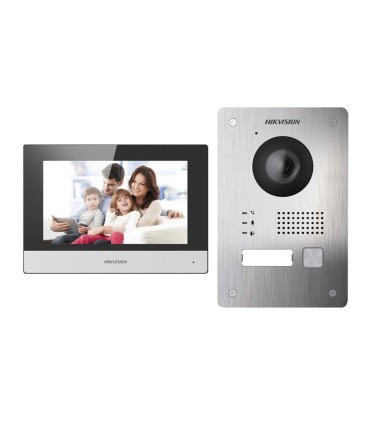

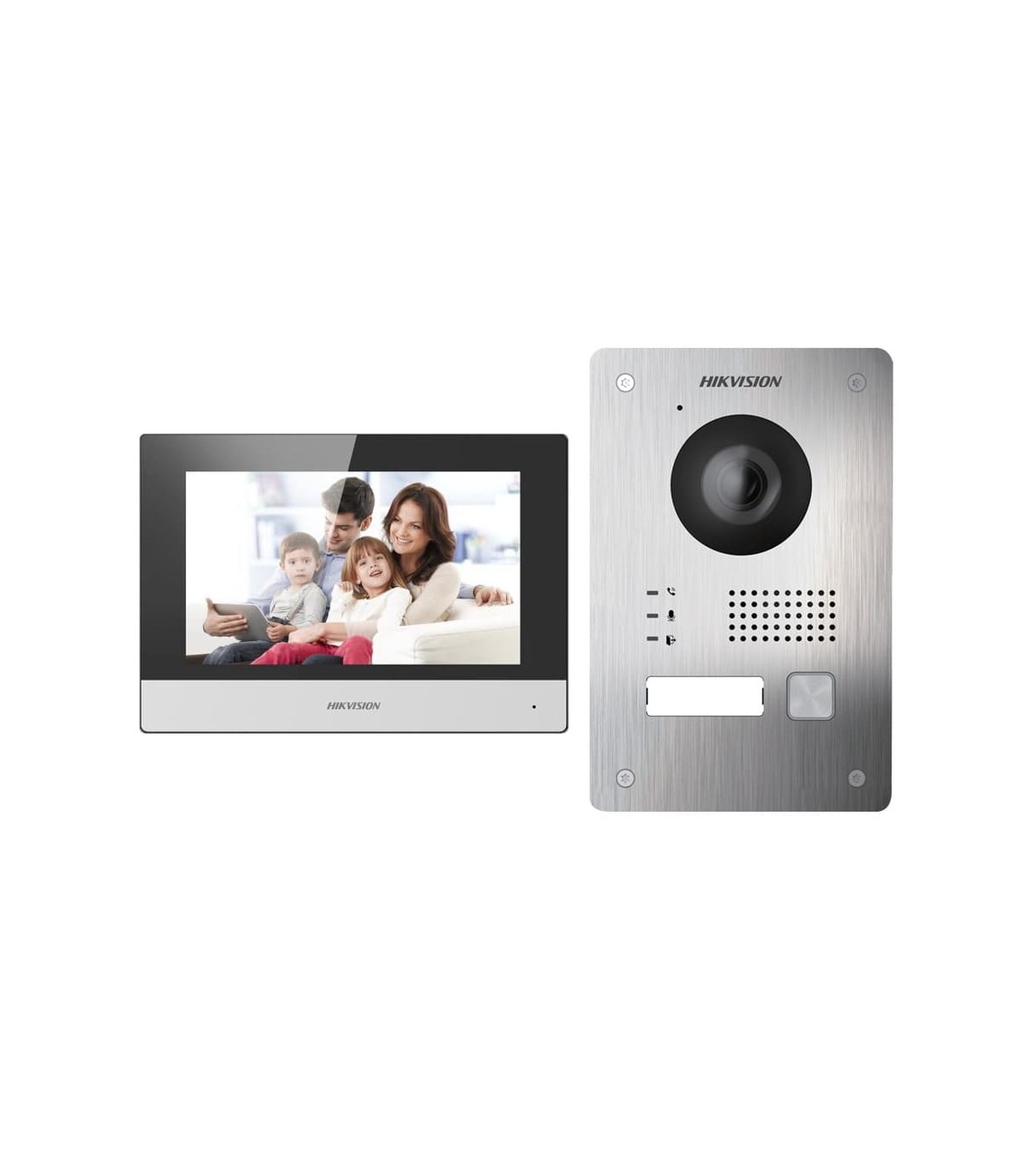

DS-KIS703Y-P - Video Intercom Kit Components

The kit includes the DS-KV8103Y-IMPE2 outdoor station, equipped with a 2MP camera, infrared illumination and a mechanical call button.

It also includes the DS-KH6320Y-WTPE2 indoor monitor, featuring a 7-inch colour TFT LCD touchscreen and Wi-Fi connectivity.

The integrated distributor provides communication and power to the outdoor station through the 2-wire connection.

DS-KIS703Y-P - 2-Wire Video Intercom Kit for Homes

The DS-KIS703Y-P provides a video intercom solution for single-family homes requiring visitor identification and controlled entry.

This 2-wire video intercom kit combines audiovisual communication, door lock control and connectivity with compatible applications.

Its digital 2-wire connection makes it suitable for installations with an appropriate wiring infrastructure.

2MP Outdoor Camera with CMOS Image Sensor

The outdoor door station incorporates a 2MP CMOS image sensor designed to capture images of visitors.

The sensor supports operation in low-light conditions.

The camera allows users to view the entrance area through the indoor video intercom monitor.

Night Vision with Integrated Infrared Illumination

The outdoor camera features integrated infrared illumination.

This functionality helps improve visitor visibility in reduced ambient lighting conditions.

The maximum infrared illumination range is not specified in the available technical documentation.

140° Horizontal and 85° Vertical Viewing Angles

The outdoor camera provides a 140° horizontal viewing angle.

Its vertical viewing angle is 85°.

These specifications provide broad coverage of the entrance area and should be considered when selecting the installation position.

DS-KIS703Y-P - 7-Inch Wi-Fi Monitor

The DS-KH6320Y-WTPE2 indoor monitor features a 7-inch colour TFT LCD touchscreen.

This 7-inch Wi-Fi monitor provides a resolution of 1024 × 600 pixels for displaying images captured by the outdoor station.

The 7-inch Wi-Fi monitor runs on the Linux operating system and allows users to manage supported functions through its touchscreen interface.

DS-KIS703Y-P - 2-Wire Video Intercom Kit with Wi-Fi Monitor

The 2-wire video intercom kit includes a 7-inch Wi-Fi monitor for viewing visitors and establishing two-way audio communication.

The monitor integrates the distributor responsible for communication and power transmission to the outdoor station.

The system also supports compatible remote functions through the Hik-Connect application.

DS-KIS703Y-P - Wi-Fi Connectivity and Hik-Connect

The indoor monitor supports Wi-Fi 802.11b/g/n connectivity.

According to the technical specifications, Wi-Fi is intended for P2P communication with the mobile application.

The Hik-Connect application provides access to compatible remote system functions, subject to correct configuration and network connectivity.

Monitoring Through iVMS-4200 Software

The DS-KIS703Y-P supports monitoring through iVMS-4200 software.

This functionality provides access to the monitoring options supported by the manufacturer.

Its operation depends on the system configuration and compatibility with the installed software version.

Two-Way Audio Communication

The Hikvision video intercom kit supports two-way audio communication between the outdoor station and the indoor monitor.

Both devices incorporate built-in microphones and speakers.

This allows users to speak with visitors before authorising access to the property.

Noise Suppression and Echo Cancellation

The indoor monitor incorporates noise suppression and echo cancellation functions.

These technologies help improve speech clarity during conversations.

Final audio quality also depends on the acoustic and environmental conditions of the installation.

SIP 2.0 Protocol and Digital 2-Wire Communication

The system uses digital communication through 2-wire technology and supports the SIP 2.0 protocol.

The indoor monitor also supports RTSP, according to the technical specifications.

These capabilities form part of the communication architecture of the Hikvision video intercom system.

DS-KIS703Y-P - 24V DC Power and 2-Wire Technology

The indoor monitor operates with a 24V DC power supply and a specified maximum current of 1.5A.

The distributor integrated into the monitor provides power and communication to the outdoor station through the 2-wire connection.

The outdoor station receives 24V DC from the monitor, with a maximum current of 500mA.

Door Lock Control with Two Relay Outputs

The DS-KV8103Y-IMPE2 outdoor station provides two relay outputs for door lock control.

It also includes an auxiliary 12V DC power output, up to 500mA.

Door locks and accessories must be connected according to the manufacturer's electrical requirements and installation diagrams.

Inputs for Exit Button and Door Sensor

The outdoor station features two alarm inputs.

These inputs can be used to connect an exit button or door sensor, depending on the supported configuration.

This feature allows compatible access control accessories to be integrated into the installation.

Eight Configurable Alarm Inputs on the Indoor Monitor

The DS-KH6320Y-WTPE2 indoor monitor incorporates eight configurable alarm inputs.

It also provides one RS-485 interface.

These connections allow compatible accessories to be integrated according to the manufacturer's specifications.

Mechanical Call Button with LED Nameplate

The outdoor station features one mechanical call button.

It includes a customisable nameplate with LED illumination.

This feature helps visitors identify the call point at the property entrance.

TAMPER Anti-Tampering Protection

The outdoor station incorporates a TAMPER protection input.

This function is designed to detect certain unauthorised tampering conditions affecting the equipment.

Its operation depends on correct installation and configuration.

DS-KIS703Y-P - IP65 Outdoor Station Protection

The outdoor station included in the DS-KIS703Y-P has an IP65 protection rating.

This classification indicates protection against dust ingress and water jets under the conditions defined by the applicable standard.

The equipment is designed for outdoor installation in accordance with the manufacturer's recommendations.

Stainless Steel Outdoor Station Construction

The DS-KV8103Y-IMPE2 outdoor station is manufactured from stainless steel.

This material provides a structure suitable for outdoor use.

Equipment durability depends on environmental conditions and proper installation.

Surface-Mounted or Flush-Mounted Installation

The outdoor station supports surface-mounted or flush-mounted installation.

These mounting options allow the equipment to be adapted to different entrance configurations.

Compatible accessories and installation procedures must be used for the selected mounting method.

Operating Temperature Ranges

The outdoor station supports operating temperatures from -40°C to +60°C.

The indoor monitor is designed to operate from -10°C to +50°C.

Both devices must be installed in environments that comply with their respective operating specifications.

Outdoor Station and Indoor Monitor Dimensions

The outdoor station measures 164 × 105 × 35mm and weighs 600g.

The indoor monitor measures 140 × 200 × 15mm and weighs 327g.

These dimensions should be considered when planning the installation.

Compatibility with Secondary Indoor Monitors

The technical documentation for the DS-KIS703Y-P specifies a compatibility limitation regarding certain secondary indoor monitors.

The Android monitors DS-KH9310 and DS-KH9510 cannot be used as secondary indoor monitors with this system.

For other expansion configurations, device compatibility should be verified before installation.

DS-KIS703Y-P - Hikvision 2-Wire Video Intercom Solution for Residential Properties

The DS-KIS703Y-P combines a 2MP outdoor station with IP65 protection and a 7-inch Wi-Fi indoor monitor.

This 2-wire video intercom kit provides two-way audio communication, door lock control, digital 2-wire connectivity and compatible remote access through iVMS-4200 or Hik-Connect.

With its integrated indoor distributor and stainless steel outdoor station, the system provides a video communication and access control solution for single-family homes and residential installations.
