DS-KIS606-P - Hikvision IP Video Intercom Kit with 4.3" Wi-Fi Monitor and 2MP Camera

DS-KIS606-P - Hikvision IP Video Intercom Kit with 4.3" Wi-Fi Monitor and 2MP Camera

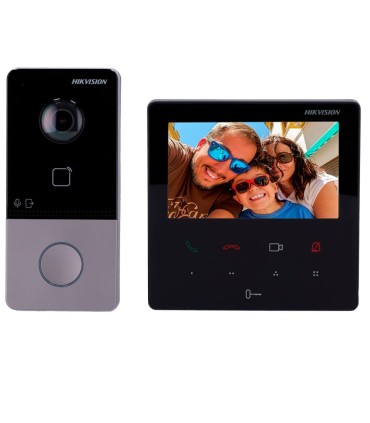

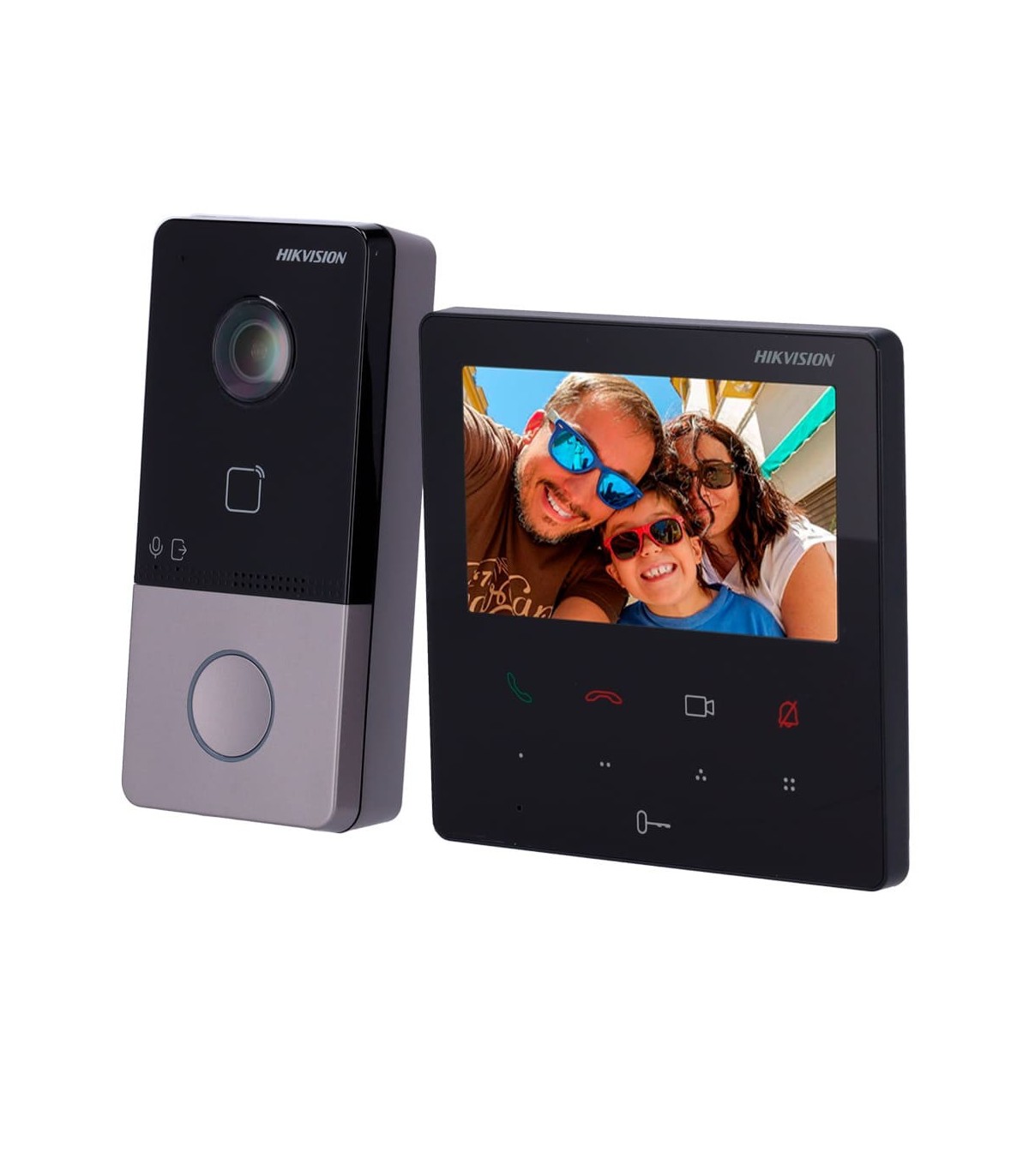

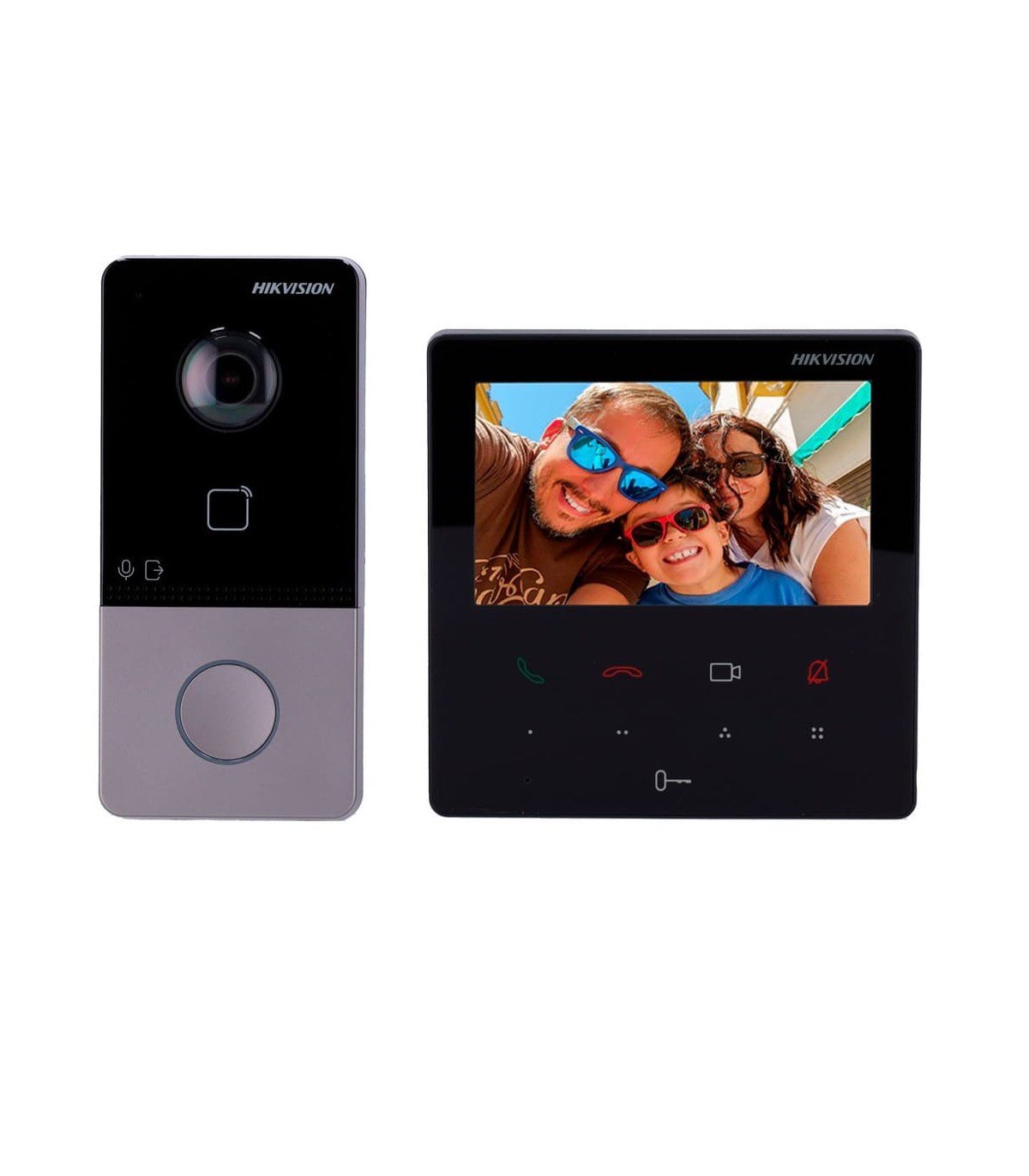

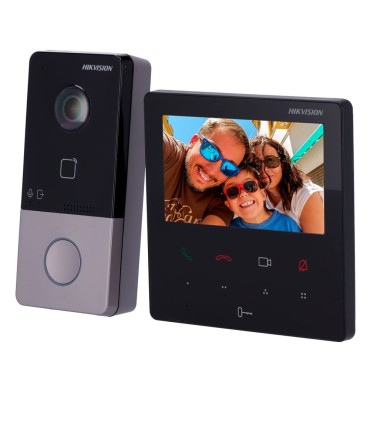

The DS-KIS606-P is a Hikvision IP video intercom kit designed for single-family homes and residential installations requiring audio and video communication between the entrance and the interior of the property. The package includes an outdoor door station with a 2MP camera, a 4.3" indoor monitor, a rain shield and two power supplies.

The DS-KV6113-PE1(C) outdoor door station provides Full HD video for visitor identification, while the DS-KH6110-WE1 indoor monitor enables two-way communication and access control. The system supports IP network connections and PoE power, facilitating integration into a compatible network infrastructure.

Compatibility with the Hik-Connect application allows users to manage calls and supported access functions remotely, provided the system is correctly configured and connected to the network. This solution offers convenient visitor identification and entrance management for residential properties.

IP Video Intercom Kit for Single-Family Homes

The Hikvision DS-KIS606-P combines the main devices required to establish an IP video intercom system at a residential entrance. Communication between the outdoor door station and the indoor monitor allows residents to identify visitors before granting access.

The kit includes an outdoor door station, an indoor monitor, a rain shield and two power supplies. This configuration simplifies the selection of the main components required for installation.

The system is suitable for residential environments where visual visitor identification, voice communication and entrance control are required.

Hikvision DS-KV6113-PE1(C) Outdoor Door Station

The DS-KV6113-PE1(C) outdoor door station features a 2MP HD camera with a main video resolution of 1920 × 1080 pixels. It uses H.264 video compression to transmit images over the network.

A physical call button allows visitors to initiate communication with the indoor monitor. The outdoor station incorporates an omnidirectional microphone and a speaker for two-way audio communication.

The device runs on an embedded Linux operating system and features an integrated processor, 256MB of RAM and 32MB of ROM.

Full HD Camera with Wide Field of View

The outdoor door station camera captures images at Full HD 1080p resolution, allowing residents to view visitors positioned near the entrance.

Its 131° horizontal and 78° vertical field of view provides broad coverage of the area in front of the door station, helping users identify approaching visitors.

The integrated 120dB WDR technology helps compensate for differences in brightness, particularly in entrances where strong sunlight and shaded areas are present simultaneously.

Infrared Illumination up to 3 Metres

The outdoor door station incorporates infrared illumination with a maximum range of 3 metres, enabling image capture in low-light conditions.

This feature improves visibility when visitors arrive at night or when the entrance has limited ambient lighting.

Infrared illumination complements the Full HD camera and helps maintain video monitoring functionality under different lighting conditions.

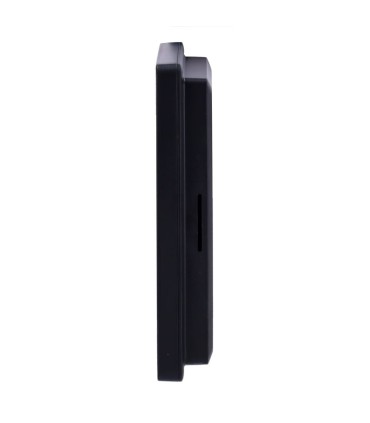

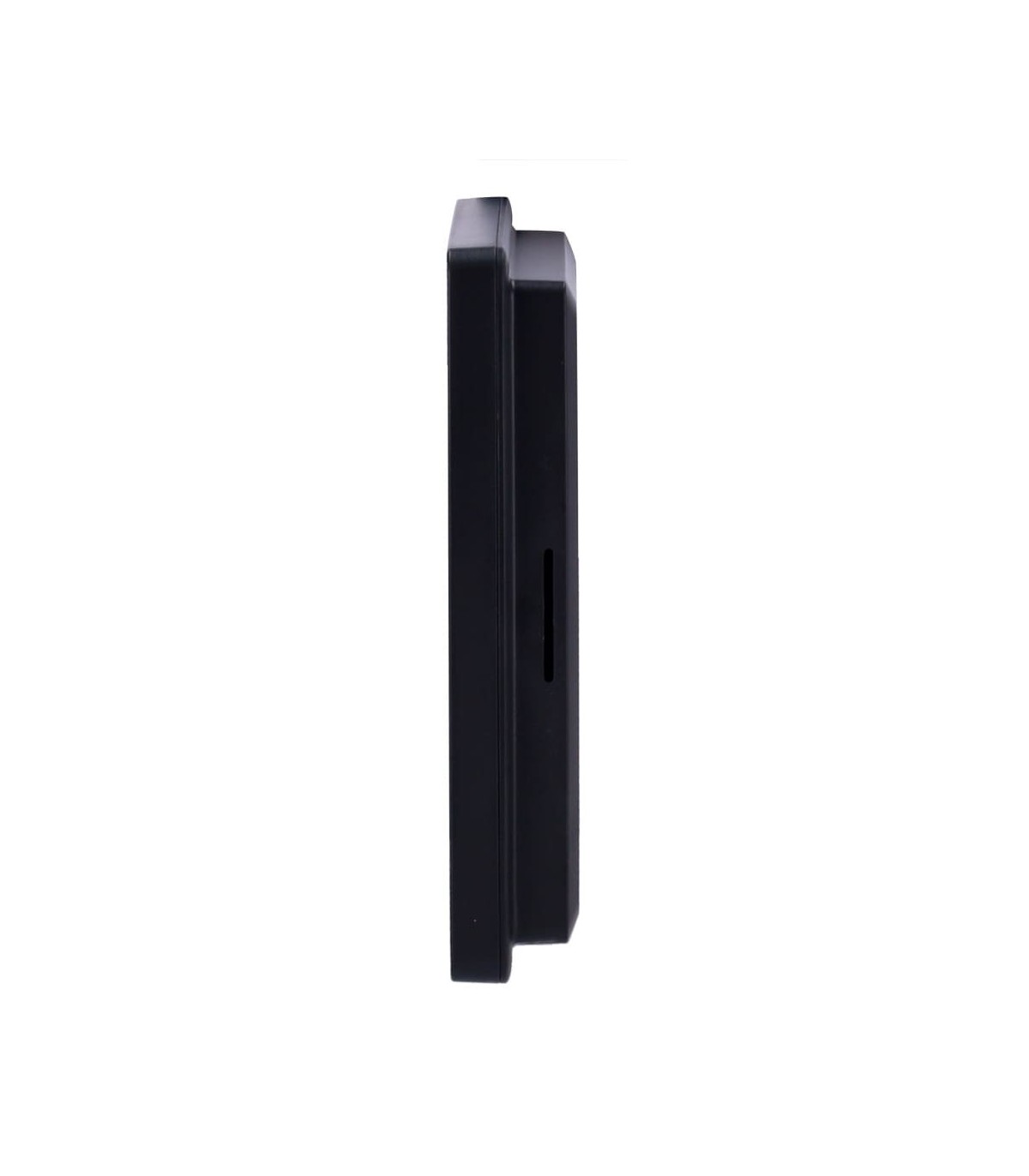

Hikvision 4.3" Indoor Monitor

The DS-KH6110-WE1 indoor monitor features a 4.3-inch colour TFT display with a resolution of 480 × 272 pixels.

Its user interface includes 9 capacitive touch buttons for accessing the available functions. The monitor also incorporates an omnidirectional microphone and a built-in speaker.

The embedded Linux operating system, together with 128MB of RAM and 16MB of ROM, manages the video intercom functions supported by the device.

Two-Way Audio Communication

The outdoor door station and indoor monitor enable two-way audio communication between visitors and residents, allowing conversations without opening the entrance.

Both devices incorporate noise reduction and echo cancellation technologies, helping improve speech clarity during communication.

Audio volume can be adjusted according to installation requirements. The outdoor door station uses G.711U audio compression, while the indoor monitor supports G.711U and G.711A.

Wi-Fi and Ethernet Connectivity

The indoor monitor supports IEEE 802.11 b/g/n Wi-Fi on the 2.4GHz frequency band, allowing integration into a compatible wireless network.

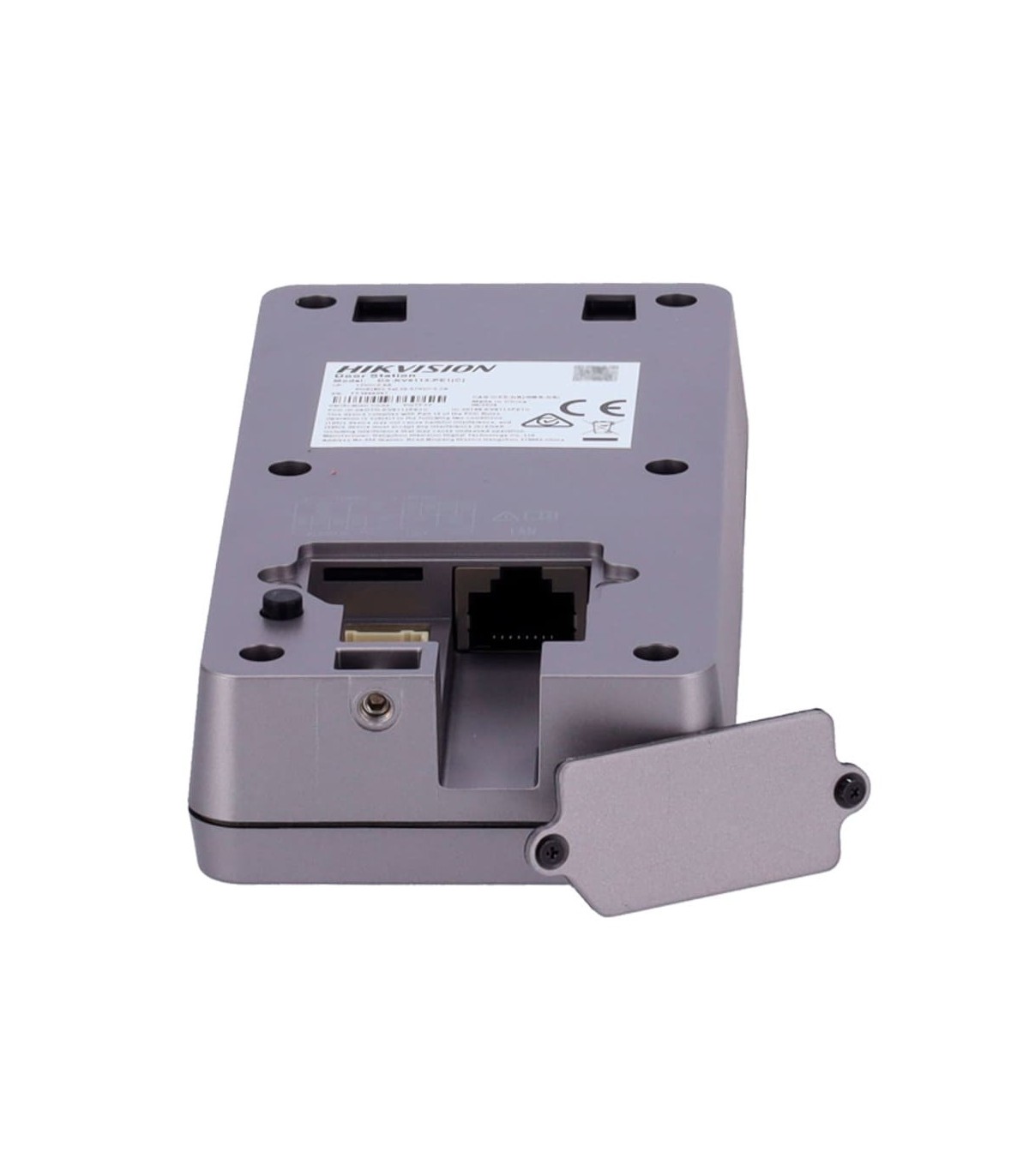

It also features a 10/100Mbps RJ45 Ethernet interface. The outdoor door station is equipped with a corresponding 10/100Mbps RJ45 Ethernet connection for IP network communication.

The monitor supports TCP/IP, SIP and RTSP protocols, while the outdoor station uses the network protocols specified by the manufacturer.

Remote Access Through the Hik-Connect Application

The kit is compatible with the Hik-Connect application, enabling users to manage the video intercom system through compatible mobile devices.

With the appropriate network configuration, users can receive video intercom calls, communicate with visitors and operate supported access control functions.

This remote access capability provides greater flexibility, allowing residents to manage visitor communication without needing to be physically next to the indoor monitor.

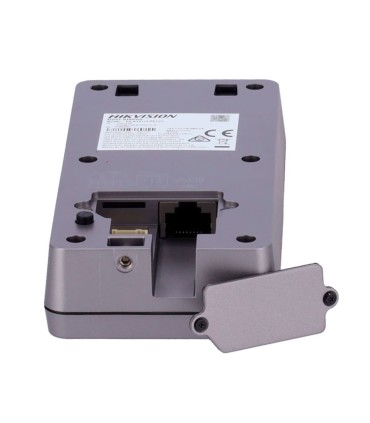

Electric Door Lock Control

The outdoor door station features a relay output designed to control compatible electric door locks, with a maximum rating of 30V DC and 2A.

The device also provides an exit button input, a door contact input, four alarm inputs and an RS-485 interface.

These connections allow the system to be adapted to different access control requirements, provided the electrical specifications of the connected equipment are respected.

IP65 Protection for Outdoor Installation

The outdoor door station has an IP65 protection rating, making it suitable for outdoor use when installed according to the manufacturer's recommendations.

It supports operating temperatures from -40°C to +55°C and relative humidity between 10% and 95%, without condensation.

The kit includes the DS-KABV6113-RS rain shield, designed for the outdoor door station and providing additional protection at the installation location.

PoE or 12V DC Power Supply

Both the outdoor door station and the indoor monitor support power through PoE IEEE 802.3af or 12V DC, allowing installers to select the most suitable option for the available infrastructure.

PoE technology allows compatible Ethernet cabling to carry both network data and electrical power, reducing the need for separate power cables.

The kit includes two power supplies. The outdoor door station consumes less than 10W, while the indoor monitor has a maximum power consumption of 4W.

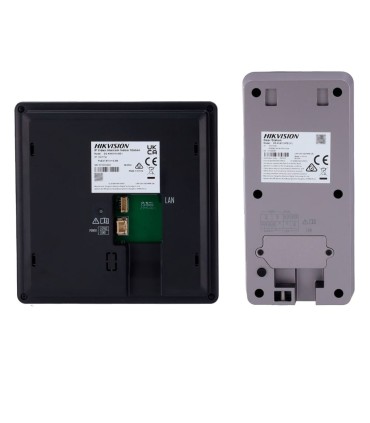

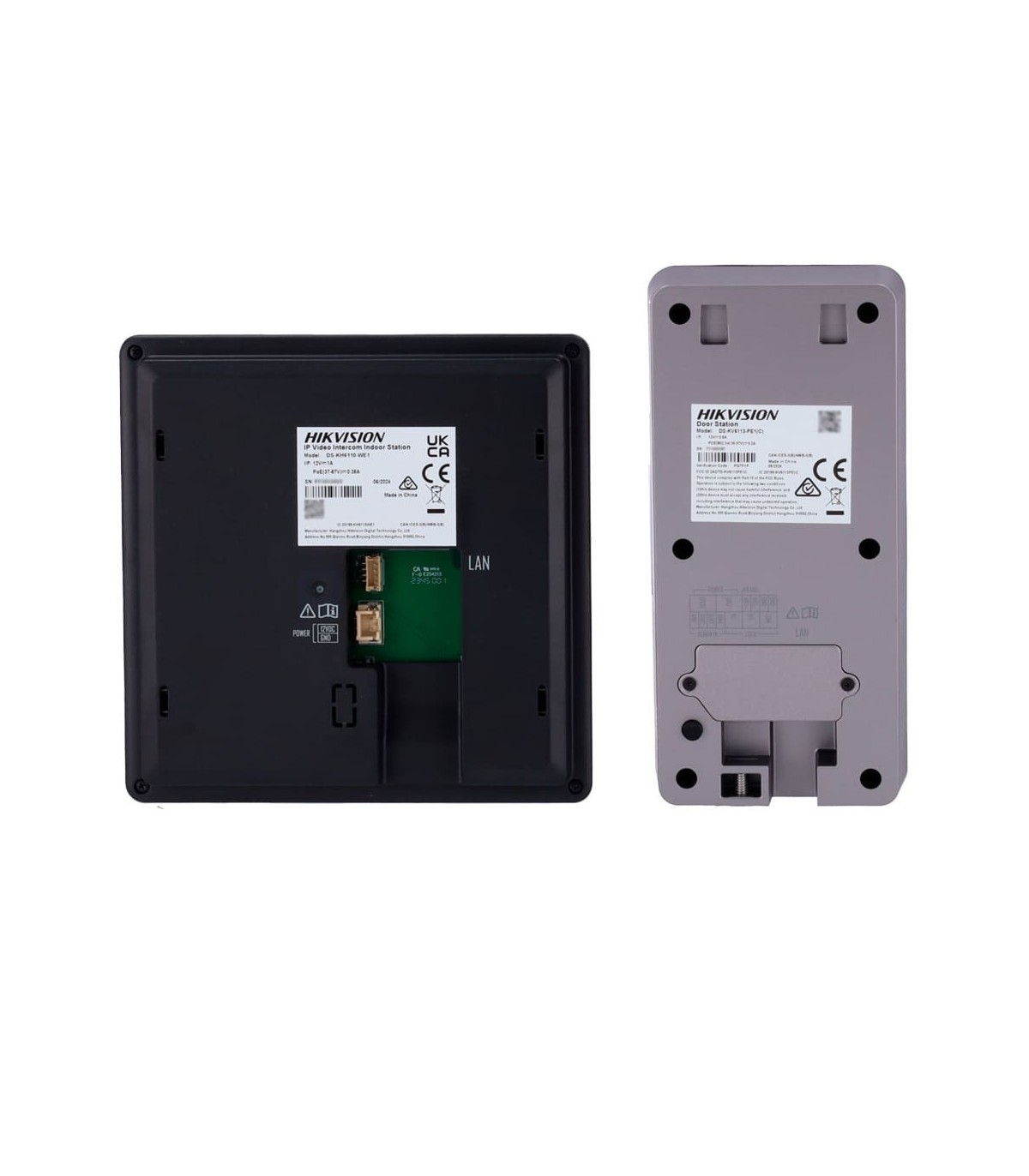

Installation and Equipment Dimensions

The outdoor door station is designed for surface mounting and measures 138 × 65 × 27mm.

The indoor monitor measures 120 × 120 × 21mm, according to the manufacturer's width, height and depth specifications.

The monitor can be installed on a wall or placed on a desk using an optional compatible desktop stand. The installation location should provide suitable network connectivity and convenient access for users.

Expansion Capacity and System Integration

The outdoor door station has a specified capacity of up to 2000 users and 10000 cards, together with support for up to 16 associated indoor monitors.

The indoor monitor supports up to 16 associated indoor extensions and provides a capacity of 200 notices, according to the manufacturer's technical specifications.

These characteristics allow installers to consider future system expansion, subject to the compatibility requirements and operational limits of the equipment.

Hikvision IP Video Intercom Solution

The DS-KIS606-P combines two-way audio communication, Full HD video at the entrance, a 4.3" indoor monitor, Wi-Fi connectivity and remote access through the Hik-Connect application.

The outdoor door station offers IP65 protection, while PoE compatibility and access control interfaces provide flexibility for different residential installation requirements.

With the main components included, this Hikvision IP video intercom kit provides a practical solution for visitor identification, communication between the entrance and the interior, and access management.
