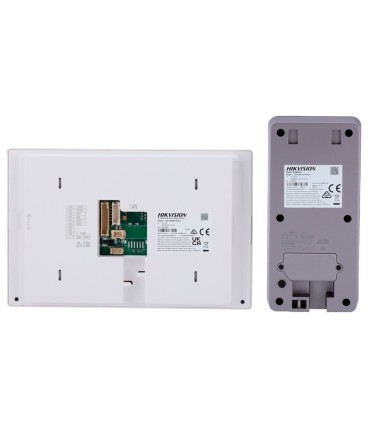

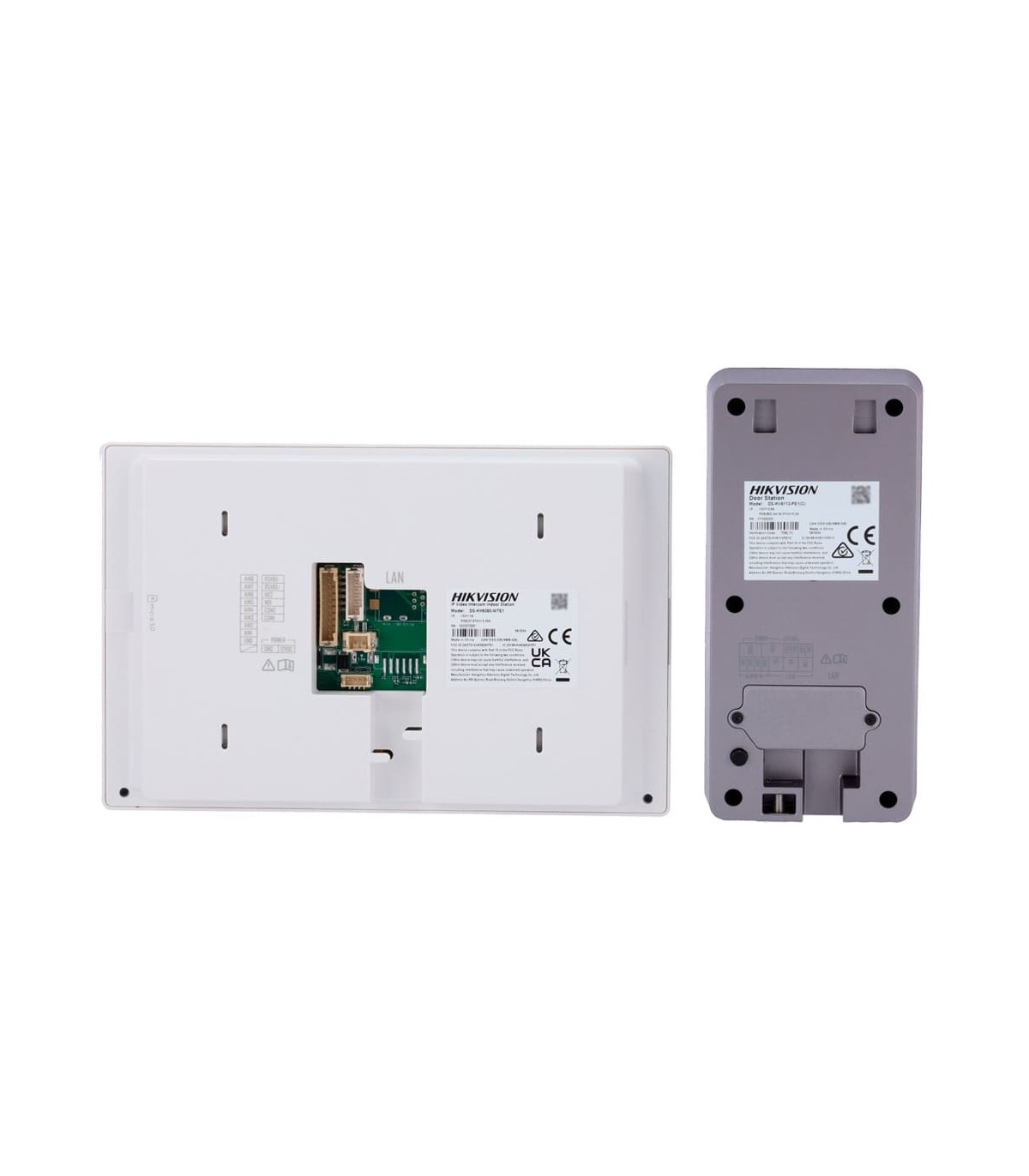

DS-KIS607-S - Hikvision IP Video Intercom Kit with 7" Wi-Fi Touchscreen Monitor, 2MP Camera and PoE Switch:
The DS-KIS607-S is a Hikvision IP video intercom kit designed for single-family homes. It allows residents to identify visitors, communicate with them and control access. The kit includes a 2MP outdoor door station, a 7" touchscreen monitor, a PoE switch and a 32GB TF card.
The DS-KV6113-PE1(C) outdoor door station provides Full HD video. Its companion DS-KH6350-WTE1 indoor monitor features a 1024 × 600 colour touchscreen. Two-way communication allows residents to speak with visitors before opening the door.
The Hik-Connect application supports remote call and access management. This feature requires suitable network configuration. The included PoE switch simplifies installation, while the TF card provides local storage for supported messages and images.
The Hikvision DS-KIS607-S combines the main components of a residential IP video intercom system. It provides communication between the property entrance and the indoor monitor. Both devices operate through a compatible network infrastructure.

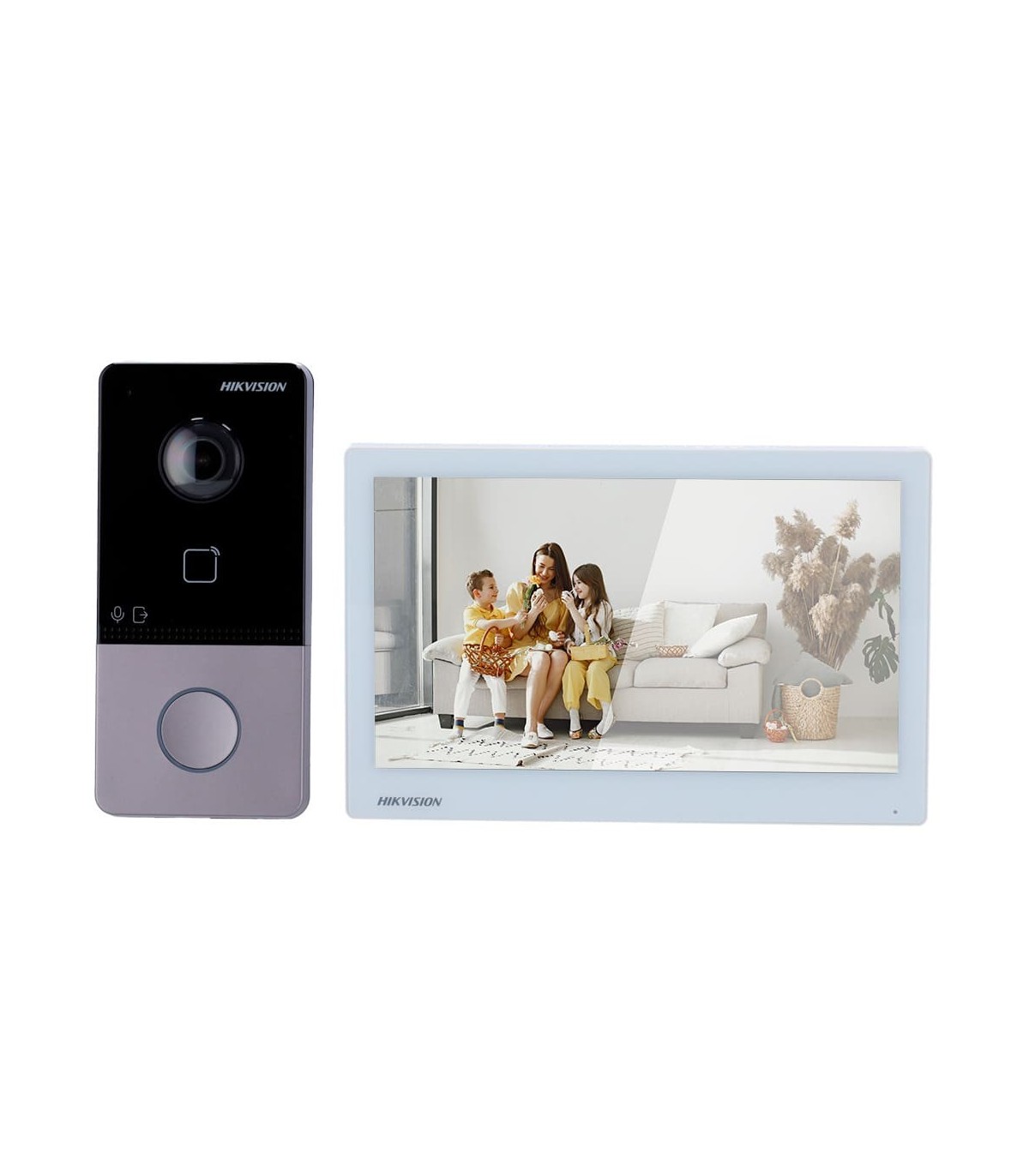

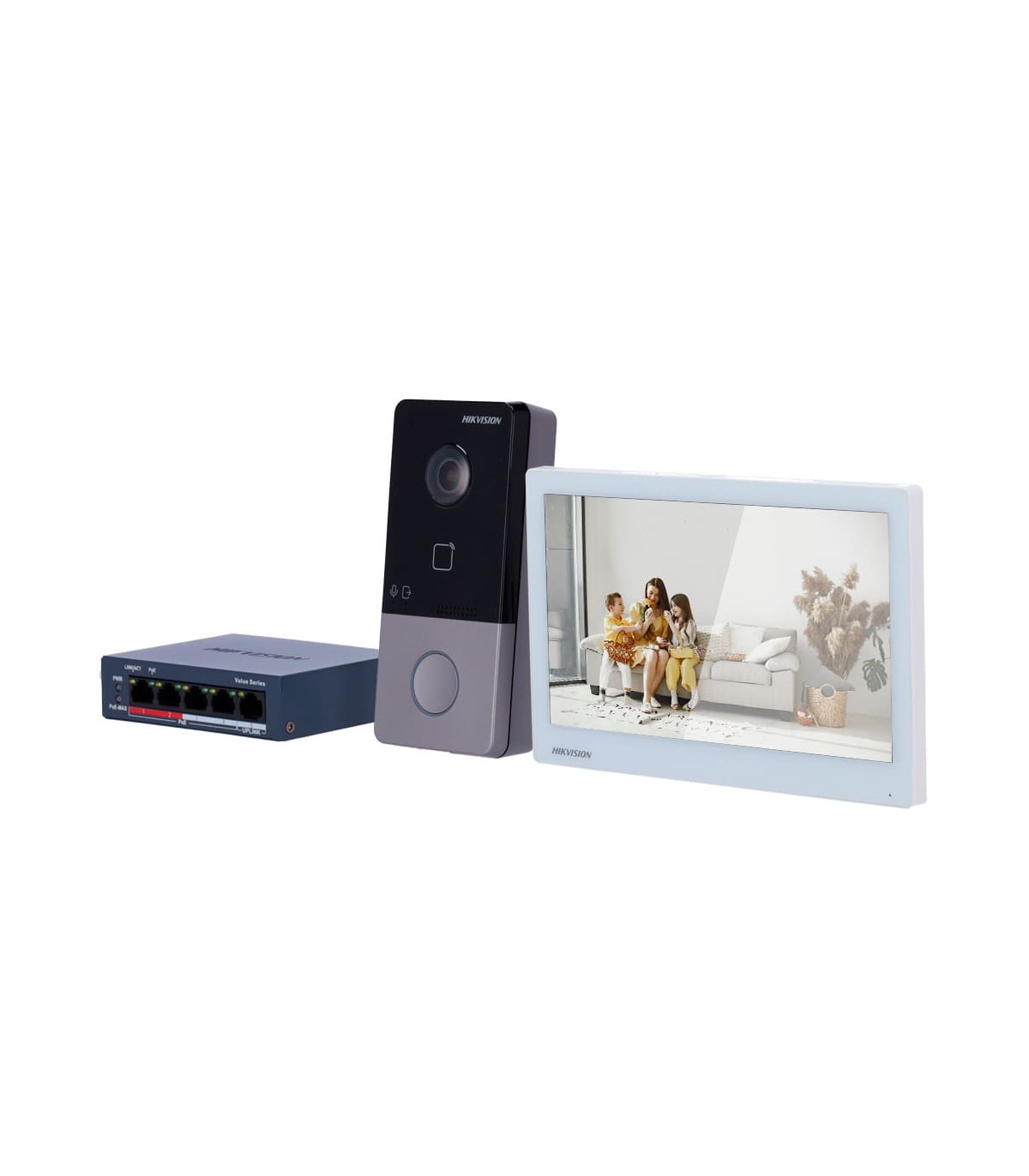

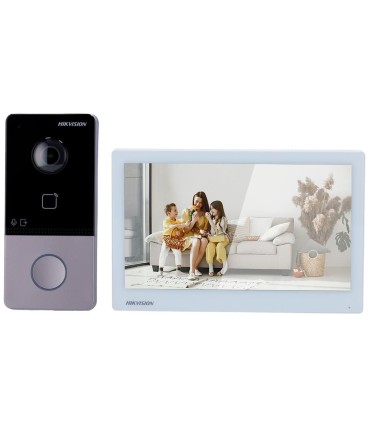

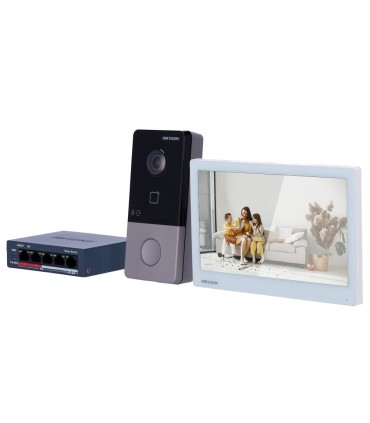

The package includes an outdoor door station, an indoor monitor, a PoE switch and a 32GB TF card. This configuration simplifies equipment selection and installation. It also provides local storage for compatible monitor functions.
The DS-KV6113-PE1(C) outdoor door station features a 2MP HD camera. It also includes a physical call button, an omnidirectional microphone and a speaker. These components support visitor identification and two-way audio communication.

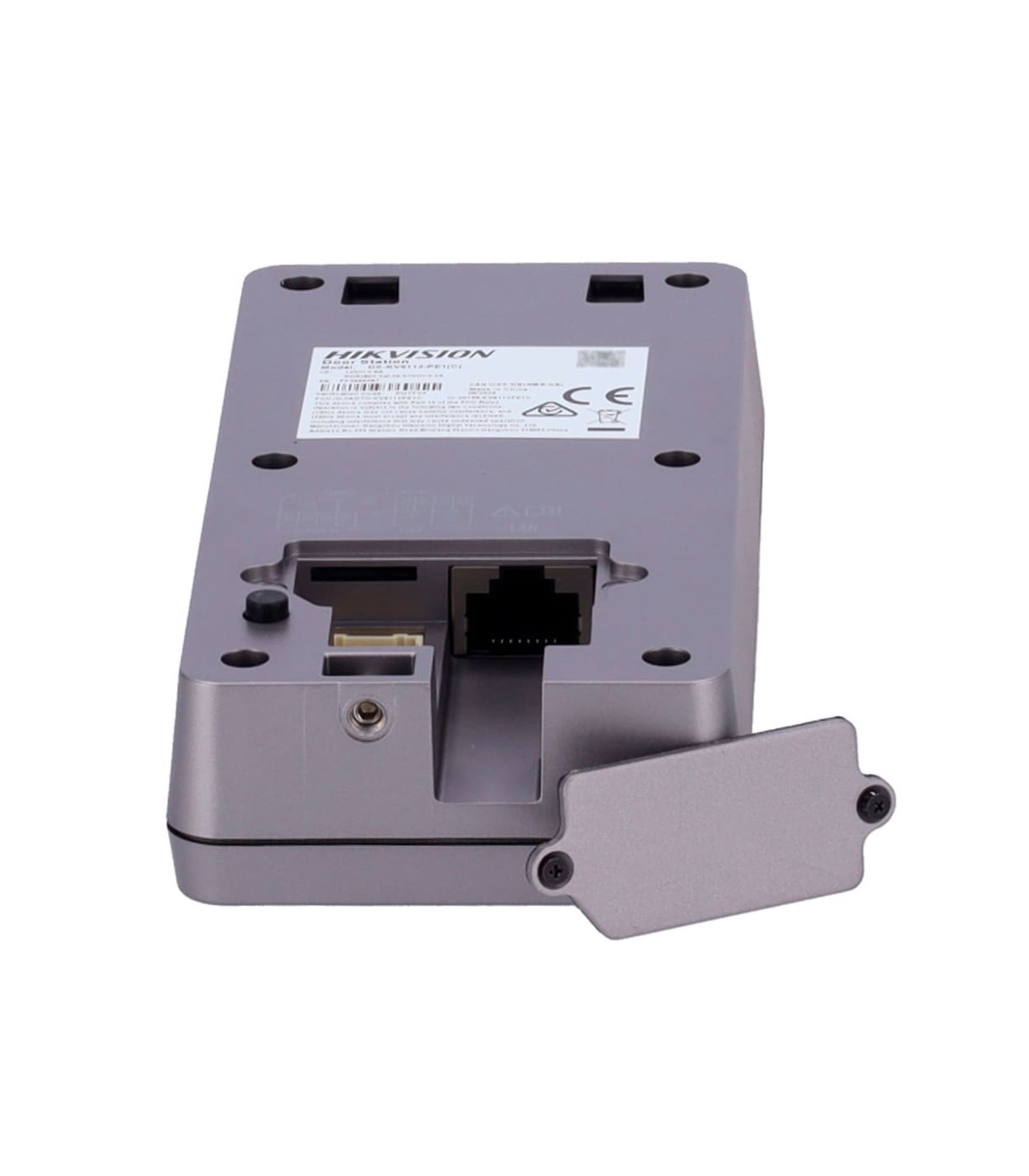

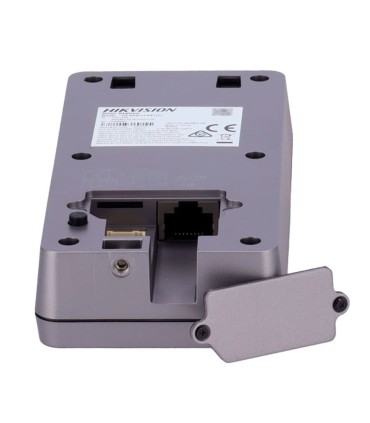

An embedded Linux operating system manages the device functions. The outdoor station features 256MB of RAM and 32MB of Flash memory. A 10/100Mbps RJ45 Ethernet port provides IP network connectivity.
The camera offers a main resolution of 1920 × 1080 pixels. It provides Full HD images for visitor identification. The main video stream also supports 1280 × 720 resolution.
The secondary stream supports 640 × 480 pixels. Its field of view reaches 131° horizontally and 78° vertically. H.264 compression supports efficient video transmission over the network.
The integrated 120dB WDR technology improves visibility in areas with strong lighting contrasts. It is particularly useful at entrances exposed to direct sunlight.
Built-in infrared illumination provides a maximum range of 3 metres. It allows image capture in low-light conditions. The outdoor door station also supports motion detection.

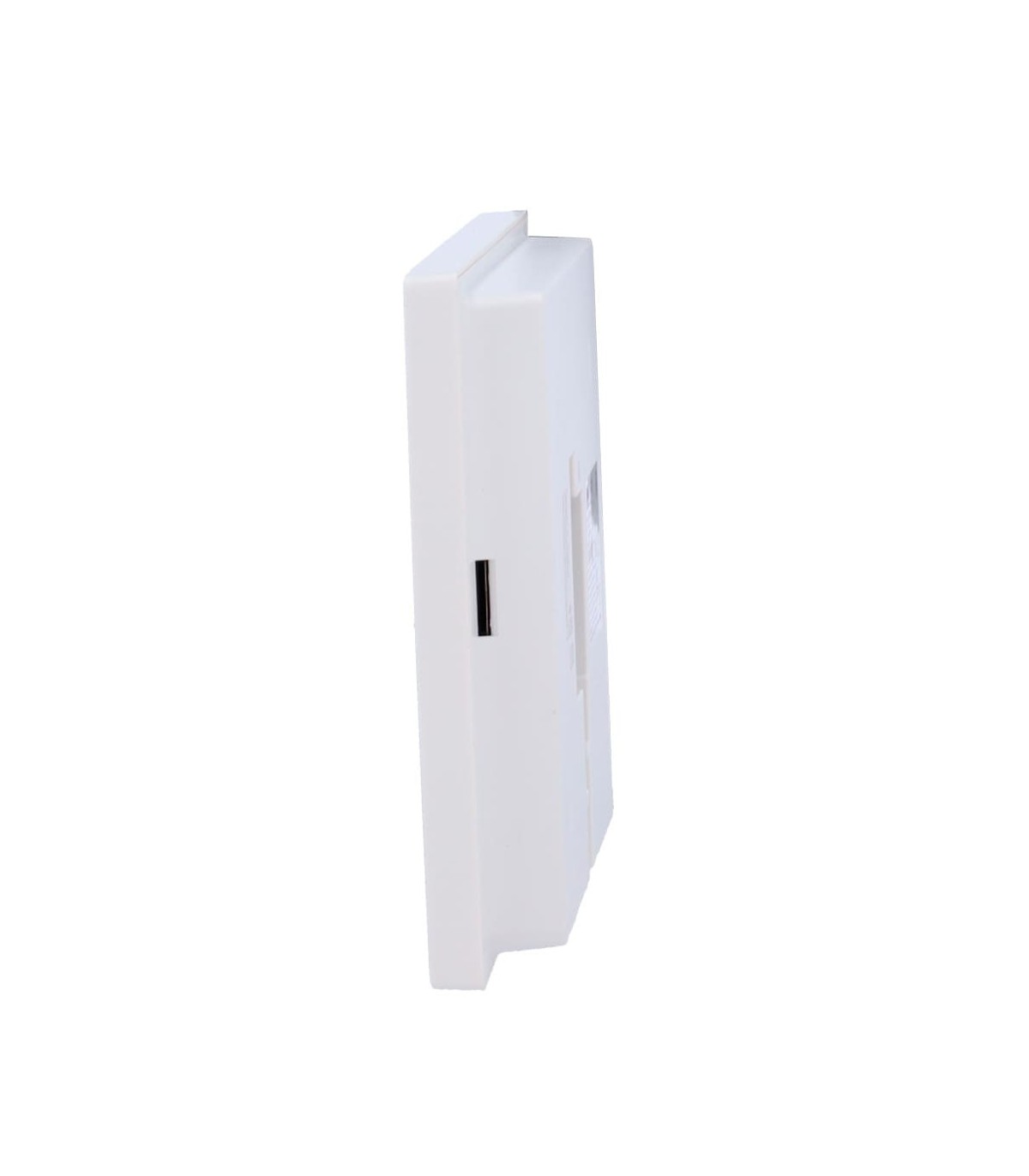

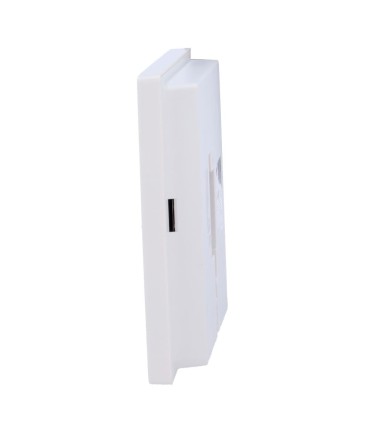

The DS-KH6350-WTE1 indoor monitor features a 7-inch colour TFT display. Its screen resolution is 1024 × 600 pixels. The capacitive touchscreen provides convenient access to the available functions.
A built-in omnidirectional microphone and speaker enable audio communication. The monitor runs on an embedded Linux operating system. It includes 128MB of memory and 32MB of Flash memory.
The system allows residents to speak with visitors before granting access. Both the outdoor door station and indoor monitor include a microphone and speaker.
Noise reduction and echo cancellation technologies help improve sound quality. Users can adjust the volume according to their preferences.
The outdoor station uses G.711U audio compression. The indoor monitor supports G.711U and G.711A. Audio transmission operates at 64Kbps.
The indoor monitor supports IEEE 802.11 b/g/n Wi-Fi at 2.4GHz. This interface allows connection to a compatible wireless network.
Both devices include a 10/100Mbps RJ45 Ethernet port. The monitor supports TCP/IP, SIP and RTSP protocols. These technologies enable communication through an IP network infrastructure.
The Hik-Connect application allows users to manage the video intercom from compatible mobile devices. It provides convenient access to supported system functions.
With suitable network configuration, residents can receive calls from visitors. They can also communicate remotely and operate compatible access control functions.
This solution makes entrance management more flexible. Users do not need to remain beside the indoor monitor.
The DS-KIS607-S includes a PoE switch. This device simplifies the connection of compatible equipment through Ethernet cables.
PoE IEEE 802.3af technology carries network data and electrical power through the same cable. It reduces the need for separate power wiring.
Both the outdoor door station and indoor monitor also support 12V DC power. Installers can select the most suitable option for the available infrastructure.
The kit includes a 32GB TF memory card. It provides local storage for messages and images recorded through compatible system functions.
The indoor monitor supports TF cards with capacities up to 128GB. This allows users to choose a larger local storage medium when required.
Recording functions complement real-time communication. Their availability depends on the options supported by the monitor.
The outdoor door station includes a relay output for controlling a compatible electric lock. Its maximum relay rating is 30V DC / 2A.
The device provides four alarm inputs and one RS-485 interface. It also features an exit button input and a door contact input. A TAMPER switch provides protection against unauthorised opening.
These connections support integration with compatible access control equipment. The electrical specifications of connected devices must always be respected.
The indoor monitor features 8 alarm inputs and 2 alarm outputs. These interfaces allow compatible devices to be connected for additional functions.
An RS-485 interface is also available. The monitor supports up to 16 associated indoor extensions. Its specified notice capacity is 200.
These features provide additional integration options for residential installations. They allow the system to accommodate different installation requirements.
The outdoor door station has an IP65 protection rating. It is suitable for outdoor installation when fitted according to the manufacturer's recommendations.
Its operating temperature ranges from -40°C to +55°C. Supported relative humidity ranges from 10% to 95%, without condensation.
Surface mounting allows installation on a suitable wall near the entrance. The DS-KABV6113-RS rain shield is available as an optional accessory.
The outdoor door station supports PoE IEEE 802.3af or 12V DC power. Its power consumption is below 10W.
The indoor monitor supports the same power supply options. Its maximum power consumption is 5W.
The included PoE switch can power compatible connected devices. Alternatively, suitable 12V DC power supplies may be used.
The outdoor door station measures 138 × 65 × 27mm. It is designed for surface mounting in outdoor environments.
The indoor monitor measures 175 × 113.5 × 21mm. It is intended for indoor use. Wall mounting or desktop installation is possible with suitable accessories.
The installation location should provide convenient access and reliable network connectivity. Environmental operating requirements must also be respected.
The DS-KIS607-S combines a 2MP Full HD camera with a 7" touchscreen monitor. It also offers Wi-Fi connectivity, PoE power and Hik-Connect compatibility.
The included PoE switch simplifies device installation. A 32GB TF card provides storage for supported messages and images.
This kit offers a practical solution for single-family homes. It supports visitor identification, two-way communication and residential access management.
| Parameter | Detailed Technical Specifications |
|---|---|
| Commercial reference | DS-KIS607-S |
| Brand | Hikvision |
| Product type | IP video intercom kit for single-family homes |
| Kit contents | 1 outdoor door station, 1 indoor monitor, 1 PoE switch and 1 32GB TF memory card |
| Outdoor door station model | DS-KV6113-PE1(C) |
| Outdoor station operating system | Embedded Linux |
| Outdoor station RAM | 256MB |
| Outdoor station Flash memory | 32MB |
| Outdoor station camera | 2MP HD camera |
| Main stream resolution | 1920 × 1080 / 1280 × 720 pixels |
| Sub-stream resolution | 640 × 480 pixels |
| Video compression | H.264 |
| Field of view | Horizontal 131° / vertical 78° |
| Wide Dynamic Range | 120dB WDR |
| Supplementary illumination | Infrared up to 3m |
| Motion detection | Supported |
| Outdoor station audio input | 1 built-in omnidirectional microphone |
| Outdoor station audio output | 1 built-in speaker |
| Outdoor station audio processing | Noise reduction and echo cancellation |
| Outdoor station audio compression | G.711U / 64Kbps |
| Outdoor station volume adjustment | Adjustable |
| Outdoor station network protocols | TCP/IP, RSTP |
| Outdoor station network interface | 1 self-adaptive 10/100Mbps RJ45 Ethernet port |
| Outdoor station RS-485 interface | 1 |
| Outdoor station alarm inputs | 4 |
| Electric lock control | 1 relay, maximum 30V DC / 2A |
| Tamper protection | 1 TAMPER switch |
| Exit button input | 1 |
| Door contact input | 1 |
| Call button | 1 physical button |
| Outdoor station indicators | 2 |
| Outdoor station power supply | PoE IEEE 802.3af / 12V DC |
| Outdoor station power consumption | Less than 10W |
| Outdoor station operating temperature | -40°C to +55°C |
| Outdoor station operating humidity | 10% to 95%, non-condensing |
| Outdoor station protection rating | IP65 |
| Outdoor station installation | Surface mounting / outdoor use |
| Outdoor station dimensions | 138 × 65 × 27mm |
| Outdoor station weight | 190g net / 414g gross |
| Indoor monitor model | DS-KH6350-WTE1 |
| Monitor operating system | Embedded Linux |
| Monitor memory | 128MB |
| Monitor Flash memory | 32MB |
| Display type | Colour TFT |
| Display size | 7 inches |
| Display resolution | 1024 × 600 pixels |
| Operating method | Capacitive touchscreen |
| Monitor audio input | 1 built-in omnidirectional microphone |
| Monitor audio output | 1 built-in speaker |
| Monitor audio processing | Noise reduction and echo cancellation |
| Monitor audio compression | G.711U / G.711A, 64Kbps |
| Monitor volume adjustment | Adjustable |
| Notice capacity | 200 |
| Associated indoor extension capacity | 16 |
| Monitor network protocols | TCP/IP, SIP, RTSP |
| Wi-Fi connectivity | IEEE 802.11 b/g/n, 2.4GHz |
| Monitor network interface | 1 self-adaptive 10/100Mbps RJ45 Ethernet port |
| Monitor RS-485 interface | 1 |
| Monitor alarm inputs | 8 |
| Monitor alarm outputs | 2 |
| TF memory card support | Up to 128GB |
| Included TF memory card | 32GB |
| Message and image recording | Supported through TF memory card |
| Monitor power supply | PoE IEEE 802.3af / 12V DC |
| Monitor power consumption | Up to 5W |
| Monitor operating temperature | -10°C to +50°C |
| Monitor operating humidity | 10% to 90% |
| Monitor dimensions | 175 × 113.5 × 21mm |
| Monitor weight | 355g net / 683g gross |
| Monitor installation | Wall or desktop / indoor use |
| Mobile application | Hik-Connect |
| Included PoE switch | 1 unit |
| Optional rain shield | DS-KABV6113-RS |
| Optional desktop stand | DS-KABH6350-T |
| Optional wall mounting accessory for outdoor station | DS-KABV6113-A |
