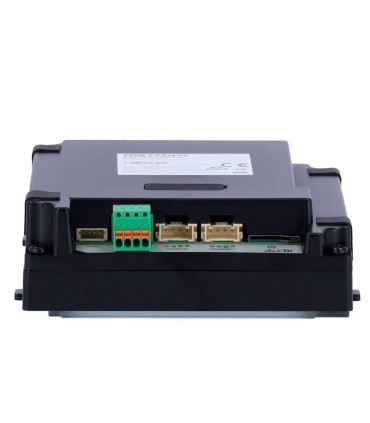

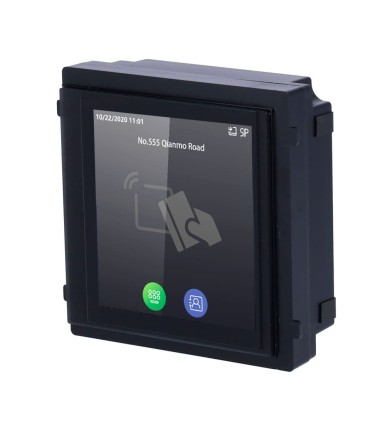

DS-KD-TDE - Extension module IPS touch screen 4" | Keyboard and directory
- Extension module
- IPS touch screen 4" | Keyboard and directory
- Opening with EM card and PIN
- Storing 500 contacts
- Suitable for outdoor use IP65 | IK08
- Modular
€228.00
Reference:
DS-KD-TDE
Brand:
| Brand | Hikvision |
| Model | DS-KD-TDE |
| Screen | 4" IPS color LCD touch screen |
| Functions | RFID card reader Numeric keypad for apartment calls and access codes Contact directory |
| Access methods | EM RFID card 125 kHz and PIN |
| Storage | Up to 500 different contacts/apartments |
| Inputs/outputs | Input: CVBS video Output: audio |
| Modular | Compatible with Hikvision modular boards |
| Power | 4 wire communication between modules |
| Degree of protection | Suitable for exterior IP65 Anti-vandal IK08 |
| Temp. operating | -20 ºC ~ +60 ºC |
| Dimensions | 98 (H) x 100 (W) x 34.2 (D) mm |
