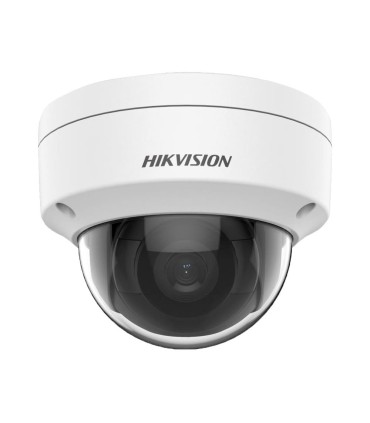

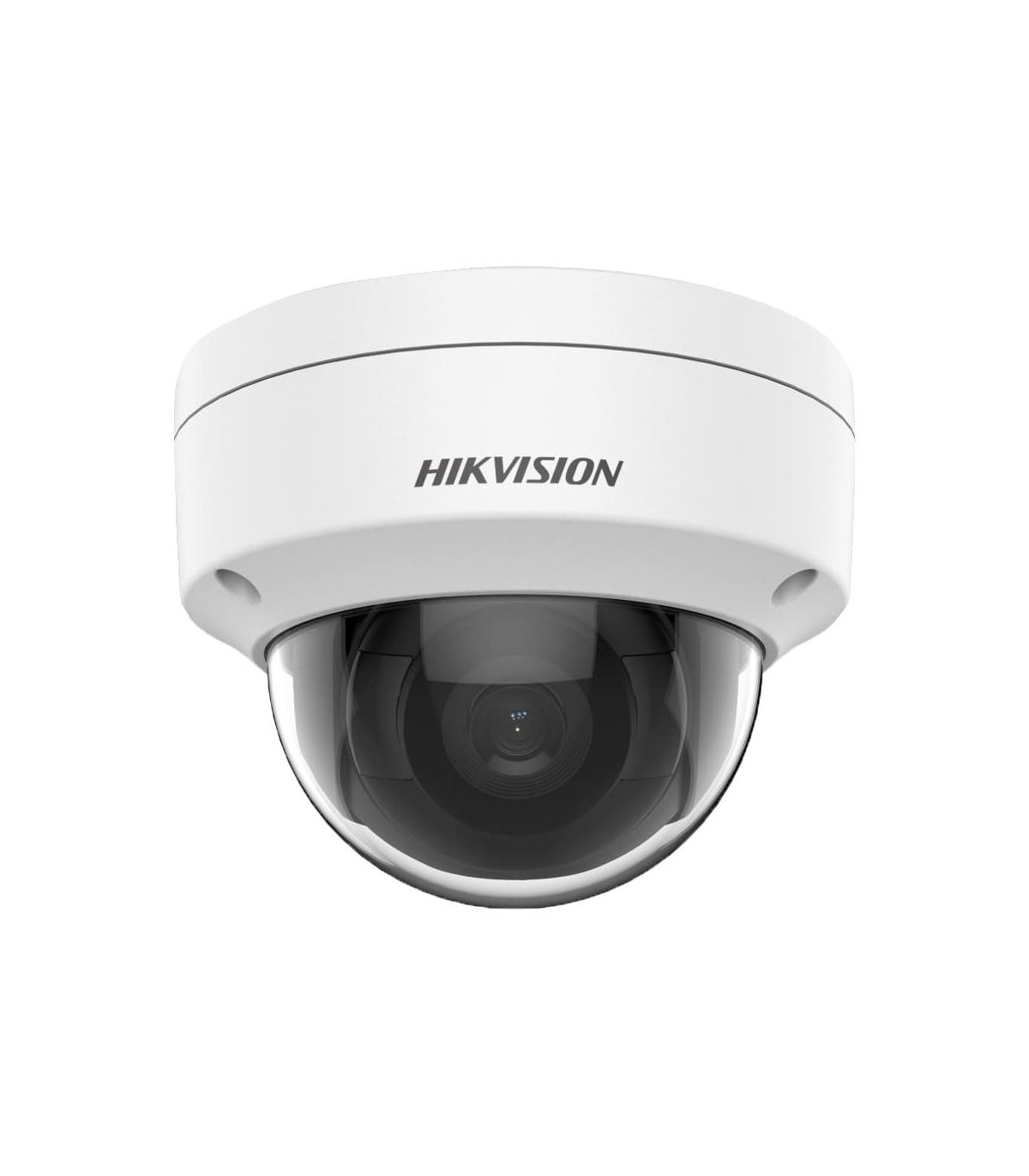

DS-2CD1143G0-I(2.8mm)(C) - Hikvision 4MP 2.8mm IP Dome Camera

DS-2CD1143G0-I(2.8mm)(C) - Hikvision 4MP 2.8mm IP Dome Camera

The DS-2CD1143G0-I(2.8mm)(C) is a Hikvision IP Dome camera from the VALUE range. It is designed for professional IP video surveillance systems. Its 1/3" CMOS sensor provides images with a maximum resolution of 4MP (2560 × 1440).

The camera features a fixed 2.8mm lens, suitable for monitoring a wide area. This configuration makes it suitable for different indoor and outdoor environments. Its compact Dome design also allows discreet installation.

4MP image with fixed 2.8mm lens

The 4MP resolution provides detailed images for IP security systems. The main stream supports a resolution of up to 2560 × 1440. Lower resolutions are also available to adapt video transmission to the requirements of each installation.

The fixed 2.8mm lens provides wide scene coverage. The camera includes 120 dB WDR to improve image quality in demanding lighting conditions. This technology helps balance bright and dark areas within the same scene.

Additional functions include BLC and HLC. The 3D DNR digital noise reduction function helps improve images in low-light conditions. The day/night system adapts image capture to changes in ambient lighting.

DS-2CD1143G0-I(2.8mm)(C) with IR up to 30m

The DS-2CD1143G0-I(2.8mm)(C) features integrated infrared illumination. The IR range can reach up to 30 metres. This allows the camera to maintain surveillance at night or in areas with limited lighting.

The camera supports H.265+, H.265, H.264+ and H.264 video compression formats. These options help adapt video transmission and storage to the available infrastructure. Multiple video streams are also supported for different viewing and recording requirements.

Ethernet network, PoE and ONVIF compatibility

Network connectivity is provided through an RJ45 Ethernet 10/100 Mbps interface. The camera can be powered by 12 VDC or directly through the network using IEEE 802.3af PoE. PoE allows data and power to use the same Ethernet cable.

The camera supports different network protocols for integration into IP video surveillance systems. Compatibility with ONVIF Profile S, G and T facilitates interoperability with compatible devices and platforms.

Access is available through a web browser and compatible software. The camera can also be integrated into suitable video management and recording systems.

IP67 and IK10 protection for professional installations

The camera is designed to operate in different environmental conditions. Its IP67 rating provides protection against dust and water. This feature allows installation in both indoor and outdoor locations.

The IK10 vandal-resistant rating provides additional resistance against mechanical impacts. The Dome format also supports compact installation on walls or ceilings.

With 4MP, a fixed 2.8mm lens, IR up to 30m and 120 dB WDR, this Hikvision camera provides essential features for IP video surveillance. PoE, H.265+, IP67, IK10 and ONVIF also facilitate integration into different professional security projects.
