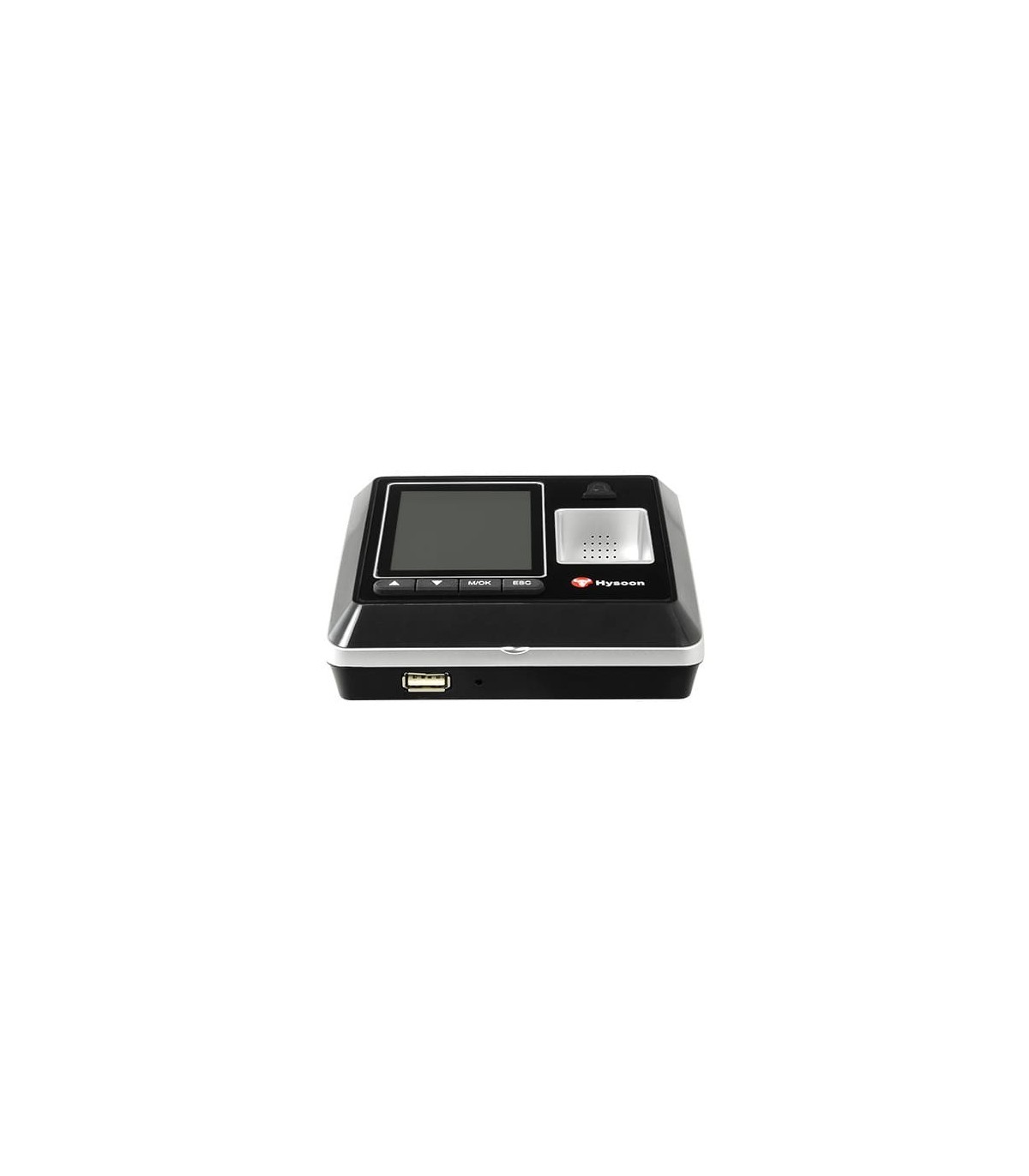

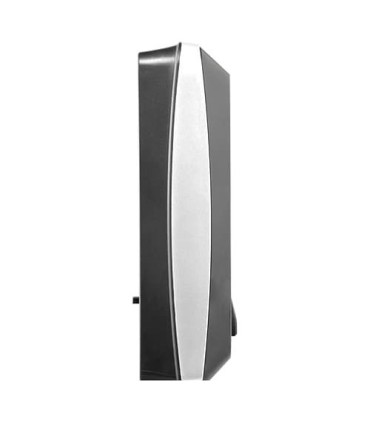

HY-AC010 - Hysoon Standalone Biometric Access Control Terminal with RFID and 2.8" TFT Display

HY-AC010 - Hysoon Standalone Biometric Access Control Terminal

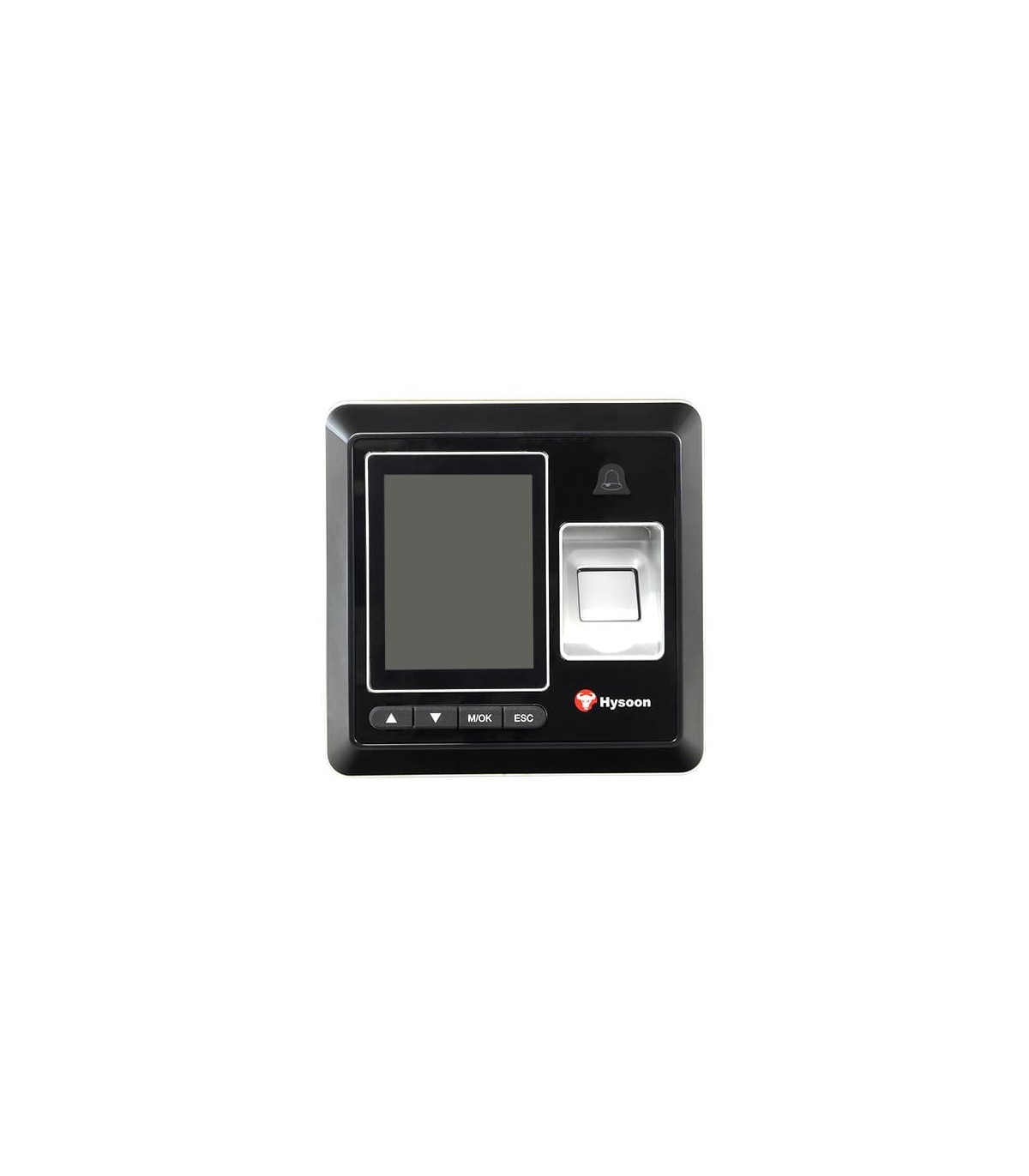

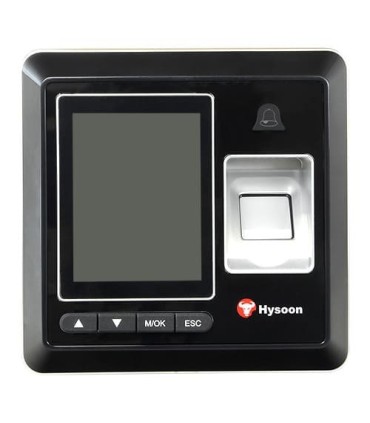

The HY-AC010 is a Hysoon standalone biometric access control terminal designed to manage user identification and control door access.

This device combines fingerprint recognition, RFID card reading and different authentication methods. It also features a colour TFT display and a mechanical keypad.

The integrated controller allows the terminal to operate as part of an access control system. Multiple communication interfaces simplify connectivity with compatible equipment.

Biometric Fingerprint Identification

The Hysoon HY-AC010 identifies users through fingerprint scanning. This method uses biometric characteristics to verify a person's identity.

Biometric authentication enables access control without relying exclusively on cards. The terminal also supports combinations of available identification methods.

The manufacturer specifies a verification time of less than 0.5 seconds. This provides a fast response during the identification process.

EM 125kHz RFID Card Reader

The terminal incorporates an EM 125kHz RFID card reader. Users can present a compatible card for identification.

This method provides an alternative to biometric recognition. It can also be used in supported authentication combinations.

EM 125kHz technology should be considered when selecting compatible cards. The technical datasheet does not specify compatibility with other RFID technologies.

Multiple Identification Methods

The HY-AC010 supports fingerprint identification and RFID cards. It also allows combinations of the available authentication methods.

This flexibility helps adapt identification procedures to different installation requirements. Configuration must follow the options supported by the terminal.

User Management and Access Records

The device supports up to 3,000 users. This capacity allows access credentials to be managed for multiple individuals.

Additionally, the terminal can store up to 160,000 event records. These records support access history consultation and event management.

Information management depends on the configuration and communication functions available within the system.

2.8-Inch Colour TFT Display

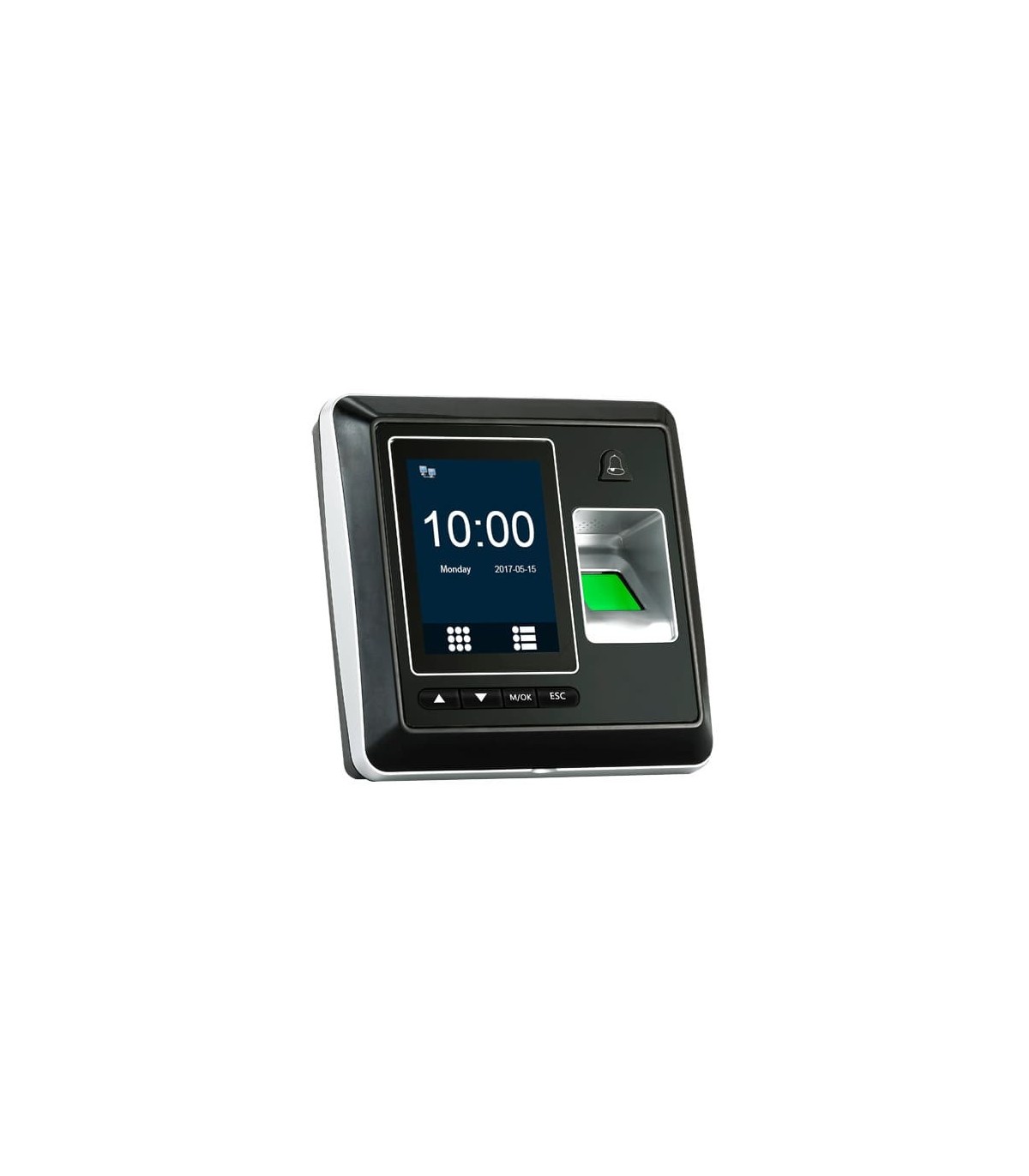

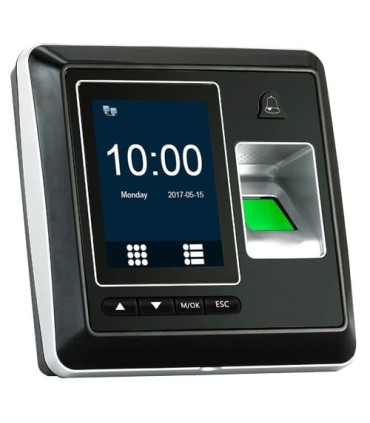

The Hysoon HY-AC010 biometric terminal features a 2.8" colour TFT display. Its screen provides a resolution of 320 × 240 pixels.

The display facilitates local interaction with the device. A mechanical keypad complements menu navigation and data entry.

The user manual documents an option for changing the system language. However, it does not specify which languages are available.

TCP/IP, USB and RS485 Communication

The HY-AC010 provides several communication interfaces. These options allow connectivity to be adapted to different system requirements.

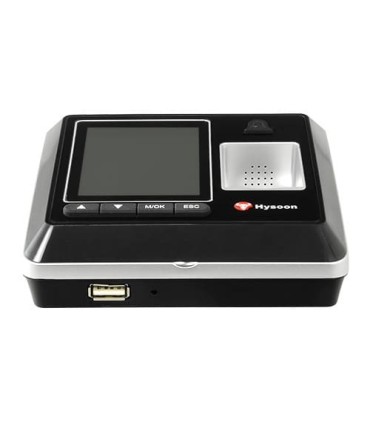

TCP/IP enables communication over a compatible network. The device also includes USB and RS485 interfaces for communication with a computer.

Interface selection depends on the existing infrastructure and the requirements of each installation.

Integration Through Wiegand IN and OUT

The terminal includes Wiegand IN and Wiegand OUT interfaces. These connections support integration with compatible access control equipment.

The Wiegand output supports 26-bit and 34-bit formats, according to the manufacturer's specifications.

Before integration, the required formats and system settings should be verified.

Integrated Access Controller

The Hysoon HY-AC010 features an integrated access controller. This functionality enables door access to be managed directly through the device.

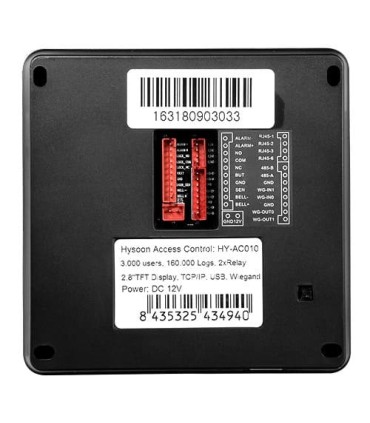

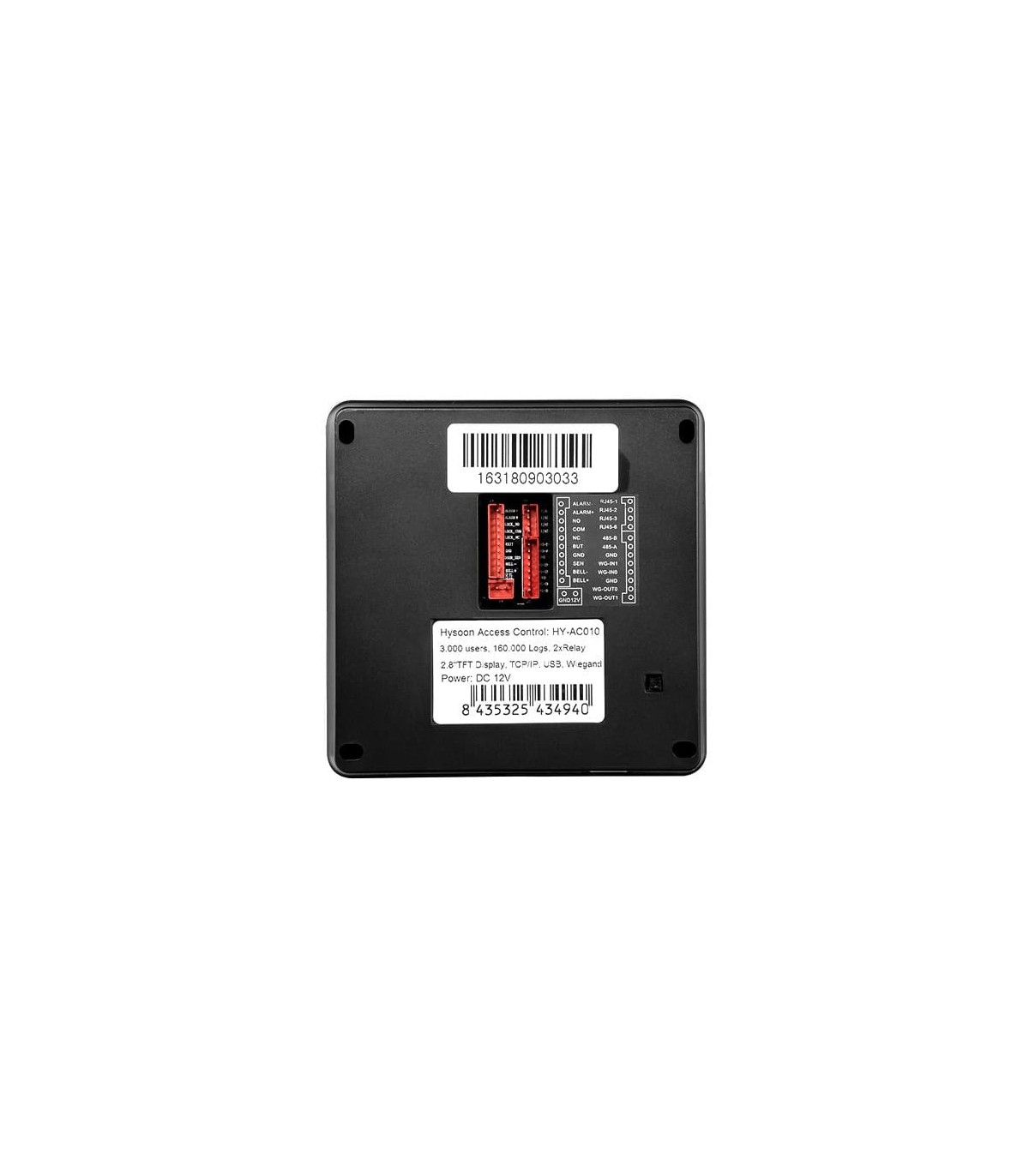

The terminal provides connections for a door sensor and an exit button. It also includes an NO/NC relay output and a doorbell connection.

These interfaces support standalone installations using compatible accessories and components.

Access Schedule Configuration

The HY-AC010 user manual documents access schedule configuration functions. These options allow time-based conditions to be established for system operation.

Settings should be configured according to installation requirements and the permissions assigned to users.

Anti-Passback Function

The device manual also documents an anti-passback function. This feature can be used in compatible access control configurations.

Its application depends on how entry and exit points are organised and how the system is configured.

Tamper Alarm Function

The HY-AC010 includes a tamper alarm function documented in its user manual.

This feature complements the device's security capabilities. Alarm configuration and operation should follow the manufacturer's instructions.

Included eTime Management Software

The manufacturer states that eTime management software is included free of charge, together with its access control module.

This software provides management functions supported by the system. Its use must comply with the software's installation and compatibility requirements.

The access control module complements the management functions available directly on the terminal.

Power Supply and Operating Conditions

The HY-AC010 requires a 12V DC power supply, with a specified maximum current of 2A.

Its operating temperature ranges from 0°C to +45°C. Installation conditions must remain within these limits.

The available documentation does not specify an IP protection rating. Therefore, no particular level of water or dust protection should be assumed.

HY-AC010 - Biometric Access Control with RFID and eTime Management

The Hysoon HY-AC010 combines biometric identification, RFID card reading and door control in a single device.

Its integrated controller supports standalone access control installations. Multiple communication interfaces provide different integration possibilities.

The TFT display and mechanical keypad simplify local operation. Meanwhile, eTime software complements the available management functions.

With support for 3,000 users and 160,000 event records, this terminal offers a solution for installations requiring user identification and access management.
