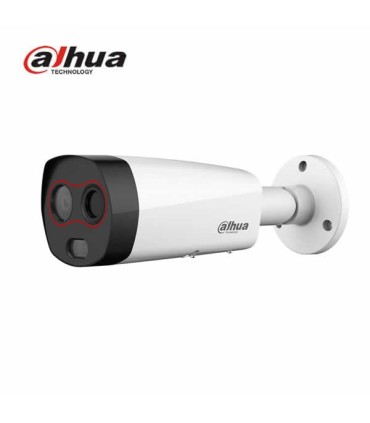

TPC-BF2221-HTM - Thermal Body Temperature Monitoring Camera

  • 256 × 192 Vanadium Oxide Uncooled FPA
  • Smart linkage with strobe light & audio
  • Temperature Accuracy ±0.3°C with black body
  • Temperature Measurement Range: 30°C to 45°C
  • IP67; Micro SD storage

Read moreShow less
Reference:
DH-TPC-BF2221-HTM
Brand:
Add to compare0
Add to wishlist
Description

Featuring two video channels, it can realize the high accuracy temperature measurement.
This series is designed for preliminary body temperature screening.

Dual-lens, thermal + visible bullet camera.
The combined thermal and visible technology is a 2 in 1 solution that combines a thermal camera for monitoring in total darkness and a visible camera with Smart IR to confirm details.
Supports reading body temperature in Standalone mode or with Blackbody (TPC-HBB-CHW).

Non-refrigerated vanadium oxide sensor
Effective pixels: 256 x 192
Pixel size: 12 µm
Thermal sensitivity (NETD): <50mK
Spectrum range: 8 ~ 14 µm
Focal length (thermal): 7.5 mm
Viewing angle (thermal): 24 ° (H), 18 ° (V)
Automatic and manual gain control
2D and 3D noise reduction
18 color palettes
Digital Detail Enhancement (DDE)
Supports up to 12 simultaneous measurement rules (12 points, 12 lines, 12 regions)
Temperature measuring range: 30 ° C ~ 45 ° C
Accuracy in temperature measurement: ± 0.3% with the Blackbody camera (TPC-HBB-CHW)
Accuracy in temperature measurement: ± 5 ° C, ± 1% without Blackbody camera
Image sensor (visible camera) 1 / 2.8 Sony CMOS 2 megapixel
Effective pixels: 1920 x 1080
Infrared illumination up to 50 meters
Minimum illumination: 0.005 lux (color) / 0.0005 lux (B / W) / 0 lux IR activated
Focusing distance (visible lens): 8 mm
Viewing angle (visible lens): 40 ° (H), 22 ° (V), 46 ° (D)
Removable mechanical filter
White balance: Automatic, Internal, External, Tracking, Manual, Sodium lamp, Daylight, Lamp post
Backlight compensation (BLC, HLC)
Digital WDR
2D-NR and 3D-NR noise reduction
Digital clearance
Digital image stabilization (EIS)
ROI
Video sensor
H.265, H.264, MJPEG video compression
Visible camera resolution: 1080P (1920x1080), 720P (1280x720), D1 (704x576), CIF (352x288)
Thermal flow 1: 1280x960, 1024x768, 640x480, 256x192 (25 ips)
Thermal flow 2: 640x480, 256x192 (25 ips)
Visible flow 1: 1920x1080 (default), 1280x720 (25 ips), 704x576 (25 ips)
Visible flow 2: 704x576 (25 ips), 352x288 (25 ips)
G.711A, G.711Mu and AAC audio compression
Two-way audio
2 alarm inputs / 2 outputs
1 RS485 port
Ethernet: RJ-45 (10/100 Base-T)
Network protocols: HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4 / v6, SNMP, QoS, UPnP, NT
Up to 20 users
Compatible with IE8, Chrome 42, Firefox 42, Safari 10 browsers
MicroSD card slot up to 256 GB (card not included)
Power 12V DC Consumption: 12W
Supports PoE (802.3af), ePoE
Operating temperature -30 ° C ~ + 60 ° C
Relative humidity: <95%
Degree of protection IP67
Dimensions: 103.8 (W) x 95.8 (H) x 279.9 mm
Weight: <1.7 kg

DH-TPC-BF2221-HTM_datasheet.pdf

Read moreShow less
Product Details
DH-TPC-BF2221-HTM

Data sheet

LENS
6 mm
CAMERA TYPE
Bullet
Thermal
