Dahua Technology
Reference: TPC-BF2221-HTM+TPC-HBB-CHW
KIt composed of:Dahua TPC-BF2221-HTM IP CameraBlackbody Dahua TPC-HBB-CHWDahua VCT-999 tripodDahua RAW021-00 interface
Fast Shipping
All orders are typically shipped within 24 hours.
Warranties
All our equipment comes with a 3-year warranty, excluding consumables.
Technical Support
Excellent customer support before and after the sale.
Quotes
Customized quotes are available at our facilities or by email.
Customer Service
Support is available by phone, WhatsApp, email, or in person at our stores.

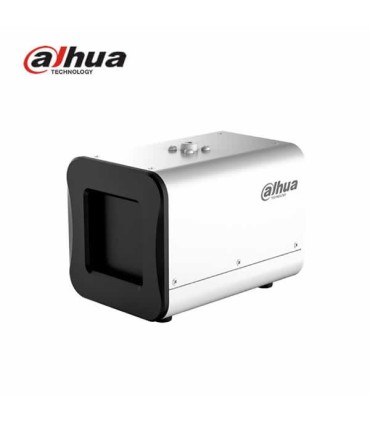

TPC-HBB-CHW - Blackbody Dahua for measuring body temperature
Blackbody to complement the body temperature measurement camera (TPC-BF2221-HTM)
Reference:
TPC-HBB-CHW
Brand:
The Blackbody is a calibration device that maintains a constant temperature as a reference point for the thermal camera, to ensure that the thermal camera can have a more accurate temperature.
The thermal camera in conjunction with the Blackbody calibration device offers a non-contact solution for continuous and non-invasive monitoring of body temperature.
Specifications
Standard calibration temperature of 35ºC
Temperature range: room temperature + 5°C ~ 50°C
70 x 70mm effective radiant surface
Temperature resolution: 0.1℃
Temperature accuracy: ± 0.2℃
Temperature stability: ± 0.1 ~ 0.2℃/30min
Emissivity: 0.97 (± 0.01)
Storage temperature -10°C ~ + 50°C
0℃ ~ + 40℃ operating temperature
Relative humidity of ≤80%
Power: 100V ~ 240V AC, 50 / 60Hz, 0.5A
Dimensions: 125 (W) x 125 (H) x 184mm
Weight 2.5 kg
Related products
Dahua Technology
Reference: RAW021-00
Adapter to install thermal cameras and blackbody on Dahua VCT-999 tripod
Dahua Technology
Reference: VCT-999
High-strength 6063T aluminum alloy tripod, aeronautical class and ABS resin PA-757, strong and durableMaximum load capacity up to 5 kgCompatible with DAHUA Blackbody via adapter (RAW021-00) or (RQW016-00)
Dahua Technology
Reference: DH-TPC-BF2221-HTM
256 × 192 Vanadium Oxide Uncooled FPA
Smart linkage with strobe light & audio
Temperature Accuracy ±0.3°C with black body
Temperature Measurement Range: 30°C to 45°C
IP67; Micro SD storage
