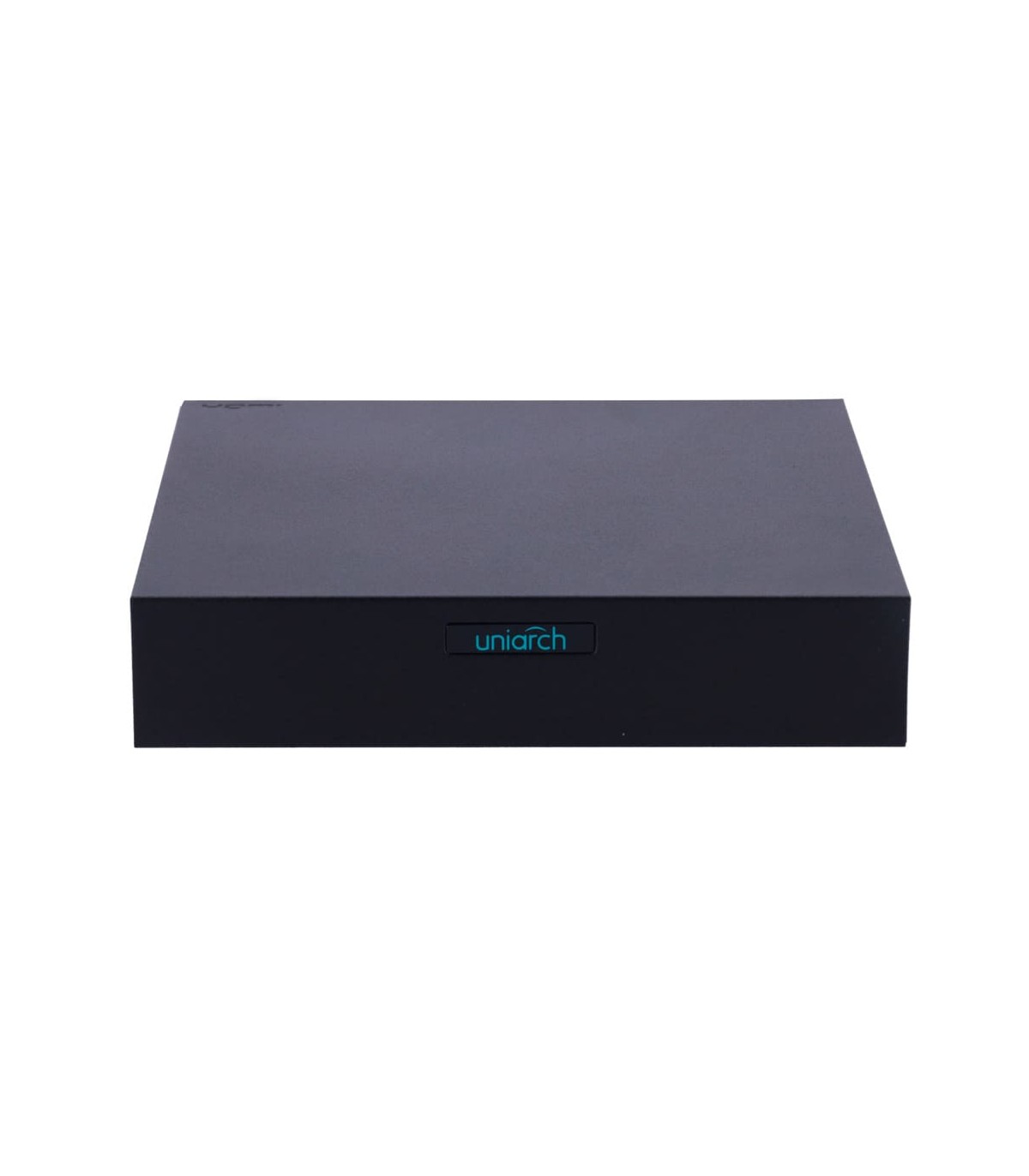

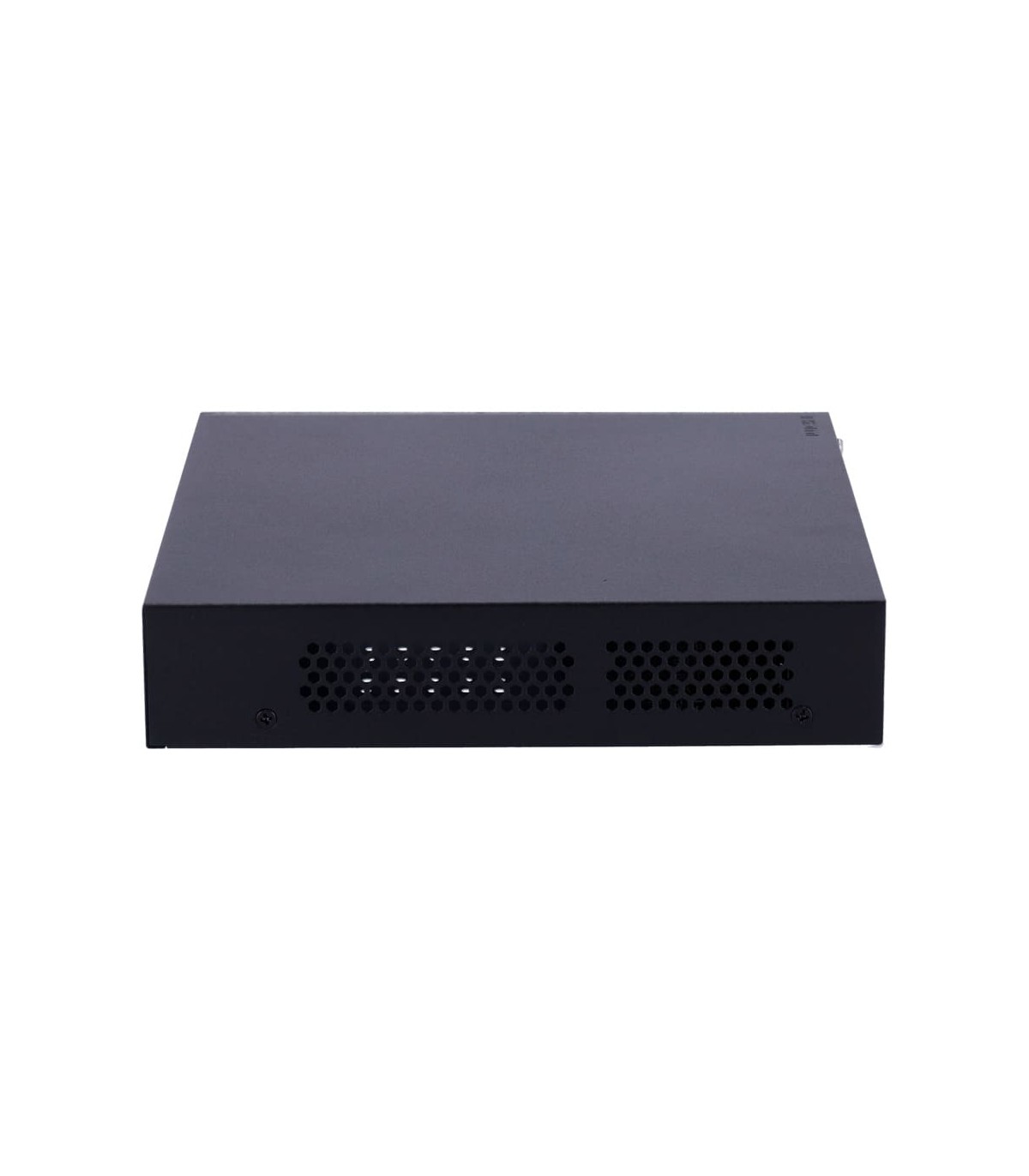

NVR-108S3-P8-ECO - Uniarch 8 Channel 8 PoE 6MP NVR

NVR-108S3-P8-ECO - Uniarch 8 Channel 8 PoE 6MP NVR

The NVR-108S3-P8-ECO is a Uniarch network video recorder designed for professional IP video surveillance systems. It can manage up to 8 IP cameras from a single device. The recorder also integrates 8 PoE ports for direct connection of compatible IP cameras.

The NVR supports cameras with resolutions up to 6MP. It uses Ultra 265, H.265 and H.264 video compression to optimise system resources. Incoming bandwidth reaches 64 Mbps, while outgoing bandwidth reaches up to 48 Mbps.

8 IP channel recording up to 6MP

This Uniarch NVR manages up to 8 IP channels and centralises camera recording in a single device. Support for resolutions up to 6MP allows high-resolution IP cameras to be integrated into the system. This helps maintain a high level of detail in recorded images.

Ultra 265 compression, together with H.265 and H.264, provides efficient management of video streams. It also helps optimise the storage resources available for recordings. The decoding capacity supports different combinations of resolutions and channels.

The recorder also supports UMD and VCA search. These features provide additional options for searching and managing compatible video events within the surveillance system.

NVR-108S3-P8-ECO with 8 built-in PoE ports

The NVR-108S3-P8-ECO integrates 8 PoE ports compatible with IEEE 802.3af/at standards. Each connection can transmit network data and provide electrical power through the same Ethernet cable.

Up to eight compatible PoE IP cameras can be connected directly to the recorder. This configuration reduces the need for external PoE switches or injectors. It also simplifies the network infrastructure and helps organise camera connections.

An Ethernet network interface provides connectivity with the local network. The recorder also supports ONVIF Profile S, G and T. This facilitates interoperability with compatible devices that use these profiles.

SATA storage and video playback

The NVR includes 1 SATA interface for recording storage. It supports a hard drive with a maximum capacity of 6TB. Storage requirements depend on factors such as camera resolution, bitrate, recording mode and retention period.

The recorder supports local synchronous playback of up to 8 channels. This allows recordings from several cameras to be viewed within the same system. Ultra 265 compression also helps optimise the available transmission and storage resources.

The NVR includes 2 USB 2.0 interfaces. These connections can be used with compatible USB devices for operations supported by the recorder.

HDMI, VGA and professional IP system management

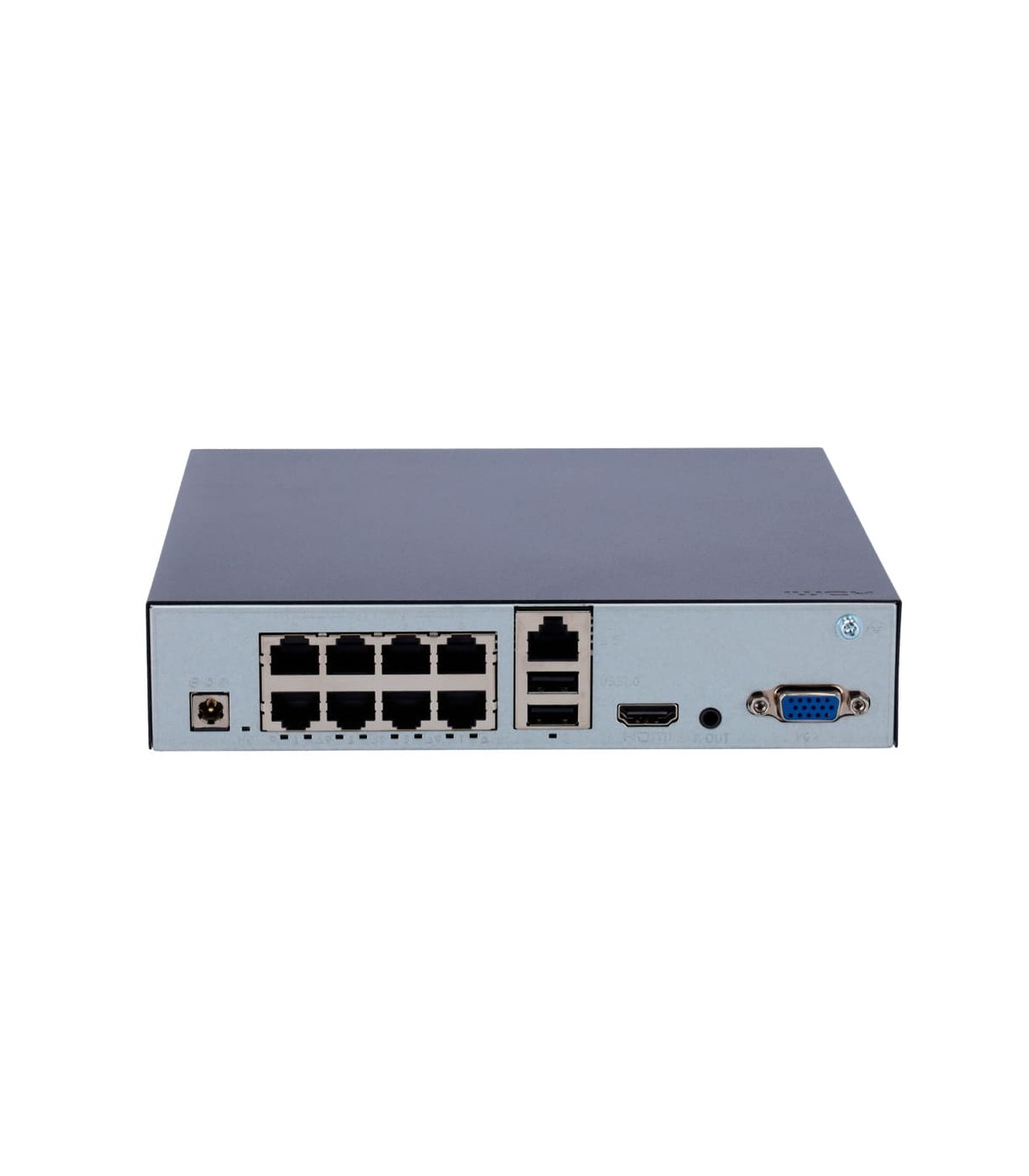

The HDMI and VGA video outputs allow the recorder to be connected directly to a monitor. Cameras can then be viewed locally, while recordings and system settings can also be accessed. SIP support provides additional integration possibilities.

The combination of eight IP channels and eight PoE ports makes the NVR a central component of the installation. Camera connectivity, recording, storage, playback and local viewing can all be managed from a single device.

This Uniarch NVR combines 8 IP channels, 8 PoE ports, resolution up to 6MP and Ultra 265. It also provides 64 Mbps incoming bandwidth, 48 Mbps outgoing bandwidth, UMD and VCA search. In addition, 1 SATA HDD up to 6TB, HDMI, VGA and ONVIF complete the IP video surveillance solution.
