NVR-104S3-P4-ECO - Uniarch 4 Channel 4 PoE 6MP NVR

NVR-104S3-P4-ECO - Uniarch 4 Channel 4 PoE 6MP NVR

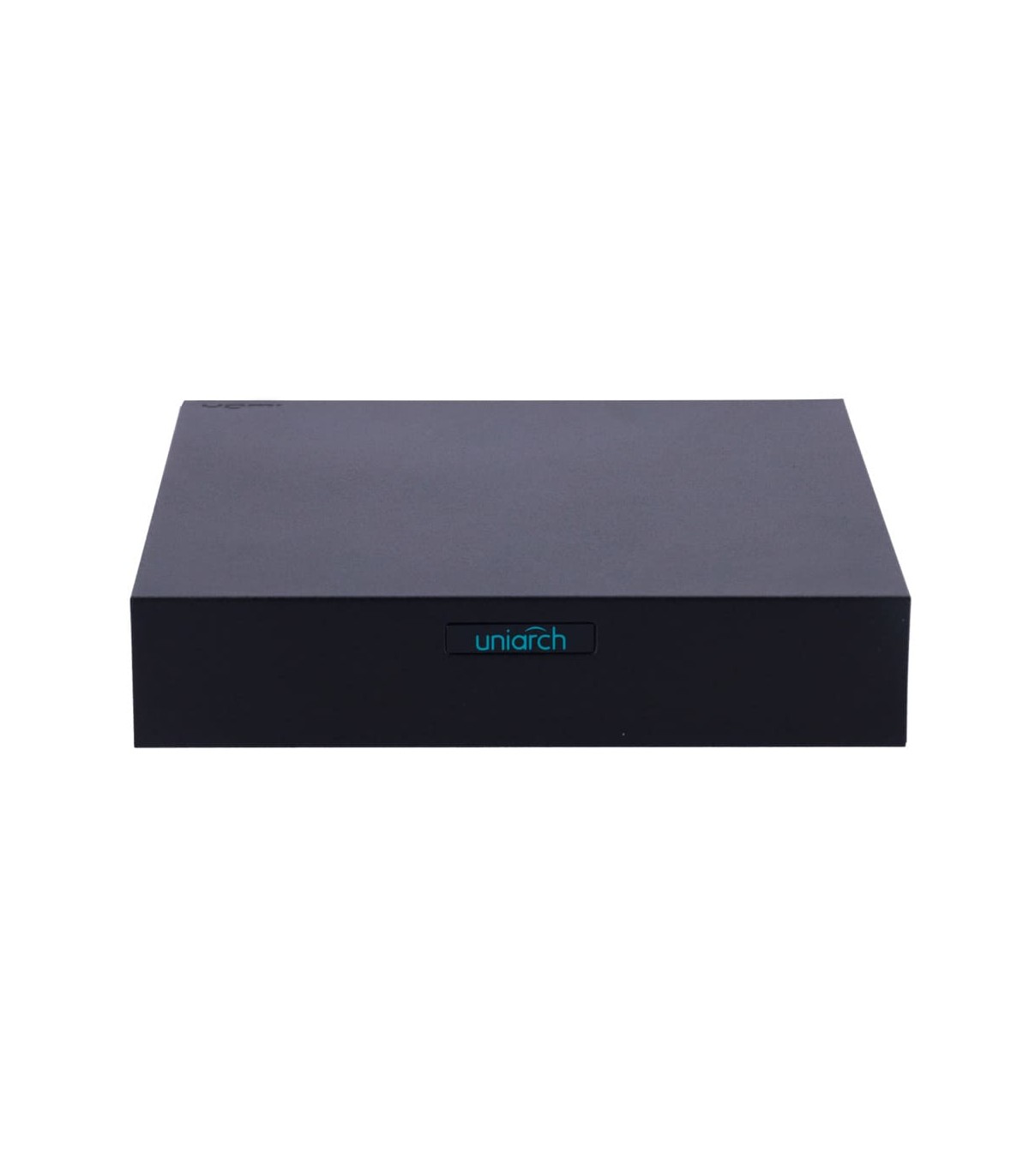

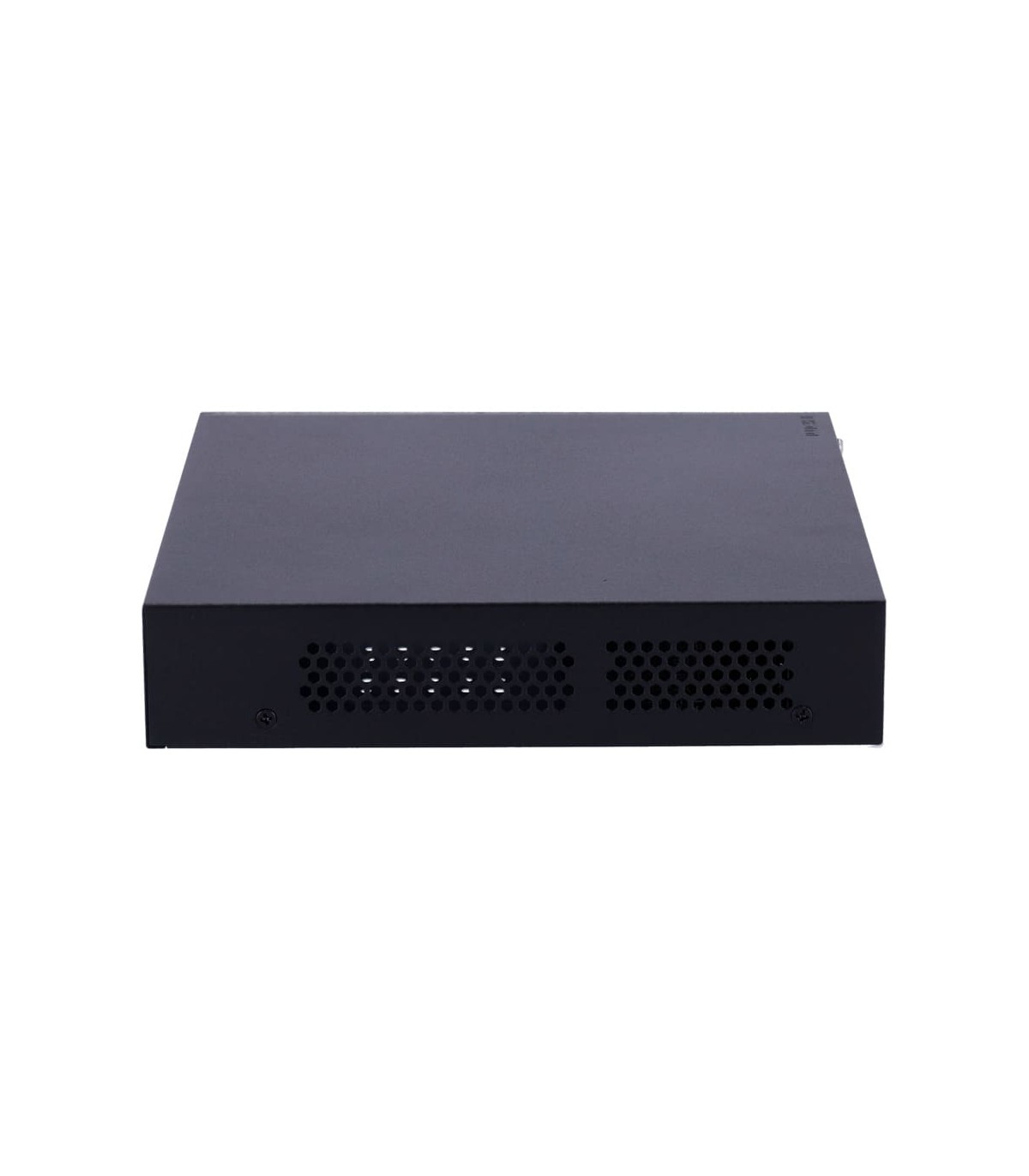

The NVR-104S3-P4-ECO is a Uniarch network video recorder designed for small IP video surveillance systems that require a compact solution for recording, managing and viewing security cameras. It provides 4 IP channels and integrates 4 PoE ports, allowing compatible IP cameras to be connected directly to the recorder using network cables.

The device supports cameras with resolutions up to 6MP and uses Ultra 265, H.265 and H.264 video compression formats. Incoming bandwidth can reach 64 Mbps, providing the capacity required to receive video streams from the cameras connected to the system.

4 IP channel recording up to 6MP

The recorder can manage up to 4 IP video channels, making it suitable for installations that require centralised recording of a limited number of cameras. Support for cameras with resolutions up to 6MP allows high-resolution devices to be integrated while maintaining a high level of detail in recorded images.

Ultra 265, H.265 and H.264 compression formats provide efficient management of video streams and available storage space. Ultra 265 technology helps optimise the resources used by the video surveillance system during video transmission and recording.

With incoming bandwidth of up to 64 Mbps, the recorder provides suitable capacity for receiving video streams from the installed IP cameras.

NVR-104S3-P4-ECO with 4 built-in PoE ports

The NVR-104S3-P4-ECO integrates 4 PoE ports, allowing network connectivity and electrical power to be supplied to compatible IP cameras through the same Ethernet cable. The PoE interfaces support the IEEE 802.3af/at standards.

This configuration allows up to four PoE cameras to be connected directly to the recorder, reducing the need for external PoE equipment and simplifying the infrastructure required for small IP video surveillance systems.

Network connectivity also allows the NVR to be integrated into an Ethernet infrastructure and communicate with other compatible devices. Support for ONVIF Profile S, G and T facilitates interoperability with devices using these profiles.

SATA storage and video playback

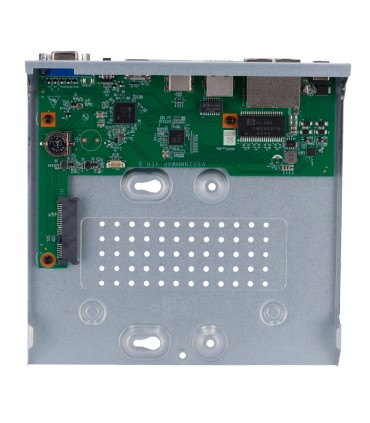

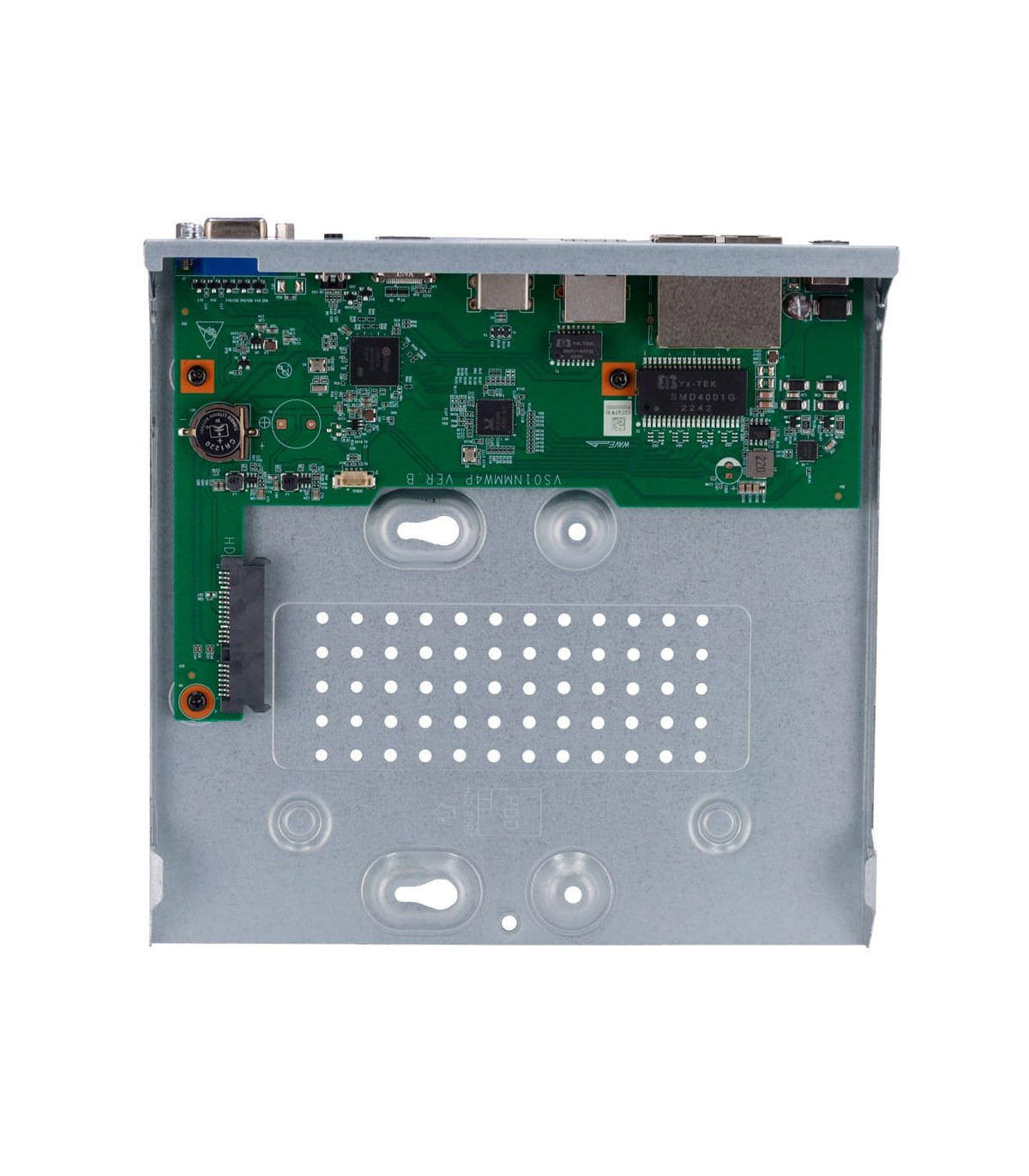

For recording storage, the NVR features 1 SATA interface and supports the installation of a hard drive with a capacity of up to 6TB. Storage capacity can therefore be configured according to camera resolution, recording settings and the required retention period.

The device supports local synchronous playback of up to 4 channels, allowing recordings from different cameras in the system to be viewed simultaneously.

The combination of Ultra 265 compression and internal storage helps optimise hard drive usage, particularly in systems where recordings are retained for extended periods.

HDMI, VGA and IP video surveillance integration

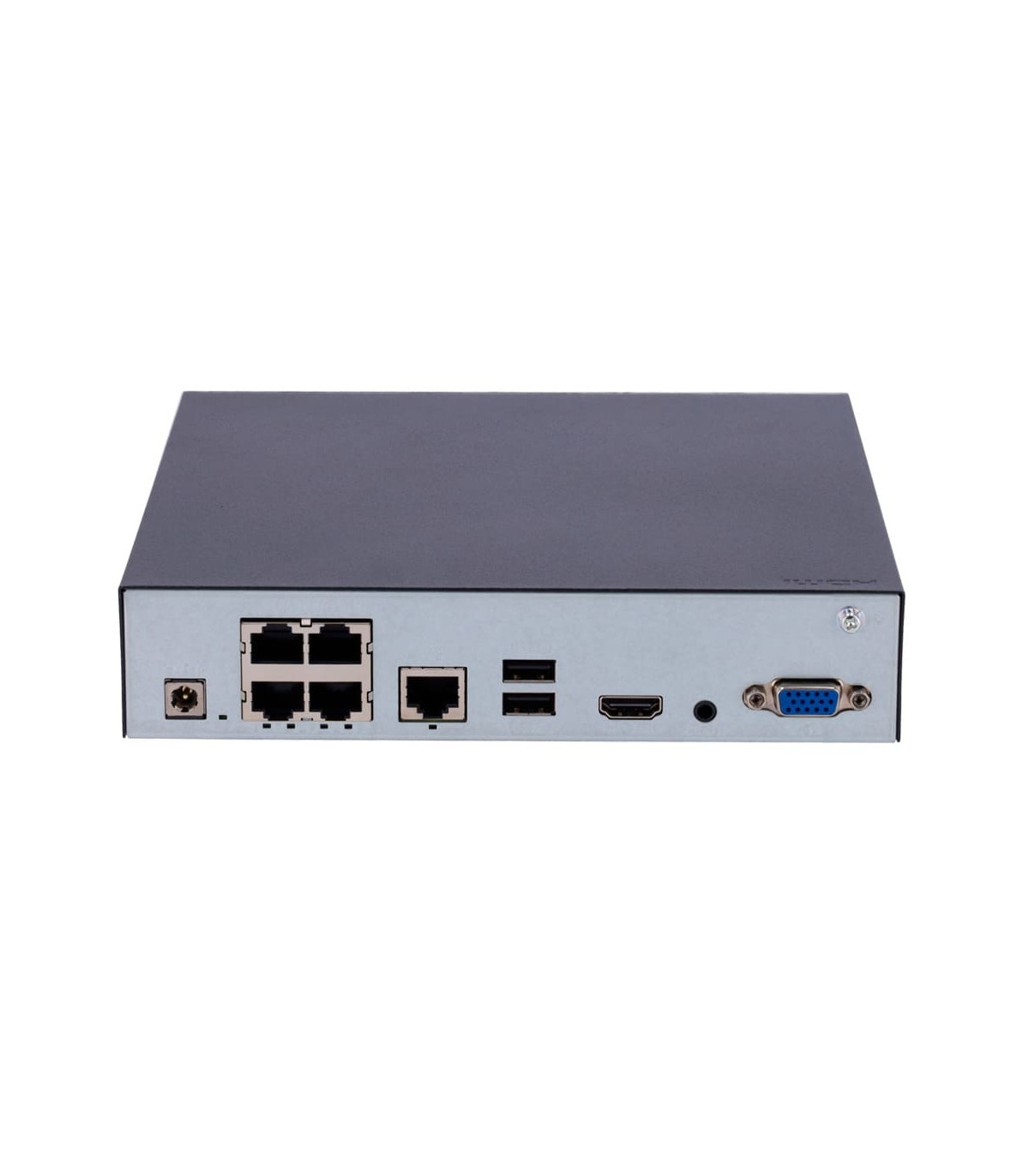

The recorder features HDMI and VGA video outputs for connection to monitors and local viewing of cameras and recordings. This configuration allows the device to be used as the central management and monitoring unit of the video surveillance system.

ONVIF compatibility and the Ethernet interface facilitate integration with compatible cameras and other network devices, while the four PoE ports allow cameras to be installed directly and efficiently.

With 4 IP channels, 4 PoE ports, support for resolutions up to 6MP, 64 Mbps incoming bandwidth, Ultra 265, 1 SATA HDD up to 6TB, HDMI, VGA and ONVIF, this Uniarch NVR provides a compact solution for professional IP video surveillance installations requiring the management of up to four cameras.
