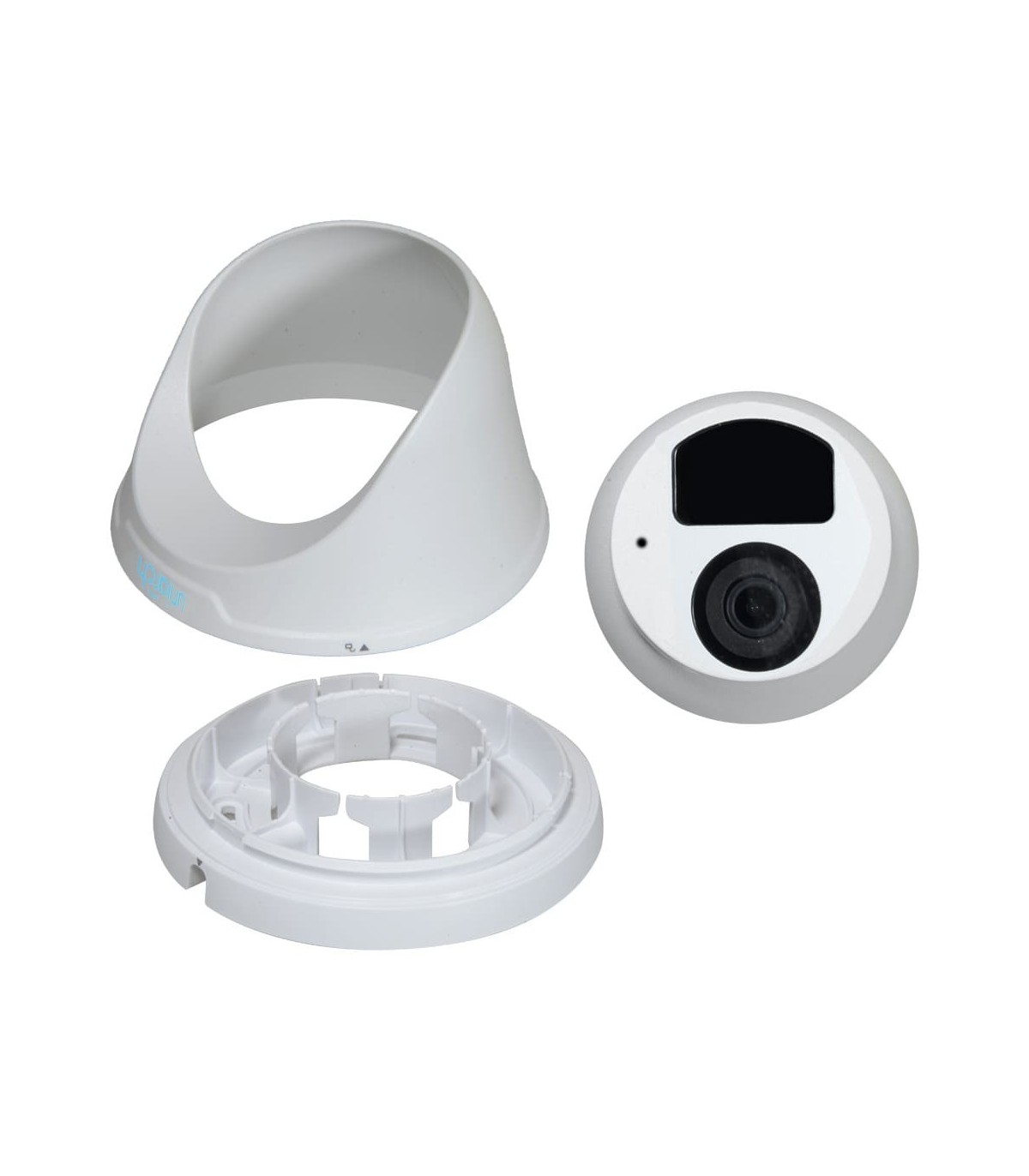

IPC-T124-APF28K - Uniarch 4MP 2.8mm Turret IP Camera

IPC-T124-APF28K - Uniarch 4MP 2.8mm Turret IP Camera

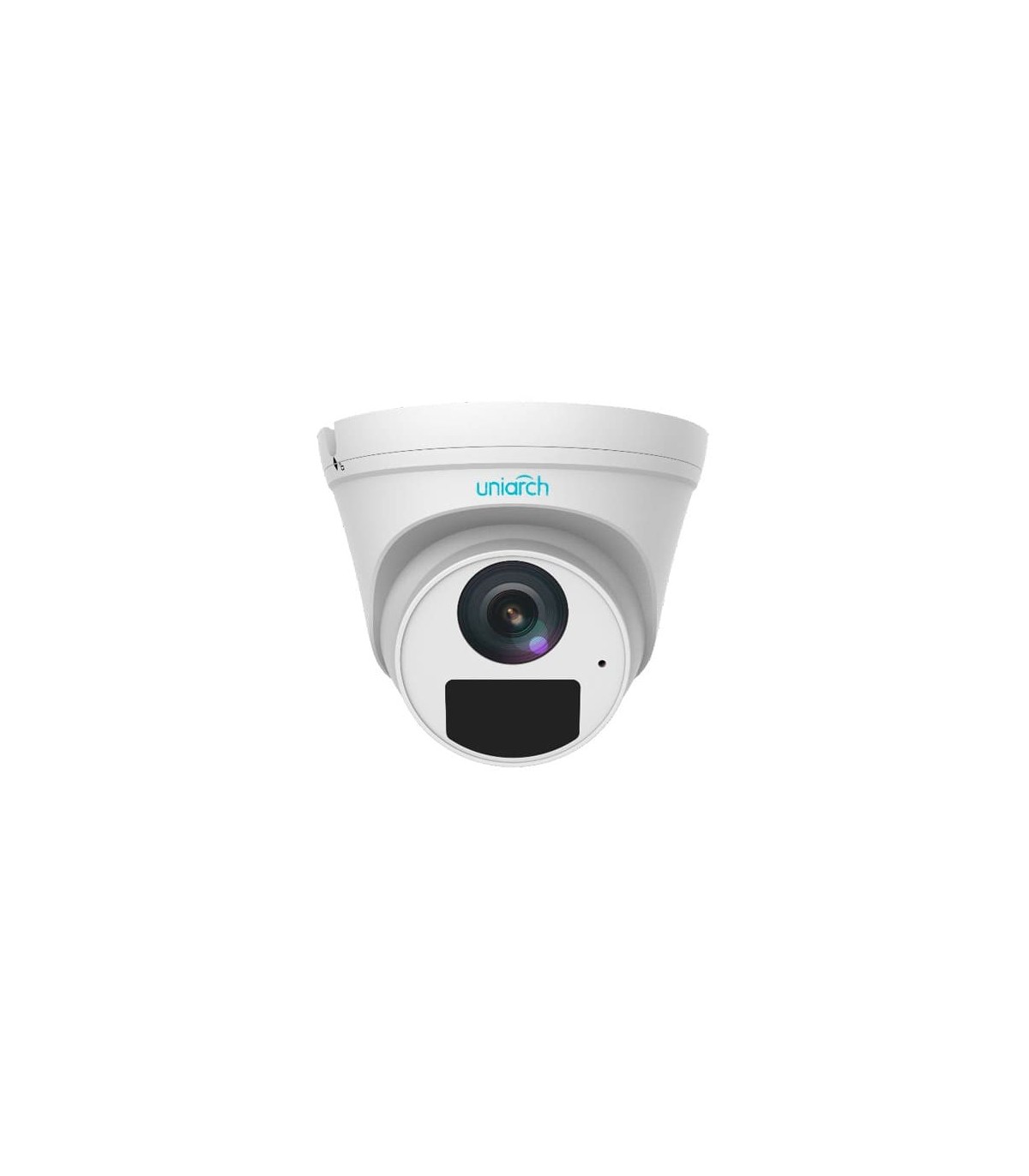

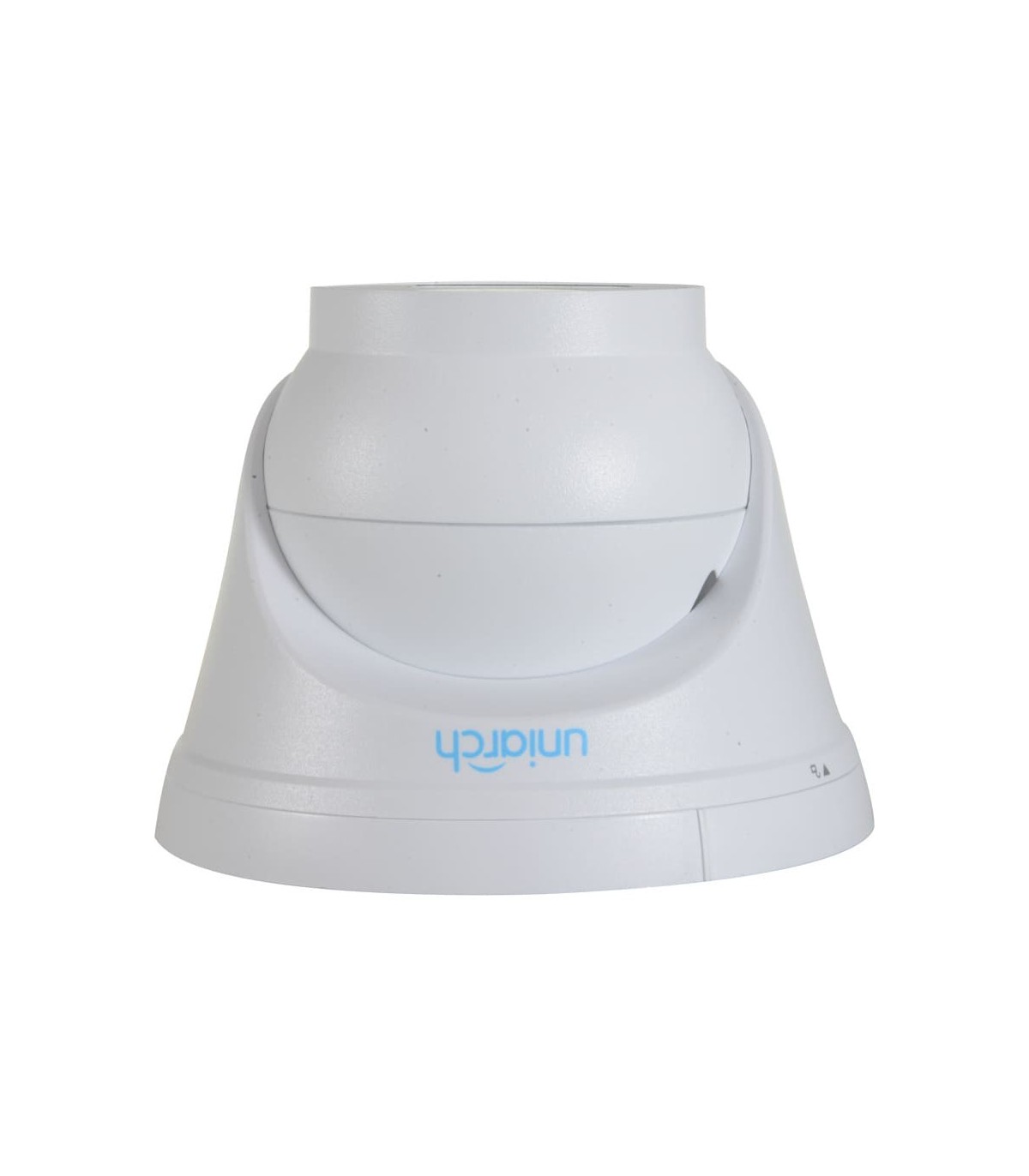

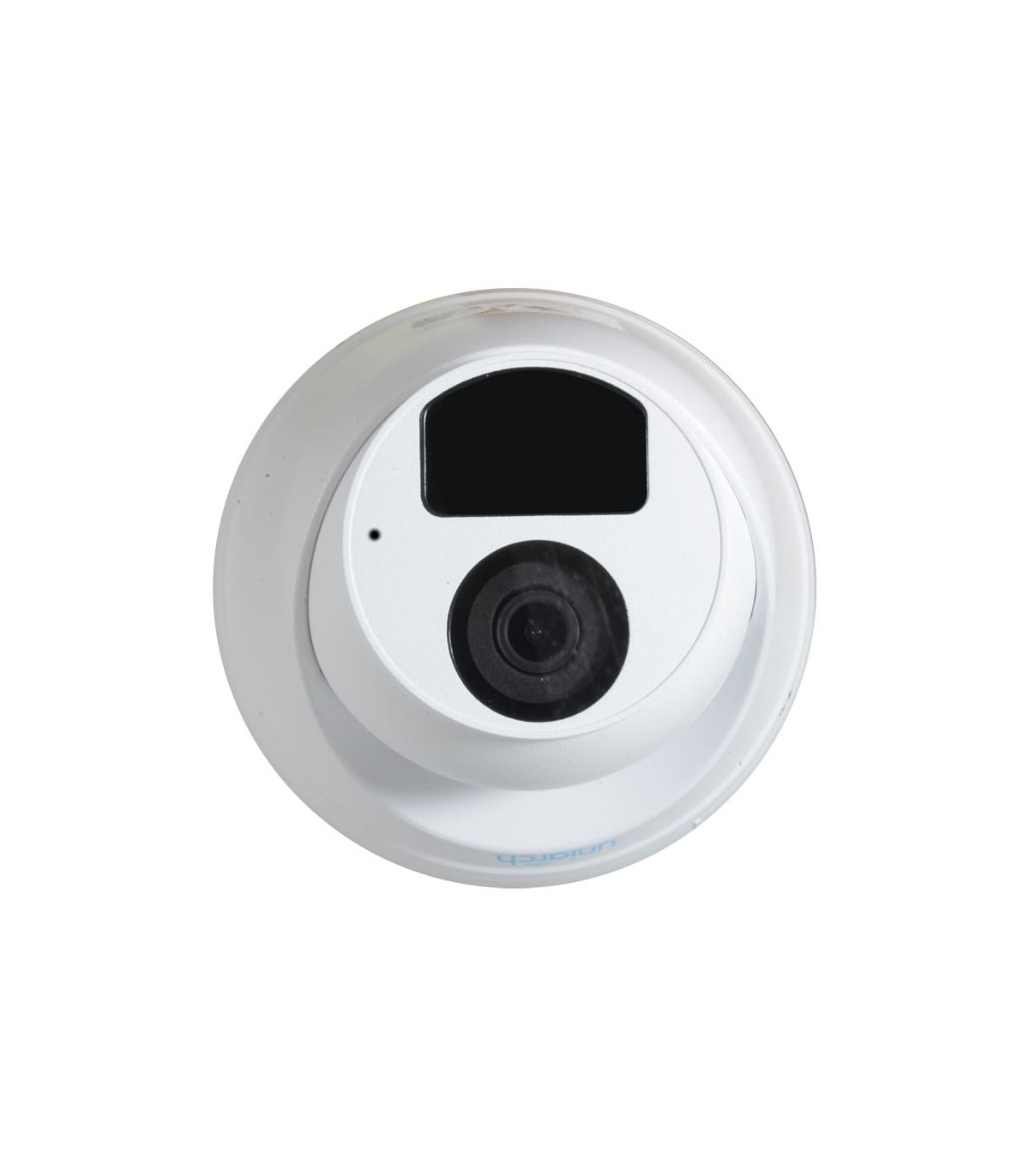

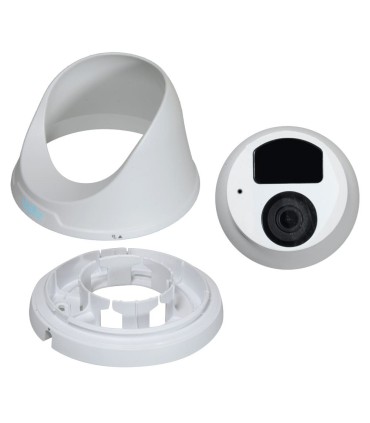

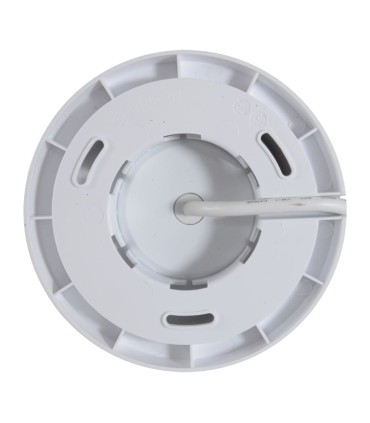

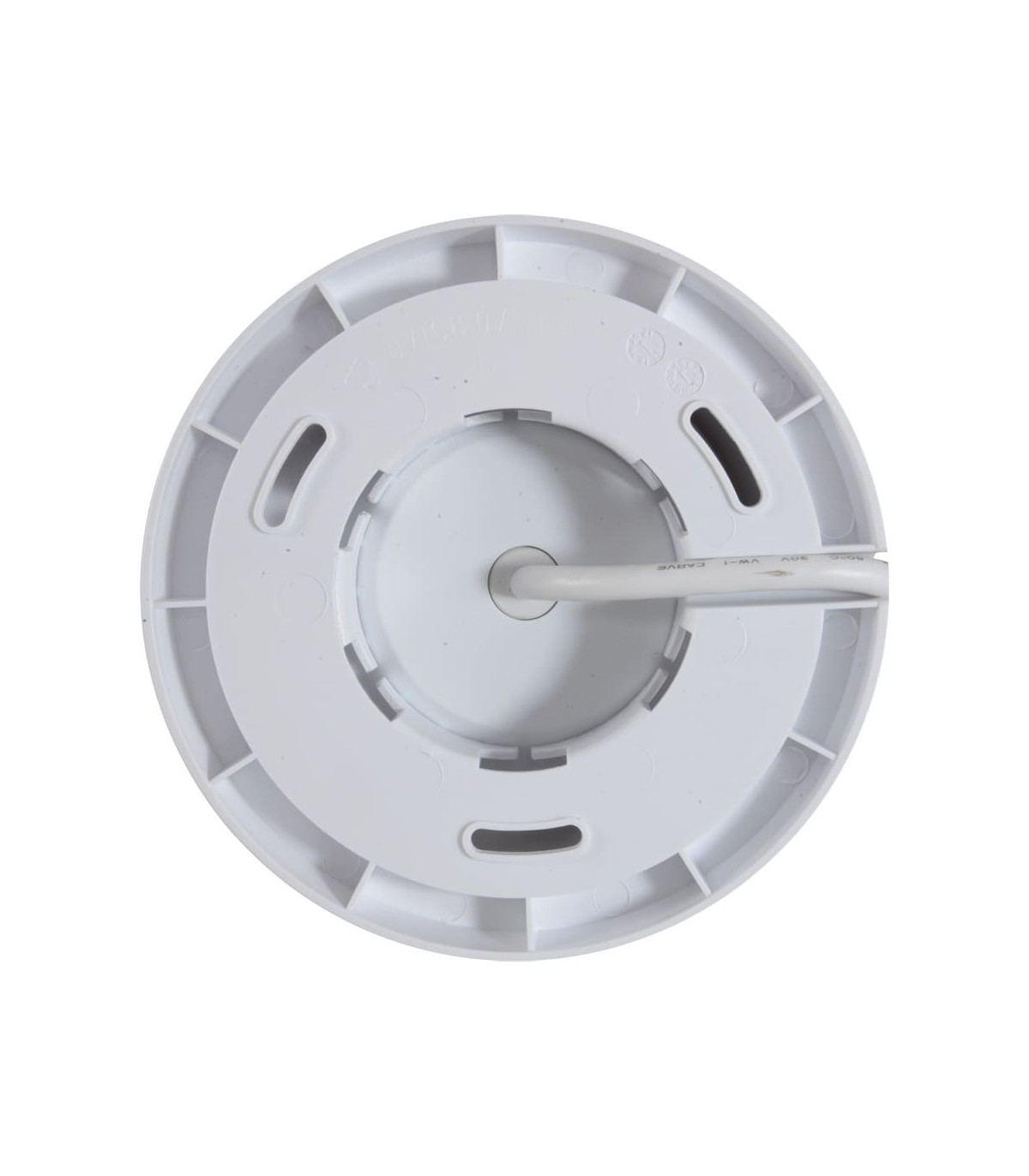

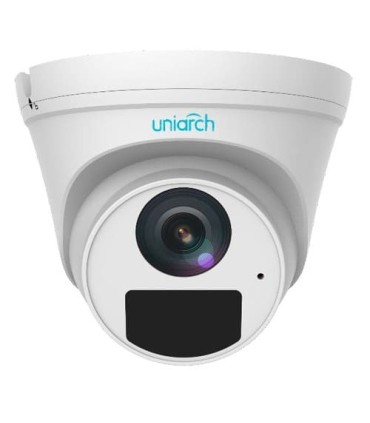

The IPC-T124-APF28K is a Uniarch Turret IP camera with 4MP (2560×1440) resolution, designed for professional IP video surveillance systems. Equipped with a 1/3" Progressive Scan CMOS sensor, fixed 2.8mm F2.1 lens and Smart IR illumination up to 30 metres, it provides video monitoring for both indoor and outdoor environments during the day and at night.

The camera combines image processing technologies such as DWDR, BLC, HLC, Digital Defog and 2D/3D DNR with Ultra 265, H.265, H.264 and MJPEG video compression. It also features a built-in microphone for audio capture, local storage via MicroSD cards up to 512GB and support for 12V DC or PoE power.

4MP image and fixed 2.8mm lens

The 1/3" Progressive Scan CMOS sensor allows the camera to capture images at a maximum resolution of 4MP (2560×1440). This resolution provides a suitable level of detail for video surveillance installations where high-definition images are required for monitoring and recording.

The fixed 2.8mm F2.1 lens provides a wide field of view of approximately 97° horizontal, 52.2° vertical and 107.5° diagonal. This configuration makes the camera suitable for monitoring areas where broad scene coverage is required.

To improve image quality under different lighting conditions, the camera features DWDR, BLC, HLC and Digital Defog. 2D/3D DNR digital noise reduction also helps reduce image noise and improve video quality in challenging conditions.

IPC-T124-APF28K with Smart IR up to 30 metres

The IPC-T124-APF28K features infrared illumination for surveillance in environments with little or no visible light. The Smart IR system provides an illumination range of up to 30 metres using 850nm infrared light.

Smart IR technology helps optimise infrared illumination intensity according to the monitored scene. The camera also provides Day/Night operation, allowing image capture to adapt to changing lighting conditions throughout the day.

With an IP67 protection rating, the camera provides suitable resistance against dust and water ingress, allowing installation in both indoor and outdoor environments.

Ultra 265, UMD and MicroSD storage

The camera supports Ultra 265, H.265, H.264 and MJPEG video compression formats. Ultra 265 technology helps optimise bandwidth usage and storage requirements, making it particularly useful for video surveillance systems with continuous recording.

Available detection functions include UMD, together with motion detection, audio detection and tampering detection. These functions complement conventional video monitoring by providing additional tools for identifying relevant events within the monitored area.

The built-in microphone allows audio to be captured directly at the installation location. For local recording, the camera supports MicroSD cards up to 512GB, enabling video to be stored directly on the device.

PoE, ONVIF and IP video surveillance integration

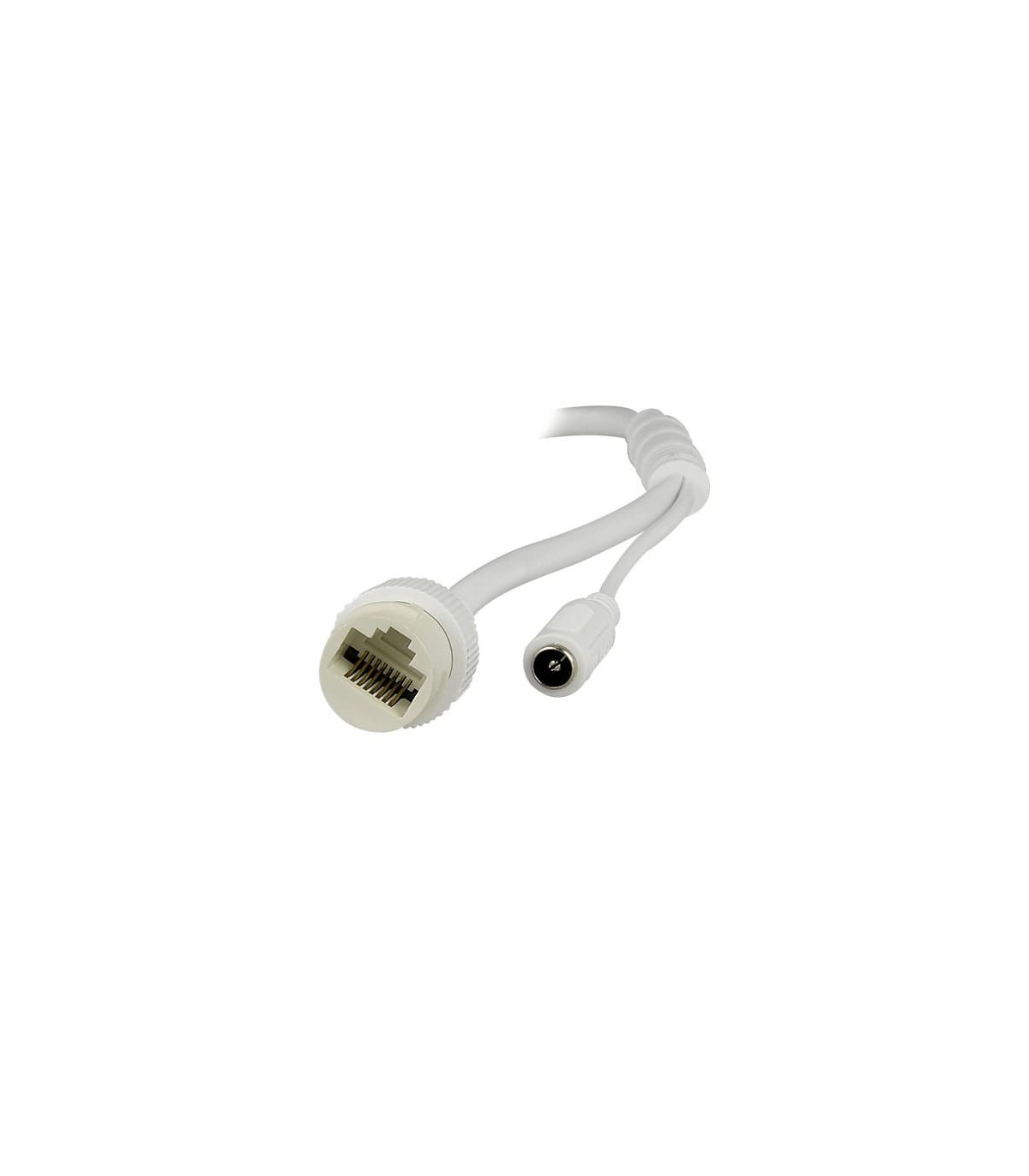

Network connectivity is provided through an RJ45 10/100 Base-TX Ethernet interface. Compatibility with ONVIF Profile S, G and T facilitates integration with IP video surveillance systems that support these profiles.

Power can be supplied via 12V DC or PoE IEEE802.3af. PoE allows electrical power and network data to be transmitted through the same Ethernet cable, simplifying the infrastructure required for installation.

With 4MP resolution, a 2.8mm lens, Smart IR up to 30 metres, Ultra 265 compression, UMD, a built-in microphone, MicroSD storage, ONVIF compatibility, PoE and IP67 protection, this Uniarch camera provides a comprehensive set of features for professional IP video surveillance systems.
